มีทั้งหมด 2 รุ่น คือ
1) Booster Relay IL100/XT240
Features | Booster Relay IL100/XT240
- Used when the piping distance between the instrumentation and operational area is long, or when the operational area has a large capacity
- Can help accelerate actuation speed considerably
Specifications | Booster Relay IL100/XT240
| Serie | Port size | Pressure ratio | Input/Output pressure |
|---|---|---|---|
| IL100 | Rc1/4, 3/8 | 1：1 | 0.7 MPa |
| XT240 | Rc. NPT 1/4 (SIG), 1 (SUP. OUT) | 1：1 | 0.7 MPa |

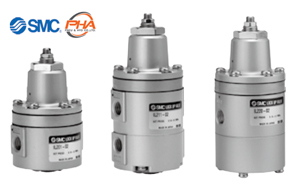

2) Lock-Up Valve IL201/211/220
Features | Lock-Up Valve IL201/211/220
The lock-up valve is used when any air source or air supply piping line failure occurs in the air operated process control line. Single acting, Double acting: Retains the pressure at the operating area as an emergency operation until the air source recovers to its normal state 3-port: Changes the supply port if a problem occurs
ดาวน์โหลดไฟล์ PDFSpecifications | Lock-Up Valve IL201/211/220
| Series | Port size | Set pressure (MPa) | Shut-off pneumatic circuit pressure |
|---|---|---|---|
| IL201/211/220 | Rc1/4 | 0.14 to 0.7 | Max. 0.7 MPa |
