SMC - Regulators
SMC - Regulators
มีทั้งหมด 3 รุ่น คือ
- Filter Regulator 1301/IW
- Filter Regulator: Made to Order AW30-B to AW60-B-X430/X440
- Filter Regulator AW30/40-X2622

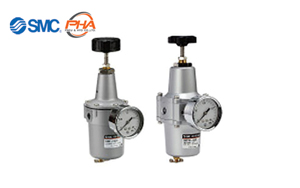

1) Filter Regulator 1301/IW
Features | Filter Regulator 1301/IW
- Two types are available: adjustable set pressure type and fixed set pressure type.
- Low/High temperature and external parts copper-free types can be selected.
- Pressure gauge connecting direction: 2 directions (Front/Back)
- Weight: 0.66 kg (Adjustable type), 0.58 kg (Fixed type)
Specifications | Filter Regulator 1301/IW
| Series | Port size | Set pressure (MPa) | Filtration accuracy (μm) |
|---|---|---|---|
| IW | Rc1/4 | 0.02 to 0.2 0.02 to 0.3 0.02 to 0.5 |
5 |
| 1301 | Rc1/4 | 0.02 to 0.2 0.02 to 0.29 0.02 to 0.49 |
5 |

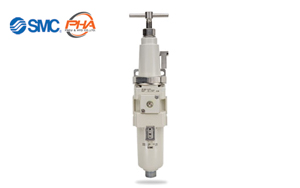

2) Filter Regulator: Made to Order AW30-B to AW60-B-X430/X440
Features | Filter Regulator: Made to Order AW30-B to AW60-B-X430 / X440
Special temperature environment: Special materials are used in the manufacturing of seals and resin parts to allow them to withstand various temperature conditions in cold or tropical (hot) climates.
ดาวน์โหลดไฟล์ PDFSpecifications | Filter Regulator: Made to Order AW30-B to AW60-B-X430 / X440
| Series | Environment | Port size | Set pressure (MPa) | Filtration accuracy (μm) |
|---|---|---|---|---|
| AW30-B to AW60-B-X430 | Low temperature -30 to 6 |
1/4 to 1 | 0.05 to 0.85 | 5 |
| AW30-B to AW60-B-X440 | High temperature -5 to 80℃ |
1/4 to 1 | 0.02 to 0.2 | 5 |

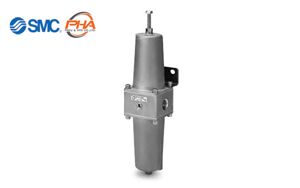

3) Filter Regulator AW30/40-X2622
Features | Filter Regulator AW30/40-X2622
- Stainless steel 316 and special temperature environment (-40℃) specifications
- Material of external parts: Stainless steel 316
- Ambient and fluid temperatures: -40 to 80 ℃
- NACE International Standards compliant
Specifications | Filter Regulator AW30/40-X2622
| series | Environment | Set pressure (MPa) | Filtration accuracy (μm) |
|---|---|---|---|
| AW30-B to AW60-B-X440 | 1/4, 3/8, 1/2, 3/4 | 0.05 to 0.85 | 5 |
