Regulators
มีทั้งหมด 26 รุ่น คือ
- Miniature Regulator ARJ1020F
- Miniature Regulator ARJ210
- Miniature Regulator ARJ310
- Compact Manifold Regulator ARM5S
- Compact Manifold Regulator ARM10
- Pilot Operated Regulator AR
- Compact Regulator ARX
- MR Unit (Regulator with Mist Separator) AMR
- Compact Manifold Regulator ARM5
- Compact Manifold Regulator ARM10/11
- Manifold Regulator ARM1000/2000
- Manifold Regulator ARM2500/3000
- Direct Operated Precision Regulator ARP
- Regulator IR1200-A / 2200-A / 3200-A
- Precision Regulator IR1000-A / 2000-A / 3000-A
- Precision Regulator IR
- Vacuum Regulator IRV
- Power Valve / Precision Regulator VEX
- Clean Regulator SRH
- Precision Clean Regulator SRP
- Clean Regulator / Fluororesin Type SRF
- Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR

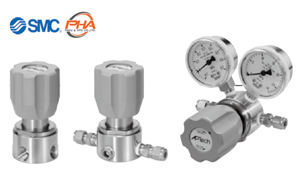

- Regulator for General Applications AK1000T
- Water Regulator WR110
- Water Strainer WF300
- Pressure Control Valve (Relief Valve) AP100
1) Miniature Regulator ARJ1020F
Features | Miniature Regulator ARJ1020F
- Compact and lightweight (16 g)
- Low cracking pressure: 0.02 MPa
- Standard model comes equipped with backflow function.
- Manifold base (Option)
Specifications | Miniature Regulator ARJ1020F
| Series | Features | Port size | Set pressure (MPa) |
|---|---|---|---|
| ARJ1020F | Direct operated relieving type with backflow function |
M5 | 0.1 to 0.7 |
2) Miniature Regulator ARJ210
Specifications | Miniature Regulator ARJ210
| Series | Features | Port size | Set pressure (MPa) |
|---|---|---|---|
| ARJ210 | Direct operated relieving type |
Male thread: 1/8 Female thread: M5 x 0.8 |
0.2 to 0.7 |
3) Miniature Regulator ARJ310
Features | Miniature Regulator ARJ310
- Compact and lightweight (Body 65 g)
- Short-pitch mounting is possible: Mounting pitch 18.5 mm
- Series with One-touch fittings
Specifications | Miniature Regulator ARJ310
| Series | Features | Port size | Set pressure (MPa) |
|---|---|---|---|
| ARJ310 | Direct operated relieving type |
IN: 1/8 (Male thread) M5 x 0.8 (Female thread) OUT: 1/8 (Female thread) |
0.2 to 0.7 |
4) Compact Manifold Regulator ARM5S
Features | Compact Manifold Regulator ARM5S
- Lightweight: 33 g (For the ARM5SA-08-A)
- Mounting method: Direct mounting/DIN rail mounting
Specifications | Compact Manifold Regulator ARM5S
| Series | Features | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size | Set pressure (MPa) |
|---|---|---|---|---|
| ARM5S | Direct operated relieving type Interlocked non-relieving type (Semi-standard) |
φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
5) Compact Manifold Regulator ARM10
Features | Compact Manifold Regulator ARM10
- Lightweight: 60 g (For the ARM10)
- Without pressure display, With pressure gauge, With digital pressure switch
- Oil-free (Semi-standard)
Specifications | Compact Manifold Regulator ARM10
| Series | Features | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size | Set pressure (MPa) |
|---|---|---|---|---|
| ARM10 | Direct operated relieving type Interlocked non-relieving type (Semi-standard) |
φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
| ARM10F (Knob front face) |
Direct operated relieving type Interlocked non-relieving type (Semi-standard) |
φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
6) Pilot Operated Regulator AR
Specifications | Pilot Operated Regulator AR
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| AR425 to 925 | 1/4, 3/8, 1/2, 3/4, 1 1/4, 1 1/2, 2 | 0.05 to 0.83 |
| AR435 to 935 | 1/4, 3/8, 1/2, 3/4, 1 1/4, 1 1/2, 2 | 0.02 to 0.2 |

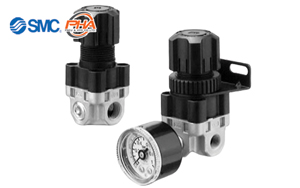

7) Compact Regulator ARX
Features | Compact Regulator ARX
- Compatible with inlet supply pressures of 2.0 MPa
- Ideal for discharge pressure adjustment on small compressors
- Piston type
- Ideal for the pressure adjustment of air blowing applications
Specifications | Compact Regulator ARX
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ARX20 | 1/4, 1/8 | 0.05 to 0.85 |
8) MR Unit (Regulator with Mist Separator) AMR
Features | MR Unit (Regulator with Mist Separator) AMR
- Integrated mist separator and regulator
- Filtration: 0.3 μm.
Specifications | MR Unit (Regulator with Mist Separator) AMR
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| AMR | 1/4, 3/8, 1/2, 3/4, 1 | 0.05 to 0.85 |
9) Compact Manifold Regulator ARM5
Features | Compact Manifold Regulator ARM5
- Width: 14 mm
- Select from 2 kinds of mounting methods: Direct mounting and DIN rail mounting
- Standard model comes equipped with backflow function.
- Select from a variety of One-touch fitting sizes.
Specifications | Compact Manifold Regulator ARM5
| Series | Model | Features | Applicable tubing bore size Metric size | Applicable tubing bore size Inch size | Set pressure (MPa) |
|---|---|---|---|---|---|
| ARM5A | Manifold specifications |
Common air supply | φ4, φ6, φ8 | φ5/32, φ1/4, φ5/16 | 0.05 to 0.7 |
| ARM5B | Manifold specifications |
Individual air supply |
φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
| ARM5S | Single unit specifications | Individual air supply |
φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
10) Compact Manifold Regulator ARM10/11
Features | Compact Manifold Regulator ARM10/11
- Free selection in response to positioning conditions Knob positions: Top / Front / Bottom Piping directions: Up/Down One-touch fitting types: Straight/Elbow
- Types and sizes of One-touch fittings can be changed.
- Standard model comes equipped with backflow function.
- Compatible with digital pressure switches
Specifications | Compact Manifold Regulator ARM10/11
| Series | Model | Features | Applicable tubing bore size Metric size | Applicable tubing bore size Inch size | Set pressure (MPa) |
|---|---|---|---|---|---|
| ARM11A | Manifold specifications |
Common air supply | φ4 to φ10 | φ5/32 to φ3/8 | 0.05 to 0.7 |
| ARM11B | Manifold specifications |
Individual air supply | φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
| ARM10 | Single unit specifications |
Standard | φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
| ARM10F | Single unit specifications |
Knob front face | φ4, φ6 | φ5/32, φ1/4 | 0.05 to 0.7 |
11) Manifold Regulator ARM1000/2000
Features | Manifold Regulator ARM1000/2000
- With a ø15 compact pressure gauge (Option)
- Standard model comes equipped with backflow function.
Specifications | Manifold Regulator ARM1000/2000
| Series | Features | Port size | Set pressure (MPa) |
|---|---|---|---|
| ARM1000, 2000 | Manifold (Common IN, Individual IN) Direct operated relieving type With backflow function |
1/8 | 0.05 to 0.7 |
12) Manifold Regulator ARM2500/3000
Features | Manifold Regulator ARM2500/3000
- A modular type that can be freely mounted on a manifold station
- Optimal for central pressure control
- Uses a One-touch lock handle
Specifications | Manifold Regulator ARM2500/3000
| Series | Features | Port size | Set pressure (MPa) |
|---|---|---|---|
| ARM2500, 3000 | Manifold (Common IN, Individual IN) Modular type | 1/4, 3/8 | 0.05 to 0.85 |

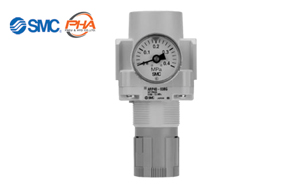

13) Direct Operated Precision Regulator ARP
Features | Direct Operated Precision Regulator ARP
- Setting sensitivity: Within 0.2% F.S.
- Energy saving: Reduces air consumption by 80% (SMC comparison)
- Repeatability: Within ±1% F.S. (or within ±3 kPa)
- With backflow function (ARP20K/30K/40K) Can be mounted between a solenoid valve and a cylinder
Specifications | Direct Operated Precision Regulator ARP
| Series | Port size | Set pressure range |
|---|---|---|
| ARP20(K) | 1/8, 1/4 | 0.005 to 0.4MPa 0.005 to 0.2MPa 0.008 to 0.6MPa |
| ARP30(K) | 1/4, 3/8 | 0.005 to 0.4MPa 0.005 to 0.2MPa 0.008 to 0.6MPa |
| ARP40(K) | 1/4, 3/8, 1/2 | 0.005 to 0.4MPa 0.005 to 0.2MPa 0.008 to 0.6MPa |
14) Regulator IR1200-A / 2200-A / 3200-A
Features | Regulator IR1200-A / 2200-A / 3200-A
- Air consumption: Bleed air "O"
- High flow rate: to approx twice that of the existing SMC product
- Lightweight: Reduced by up to approx 27%
(Compared to the existing SMC product) - Repeatability: ±1% (Full span)
Specifications | Regulator IR1200-A / 2200-A / 3200-A
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| IR1200-A | 1/8 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
| IR2200-A | 1/4 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
| IR3200-A | 1/4, 3/8, 1/2 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
15) Precision Regulator IR1000-A / 2000-A / 3000-A
Features | Precision Regulator IR1000-A / 2000-A / 3000-A
- Air consumption: Reduced by up to approx. 90% (Compared to the existing SMC product)
- High flow rate: Up to approx. twice that of the existing SMC product
- Lightweight: Reduced by up to approx. 27% (Compared to the existing SMC product)
- Sensitivity: 0.2% (Full span)
- Repeatability: ±0.5% (Full span)
Specifications | Precision Regulator IR1000-A / 2000-A / 3000-A
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| IR1000-A | 1/8 | 0.005 to 0.2 0.01 to 0.4 0.01 to 0.8 |
| IR2000-A | 1/4 | 0.005 to 0.2 0.01 to 0.4 0.01 to 0.8 |
| IR3000-A | 1/4, 3/8, 1/2 | 0.01 to 0.2 0.01 to 0.4 0.01 to 0.8 |

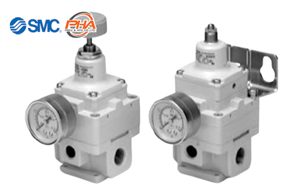

16) Precision Regulator IR
Features | Precision Regulator IR
- Tension control
- Contact pressure control
- Setting sensitivity: Within 0.2% F.S
- Repeatability: Within ±0.5% F.S.
Specifications | Precision Regulator IR
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| IR1000 | 1/8 | 0.005 to 0.2 0.01 to 0.4 0.01 to 0.8 |
| IR2000 | 1/4 | 0.005 to 0.2 0.01 to 0.4 0.01 to 0.8 |
| IR3000 | 1/4, 3/8, 1/2 | 0.01 to 0.2 0.01 to 0.4 0.01 to 0.8 |
17) Vacuum Regulator IRV
Features | Vacuum Regulator IRV
- Allows for the adjustment of vacuum line pressure
- Single-sided connection series
- Weight reduced by 20% (Compared with the previous IRV2000 with IRV20 fitting)
- Built-in One-touch fittings
- The pressure gauge and digital pressure switch can be easily attached/detached due to being attached by a clip.
- Mounting direction of the pressure gauge and digital pressure switch can be changed. (Standard connections only)
- Mounting angle of the pressure gauge and digital pressure switch can be changed easily (in 60 degree increments)
Specifications | Vacuum Regulator IRV
| Series | Port size | Set pressure range (MPa) |
|---|---|---|
| IRV10 | φ6, φ8, φ1/4, φ5/16 | -100 to -1.3 |
| IRV10 | φ6, φ8, φ10, φ1/4, φ5/16, φ3/8 | -100 to -1.3 |
18) Power Valve / Precision Regulator VEX
Features | Power Valve / Precision Regulator VEX
- Large-capacity exhaust regulator
- Sensitivity: Within 0.2% F.S.
- Repeatability: Within ±0.5% F.S.
Specifications | Power Valve / Precision Regulator VEX
| Series | Port size | Set pressure range (MPa) |
|---|---|---|
| VEX1A33, 1B33 | M5, 1/8 | 0.01 to 0.7 |
| VEX1□30, 1□33 | 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 | 0.05 to 0.7 |
19) Clean Regulator SRH
Features | Clean Regulator SRH
- Contamination-controlled stainless steel regulator
- Oil-free
- 2 types of diaphragm materials: PTFE, Fluororubber
Specifications | Clean Regulator SRH
| Series | Relief mechanism | Port size | Set pressure (MPa) |
|---|---|---|---|
| SRH | Non-relief | Rc1/8, 1/4, 3/8, 1/2, 9/16-18UNF, 7/8-14UNF | Low pressure type：0.02 to 0.2 High pressure type：0.05 to 0.7 |
| SRH | relief | Rc1/8, 1/4, 3/8, 1/2 | Low pressure type：0.02 to 0.2 High pressure type：0.05 to 0.7 |
20) Precision Clean Regulator SRP
Features | Precision Clean Regulator SRP
- High-precision low flow consumption stainless steel regulator
- Bleed air flow of 0.5 L/min (ANR) or less (0.2 MPa at outlet pressure)
- Setting sensitivity: 0.3% F.S.
- Repeatability: 1% F.S.
Specifications | Precision Clean Regulator SRP
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| SRP | M5, 1/8 | Low pressure type：0.005 to 0.2 High pressure type：0.01 to 0.4 |
21) Clean Regulator / Fluororesin Type SRF
Features | Clean Regulator / Fluororesin Type SRF
- Wetted parts Body: New PFA, Diaphragm: PTFE
- Recommended maximum flow rate: 20 L/min (SRF50), (Inlet pressure: 0.3 MPa, Fluid: Water)
Specifications | Clean Regulator / Fluororesin Type SRF
| Series | Type | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size | Set pressure (MPa) |
|---|---|---|---|---|
| SRF | Integrated with fitting | φ4 to φ19 | φ1/8 to φ3/4 | 0.02 to 0.4 |
| SRF | With nut | Fitting size: 2 to 6 | Fitting size: 2 to 6 | 0.02 to 0.4 |
| SRF | Tube extension | - | Tubing O.D. φ1/4 to φ3/4 |
0.02 to 0.4 |
22) Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR
Features | Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR
- Service life: 10 million cycles Improved durability in high-pressure environments through the use of a polyurethane elastomer poppet
- Uses NSF-H1 approved grease on guide rings (Sliding parts)
- Improved durability through the use of a metal seal type relief valve
- Uses a special fluororesin seal for sliding parts Stable unattached response, Not easily affected by pressure
Specifications | Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR
| Series | Model | Type | Port size | Set pressure (MPa) |
|---|---|---|---|---|
| VCHR | VCHR30/40 | Direct operated regulator (Relieving type) | G3/4, 1, 1 1/2 | 0.5 to 5.0 (Max. operating pressure 6.0) |
23) Regulator for General Applications AK1000T
Features | Regulator for General Applications AK1000T
- For a wide variety of applications from semiconductor to general
- Compact and lightweight Weight: 0.52 kg, Height: 97.5 mm
- Minimum dead leg construction
- Various piping configurations are available: Select from compression, NPT female, or Rc thread.
Specifications | Regulator for General Applications AK1000T
| Series | Model | Type | Port size | Set pressure (MPa) |
|---|---|---|---|---|
| AK1000T | Manually operated type | 316 SS | Compression Rc, NPT | 1/4", 3/8" |
24) Water Regulator WR110
Specifications | Water Regulator WR110
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| WR110-□-X224 | Rc1/8, 1/4 | 0.08 to 0.39 |
| WR110-□-X215 | Rc1/8, 1/4、NPT1/8, 1/4 | 0.05 to 0.69 |
25) Water Strainer WF300
Specifications | Water Strainer WF300
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| WF300 | Rc1/4, 3/8, 1/2 | 100 / 70 / 50 / 25 mesh |
26) Pressure Control Valve (Relief Valve) AP100
Features | Pressure Control Valve (Relief Valve) AP100
Releases pressure over the set range into the atmosphere and constantly maintains the pressure in a pipe
ดาวน์โหลดไฟล์ PDFSpecifications | Pressure Control Valve (Relief Valve) AP100
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| AP100 | 1/8, 1/4 | 0.05 to 0.69 |
Technology Instrument
T.U Pack
Your Lift
