SMC - Modular F.R.L.

Features | Modular F.R.L. Units AC-D

• Modular design with uniform body style
• Better visibility & environmental resistance
• 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°
• No tools are required. Easier replacement of the element (AF-D only)
• Attachments:
  • Spacer: Y200-D, Y300-D, Y400-D
  • Spacer with bracket: Y200T-D, Y300T-D, Y400T-D

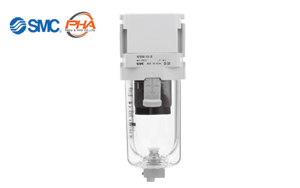

Features | Air Filter AF-D

• Better visibility & environmental resistance 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°
• No tools are required. Easier replacement of the element

Features | Mist Separator AFM-D

Better visibility & environmental resistance 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°

Features | Mist Separator AFM-D

Better visibility & environmental resistance 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°

Features | Regulator AR-D

• Easy to handle Easy to hold when unlocked
• Selection of pressure gauges Square embedded type pressure gauge, Round type pressure gauge, Digital pressure switch
• Interchangeability is maintained. The mounting pitch for panel mounting is interchangeable with the AR(K)-B. The brackets and set nuts are the same for both existing and new products.

Features | Regulator with Backflow Function AR□K-D

• The regulator with backflow function incorporates a mechanism that exhausts the air pressure in the outlet side quickly.
• Easy to handle Easy to hold when unlocked
• Selection of pressure gauges Square embedded type pressure gauge, Round type pressure gauge, Digital pressure switch
• Interchangeability is maintained. The mounting pitch for panel mounting is interchangeable with the AR(K)-B. The brackets and set nuts are the same for both existing and new products.

Features | Modular Type Common Supply Regulator AR□M(K)-D

• Supply different pressure for multiple applications OUT port is on the back of the product.
• Space-saving design and reduced piping labor
• Modular connection is possible.
• Branch piping

Features | Lubricator AL-D

Better visibility & environmental resistance 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°

Features | Filter Regulator AW-D

• Integrated filter and regulator units save space and require less piping.
• Easy to handle Easy to hold when unlocked
• Better visibility & environmental resistance 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°
• Interchangeability is maintained.
• The mounting pitch for panel mounting is interchangeable with the AW(K)-B.
• The brackets and set nuts are the same for both existing and new products.

Features | Regulator with Backflow Function AW□K-D

• Integrated filter and regulator units save space and require less piping.
• The regulator with backflow function incorporates a mechanism that exhausts the air pressure in the outlet side quickly.
• Easy to handle Easy to hold when unlocked
• Better visibility & environmental resistance 2-layer construction: The bowl is covered with a transparent bowl guard! Better visibility: 360°
• Interchangeability is maintained.
• The mounting pitch for panel mounting is interchangeable with the AW(K)-B.
• The brackets and set nuts are the same for both existing and new products.

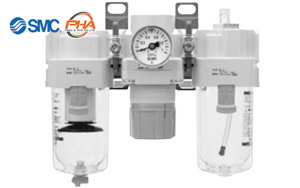

Features | Modular F.R.L. Units AC-A

• Easy element replacement The element and the bowl are integrated. Replacement can be done in hand.
• Energy-saving regulator Pressure drop: Max. 50% improvement
• Reduced required maintenance space: Max. 46% reduction
• Better visibility & increased safety The bowl is covered with a transparent bowl guard.
• Attachments: Spacer: Y200-A, Y300-A, Y400-A, Y500-A Spacer with bracket: Y200T-A, Y300T-A, Y400T-A, Y500T-A

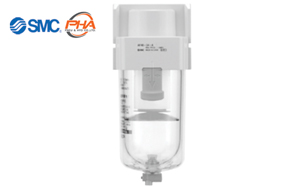

Features | Air Filter AF-A

• Easy element replacement The element and the bowl are integrated. Replacement can be done in hand.
• Reduced required maintenance space: Max. 46% reduction
• Better visibility & increased safety The bowl is covered with a transparent bowl guard.

Features | Mist Separator AFM-A

• Better visibility & increased safety The bowl is covered with a transparent bowl guard.

Features | Micro Mist Separator AFD-A

• Better visibility & increased safety The bowl is covered with a transparent bowl guard.

Features | Regulator AR-A

Energy-saving regulator Pressure drop: Max. 50% improvement.

Features | Lubricator AL-A

• Better visibility & increased safety The bowl is covered with a transparent bowl guard.
• Semi-standard specifications: 1000 cm³ tank (AL30 to AL60)

Features | Filter Regulator AW-A

• Easy element replacement The element and the bowl are integrated. Replacement can be done in hand.
• Energy-saving regulator Pressure drop: Max. 50% improvement
• Reduced required maintenance space: Max. 46% reduction
• Better visibility & increased safety The bowl is covered with a transparent bowl guard.

Features | Modular F.R.L. Units AC-B

• Better visibility and environmental resistance
• Easy element replacement The element and the bowl are integrated. Replacement can be done in hand.
• Reduced required maintenance space: Max. 46% reduction
• Regulator: Set pressure 0.05 to 0.85 MPa, 0.02 to 0.2 MPa
• Choose from a selection of pressure gauges: Square embedded type pressure gauge, Round type pressure gauge, Digital pressure switch

Features | Regulator AR-B

• Bracket
• Round type pressure gauge

Features | High Pressure: Made to Order AR20 to 60-B-X425

Stronger materials are used for the manufacturing of regulators intended for high-pressure operation. The modified construction also allows for a wider set pressure range.

Features | Regulator with Backflow Function AR□K-B

The regulator with backflow function incorporates a mechanism that exhausts the air pressure in the outlet side quickly.

Features | Filter Regulator AW-B

• Bracket
• Square embedded type
• pressure gauge
• Digital pressure switch
• Round type pressure gauge

Features | Filter Regulator with Backflow Function AW□K-B

• Integrated filter and regulator units save space and require less piping.
• The filter regulator with backflow function incorporates a mechanism that exhausts the air pressure in the outlet side quickly.

Features | Filter Regulator AW30/40-X2622

• Stainless steel 316 and special temperature environment (−40℃) specifications
• Material of external parts: Stainless steel 316
• Ambient and fluid temperatures: −40 to 80℃
• NACE International Standards compliant

Features | Mist Separator Regulator AWM

The AWM series is made up of a regulator and a mist separator to provide optimum results in applications such as clean air blow operations. (Nominal filtration rating: 0.3 µm)

Features | Micro Mist Separator Regulator AWD

The AWD series is made up of a regulator and a micro mist separator to provide optimum results in applications such as ultraclean air blow operations. (Nominal filtration rating: 0.01 µm)

Features | Modular F.R.L. Units ACG-B

• Improved visibility by mounting the pressure gauge on the top of the knob
• Transparent bowl guard Improved environmental durability due to 2-layer construction (Body size 30 or more) Better visibility: 360º Light weight: Approx. 12% reduction

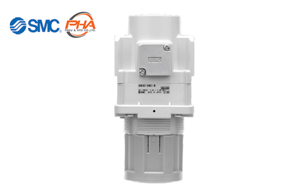

Features | Regulator with Built-in Pressure Gauge ARG-B

Improved visibility by mounting the pressure gauge on the top of the knob

Features | Regulator with Built-in Pressure Gauge with Backflow Function ARG□K-B

Improved visibility by mounting the pressure gauge on the top of the knob

Features | Filter Regulator with Built-in Pressure Gauge AWG-B

• Improved visibility by mounting the pressure gauge on the top of the knob
• Transparent bowl guard Improved environmental durability due to 2-layer construction (Body size 30 or more) Better visibility: 360º, Lightweight: Approx. 12% reduction

Features | Filter Regulator with Built-in Pressure Gauge with Backflow Function AWG□K-B

• Improved visibility by mounting the pressure gauge on the top of the knob
• Transparent bowl guard Improved environmental durability due to 2-layer construction (Body size 30 or more) Better visibility: 360º, Lightweight: Approx. 12% reduction

Features | Modular Type F.R.L. Unit ACG

• Improved visibility by mounting the pressure gauge on the top of the knob
• ∗ The ACG series will be remodeled in May 2021. Please select the ACG-B series.

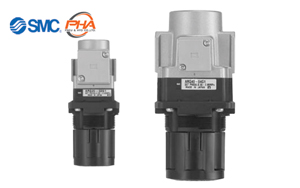

Features | Regulator with Built-in Pressure Gauge ARG

• Improves the visibility of pressure gauges located in various locations
• ∗ The ARG series will be remodeled in May 2021. Please select the ARG-B series.

Features | Regulator with Built-in Pressure Gauge with Backflow Function ARG□K

• Improves the visibility of pressure gauges located in various locations
• * The ARG□K series will be remodeled in May 2021. Please select the ARG□K-B series.

Features | Filter Regulator with Built-in Pressure Gauge AWG

• Improves the visibility of pressure gauges located in various locations
• * The AWG series will be remodeled in May 2021. Please select the AWG-B series.

Features | Filter Regulator with Built-in Pressure Gauge with Backflow Function AWG□K

• Improves the visibility of pressure gauges located in various locations
• * The AWG□K series will be remodeled in May 2021. Please select the AWG□K-B series.

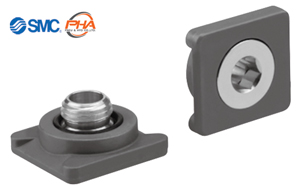

Features | Modular Adapter E210 / 310 / 410

• Can be easily connected to current products
• Can be freely rotated, thus allowing a wide selection of mounting directions
• Can be connected to current products of different sizes
• Reduced required space/piping maintenance costs

Features | OSHA Standard Compliant Pressure Relief 3-Port Valve with Locking Holes VHS□-D/VHS□W-D

• Improved flow rate characteristics: Max. 88% increase (VHS40-04-D)
• Energy saving: Zero blow-by of the air during switching of the handle
• OSHA (Occupational Safety and Health Administration) standard compliant
• Safety measure: Can prevent accidents caused by inadvertent air supply problems With the indicator window, Double action
• Lower pressure drop contributing to energy saving Pressure drop: reduced by up to 73%

Features | Conforming to OSHA Standard: Pressure Relief 3 Port Valve with Locking Holes VHS

• Compliant with OSHA Standards (Occupational Safety and Health Administration Department of Labor)
• This manually operated valve can be used to prevent accidents caused by residual pressure in pneumatic lines.
• The supply and exhaust status of air flow can be confirmed at a glance.
• When in the exhaust position, the valve may be padlock secured. This can prevent accidental start-ups while personnel are cleaning or servicing equipment.
• Push the knob and then turn. This 2-step action can prevent malfunctions.

Features | 3-Port Solenoid Valve Modular Type/Residual Pressure Release Valve VP546E/746E

• Can be connected to F.R.L. units (AC-D series) Allows for space saving and reduced piping labor.
• Flow rate characteristics C [dm3/(s·bar)] VP546E: 7.5 VP746E: 12.6
• A model with a soft start-up function is also available.
• Power consumption: 0.35 W (Without light)
• Features a check valve built into the pilot flow path (Supports pilot pressure drops caused by pressure fluctuations on the inlet side)

Features | Modular Connection Type Residual Pressure Relief 3 Port Solenoid Valve VP500/700

• For connecting to F.R.L. units
• Allows for space saving and reduced piping labor
• Power consumption: 0.35 W (Without light)

Features | Soft Start-up Valve AV2000-A / 3000-A / 4000-A / 5000-A

• Start-up valve for low-speed air supply to gradually raise the initial pressure in an air system and for quick exhaust by cutting off the air supply
• Power consumption: 0.35 W
• Improved flow rate characteristics: Up to 2.3 times that of the existing model C [dm3/(s·bar)]: 9.2
• Energy saving: No air flow when the main valve is switched
• Improved adjustability at low-speed air supply
• Smaller profile and reduced labor due to integrated silencer

Features | Soft Start-up Valve AV

• A starting valve that can supply air at a low speed and exhaust it at a high speed by blocking the air supply

Features | Large Flow Air Filter AF

• Metal bowl Metal
• bowl with level gauge
• Without drain cock
• Drain cock
• barb fitting
• Drain cock thread
• piping With drain guide
