OMRON Level Switches - 61F-GPN-BT / BC
Level Switches - 61F-GPN-BT / BC
Download PDF
Model Numbers | Level Switches - 61F-GPN-BT / BC
| Product name | Model number | |
|---|---|---|

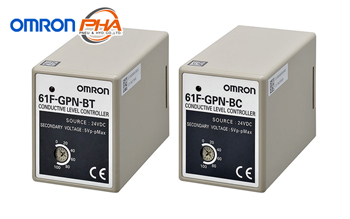

| Conductive Level Controller | 61F-GPN-BT 24VDC | 61F-GPN-BC 24VDC |
| Open collector (NPN) | Relay contact (SPST-NO) | |
| Front Socket | PF113A-E | |
| Electrode Holder | (See note.) | |
Note: A variety of Holders are available to suit different types of application. For details, refer to 61F Floatless Level Controller (F030-E1).
Specifications | Level Switches - 61F-GPN-BT / BC
Ratings
| 61F-GPN-BT | 61F-GPN-BC | |
|---|---|---|
| Rated voltage | 24 VDC | |
| Allowable voltage range | 85% to 110% of the rated voltage | |
| Interelectrode voltage | 5 VAC max. | |
| Operation resistance *1 | Variable (0 to 100 kΩ) | |
| Error | For scale of 0: +10 kΩ; For scale of 100: ±10 kΩ | |
| Release resistance | 200% max. of the operation resistance | |
| Switching between supply and drainage |
Terminals 7 and 8 open: Automatic drainage operation Terminals 7 and 8 shorted: Automatic supply operation |
|
| Output specifications | Open collector (NPN) 30 VDC, 100 mA max. Leak current: 100 μ A max. |
Relay output, SPST-NO 5 A, 240 VAC (Resistive load) 5 A, 30 VDC |
| Life expectancy | --- | Electrical: 100,000 operations min. Mechanical: 20,000,000 operations min. |
| Accessories | Hold-down clip PFC-N8 | |
| Wiring distance *2 | 100 m max. | |
*1. The 61F may not operate at resistance settings close to zero. Adjust the sensitivity to match actual usage conditions.
*2. The figure for wiring distance above is for when 600-V 3-core cabtire cable with a cross-sectional area of 0.75 mm2
is used.
Characteristics
| Ambient operating temperature | -10 to 55°C |
|---|---|
| Ambient operating humidity | 25% to 85% |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength * | 2,000 VAC, 50/60 Hz for 1 minute |
| Power consumption | 2 W max. |
| Response time | Operating: 1.5 s max. Releasing: 3.0 s max. |
| Approved standards | UL61010-1, CAN/CSA C22.2 No.61010-1 EN61010-1 EN61326-1 Industrial electromagnetic environment |
* The dielectric strength is measured between power terminals and electrode terminals, power terminals and output
terminals, and between electrode terminals and output terminals.
Dimensions | Level Switches - 61F-GPN-BT / BC
61F-GPN-BT/BC
Features | Level Switches - 61F-GPN-BT / BC
- Outputs can be set to self-hold at ON or OFF using special circuits.
- Adjustable sensitivity, with an operating resistance range of 0 to 100 kΩ, allows use for a wide variety of liquids.
- Relay contact chattering conventionally caused by waves eliminated using open collector output, reducing contact wear.
- Meets CE marking and is a UL recognized component.
Properties | Level Switches - 61F-GPN-BT / BC
| Level Switches | 61F-GPN-BT / BC | |
|---|---|---|
| Power Supply | 24 VDC | |
| Error for scale | 0 | 10kΩ |
| 100 | scale 100 | |
|
Output |
Open collector (NPN) 30 VDC 100mA max | |
| Relay Output 5A 240VAC, 5A 30VDC | ||
Level Switches - 61F-GPN-BT / BC
ดาวน์โหลดไฟล์ PDF คุณสมบัติ | Level Switches - 61F-GPN-BT / BC
ตัวควบคุมระดับของเหลวที่สามารถใช้แบตเตอรี่ 24VDC ได้โดยไม่ต้องใช้แหล่งจ่ายกระแสสลับ โดยใช้หลักการแรงดันไฟฟ้าคลื่นไซน์ระหว่างอิเล้กโรดช่วยให้ตรวจจับได้อย่างเสถียรโดยปราศจากการกัดกร่อนทางไฟฟ้า
- เอาต์พุตสามารถตั้งค่าได้ให้เปิดหรือปิด
- สามารถปรับตั้งอินพุตให้อยู่ในช่วง 0-100 kΩ เพื่อให้เหมาะสมกับของเหลว
- มีทั้งรุ่นรีเลย์และ PNP
- มีไฟแอลอีดีบอกสถานะ
ข้อมูลจำเพาะ | Level Switches - 61F-GPN-BT / BC
| Level Switches | 61F-GPN-BT / BC | |
|---|---|---|
| แหล่งพลังงาน | 24 VDC | |
| ค่าความผิดพลาด | ที่ 0 | +10kΩ |
| ที่ 100 | ±10kΩ | |
| เอาต์พุต | NPN : 30VDC 100mA | |
| เอาต์พุตรีเลย์ 5A 240V | ||
