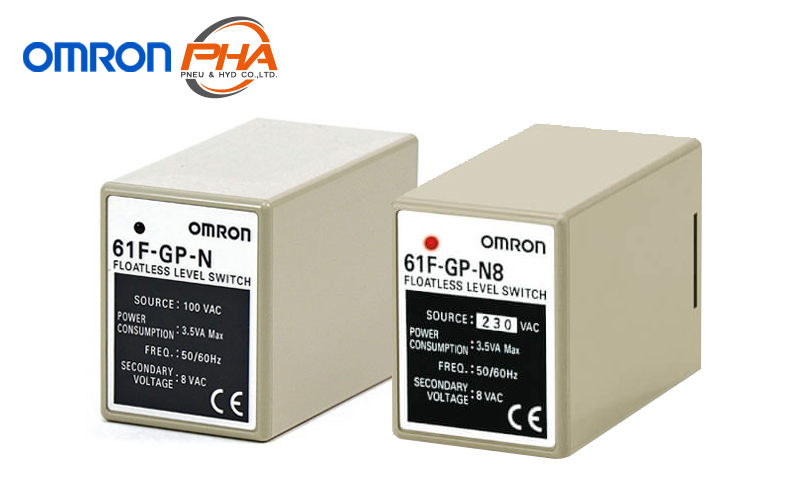

OMRON Level Switches - 61F-GP-N[]
Level Switches - 61F-GP-N[]
Download PDF![OMRON Level Switches - 61F-GP-N[]](/images/Products/omron/switches/level/61f-gp-n/61F-GP-N.jpg "OMRON Level Switches - 61F-GP-N[]")
Model Numbers | Level Switches - 61F-GP-N[]
| Type | General-purpose | Long-distance (for 2 km) | Long-distance (for 4 km) |
|---|---|---|---|
| Model | Model | Model | |
| 11-pin | 61F-GP-N | 61F-GP-NL 2KM | 61F-GP-NL 4KM |
| Type | High-sensitivity | Low-sensitivity | Two-wire |
|---|---|---|---|
| Model | Model | Model | |
| 11-pin | 61F-GP-NH | 61F-GP-ND | 61F-GP-NR |
| Type | Tropical environments | High-temperature |
|---|---|---|
| Model | Model | |
| 11-pin | 61F-GP-N-TDL | 61F-GP-NT |
| Type | General-purpose | Long-distance (for 2 km) | Long-distance (for 4 km) |
|---|---|---|---|
| Model | Model | Model | |
| 8-pin | 61F-GP-N8 | 61F-GP-N8L 2KM | 61F-GP-N8L 4KM |
| Type | High-sensitivity | Low-sensitivity | Two-wire |
|---|---|---|---|
| Model | Model | Model | |
| 8-pin | 61F-GP-N8H | 61F-GP-N8D | 61F-GP-N8R |
| 61F-GP-N8HY |
Note: When ordering, specify the desired operating voltage at the end of the model number.
![61F-GP-N[] Lineup 6](/images/Products/omron/switches/level/61f-gp-n/model-number/1.gif)
Specifications | Level Switches - 61F-GP-N[]
Compact Plug-in Models (11-pin Type)
| Item | General-purpose Controller 61F-GP-N | High-temperature Controller 61F-GP-NT | Long-distance Controllers 61F-GP-NL 2KM (for 2 km) 61F-GP-NL 4KM (for 4 km) |
|---|---|---|---|
| Controlling materials and operating conditions |
For control of ordinary purified water or sewage water |
For control of ordinary purified water or sewage where operating ambient temperature is high. |
For control of ordinary purified water in cases where the distance between sewage pumps and water tanks or between receiver tanks and supply tanks is long or where remote control is required. |
| Supply voltage | 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz | ||
| Operating voltage range | 85% to 110% of rated voltage | ||
| Interelectrode voltage | 8 VAC | ||
| Interelectrode current | Approx. 1 mA AC max. | ||
| Power consumption | Approx. 3.5 VA max. | ||
| Interelectrode operate resistance |
0 to approx. 4 kΩ | 0 to approx. 4 kΩ | 0 to approx. 1.3 kΩ (for 2 km) 0 to approx. 0.5 kΩ (for 4 km) |
| Interelectrode release resistance |
Approx. 15 k to ∞ Ω | Approx. 15 k to ∞ Ω | 4 k to ∞ Ω (for 2 km) 2.5 k to ∞ Ω (for 4 km) |
| Response time | Operate:80 ms max. Release:160 ms max. |
||
| Cable length *1 | 1 km max. | 600 m max. | 2 km max. 4 km max. |
| Control output | 1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load) |
||
| Ambient temperature | Operating:-10 to 55°C (-10 to 70°C for high-temperature controller) | ||
| Ambient humidity | Operating:45% to 85% RH | ||
| Insulation resistance *2 |
100 MΩ min. (at 500 VDC) | ||
| Dielectric strength *2 | 2000 VAC, 50/60 Hz for 1 min. | ||
| Life expectancy | Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min. |
||
| Weight | Approx. 155 g | ||
| Accessories | Hold-down clip PFC-N8 | ||
| Approved standards | UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment | ||
| Item | High-sensitivity Controller 61F-GP-NH *4 | Low-sensitivity Controller 61F-GP-ND | Two-wire Controller 61F-GP-NR |
|---|---|---|---|
| Controlling materials and operating conditions |
For control of liquids with high specific resistance such as distilled water |
For control of liquids with low specific resistance such as salt water, sewage water, acid chemicals, alkali chemicals |
For control of ordinary purified water or sewage water used in combination with Two-wire Electrode Holder (incorporating a resistor of 6.8 kΩ) |
| Supply voltage | 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz | ||
| Operating voltage range | 85% to 110% of rated voltage | ||
| Interelectrode voltage | 8 VAC | ||
| Interelectrode current | Approx. 0.12 mA AC max. | Approx. 1 mA AC max. | |
| Power consumption | Approx. 3.5 VA max. | ||
| Interelectrode operate resistance |
Approx. 10 kΩ to approx. 40 kΩ *3 |
0 to approx. 1.3 kΩ | 0 to approx. 2 kΩ |
| Interelectrode release resistance |
Approx. 100 k to ∞ Ω | Approx. 4 k to ∞ Ω | Approx. 15 k to ∞ Ω |
| Response time | Operate:80 ms max. Release:160 ms max. |
||
| Cable length *1 | 50 m max. | 1 km max. | 800 m max. |
| Control output | 1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load) |
||
| Ambient temperature | Operating:-10 to 55°C (-10 to 70°C for high-temperature controller) | ||
| Ambient humidity | Operating:45% to 85% RH | ||
| Insulation resistance *2 | 100 MΩ min. (at 500 VDC) | ||
| Dielectric strength *2 | 2000 VAC, 50/60 Hz for 1 min. | ||
| Life expectancy | Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min. |
||
| Weight | Approx. 155 g | ||
| Accessories | Hold-down clip PFC-N8 | ||
| Approved standards | UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment | ||
*1. The length when using completely insulated, 600-V, 3-conductor (0.75 mm2) cabtire cables. Usable cable lengthswill
become shorter as the cable diameter or number of conductors becomes larger. For details, refer to Safety
Precautions for Floatless Level Controllers.
*2. The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals,
between power terminals and contact terminals, and between Electrode terminals and contact terminals. For details,
refer to Safety Precautions for Floatless Level Controllers.
*3. Possible to use with 15 kΩ or less, however, this may cause reset failure.
*4. 61F-GP-NH High-sensitivity Controller uses advanced operation.
When the power supply voltage is applied, if there are some liquids between the electrodes (ground and operation
electrodes), the internal relay will not operate.
When the power supply voltage is applied, if there are no liquids between the electrodes (ground and operation
electrodes), the internal relay will operate.
If the advanced operation does not satisfy applications, consider using 61F-N8HY controller which uses sequential
operation.
Compact Plug-in Models (8-pin Type)
| Item | General-purpose Controller 61F-GP-N8 61F-GP-N8Y *4 | Long-distance Controllers 61F-GP-N8L 2KM (for 2 km) 61F-GP-N8L 4KM (for 4 km) | High-sensitivity Controllers 61F-GP-N8H 61F-GP-N8HY *4 |
|---|---|---|---|
| Controlling materials and operating conditions | For control of ordinary purified water or sewage water | For control of ordinary purified water in cases where the distance between sewage pumps and water tanks or between receiver tanks and supply tanks is long or where remote control is required. |
For control of liquids with high specific resistance such as distilled water |
| Supply voltage | 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz | ||
| Operating voltage range | 85% to 110% of rated voltage | ||
| Interelectrode voltage | 8 VAC | 24 VAC | |
| Interelectrode current | Approx. 1 mA AC max. | Approx. 0.4 mA AC max. | |
| Power consumption | Approx. 3.5 VA max. | ||
| Interelectrode operate resistance | 0 to approx. 4 kΩ | 0 to 1.3 kΩ (for 2 km) 0 to 0.5 kΩ (for 4 km) |
Approx. 15 kΩ to approx. 70 kΩ *3 |
| Interelectrode release resistance | Approx. 15 k to ∞ Ω | 4 k to ∞ Ω (for 2 km) 2.5 k to ∞ Ω (for 4 km) |
Approx. 300 k to ∞ Ω |
| Response time | Operate: 80 ms max. Release: 160 ms max. |
||
| Cable length *1 | 1 km max. | 2 km max. 4 km max. |
50 m max. |
| Control output | 1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load) |
||
| Ambient temperature | Operating: -10 to 55°C | ||
| Ambient humidity | Operating: 45% to 85% RH | ||
| Insulation resistance *2 | 100 MΩ min. (at 500 VDC) | ||
| Dielectric strength *2 | 2000 VAC, 50/60 Hz for 1 min. | ||
| Life expectancy | Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min. |
||
| Weight | Approx. 155 g | ||
| Accessories | Hold-down clip PFC-N8 | ||
| Approved standards | UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment | ||
| Item | Low-sensitivity Controller 61F-GP-N8D | Two-wire Controller 61F-GP-N8R | Variable Sensitivity Controller 61F-GP-N8-V50 |
|---|---|---|---|
| Controlling materials and operating conditions | For control of liquids with low specific resistance such as salt water, sewage water, acid chemicals, alkali chemicals |
For control of ordinary purified water or sewage water used in combination with Two-wire Electrode Holder (incorporating a resistor of 6.8 kΩ) |
For control of cases where variable sensitivity control is required such as detection of froth on the surface of a liquid, control of soil moisture content, or detection of degree of water pollution |
| Supply voltage | 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz |
24, 110, 220 or 240 VAC; 50/60 Hz | |
| Operating voltage range | 85% to 110% of rated voltage | ||
| Interelectrode voltage | 8 VAC | 24 VAC | |
| Interelectrode current | Approx. 1 mA AC max. | Approx. 3 mA AC max. | |
| Power consumption | Approx. 3.5 VA max. | ||
| Interelectrode operate resistance | 0 to approx. 1.3 kΩ | 0 to approx. 2 kΩ | 0 to 50 kΩ (Variable) |
| Interelectrode release resistance | Approx. 4 k to ∞ Ω | Approx. 15 k to ∞ Ω | Operating resistance +50 kΩ max. |
| Response time | Operate: 80 ms max. Release: 160 ms max. |
||
| Cable length *1 | 1 km max. | 800 m max. | 50 m max. |
| Control output | 1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load) |
||
| Ambient temperature | Operating: -10 to 55°C | ||
| Ambient humidity | Operating: 45% to 85% RH | ||
| Insulation resistance *2 | 100 MΩ min. (at 500 VDC) | ||
| Dielectric strength *2 | 2000 VAC, 50/60 Hz for 1 min. | ||
| Life expectancy | Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min. |
||
| Weight | Approx. 155 g | ||
| Accessories | Hold-down clip PFC-N8 | ||
| Approved standards | UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment | ||
*1. The length when using completely-insulated, 600-V, 3-conductor (0.75 mm2) cabtire cables. Usable cable lengths will
become shorter as the cable diameter or number of conductors becomes larger.
*2. The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals,
between power terminals and contact terminals, and between Electrode terminals and contact terminals.
*3. Possible to use with 15 kΩ or less, however, this may cause reset failure.
*4. 61F-GP-N8H/-N8Y High-sensitivity Controllers use advanced operation.
When the power supply voltage is applied, if there are some liquids between the electrodes (ground and operation
electrodes), the internal relay will not operate.
When the power supply voltage is applied, if there are no liquids between the electrodes (ground and operation
electrodes), the internal relay will operate.
If the advanced operation does not satisfy applications, consider using 61F-N8HY controller which uses sequential
operation.
Dimensions | Level Switches - 61F-GP-N[]

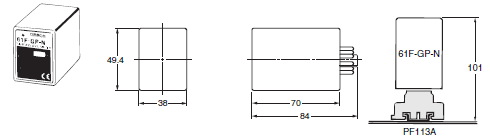

61F-GP-N, -NT, -NL, -NH, -ND, -NR, -N -TDL, -N14, -N15, -NH3
![61F-GP-N[] Dimensions 1](/images/Products/omron/switches/level/61f-gp-n/dimensions/1.gif)
When mounting a Display Unit to a PF113A Surface-mounting Socket, secure the PF113A with the groove facing toward the bottom and then connect the 61F-GP-N the PFC-N8 accessory.
PFC-N8
![61F-GP-N[] Dimensions 2](/images/Products/omron/switches/level/61f-gp-n/dimensions/2.gif)
Note: PFC-N8 Mounting Bracket (provided with the Level Controller)

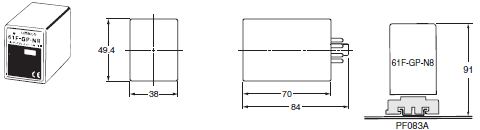

61F-GP-N8, -N8L, -N8H, -N8HY, -N8D, -N8R
![61F-GP-N[] Dimensions 3](/images/Products/omron/switches/level/61f-gp-n/dimensions/3.gif)
Use a PFC-N8 Mounting Bracket to mount the Level Controller to a PF083A Rail-mounted Socket.
PFC-N8
![61F-GP-N[] Dimensions 4](/images/Products/omron/switches/level/61f-gp-n/dimensions/4.gif)
Note: PFC-N8 Mounting Bracket (provided with the Level Controller)
Features | Level Switches - 61F-GP-N[]
- Compact: 49.4 × 38 × 84 mm (H×W×D).
- Easy identification of operating status with LED operation indicator.
- Independent DPDT contacts on 11-Pin Models.
- CE marking and UL/CSA compliance.
Properties | Level Switches - 61F-GP-N[]
| Level Switches | 61F-GP-N[] |
|---|---|
| Power Supply | 240 VAC / 24 VDC |
| Ambient Operation Temperatu | -10 to 70degree Celsius |
| Life expectancy | 5,000,000 operations min. |
| Output | 1A, 220 VAC (Inductive load) |
| 3A, 220 VAC(Resistive load) | |
| Compact (W x L x H) |
49.4 x 38 x 84 mm |
Level Switches - 61F-GP-N[]
ดาวน์โหลดไฟล์ PDF คุณสมบัติ | Level Switches - 61F-GP-N[]
- มีไฟแอลอีดีแสดงสถานะให้ง่ายต่อการสังเกต
- มีรุ่นรีเลย์ 2 pole 11 pin
- ได้รับมาตรฐาน CE และ UL/CSA
ข้อมูลจำเพาะ | Level Switches - 61F-GP-N[]
| Level Switches | 61F-GP-N[] |
|---|---|
| แหล่งพลังงาน | 240 VAC / 24 VDC |
| ช่วงอุณหภูมิ | -10 ถึง 70 °C |
| อายุการใช้งาน | 5,000,000 ครั้ง |
| เอาต์พุต | 1A 220VAC สำหรับโหลดตัวเหนียวนำ |
| 3A 220VAC สำหรับโหลดตัวต้านทาน | |
| ขนาด (W x L x H) |
49.4 x 38 x 84 mm |
