Level Switches - 61F-G[]P

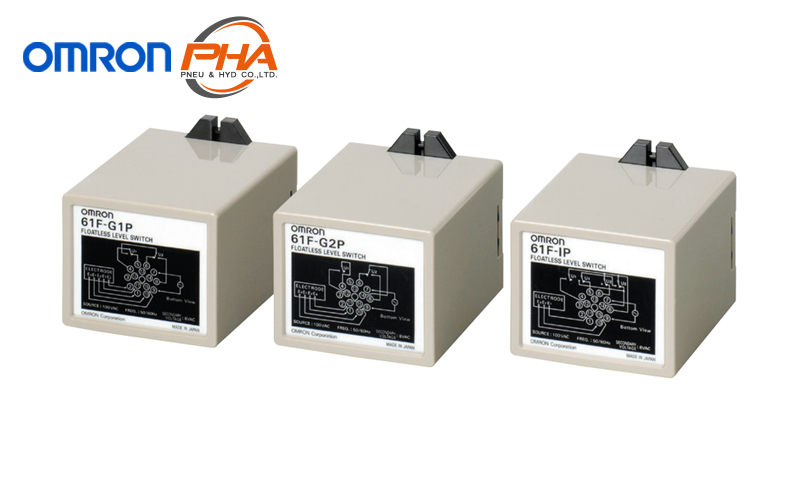

Download PDF![OMRON Level Switches - 61F-G[]P](/images/Products/omron/switches/level/61f-gp/61F-GP.jpg "OMRON Level Switches - 61F-G[]P")
Model Numbers
Specifications
Dimensions
Features
Model Numbers | Level Switches - 61F-G[]P
| Type | General-purpose | Long-distance (for 2 km) | Long-distance (for 4 km) |
|---|---|---|---|
| Model | Model | Model | |
| G1 models | 61F-G1P * | 61F-G1PL 2K | 61F-G1PL 4KM * |
| Type | High-sensitivity | Low-sensitivity |
|---|---|---|
| Model | Model | |
| G1 models | 61F-G1PH * | 61F-G1PD * |
| Type | General-purpose | Long-distance (for 2 km) | Long-distance (for 4 km) |
|---|---|---|---|
| Model | Model | Model | |
| G2 models | 61F-G2P * | 61F-G2PL 2KM * | 61F-G2PL 4KM * |
| Type | High-sensitivity | Low-sensitivity |
|---|---|---|
| Model | Model | |
| G2 models | 61F-G2PH * | 61F-G2PD * |
| Type | General-purpose | Long-distance (for 2 km) | Long-distance (for 4 km) |
|---|---|---|---|
| Model | Model | Model | |
| I models | 61F-IP * | 61F-IPL 2KM * | 61F-IPL 4KM * |
| Type | High-sensitivity | Low-sensitivity |
|---|---|---|
| Model | Model | |
| I models | 61F-IPH * | 61F-IPD * |
Note: When ordering, specify the desired operating voltage at the end of the model number.
![61F-G[]P Lineup 7](/images/Products/omron/switches/level/61f-gp/model-number/61f-g_p_lu_626-109293.gif)
* 61F-G[]P[] (110 VAC) in this catalog have been discontinued at the end of March 2018.
Specifications | Level Switches - 61F-G[]P
Plug-in Models
| Item | General-purpose Controller 61F-G1P 61F-G2P 61F-IP | Long-distance Controllers 61F-G1PL 61F-G2PL 61F-IPL *2 | High-sensitivity Controllers 61F-G1PH 61F-G2PH 61F-IPH *1, *6 | Low-sensitivity Controller 61F-G1PD 61F-G2PD 61F-IPD |
|---|---|---|---|---|
| Controlling materials and operating conditions | For control of ordinary purified water or sewage water |
For control of ordinary purified water in cases where the distance between sewage pumps and water tanks or between receiver tanks and supply tanks is long or where remote control is required. |
For control of liquids with high specific resistance such as distilled water |
For control of liquids with low specific resistance such as salt water, sewage water, acid chemicals, alkali chemicals |
| Supply voltage | 100, 200, 220 VAC; 50/60 Hz | |||
| Operating voltage range | 85% to 110% of rated voltage | |||
| Interelectrode voltage | 8 VAC | 24 VAC | 8 VAC | |
| Interelectrode current | Approx. 1 mA AC max. | Approx. 0.4 mA AC max. |
Approx. 1.2 mA AC max. |
|
| Power consumption | Approx. 6.4 VA max. | |||
| Interelectrode operate resistance | 0 to approx. 4 kΩ | 0 to 1.8 kΩ (for 2 km) 0 to 0.7 kΩ (for 4 km) |
Approx. 15 kΩ to approx. 70 kΩ *5 |
0 to approx. 1.8 kΩ |
| Interelectrode release resistance | Approx. 15 k to ∞ Ω |
4 k to ∞ Ω (for 2 km) 2.5 k to ∞ Ω (for 4 km) |
Approx. 300 k to ∞ Ω |
Approx. 5 k to ∞ Ω |
| Response time | Operate: 80 ms max. Release: 160 ms max. |
|||
| Cable length *3 | 1 km max. | 2 km max. 4 km max. |
50 m max. | 1 km max. |
| Control output | 2 A, 200 VAC (Inductive load: cosφ = 0.4) 5 A, 200 VAC (Resistive load) |
|||
| Ambient temperature | Operating: -10 to 55°C | |||
| Ambient humidity | Operating: 45% to 85% RH | |||
| Insulation resistance *4 | 100 MΩ min. (at 500 VDC) | |||
| Dielectric strength *4 | 2000 VAC, 50/60 Hz for 1 min. | |||
| Life expectancy | Electrical: 500,000 operations min. Mechanical: 5,000,000 operations min. |
|||
| Weight | Approx. 495 g | |||
- *1. The relay in the 61F-G1H/-G2H/-IPH de-energizes when there is water present across the Electrodes, whereas the relay in the 61F-GP-N8HY energizes when there is water present across the Electrodes.
- *2. Models are available for 2 km and 4 km.
- *3. The length when using completely-insulated, 600-V, 3-conductor (0.75 mm2) cabtire cables. Usable cable lengths will become shorter as the cable diameter or number of conductors becomes larger. For details, refer to Safety Precautions for Floatless Level Controllers.
- *4. The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals, between power terminals and contact terminals, and between Electrode terminals and contact terminals. For details, refer to Safety Precautions for Floatless Level Controllers.
- *5. Possible to use with 15 kΩ or less, however, this may cause reset failure.
- *6. High-sensitivity Controllers use advanced operation.
- When the power supply voltage is applied, if there are some liquids between the electrodes (ground and operation electrodes), the internal relay will not operate.
- When the power supply voltage is applied, if there are no liquids between the electrodes (ground and operation electrodes), the internal relay will operate.

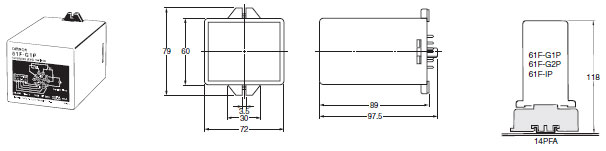

Dimensions | Level Switches - 61F-G[]P
61F-G1P, -G1PL, -G1PH, -G1PD 61F-G2P, -G2PL, -G2PH, -G2PD 61F-IP, -IPL, -IPH, -IPD
![61F-G[]P Dimensions 2 61F-GP_Dim](/images/Products/omron/switches/level/61f-gp/dimensions/61F-G%5B%5DP_dm_126-109295.jpg)
Features | Level Switches - 61F-G[]P
Replace for maintenance without rewiring the socket.
- Large switching capacity: 5 A at 220 VAC (resistive load).
- Easy to handle with DIN rail mounting.
Properties | Level Switches - 61F-G[]P
| Level Switches | 61F-G[]P |
|---|---|
| Power Supply | 240 VAC / 24 VDC |
| Ambient Operation Temperature | Temperature -10 to 55 degree Celsius |
| Life expectancy | 5,000,000 operations min |
|
Output |
2A, 220 VAC (Inductive load) |
| 5A, 220 VAC(Resistive load) |
Level Switches - 61F-G[]P
ดาวน์โหลดไฟล์ PDF คุณสมบัติ | Level Switches - 61F-G[]P
ตัวควบคุมระดับของเหลวรุ่นประหยัดพื้นที่ ออกแบบมาให้เหมาะกับการเสียบใช้กับแผงควบคุมปั้ม
- ติดตั้งได้ง่ายด้วยมาตรฐานราง DIN
- ซ่อมแซมติดตั้งเปลี่ยนอุปกรณ์ได้ง่ายโดยไม่ต้องต่อสายไฟใหม่
ข้อมูลจำเพาะ | Level Switches - 61F-G[]P
| Level Switches | 61F-G[]P |
|---|---|
| แหล่งพลังงาน | 240 VAC / 24 VDC |
| อุณหภูมิ | -10 ถึง 70 °C |
| อายุการใช้งาน | 5,000,000 ครั้ง |
| เอาต์พุต | 2A 220VAC สำหรับโหลดตัวเหนียวนำ |
| 5A 220VAC สำหรับโหลดตัวต้านทาน |
