SMC - Electronic Pressure Switches / Sensors (Remote Type)
Electronic Pressure Switches / Sensors (Remote Type)
มีทั้งหมด 9 รุ่น คือ

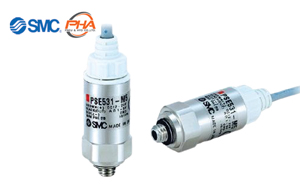

1) Compact Pneumatic Pressure Sensor PSE53□
Features | Compact Pneumatic Pressure Sensor PSE53□
- Connector type
- Analog output (Voltage)
Specifications | Compact Pneumatic Pressure Sensor PSE53□
| Series | Type | Rated pressure range |
|---|---|---|
| PSE531 | Vacuum pressure | 0 to -101 kPa |
| PSE533 | Compound pressure | -101 to 101 kPa |
| PSE532 | Positive pressure | 0 to 101 kPa |
| PSE530 | Positive pressure | 0 to 1 MPa |
2) Compact Pneumatic Pressure Sensor PSE54□
Specifications | Compact Pneumatic Pressure Sensor PSE54□
| Series | Type | Rated pressure range |
|---|---|---|
| PSE541 | Vacuum pressure | 0 to -101 kPa |
| PSE543 | Compound pressure | -100 to 100 kPa |
| PSE540 | Positive pressure | 0 to 1 MPa |
3) Low Differential Pressure Sensor PSE550
Features | Low Differential Pressure Sensor PSE550
- Suitable for applications such as air current volume maintenance, filter blockage, and liquid surface detection
- Analog output (Voltage/Current)
Specifications | Low Differential Pressure Sensor PSE550
| Series | Type | Rated pressure range |
|---|---|---|
| PSE550 | Vacuum pressure | 0 to 2 kPa |
4) Pressure Sensor for General Fluids PSE56□
Features | Pressure Sensor for General Fluids PSE56□
- Wetted parts: Stainless steel 316L
- IP65
- Suitable for a wide variety of fluids
- Analog output (Voltage/Current)
- Low leakage Select from a face seal or compression fitting.
Specifications | Pressure Sensor for General Fluids PSE56□
| Series | Type | Rated pressure range |
|---|---|---|
| PSE561 | Vacuum pressure | 0 to-101 kPa |
| PSE563 | Compound pressure | -100 to 100 kPa |
| PSE564 | Positive pressure | 0 to 500 kPa |
| PSE560 | Positive pressure | 0 to 1 MPa |
5) Pressure Sensor for General Fluids PSE57□
Features | Pressure Sensor for General Fluids PSE57□
- Withstand voltage: 500 VAC
- Enclosure: IP65
- Materials of parts in contact with fluid
- Piping port: C3604 + Nickel plating
- Pressure sensor: Al2O3 (Alumina 96%)
- O-ring: FKM + Grease (PSE570/573/574)
- Square ring: FKM (PSE575/576/577)
Specifications | Pressure Sensor for General Fluids PSE57□
| Series | Type | Rated pressure range | Proof pressure |
|---|---|---|---|
| PSE570 | Positive pressure | 0 to 1 MPa | 3.0 MPa |
| PSE573 | Compound pressure | -100 to 100 kPa | 600 kPa |
| PSE574 | Positive pressure | 0 to 500 kPa | 1.5 MPa |
| PSE575 | Positive pressure | 0 to 2 MPa | 5.0 MPa |
| PSE576 | Positive pressure | 0 to 5 MPa | 12.5 MPa |
| PSE577 | Positive pressure | 0 to 10 MPa | 30 MPa |
6) 3-Screen Display Multi-channel Digital Sensor Monitor PSE200A
Features | 3-Screen Display Multi-channel Digital Sensor Monitor PSE200A
- Up to 4 pressure sensors can be connected! Centralized control saves installation space. A single monitor various applications
- It is possible to change the settings while checking the measured value.
- IO-Link compatible
Specifications | 3-Screen Display Multi-channel Digital Sensor Monitor PSE200A
| Series | Set pressure range | Applicable pressure sensors |
|---|---|---|
| PSE200A | -0.2 to 2.1 kPa 10 to -105 kPa -105 to 105 kPa -10 to 105 kPa -50 to 525 kPa -0.105 to 1.05 MPa -0.105 to 2.1 MPa -0.25 to 5.25 MPa -0.5 to 10.5 MPa |
PSE550 PSE531 / PSE541 / PSE561 PSE533 / PSE543 / PSE563 / PSE573 PSE532 PSE564 / PSE574 PSE530 / PSE540 / PSE560 / PSE570 PSE575 PSE576 PSE577 |
7) 3-Screen Display Sensor Monitor PSE300A
Features | 3-Screen Display Multi-channel Digital Sensor Monitor PSE300A
- Compatible with 5 types of pressure sensor Applicable sensor: PSE53m, PSE54m, PSE550, PSE57m, PSE56m
- It is possible to change the settings while checking the measured value.
- NPN/PNP switch function
- Input range selection (for pressure/flow rate)
- Simple 3-step setting
Specifications | 3-Screen Display Sensor Monitor PSE300A
| Series | Set pressure range |
|---|---|
| PSE300A | -0.2 to 2.1 kPa 10 to -105 kPa -105 to 105 kPa -10 to 105 kPa -50 to 525 kPa -0.105 to 1.05 MPa -0.105 to 2.1 MPa -0.25 to 5.25 MPa -0.5 to 10.5 MPa |
8) 2-Color Display Digital Pressure Sensor Controller PSE300
Features | 2-Color Display Digital Pressure Sensor Controller PSE300
- Applicable sensors: PSE53m, 54m, 550, 56m, 570, 573, 574
- Compatible with voltage input and current input
- Response time: 1 ms
- Space saving, Capable of vertical and horizontal contact mounting
- Panel mounting, Bracket mounting, DIN rail mounting
Specifications | 2-Color Display Digital Pressure Sensor Controller PSE300
| Series | Set pressure range |
|---|---|
| PSE300 | -101 to 101 kPa 10 to -101 kPa -10 to 100 kPa -0.1 to 1 MPa -50 to 500 kPa -0.2 to 2 kPa |
9) 3-Screen Display Sensor Monitor PSE300AC
Features | 3-Screen Display Sensor Monitor PSE300AC
- It is possible to change the settings while checking the measured value.
- Visualization of settings
- NPN/PNP switch function
- Input range selection (for pressure/flow rate)
- Simple 3-step setting
Specifications | 3-Screen Display Sensor Monitor PSE300AC
| Series | Set pressure range | Applicable pressure sensors |
|---|---|---|
| PSE300AC | -0.2 to 2.1 kPa 10 to -105 kPa -105 to 105 kPa -10 to 105 kPa -50 to 525 kPa -0.105 to 1.05 MPa -0.105 to 2.1 MPa -0.1 to 5.25 MPa -0.1 to 10.5 MPa |
PSE550 PSE531 / PSE541 / PSE561 PSE533 / PSE543 / PSE563 / PSE573 PSE532 PSE564 / PSE574 PSE530 / PSE540 / PSE560 / PSE570 PSE575 PSE576 PSE577 |
