SMC - Industrial Filters
SMC - Industrial Filter
มีทั้งหมด 10 รุ่น คือ

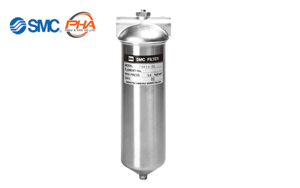

1) Industrial Filter/Vessel Series FGD
Features | Industrial Filter/Vessel Series FGD
- Ideal for low-flow filtration (Max. 60 L/min)
- It is possible to select the antistatic specification (FGDE, FGDF).
Specifications | Industrial Filter/Vessel Series FGD
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGD | Rc3/8, 1/2, 3/4 | 0.7, 1 MPa | MAX. 80 |

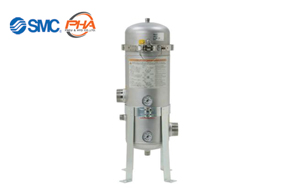

2) Industrial Filter/Vessel Series FGE
Features | Industrial Filter/Vessel Series FGE
- Ideal for medium flow rate filtration (Max. 230 L/min)
- Easy element replacement for the V-band type (With cover anti-scattering mechanism)
Specifications | Industrial Filter/Vessel Series FGE
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGE | R1, 2 | 0.7, 1 MPa | MAX. 80 |

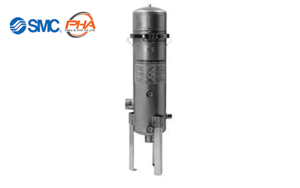

3) Industrial Filter/Vessel Series FGG
Features | Industrial Filter/Vessel Series FGG
- Ideal for medium flow rate filtration (Max. 350 L/min)
- Easy element replacement for the V-band type (With cover anti-scattering mechanism)
Specifications | Industrial Filter/Vessel Series FGG
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGG | Rc2 | 0.7, 1 MPa | MAX. 80 |

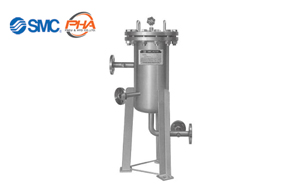

4) Industrial Filter/Vessel Series FGA
Features | Industrial Filter/Vessel Series FGA
- Ideal for high-flow filtration (Max. 3200 L/min)
Specifications | Industrial Filter/Vessel Series FGA
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGA | 25 to 150 (1B to 6B) JIS 10KFF |
1 MPa | MAX. 80 |

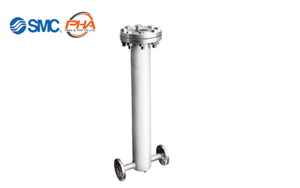

5) Industrial Filter/Vessel Series FGC
Features | Industrial Filter/Vessel Series FGC
- Ideal for low-flow filtration (Max. 80 L/min)
Specifications | Industrial Filter/Vessel Series FGC
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGC | 15 to 25 (1/2B to 1B) JIS 10KFF |
1.2, 4 MPa | MAX. 80 |

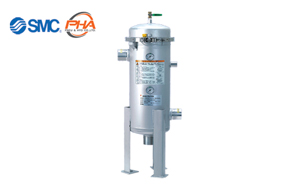

6) Bag Filter FGF
Features | Bag Filter FGF
- Highly effective for the filtration of high-temperature and high-viscosity fluids
- Ideal for high-flow filtration (Max. 2000 L/min)
- Easy handling of filtered impurities
Specifications | Bag Filter FGF
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGF | 100 (4B),150 (6B) JIS 10KFF | 0.5 MPa | MAX. 80 |

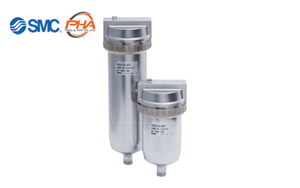

7) High Precision Filter for Liquids FGH
Features | High Precision Filter for Liquids FGH
- Filtration efficiency: 99% or more
Specifications | High Precision Filter for Liquids FGH
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FGH | Rc3/8 to 1 | 1 MPa | MAX. 80 |

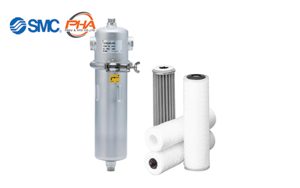

8) Filter for Cleaning Fluid/Quick Change Filter FQ1
Features | Filter for Cleaning Fluid/Quick Change Filter FQ1
- Ideal for low-flow filtration (Max. 30 L/min)
- No tools are required.
- Takes only 60 seconds for element replacement
Specifications | Filter for Cleaning Fluid/Quick Change Filter FQ1
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FQ1 | Rc1/2, 3/4, 1 | 1 MPa | MAX. 80 |

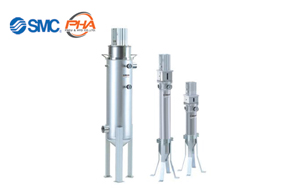

9) Low Maintenance Filter FN
Features | Low Maintenance Filter FN
- Element replacement is not required.
- System circuit allows for the automatic cleaning of the element when clogged
Specifications | Low Maintenance Filter FN
| Series | Port size | Max. operating pressure | Operating temperature (℃) |
|---|---|---|---|
| FN1 | Rc1 | 1 MPa | MAX. 80 |
| FN4 | Rc2 | 1 MPa | MAX. 80 |

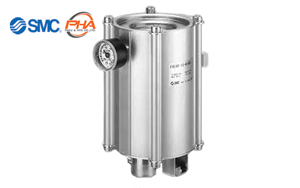

10) Vertical Suction Filter for Coolant FHIAF-10-M149G
Features | Vertical Suction Filter for Coolant FHIAF-10-M149G
- Supports threaded connections
- Lightweight: 2.5 kg/Aluminum bodied
- Operating pressure: –100 to 0 kPa
- Nominal filtration: 149 μm (100 mesh)
- The vacuum pressure gauge can be used to manage clogging.
Specifications | Vertical Suction Filter for Coolant FHIAF-10-M149G
| Series | Port size | Operating pressure [kPa] | Nominal filtration [μm] |
|---|---|---|---|
| FHIAF-10-M149G | IN port : Rp3/4 OUT port : Rc1/2 |
－100 to 0 | 149 (100 mesh) |
