SMC - Hydraulic Cylinders
SMC - Hydraulic Cylinders
มีทั้งหมด 9 รุ่น คือ
1) Compact Hydraulic Cylinder CHQ/CHDQ
Features | Compact Hydraulic Cylinder CHQ/CHDQ
- Lightweight, compact aluminum body
- It is possible to mount auto switches.
- Same longitudinal dimensions for cylinders with/without auto switches
- With auto switch (CHDQ series: CHDQ, CHDQW)
Specifications | Compact Hydraulic Cylinder CHQ/CHDQ
| Series | Nominal pressure (MPa) | Body material | Action | Bore Size (mm) |
|---|---|---|---|---|
| CHQ | 3.5 | Aluminum | Double acting, Single rod | 20, 32, 40, 50 63, 80, 100 |
| CHQW | 3.5 | Aluminum | Double acting, Single rod | 20, 32, 40, 50 63, 80, 100 |
2) JIS Standard Compact Hydraulic Cylinder CHK□/CHDK□
Features | JIS Standard Compact Hydraulic Cylinder CHK□/CHDK□
- Lightweight, compact aluminum body
- It is possible to mount auto switches.
- Same longitudinal dimensions for cylinders with/without auto switches.
- Compliant with JIS Standards (CHKD series)
- With auto switch (CHDK□ series: CHDKD, CHDKG)
Specifications | JIS Standard Compact Hydraulic Cylinder CHK/CHDK
| Series | Nominal pressure (MPa) | Body material | Action | Bore Size (mm) |
|---|---|---|---|---|
| CHKD | 10 | Aluminum | Double acting, Single rod | 20, 25, 32, 40, 50 63, 80, 100 |
| CHKG | 16 | Aluminum | Double acting, Single rod | 20, 25, 32, 40, 50 63, 80, 100 |
3) Small Bore Hydraulic Cylinder CHN
Features | Small Bore Hydraulic Cylinder CHN
- Lightweight with a stainless steel tube and aluminum cover
- Uses a cushion seal type mechanism, Reduces impact at the stroke end, Improves durability
- Smaller cover section compared to tie-rod cylinders
Specifications | Small Bore Hydraulic Cylinder CHN
| Series | Nominal pressure (MPa) | Tube material | Action | Bore Size (mm) |
|---|---|---|---|---|
| CHN | 7 | Stainless steel | Double acting, Single rod | 20, 25, 32, 40 |
4) Round Type Hydraulic Cylinder CHM/CHDM
Features | Round Type Hydraulic Cylinder CHM/CHDM
- Lightweight with an aluminum tube and cover
- With auto switch (CHDM series: CHDM)
Specifications | Round Type Hydraulic Cylinder CHM/CHDM
| Series | Nominal pressure (MPa) | Tube material | Action | Bore size (mm) |
|---|---|---|---|---|
| CHM | 3.5 | Aluminum | Double acting, Single rod | 20, 25, 32, 40 |
5) ISO Standard Hydraulic Cylinder CHS/CHDS
Features | ISO Standard Hydraulic Cylinder CHS/CHDS
- CHSD: ISO Standard (10762), CHSG: ISO Standard (6020-2)
- Cylinder with built-in cover and mounting bracket allows for easy disassembly and assembly
- Smaller cover section compared to tie-rod cylinders
- Reduced overall length (Compared to the CH2 series)
- With auto switch (CHDS□ series: CHDSD, CHDSG)
Specifications | ISO Standard Hydraulic Cylinder CHS/CHDS
| Series | Nominal pressure (MPa) | Tube material | Action | Bore size (mm) |
|---|---|---|---|---|
| CHSD | 10 | Stainless steel | Stainless steel | 40, 50, 63, 80, 100 |
| CHSG | 16 | Stainless steel | Stainless steel | 32, 40, 50, 63, 80, 100 |
6) JIS Standard Hydraulic Cylinder CH2/CHD2
Features | JIS Standard Hydraulic Cylinder CH2/CHD2
- Uses a cushion seal type mechanism, Reduces impact at the stroke end, Improves durability
- Rod cover with block construction makes for easy disassembly and assembly
- With auto switch (CHD2 series: CHD2E, CHD2EW, CHD2F, CHD2FW, CHD2G, CHD2H)
Specifications | JIS Standard Hydraulic Cylinder CH2/CHD2
| Series | Nominal pressure (MPa) | Tube material | Action | Bore Size (mm) |
|---|---|---|---|---|
| CH2E | 3.5 | Aluminum | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
| CH2EW | 3.5 | Aluminum | Double acting, Double rod | 32, 40, 50, 63, 80, 100 |
| CH2F | 7 | Stainless steel | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
| CH2FW | 7 | Stainless steel | Double acting, Double rod | 32, 40, 50, 63, 80, 100 |
| CH2G | 14 | Iron | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
| CH2H | 14 | Stainless steel | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
7) Tie-rod Type Hydraulic Cylinder CHA/CHDA
Features | Tie-rod Type Hydraulic Cylinder CHA/CHDA
- With auto switch (CHDA series: CHDA, CHDAW)
Specifications | Tie-rod Type Hydraulic Cylinder CHA/CHDA
| Series | Nominal pressure (MPa) | Tube material | Action | Bore Size (mm) |
|---|---|---|---|---|
| CHA | 3.5 | Aluminum | Double acting, Single rod | 40, 50, 63, 80, 100 |
| CHAW | 3.5 | Aluminum | Double acting, Double rod | 40, 50, 63, 80, 100 |
| CHA□F | 3.5 | Iron | Double acting, Single rod | 40, 50, 63, 80 100, 125, 160 |
| CHAW□F | 3.5 | Iron | Double acting, Double rod | 40, 50, 63, 80 100, 125, 160 |
8) Air-Hydro Booster CQ2
Note | Air-Hydro Booster CQ2
- Converts air pressure to hydraulic pressure for high-pressure hydraulic cylinder actuation
- No hydraulic pump is required. High hydraulic pressure can easily be obtained.
- Applications: For lifting workpieces, for automatic clamping devices, hydraulic pressure source for low profile hydraulic cylinders
Specifications | Air-Hydro Booster CQ2
| Series | Pneumatic cylinder dia. (mm) | Generated hydraulic pressure (with 0.5 MPa) | Amount of discharged oil (cm3) |
|---|---|---|---|
| CQ2 | 100, 140, 160 | 3.5 to 14 | 17 to 105 |

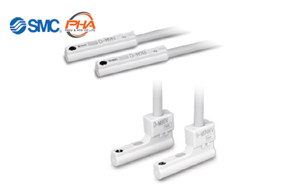

9) Auto Switch D
Specifications | Auto Switch D
| Series | Type | Features |
|---|---|---|
| D Series | Reed auto switch | General purpose type 2-color indicator 2-color indicator with diagnostic output Water resistant 2-color indicator With timer |
| D Series | Reed auto switch | General purpose type 2-color indicator |
