มีทั้งหมด 13 รุ่น คือ

  1. Step Data Input Type Controller JXC51/61
  2. Step Motor Controller JXCE1 / 91 / P1 / D1 / L1 / M1
  3. Programless Controller LECP1
  4. With Input Signals to Perform Jog Operations Step Motor Controller LECP1-XB182
  5. Programless Controller (With Stroke Study) LECP2
  6. Step Motor Driver (Pulse Input Type) LECPA
  7. AC Servo Motor Driver (Pulse Input Type) LECS
  1. AC Servo Motor Driver (MECHATROLINK Compatible) LECYM / LECYU
  2. Multi-Axis Step Motor Controller JXC 73 / 83 / 92 / 93
  3. For 4 Axes Simple Controller JXC□4-X1
  4. Fieldbus-compatible Gateway (GW) Unit LEC-G
  5. Controller / Step Data Input Type LECA6
  6. Step Motor Controller with Step Data Teaching Function LECP6-XB120

1) Step Data Input Type Controller JXC51/61

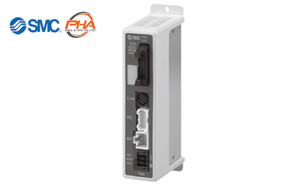

SMC - Step Data Input Type Controller JXC51/61
SMC - Step Data Input Type Controller JXC51/61

Features | Step Data Input Type Controller JXC51/61

  • The controller is already set with the data of the actuator. (The actuator and controller are provided as a set.)
  • Easy operation and simple setting: Easy mode, Detail setting: Normal mode
  • Teaching box, controller setting software
ดาวน์โหลดไฟล์ PDF

Specifications | Step Data Input Type Controller JXC51/61

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
Step data input type JXC51 / 61 Step motor
(Servo / 24 VDC)		 24 VDC ±10% 11
(Photo-coupler isolation)		 13
(Photo-coupler isolation)		 64 points

2) Step Motor Controller JXCE1 / 91 / P1 / D1 / L1 / M1

SMC - Step Motor Controller JXCE1 / 91 / P1 / D1 / L1 / M1
SMC - Step Motor Controller JXCE1 / 91 / P1 / D1 / L1 / M1

Features | Step Motor Controller JXCE1 / 91 / P1 / D1 / L1 / M1

  • EtherCAT, EtherNet/IPTM, PROFINET, DeviceNeTM, IO-Link, and CC-Link compatible
  • Two types of operation command: Step no. defined operation, Numerical data defined operation
  • Transition wiring of communication cables
  • Numerical monitoring available
  • IO-Link communication can be performed.
ดาวน์โหลดไฟล์ PDF

Specifications | Step Motor Controller JXCE1 / 91 / P1 / D1 / L1 / M1

SeriesCompatible motorPower supply voltageFieldbus
JXCE1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 EtherCATTM
JXC91 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 EtherNet/IPTM
JXCP1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 PROFINET
JXCD1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 DeviceNetTM
JXCL1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 IO-Link
JXCM1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 CC-Link

3) Programless Controller LECP1

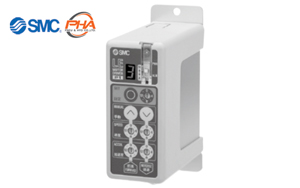

SMC - Programless Controller LECP1
SMC - Programless Controller LECP1

Features | Programless Controller LECP1

  • No programming required Capable of setting up an electric actuator operation without using a PC or teaching box
  • Speed/acceleration 16-level adjustment
  • Compatible with actuators with locks
  • 3-level pushing force settings
ดาวน์โหลดไฟล์ PDF

Specifications | Programless Controller LECP1

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
Programless type LECP1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 6
(Photo-coupler isolation)		 6
(Photo-coupler isolation)		 14 points

4) With Input Signals to Perform Jog Operations Step Motor Controller LECP1-XB182

SMC - With Input Signals to Perform Jog Operations Step Motor Controller LECP1-XB182
SMC - With Input Signals to Perform Jog Operations Step Motor Controller LECP1-XB182

Features | With Input Signals to Perform Jog Operations Step Motor Controller LECP1-XB182

  • Jog operation can be performed using parallel input signals. Jog operations that could previously only be performed using the button on the front face can now be performed using the ON/OFF status of the input signal.
  • Application Examples Optimal for adjusting the feed value using a button operation while checking the motion of the actuator
ดาวน์โหลดไฟล์ PDF

Specifications | With Input Signals to Perform Jog Operations Step Motor Controller LECP1-XB182

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
With input signals to perform jogoperations LECP1-XB182 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 6
(Photo-coupler isolation)		 6
(Photo-coupler isolation)		 2 points

5) Programless Controller (With Stroke Study) LECP2

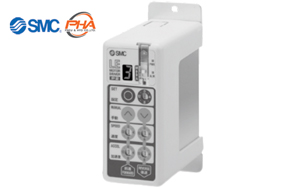

SMC - Programless Controller (With Stroke Study) LECP2
SMC - Programless Controller (With Stroke Study) LECP2

Features | Programless Controller (With Stroke Study) LECP2

  • End to end operation similar to an air cylinder
  • Positioning of 2 stroke end points + 12 intermediate points
ดาวน์โหลดไฟล์ PDF

Specifications | Programless Controller (With Stroke Study) LECP2

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
Programless type (With stroke study) LECP2 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 6
(Photo-coupler isolation)		 6
(Photo-coupler isolation)		 2 stroke end points / 12 intermediate points

6) Step Motor Driver (Pulse Input Type) LECPA

SMC - Step Motor Driver (Pulse Input Type) LECPA
SMC - Step Motor Driver (Pulse Input Type) LECPA

Features | Step Motor Driver (Pulse Input Type) LECPA

  • A driver that uses pulse signals to allow positioning at any position The actuator can be controlled from the customers' positioning unit.
  • Return-to-origin command signal
  • With force limit function (Pushing force/Gripping force operations are available.)
ดาวน์โหลดไฟล์ PDF

Specifications | Step Motor Driver (Pulse Input Type) LECPA

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
Pulse input type LECPA Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 5
(Photo-coupler isolation)		 9
(Photo-coupler isolation)		 -

7) AC Servo Motor Driver (Pulse Input Type) LECS

SMC - AC Servo Motor Driver (Pulse Input Type) LECS
SMC - AC Servo Motor Driver (Pulse Input Type) LECS

Features | AC Servo Motor Driver (Pulse Input Type) LECS

  • Pulse input type motor driver
  • Compatible motor capacity: 100 W, 200 W, 400 W
  • Compatible encoders: Incremental type Absolute type
  • Servo adjustment using auto gain tuning
  • With display setting function
  • Positioning by up to 255 point tables
ดาวน์โหลดไฟล์ PDF

Specifications | AC Servo Motor Driver (Pulse Input Type) LECS

TypeModelCompatible motorPower supply voltageParallel
input/output
Input		Parallel
input/output
Output
Pulse input type
(For incremental encoder)		 LECSA AC servo motor
(100 / 200 / 400 W)		 100 to 120 VAC
(50 / 60 Hz)
200 to 230 VAC
(50 / 60 Hz)		 6 4
Pulse input type
(For absolute encoder)		 LECSB AC servo motor
(100 / 200 / 400 W)		 100 to 120 VAC
(50 / 60 Hz)
200 to 230 VAC
(50 / 60 Hz)		 10 6
CC-Link direct input type
(For absolute encoder)		 LECSC AC servo motor
(100 / 200 / 400 W)		 100 to 120 VAC
(50 /60 Hz)
200 to 230 VAC
(50 / 60 Hz)		 - -
SSCNETⅢ type
(For absolute encoder)		 LECSS AC servo motor
(100 / 200 / 400 W)		 100 to 120 VAC
(50 / 60 Hz)
200 to 230 VAC
(50 / 60 Hz)		 - -
Pulse input type / Positioning type
(For absolute encoder)		 LECSB-T AC servo motor
(100 / 200 / 400 W)		 200 to 240 VAC
(50 / 60 Hz)		 10 6
CC-Link direct input type
(For absolute encoder)		 LECSC-T AC servo motor
(100 / 200 / 400 W)		 200 to 230 VAC
(50 / 60 Hz)		 - -
Network card type / H type
(For absolute encoder)		 LECSN-T AC servo motor
(100 / 200 / 400 W)		 200 to 240 VAC
(50 / 60 Hz)		 - -
SSCNETⅢ type / H type
(For absolute encoder)		 LECSS-T AC servo motor
(100 / 200 / 400 W)		 200 to 240 VAC
(50 / 60 Hz)		 - -

8) AC Servo Motor Driver (MECHATROLINK Compatible) LECYM / LECYU

SMC - AC Servo Motor Driver (MECHATROLINK Compatible) LECYM / LECYU
SMC - AC Servo Motor Driver (MECHATROLINK Compatible) LECYM / LECYU

Features | AC Servo Motor Driver (MECHATROLINK Compatible) LECYM / LECYU

  • Position control, speed control, and torque control can be used.
  • Control encoder: Absolute 20-bit encoder (Resolution: 1048576 p/rev)
  • Applicable Fieldbus protocol: MECHATROLINK-2, MECHATROLINK-3
ดาวน์โหลดไฟล์ PDF

Specifications | AC Servo Motor Driver (MECHATROLINK Compatible) LECYM / LECYU

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O Output
MECHATROLINK-II type
(For absolute encoder)		 LECYM AC servo motor
(100 / 200 / 400 W)		 200 to 230 VAC
(50 / 60 Hz)		 7
(Number of optional allocations)		 1
(Number of fixed allocations)
3
(Number of optional allocations)
MECHATROLINK-III type
(For absolute encoder)		 LECYU AC servo motor
(100 / 200 / 400 W)		 200 to 230 VAC
(50 / 60 Hz)		 7
(Number of optional allocations)		 1
(Number of fixed allocations)
3
(Number of optional allocations)

9) Multi-Axis Step Motor Controller JXC 73 / 83 / 92 / 93

SMC - Multi-Axis Step Motor Controller JXC 73 / 83 / 92 / 93
SMC - Multi-Axis Step Motor Controller JXC 73 / 83 / 92 / 93

Features | Multi-Axis Step Motor Controller JXC 73 / 83 / 92 / 93

  • Speed tuning control
  • Linear/circular interpolation
  • Positioning/pushing operation
  • Absolute/relative position coordinate instructions
  • Step data input (Max. 2048 points)
  • Space saving, reduced wiring
ดาวน์โหลดไฟล์ PDF

Specifications | Multi-Axis Step Motor Controller JXC 73 / 83 / 92 / 93

TypeSeriesI/O typeCompatible motorPower supply voltageNumber of axes
Step data
input type		 JXC73 NPN Step motor
(Servo/24 VDC)		 24 VDC
±10%		 Max. 4 axes
Step data
input type		 JXC83 PNP Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 Max. 4 axes
Step data
input type		 JXC92 EtherNet/IPTM Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 Max. 3 axes
Step data
input type		 JXC93 EtherNet/IPTM Step motor
(Servo/24 VDC)		 24 VDC
±10%		 Max. 4 axes

10) For 4 Axes Simple Controller JXC□4-X1

SMC - For 4 Axes Simple Controller JXC□4-X1
SMC - For 4 Axes Simple Controller JXC□4-X1

Features | For 4 Axes Simple Controller JXC□4-X1

  • 2-point operation is possible without programming! (End to end)
  • Reduced setting labor (Only the speed and force need to be set)
  • Reduced wiring labor (Only 2 inputs/outputs*)
    • *Per axis
  • Space saving Footprint: Reduced by up to approx.79%
ดาวน์โหลดไฟล์ PDF

Specifications | For 4 Axes Simple Controller JXC□4-X1

SeriesCompatible motorPower supply voltageNumber of axes
JXC□4-X1 Step motor
(Servo / 24 VDC)		 24 VDC
±10%		 Max. 4 axes

11) Fieldbus-compatible Gateway (GW) Unit LEC-G

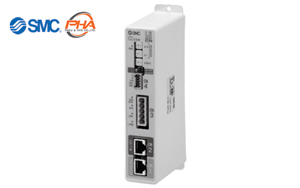

SMC - Fieldbus-compatible Gateway (GW) Unit LEC-G
SMC - Fieldbus-compatible Gateway (GW) Unit LEC-G

Features | Fieldbus-compatible Gateway (GW) Unit LEC-G

  • The LEm series electric actuators are applicable to Fieldbus protocols.
  • Conversion unit for Fieldbus network and LEC serial communication
  • 2 methods of operation: Step data input, numerical data input
  • Position, speed, and other. values can be checked on the PLC.
ดาวน์โหลดไฟล์ PDF

Specifications | Fieldbus-compatible Gateway (GW) Unit LEC-G

SeriesApplicable FieldbusPower supply voltageApplicable controllers
LEC-G CC-Link
DeviceNetTM
PROFIBUS DP
EtherNet/IPTM		 24 VDC
±10%		 Series LECA6

12) Controller / Step Data Input Type LECA6

SMC - Controller / Step Data Input Type LECA6
SMC - Controller / Step Data Input Type LECA6

Features | Controller / Step Data Input Type LECA6

  • The controller is already set with the data of the actuator. (The actuator and controller are provided as a set.)
  • Easy operation and simple setting: Easy mode, Detail setting: Normal mode
  • Teaching box, controller setting software
ดาวน์โหลดไฟล์ PDF

Specifications | Controller / Step Data Input Type LECA6

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
Step data input type LECA6 Servo motor
(24 VDC)		 24 VDC
±10%		 11
(Photo-coupler isolation)		 13
(Photo-coupler isolation)		 64 points

13) Step Motor Controller with Step Data Teaching Function LECP6-XB120

SMC - Step Motor Controller with Step Data Teaching Function LECP6-XB120
SMC - Step Motor Controller with Step Data Teaching Function LECP6-XB120

Features | Step Motor Controller with Step Data Teaching Function LECP6-XB120

  • Neither a PC nor a teaching box is required for adjusting the position of step data.
  • With a JOG function for parallel input signals
ดาวน์โหลดไฟล์ PDF

Specifications | Step Motor Controller with Step Data Teaching Function LECP6-XB120

TypeSeriesCompatible motorPower supply voltageParallel I/O InputParallel I/O OutputNumber of step data
Step data input type LECA6 Servo motor
(24 VDC)		 24 VDC
±10%		 11
(Photo-coupler isolation)		 13
(Photo-coupler isolation)		 64 points

ติดต่อ Pneumatic Festo, SMC

Festo นิวเมติกส์ 1
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
