OMRON Vision sensor - FHV7 series

Model Numbers | Vision system sensor - FHV7 series

Model Number Structure

FHV7 Series Model Number Legend

Use this legend when determining the product specifications from the model number. When ordering, use a model number from the table in Ordering Information.

Configuration

For the Smart Camera FHV7 series, there are five configurations below by module combinations.

Smart camera		Lens	Internal lighting	Protective structure	Integrated model	Appearance	Configura- tion
0.4 million pixels 1.6 million pixels 3.2 million pixels 5 million pixels 6.3 million pixels 12 million pixels	FHV7H-[]004-[] FHV7H-[]016-[] FHV7H-[]032-[] FHV7H-[]050-[] FHV7H-[]063R-[] FHV7H-[]120R-[]	C mount lens 3Z4SLE SV-[][][][]V 3Z4SLE SV-[][][][]H	N/A	IP40	FHV7H- [][][][][]-C		C mount lens/IP40
				IP67 Waterproof Hoods required FHV-XHD-S FHV-XHD-L	N/A		C mount lens/IP67
0.4 million pixels 1.6 million pixels 3.2 million pixels 6.3 million pixels	FHV7H-[]004-[] FHV7H-[]016-[] FHV7H-[]032-[] FHV7H-[]063R-[]	FHV lens module FHV-LEM- H[][] FHV-LEM- S[][]	N/A	IP40	FHV7H- [][][][][]- H[][] FHV7H- [][][][][]- S[][]		Lens module/IP40
				IP67 Waterproof Hoods required FHV-XHD-LEM	N/A		Lens module/IP67
			FHV- LTM-[][]	IP67	FHV7H- [][][][][]- H[][]-[][] FHV7H- [][][][][]- S[][]-[][]		Lens module /Internal lighing - IP67

Ordering Information

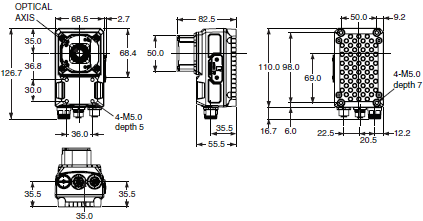

Smart Cameras

C Mount Models

Item	Resolution	Model
		Color	Monochrome
	0.4 million pixels	FHV7H-C004-C	FHV7H-M004-C
	1.6 million pixels	FHV7H-C016-C	FHV7H-M016-C
	3.2 million pixels	FHV7H-C032-C	FHV7H-M032-C
	5 million pixels	FHV7H-C050-C	FHV7H-M050-C
	6.3 million pixels	FHV7H-C063R-C	FHV7H-M063R-C
	12 million pixels	FHV7H-C120R-C	FHV7H-M120R-C

Lens Modules

Item		Focal length *	Model
	High-speed lens module (Autofocus)	6 mm	FHV-LEM-H06
		19 mm	FHV-LEM-H19
	Standard lens module (Autofocus)	6 mm	FHV-LEM-S06
		9 mm	FHV-LEM-S09
		12 mm	FHV-LEM-S12
		16 mm	FHV-LEM-S16
		25 mm	FHV-LEM-S25

*1. Refer to optical chart (Catalog) for details.
*2. When the lens module is mounted to the product, the vibration tolerance is applied for the specifications of the smart camera.

Lighting Modules

Item	Light color	Model
	Multi color	FHV-LTM-MC
	Red	FHV-LTM-R
	White	FHV-LTM-W
	IR	FHV-LTM-IR

All-in-one Models with Lens Module

Item	Resolution	Lens	Focal length	Model
				Color	Monochrome
	0.4 million pixels	High-speed lens module (autofocus)	6 mm	FHV7H-C004-H06	FHV7H-M004-H06
			19 mm	FHV7H-C004-H19	FHV7H-M004-H19
		Standard lens module (autofocus)	6 mm	FHV7H-C004-S06	FHV7H-M004-S06
			9 mm	FHV7H-C004-S09	FHV7H-M004-S09
			12 mm	FHV7H-C004-S12	FHV7H-M004-S12
			16 mm	FHV7H-C004-S16	FHV7H-M004-S16
			25 mm	FHV7H-C004-S25	FHV7H-M004-S25
	1.6 million pixels	High-speed lens module (autofocus)	6 mm	FHV7H-C016-H06	FHV7H-M016-H06
			19 mm	FHV7H-C016-H19	FHV7H-M016-H19
		Standard lens module (autofocus)	6 mm	FHV7H-C016-S06	FHV7H-M016-S06
			9 mm	FHV7H-C016-S09	FHV7H-M016-S09
			12 mm	FHV7H-C016-S12	FHV7H-M016-S12
			16 mm	FHV7H-C016-S16	FHV7H-M016-S16
			25 mm	FHV7H-C016-S25	FHV7H-M016-S25
	3.2 million pixels	High-speed lens module (autofocus)	6 mm	FHV7H-C032-H06	FHV7H-M032-H06
			19 mm	FHV7H-C032-H19	FHV7H-M032-H19
		Standard lens module (autofocus)	6 mm	FHV7H-C032-S06	FHV7H-M032-S06
			9 mm	FHV7H-C032-S09	FHV7H-M032-S09
			12 mm	FHV7H-C032-S12	FHV7H-M032-S12
			16 mm	FHV7H-C032-S16	FHV7H-M032-S16
			25 mm	FHV7H-C032-S25	FHV7H-M032-S25
	6.3 million pixels	High-speed lens module (autofocus)	6 mm	FHV7H-C063R-H06	FHV7H-M063R-H06
			19 mm	FHV7H-C063R-H19	FHV7H-M063R-H19
		Standard lens module (autofocus)	6 mm	FHV7H-C063R-S06	FHV7H-M063R-S06
			9 mm	FHV7H-C063R-S09	FHV7H-M063R-S09
			12 mm	FHV7H-C063R-S12	FHV7H-M063R-S12
			16 mm	FHV7H-C063R-S16	FHV7H-M063R-S16
			25 mm	FHV7H-C063R-S25	FHV7H-M063R-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

All-in-one Models with Lens and Lighting Modules

Item	Reso- lution	Lens	Focal length	Light color	Model
					Color	Monochrome
	0.4 million pixels	High-speed lens module (autofocus)	6 mm	Multi color	FHV7H-C004-H06-MC	FHV7H-M004-H06-MC
				Red	---	FHV7H-M004-H06-R
				White	FHV7H-C004-H06-W	FHV7H-M004-H06-W
				IR	---	FHV7H-M004-H06-IR
			19 mm	Multi color	FHV7H-C004-H19-MC	FHV7H-M004-H19-MC
				Red	---	FHV7H-M004-H19-R
				White	FHV7H-C004-H19-W	FHV7H-M004-H19-W
				IR	---	FHV7H-M004-H19-IR
		Standard lens module (autofocus)	6 mm	Multi color	FHV7H-C004-S06-MC	FHV7H-M004-S06-MC
				Red	---	FHV7H-M004-S06-R
				White	FHV7H-C004-S06-W	FHV7H-M004-S06-W
				IR	---	FHV7H-M004-S06-IR
			9 mm	Multi color	FHV7H-C004-S09-MC	FHV7H-M004-S09-MC
				Red	---	FHV7H-M004-S09-R
				White	FHV7H-C004-S09-W	FHV7H-M004-S09-W
				IR	---	FHV7H-M004-S09-IR
			12 mm	Multi color	FHV7H-C004-S12-MC	FHV7H-M004-S12-MC
				Red	---	FHV7H-M004-S12-R
				White	FHV7H-C004-S12-W	FHV7H-M004-S12-W
				IR	---	FHV7H-M004-S12-IR
			16 mm	Multi color	FHV7H-C004-S16-MC	FHV7H-M004-S16-MC
				Red	---	FHV7H-M004-S16-R
				White	FHV7H-C004-S16-W	FHV7H-M004-S16-W
				IR	---	FHV7H-M004-S16-IR
			25 mm	Multi color	FHV7H-C004-S25-MC	FHV7H-M004-S25-MC
				Red	---	FHV7H-M004-S25-R
				White	FHV7H-C004-S25-W	FHV7H-M004-S25-W
				IR	---	FHV7H-M004-S25-IR
	1.6 million pixels	High-speed lens module (autofocus)	6 mm	Multi color	FHV7H-C016-H06-MC	FHV7H-M016-H06-MC
				Red	---	FHV7H-M016-H06-R
				White	FHV7H-C016-H06-W	FHV7H-M016-H06-W
				IR	---	FHV7H-M016-H06-IR
			19 mm	Multi color	FHV7H-C016-H19-MC	FHV7H-M016-H19-MC
				Red	---	FHV7H-M016-H19-R
				White	FHV7H-C016-H19-W	FHV7H-M016-H19-W
				IR	---	FHV7H-M016-H19-IR
		Standard lens module (autofocus)	6 mm	Multi color	FHV7H-C016-S06-MC	FHV7H-M016-S06-MC
				Red	---	FHV7H-M016-S06-R
				White	FHV7H-C016-S06-W	FHV7H-M016-S06-W
				IR	---	FHV7H-M016-S06-IR
			9 mm	Multi color	FHV7H-C016-S09-MC	FHV7H-M016-S09-MC
				Red	---	FHV7H-M016-S09-R
				White	FHV7H-C016-S09-W	FHV7H-M016-S09-W
				IR	---	FHV7H-M016-S09-IR
			12 mm	Multi color	FHV7H-C016-S12-MC	FHV7H-M016-S12-MC
				Red	---	FHV7H-M016-S12-R
				White	FHV7H-C016-S12-W	FHV7H-M016-S12-W
				IR	---	FHV7H-M016-S12-IR
			16 mm	Multi color	FHV7H-C016-S16-MC	FHV7H-M016-S16-MC
				Red	---	FHV7H-M016-S16-R
				White	FHV7H-C016-S16-W	FHV7H-M016-S16-W
				IR	---	FHV7H-M016-S16-IR
			25 mm	Multi color	FHV7H-C016-S25-MC	FHV7H-M016-S25-MC
				Red	---	FHV7H-M016-S25-R
				White	FHV7H-C016-S25-W	FHV7H-M016-S25-W
				IR	---	FHV7H-M016-S25-IR
	3.2 million pixels	High-speed lens module (autofocus)	6 mm	Multi color	FHV7H-C032-H06-MC	FHV7H-M032-H06-MC
				Red	---	FHV7H-M032-H06-R
				White	FHV7H-C032-H06-W	FHV7H-M032-H06-W
				IR	---	FHV7H-M032-H06-IR
			19 mm	Multi color	FHV7H-C032-H19-MC	FHV7H-M032-H19-MC
				Red	---	FHV7H-M032-H19-R
				White	FHV7H-C032-H19-W	FHV7H-M032-H19-W
				IR	---	FHV7H-M032-H19-IR
Standard lens module (autofocus)		6 mm	Multi color	FHV7H-C032-S06-MC	FHV7H-M032-S06-MC
			Red	---	FHV7H-M032-S06-R
			White	FHV7H-C032-S06-W	FHV7H-M032-S06-W
			IR	---	FHV7H-M032-S06-IR
		9 mm	Multi color	FHV7H-C032-S09-MC	FHV7H-M032-S09-MC
			Red	---	FHV7H-M032-S09-R
			White	FHV7H-C032-S09-W	FHV7H-M032-S09-W
			IR	---	FHV7H-M032-S09-IR
		12 mm	Multi color	FHV7H-C032-S12-MC	FHV7H-M032-S12-MC
			Red	---	FHV7H-M032-S12-R
			White	FHV7H-C032-S12-W	FHV7H-M032-S12-W
			IR	---	FHV7H-M032-S12-IR
		16 mm	Multi color	FHV7H-C032-S16-MC	FHV7H-M032-S16-MC
			Red	---	FHV7H-M032-S16-R
			White	FHV7H-C032-S16-W	FHV7H-M032-S16-W
			IR	---	FHV7H-M032-S16-IR
		25 mm	Multi color	FHV7H-C032-S25-MC	FHV7H-M032-S25-MC
			Red	---	FHV7H-M032-S25-R
			White	FHV7H-C032-S25-W	FHV7H-M032-S25-W
			IR	---	FHV7H-M032-S25-IR
6.3 million pixels	High-speed lens module (autofocus)	6 mm	Multi color	FHV7H-C063R-H06-MC	FHV7H-M063R-H06-MC
			Red	---	FHV7H-M063R-H06-R
			White	FHV7H-C063R-H06-W	FHV7H-M063R-H06-W
			IR	---	FHV7H-M063R-H06-IR
		19 mm	Multi color	FHV7H-C063R-H19-MC	FHV7H-M063R-H19-MC
			Red	---	FHV7H-M063R-H19-R
			White	FHV7H-C063R-H19-W	FHV7H-M063R-H19-W
			IR	---	FHV7H-M063R-H19-IR
	Standard lens module (autofocus)	6 mm	Multi color	FHV7H-C063R-S06-MC	FHV7H-M063R-S06-MC
			Red	---	FHV7H-M063R-S06-R
			White	FHV7H-C063R-S06-W	FHV7H-M063R-S06-W
			IR	---	FHV7H-M063R-S06-IR
		9 mm	Multi color	FHV7H-C063R-S09-MC	FHV7H-M063R-S09-MC
			Red	---	FHV7H-M063R-S09-R
			White	FHV7H-C063R-S09-W	FHV7H-M063R-S09-W
			IR	---	FHV7H-M063R-S09-IR
		12 mm	Multi color	FHV7H-C063R-S12-MC	FHV7H-M063R-S12-MC
			Red	---	FHV7H-M063R-S12-R
			White	FHV7H-C063R-S12-W	FHV7H-M063R-S12-W
			IR	---	FHV7H-M063R-S12-IR
		16 mm	Multi color	FHV7H-C063R-S16-MC	FHV7H-M063R-S16-MC
			Red	---	FHV7H-M063R-S16-R
			White	FHV7H-C063R-S16-W	FHV7H-M063R-S16-W
			IR	---	FHV7H-M063R-S16-IR
		25 mm	Multi color	FHV7H-C063R-S25-MC	FHV7H-M063R-S25-MC
			Red	---	FHV7H-M063R-S25-R
			White	FHV7H-C063R-S25-W	FHV7H-M063R-S25-W
			IR	---	FHV7H-M063R-S25-IR

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

Optical Filters

Item			Model
	Polarization Filter	For visible light	FHV-XPL
	Polarization Filter	For both infrared light and visible light	FHV-XPL-IR
	Diffusion Filter		FHV-XDF

Waterproof Hoods

Required to ensure IP67 protection without using a lighting module.

Item		Model
	Waterproof Hood for Lens Modules	FHV-XHD-LEM
	Waterproof Hood for C-mount Lens (Short) *1	FHV-XHD-S
	Waterproof Hood for C-mount Lens (Long) *2	FHV-XHD-L

*1. Can be used with the following lenses.
3Z4S-LE SV-0614V, 3Z4S-LE SV-0813V, 3Z4S-LE SV-1214V, 3Z4S-LE SV-1614V, 3Z4S-LE SV-2514V
*2. Can be used with the following lenses.
3Z4S-LE SV-0614H, 3Z4S-LE SV-0814H, 3Z4S-LE SV-1214H, 3Z4S-LE SV-1614H,
3Z4S-LE SV-2514H, 3Z4S-LE SV-3514H, 3Z4S-LE SV-5014H

Cables

Item		Cable length	Model

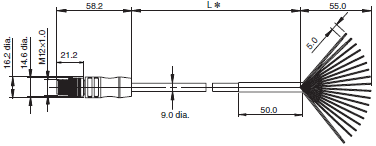

	I/O Cable (Bend Resistant) *1	2m	FHV-VDB 2M
		3m	FHV-VDB 3M
		5m	FHV-VDB 5M
		10m	FHV-VDB 10M
		20m	FHV-VDB 20M

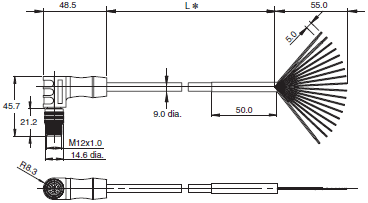

	I/O Cable (Bend Resistant, Right-angle) *1	2m	FHV-VDLB 2M
		3m	FHV-VDLB 3M
		5m	FHV-VDLB 5M
		10m	FHV-VDLB 10M
		20m	FHV-VDLB 20M
	I/O Cable (Super Bend Resistant) *1, *2	2m	FHV-VDBX 2M
		3m	FHV-VDBX 3M
		5m	FHV-VDBX 5M
		10m	FHV-VDBX 10M
	I/O Cable (Super Bend Resistant, Right-angle) *1, *2	2m	FHV-VDLBX 2M
		3m	FHV-VDLBX 3M
		5m	FHV-VDLBX 5M
		10m	FHV-VDLBX 10M

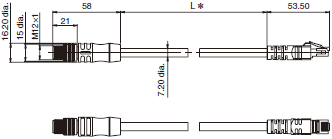

	Ethernet Cable (Bend Resistant)	2m	FHV-VNB 2M
		3m	FHV-VNB 3M
		5m	FHV-VNB 5M
		10m	FHV-VNB 10M
		20m	FHV-VNB 20M
	Ethernet Cable (Bend Resistant, Right-angle)	2m	FHV-VNLB 2M
		3m	FHV-VNLB 3M
		5m	FHV-VNLB 5M
		10m	FHV-VNLB 10M
		20m	FHV-VNLB 20M
	Ethernet Cable (Super Bend resistant) *2	2m	FHV-VNBX 2M
		3m	FHV-VNBX 3M
		5m	FHV-VNBX 5M
		10m	FHV-VNBX 10M
	Ethernet Cable (Super Bend resistant, Right-angle) *2	2m	FHV-VNLBX 2M
		3m	FHV-VNLBX 3M
		5m	FHV-VNLBX 5M
		10m	FHV-VNLBX 10M
	External Light Conversion Cable for MDMC Light	0.1m	FHV-VFLX-GD

*1. The FHV-VDB/VDLB/VDBX/VDLBX I/O Cable cannot be connected when the smart camera data unit is used.
Use the FHV-VUB/VULB/VUBX/VULBX Smart Camera Data Unit Cable.
*2. The Super Bend Resistant cables (FHV-VN[]BX, FHV-VD[]BX) do not protect against water.
(If using them, the IP Protection level for the smart camera will not be IP67, but rather IP60.)
If protection against water is required, please use a Bend Resistant cable (FHV-VN[]B, FHV-VD[]B).

Smart Camera Data Unit

Item		Model
	Paralle linterface	FHV-SDU10
	EtherCAT interface	FHV-SDU30

Smart Camera Data Unit Cable

Item			Cable length	Model
	Smart Camera data unit cable(Bend resistant) *1		2m	FHV-VUB 2M
			3m	FHV-VUB 3M
			5m	FHV-VUB 5M
			10m	FHV-VUB 10M
			20m	FHV-VUB 20M
	Smart Camera data unit cable(Bend resistant, Right-angle) *1		2m	FHV-VULB 2M
			3m	FHV-VULB 3M
			5m	FHV-VULB 5M
			10m	FHV-VULB 10M
			20m	FHV-VULB 20M
	Smart Camera data unit cable(Super Bend resistant) *1, *3		2m	FHV-VUBX 2M
			3m	FHV-VUBX 3M
			5m	FHV-VUBX 5M
			10m	FHV-VUBX 10M
	Smart Camera data unit cable(Super Bend resistant, Right-angle) *1, *3		2m	FHV-VULBX 2M
			3m	FHV-VULBX 3M
			5m	FHV-VULBX 5M
			10m	FHV-VULBX 10M
	Parallel I/O Cable		2m	XW2Z-S013-2
			5m	XW2Z-S013-5
	Parallel I/O Cable for Connector-terminal Conversion Unit Connector-Terminal Block Conversion Units can be connected (Terminal Blocks Recommended Products: OMRON XW2R-[]34G-T)		0.5m	XW2Z-050EE
			1m	XW2Z-100EE
			1.5m	XW2Z-150EE
			2m	XW2Z-200EE
			3m	XW2Z-300EE
			5m	XW2Z-500EE
	Connector-Terminal Block Conversion Units, Generalpurpose devices *2	Phillips screw	---	XW2R-J34GD-T
		Slotted screw (rise up)	---	XW2R-E34GD-T
		Push-in spring	---	XW2R-P34GD-T

*1. The FHV-VDB/VDLB/VDBX/VDLBX I/O Cable cannot be connected when this cable is used.
*2. Refer to the XW2R Series catalog (Cat. No. G077) for details.
*3. The Super Bend Resistant cables (FHV-VU[]BX) do not protect against water.
(If using them, the IP Protection level for the smart camera will not be IP67, but rather IP60.)
If protection against water is required, please use a Bend Resistant cable (FHV-VU[]B).

Accessories

Item			Model
	Base Mount for Smart Cameras and Lighting Controllers		FHV-XMT-7
	Base Mount for Lighting Controllers		FHV-XMT-7-TCC
	Light Cover (for replacement) *1		FHV-XCV
	Waterproof Cap (for replacement)	for Ethernet Connecter	FHV-XWC-ECN
		for Light Connecter	FHV-XWC-LCN
	Waterproof Packing *2 (for replacement, 5 pcs)	for Camera	FHV-XWP-CAM
		for Lighting Module	FHV-XWP-LTM
		for Waterproof Hood	FHV-XWP-HD-SL
	Light-shielding for Lighting Module (for replacement, 3 pcs) *3		FHV-XLS-LTM
	Cover for High-speed Lens Module (for replacement, cover 1pcs, screws 5 pcs (including one spare piece))		FHV-XFC-LEM-H
	Cover for Standard Lens Module (for replacement, cover 1pcs, screws 5 pcs (including one spare piece))		FHV-XFC-LEM-S
	Cover for C-mount Lens (for replacement, cover 1pcs, screws 5 pcs (including one spare piece))		FHV-XFC-C
---	Screw for microSD card cover (for replacement, 10 pcs)		FHV-XSCR-MSD

*1. Adapted lighting module
FHV-LTM-W, FHV-LTM-R, FHV-LTM-IR, FHV-LTM-MC
*2. Always replace when a module is removed.
*3. It is considered a consumable item that will deteriorate. Please replace as needed.

Accessories

Item	Descriptions				Model
---	External Lights			LED	FLV Series
				High-brightness LED	FL-BR/DR Series
				MDMC Light (Built-in lighting controller)	FL-MD Series
---	Lighting controller			LED	FLV-TCC/ATC
				High-brightness LED	FL-TCC/STC
	Industrial Switching Hubs for EtherNet/IP and Ethernet	3 port	Failure detection: None	Current consumption: 0.22 A or less	W4S1-03B
		5 port	Failure detection: None	Current consumption: 0.22 A or less	W4S1-05B
		5 port	Failure detection: Supported		W4S1-05C

Lenses

Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.

Resolution	Camera Model	Size of image element	Recommended lens
			Standard Lens	Telecentric Lens	Vibrations and Shocks Resistant Lens
0.4 million-pixel	FHV7H-[]004	1/2.9” equivalent	SV-V Series	VS-TCH Series	VS-MCA Series Non-telecentric Macro VS-MC Series
1.6 million-pixel	FHV7H-[]016	1/2.9” equivalent
3.2 million-pixel	FHV7H-[]032	1/1.8” equivalent	SV-H Series
5 million-pixel	FHV7H-[]060	2/3” equivalent
6.3 million-pixel	FHV7H-[]063R	1/1.8” equivalent
12 million-pixel	FHV7H-[]120R	1/1.7” equivalent

Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.

Cable with Connectors

Item	Appearance	Recommended manufacturer	Cable length (m)	Model
Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH *2 Cable color: Yellow *3		OMRON	0.3	XS6W-6LSZH8SS30CM-Y
			0.5	XS6W-6LSZH8SS50CM-Y
			1	XS6W-6LSZH8SS100CM-Y
			2	XS6W-6LSZH8SS200CM-Y
			3	XS6W-6LSZH8SS300CM-Y
			5	XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Light blue		OMRON	0.3	XS5W-T421-AMD-K
			0.5	XS5W-T421-BMD-K
			1	XS5W-T421-CMD-K
			2	XS5W-T421-DMD-K
			5	XS5W-T421-GMD-K
			10	XS5W-T421-JMD-K
Cable with Connectors on Both Ends (M12 Straight/M12 Straight) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black		OMRON	0.5	XS5W-T421-BM2-SS
			1	XS5W-T421-CM2-SS
			2	XS5W-T421-DM2-SS
			3	XS5W-T421-EM2-SS
			5	XS5W-T421-GM2-SS
			10	XS5W-T421-JM2-SS
Cable with Connectors on Both Ends (M12 Straight/RJ45) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black		OMRON	0.5	XS5W-T421-BMC-SS
			1	XS5W-T421-CMC-SS
			2	XS5W-T421-DMC-SS
			3	XS5W-T421-EMC-SS
			5	XS5W-T421-GMC-SS
			10	XS5W-T421-JMC-SS

*1 Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m,
3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m.
Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m,
10 m, 15 m.
For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2 The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3 Cables colors are available in yellow, green, and blue.
*4 For details, contact your OMRON representative.

Cables / Connectors

Item		Recommended manufacturer	Model
Products for EtherCAT (1000BASE-T/100BASE-TX) Wire gauge and number of pairs: AWG24, 4-pair cable	Cable	Hitachi Metals, Ltd.	NETSTAR-C5E SAB 0.5 x 4P CP *1
		Kuramo Electric Co.	KETH-SB *1
		SWCC Showa Cable Systems Co.	FAE-5004 *1
	RJ45 Connector	Panduit Corporation	MPS588-C *1
Products for EtherCAT (100BASE-TX/10BASE-T) Wire gauge and number of pairs: AWG22, 2-pair cable	Cable	Kuramo Electric Co.	KETH-PSB-OMR *2
		JMACS Japan Co., Ltd.	PNET/B *2
	RJ45 Assembly Connector	OMRON	XS6G-T421-1 *2

*1 We recommend you to use the above Cable and RJ45 Connector together.
*2 We recommend you to use the above Cable and RJ45 Assembly Connector together.

Touch Panel Monitor

Ask Advantech about the warranty period and coverage of this product.

Item		Model	Recommended manufacturer
	Touch Panel Monitor	PPC-3100S-OMR	Advantech Find your local office on the Advantech website https://www.advantech.com/contact/offices/
	ARM VESA Standard (A-CLEVER) for PPC Series	PPC-ARM-A03
	Wall mount kit for PPC Series	PPC-174T-WL-MTE
	Stand for PPC Series	PPC-Stand-A1E
	ADP A/D 100-240V 90W 19V W/PFC	96PSA-A90W19OT-3
	Power cord 3P UL 10 A 125 V 1.8 m	1700001524
	Power cord 3P Europe (WS-010+083) 1.83 m	170203183C
	Power cord 3P/3P PSE 1.8 m	1700008921
	Power cord 3P CCC (China) 1.8 m	96CB-POWER-B-1.8M

Recommended Industrial Touch Panel IPC/ Monitor
If you require a more industrial solution or larger screensizes, our FHV7 smart camera's work perfect with Omron's Industrial PC systems (e.g. NYP-series)
Find your preferred Industrial PC systems at: NYP

Automation Software Sysmac Studio

Please purchase a DVD and licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. The license does not include the DVD.

Item	Specifications			Model
		Number of licenses	Media
Sysmac Studio Standard Edition Ver.1.[][]	The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCat Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 Pro (32/64bit) or Enterprise (32/64bit) *1 This software provides functions of the Vision Edition. Refer to your local OMRON website for details such as supported models and functions.	-- (Media only)	Sysmac Studio (32bit) DVD *2	SYSMAC-SE200D
		-- (Media only)	Sysmac Studio (64bit) DVD *2	SYSMAC-SE200D-64
		1 license *3	---	SYSMAC-SE201L
Sysmac Studio Vision Edition Ver.1.[][] *4	Sysmac Studio Vision Edition is a limited license that provides selected functions required for Vision Sensor FH-series/ Smart Camera FHV7-series/ FQ-M-series settings.	1 license	---	SYSMAC-VE001L

*1. Model "SYSMAC-SE200D-64" runs on Windows 10 (64bit).
*2. The same media is used for both the Standard Edition and the Vision Edition.
*3. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
*4. This product is a license only. You need the Sysmac Studio Standard Edition DVD media to install it.

Specifications | Vision system sensor - FHV7 series

Smart Camera

Model			FHV7H- M004-C	FHV7H- C004-C	FHV7H- M016-C	FHV7H- C016-C	FHV7H- M032-C	FHV7H- C032-C
Specifi- cations	Operation Mode	Standard	Yes
		Double speed multi-input	Yes
		Non-stop adjustment mode	Yes
	Parallel processing		Yes
	Possible No. of captured images		256		64		36
	Possible No. of logging images to Smart Camera		214		52		25
	Possible No. of scenes		128 *1
	UI operation		Remote Operation Tool
	Setup		Create the processing flow using Flow editing.
	Language		Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging	CMOS Image elements		1/2.9-inch equivalent		1/2.9-inch equivalent		1/1.8-inch equivalent
	Color/Monochrome		Monochrome	Color	Monochrome	Color	Monochrome	Color
	Effective pixels (H x V)		720 × 540		1440 × 1080		2048 × 1536
	Pixel size		6.9 × 6.9 µm		3.45 × 3.45 µm		3.45 × 3.45 µm
	Imaging area H × V (opposing corner)		5.0 × 3.8 (6.3 mm)		5.0 × 3.8 (6.3 mm)		7.1 × 5.3 (8.9 mm)
	Shutter system		Global Shutter
	Shutter function		Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.
	Partial function		4 to 540 lines (4-line increments)		4 to 1080 lines (4-line increments)		4 to 1536 lines (4-line increments)
	Frame rate (image acquisition time)		430 fps (2.3 ms)		224 fps (4.5 ms)		55 fps (18.0 ms)
	Lens mounting		C mount
	Field of view, Installation distance		Selecting a lens according to the field of view and installation distance
External Interface	Serial		RS-232C × 1
	Ethernet		Protocol: Non-procedure (TCP/UDP) I/F: 1000BASE-T × 1
	EtherNet/IP		Yes (Target/Ethernet port)
	PROFINET		Yes (Slave/Ethernet port), Conformance class A
	Parallel I/O		NPN/PNP common
	Parallel I/O	Input signals	4 signals • STEP (Measurement trigger input) • DI 0 to 2 (Command input signal)
		Output signals	5 signals • ERROR (ON when there is an error) • OR (Overall Judgement Result) • BUSY (Processing in progress) • READY (ON when Image input is allowed) • STGOUT/SHTOUT (Strobe trigger signal/Shutter output signal)
	Encoder I/F		N/A
	Monitor I/F		N/A
	USB I/F		N/A
	SD Card I/F		microSD card: SDHC × 1
Indicator Lamps		Main	PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
		SD	SD ACCESS: Yellow
Supply Voltage			21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption			With lighting modules: 4.2 A or less Without lighting modules: 0.60 A
Usage Environ ment	Ambient temperature range		Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range		Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere		No corrosive gases
	Vibration tolerance		Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times With standard lens modules, FHV-LEM-S: Half amplitude: 0.15 mm (Others are the same as above.)
	Shock resistance		Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
	Noise immunity		Fast transient burst • DC power Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min. • I/O line Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
	Grounding		Class D grounding (100 Ω or less grounding resistance) *2
External shape	Dimensions		110 mm × 68.5 mm × 55.5 mm (H × W × D)
	Weight		Approx. 670 g
	Degree of protection		With lighting modules or waterproof hoods: IEC60529 - IP67 (except a connector cap removed) Other than the above: IEC60529 - IP40
	Case material		Aluminum die-casting (ADC12)
Accessories			• Connector cap for Ethernet cable (mounted on the body): 1 • Connector cap for an external lighting (mounted on the body): 1 • C mount cap (mounted on the body): 1 • C mount cover (mounted on the body): 1 • Instruction sheet: 1 • Membership registration: 1 • Compliance sheet: 1

Model			FHV7H- M050-C	FHV7H- C050-C	FHV7H- M063R-C	FHV7H- C063R-C	FHV7H- M120R-C	FHV7H- C120R-C
Specifi- cations	Operation Mode	Standard	Yes
		Double speed multi-input	Yes
		Non-stop adjustment mode	Yes
	Parallel processing		Yes
	Possible No. of captured images		25		19		10
	Possible No. of logging images to Smart Camera		15		12		5
	Possible No. of scenes		128 *1
	UI operation		Remote Operation Tool
	Setup		Create the processing flow using Flow editing.
	Language		Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging	CMOS Image elements		2/3-inch equivalent		1/1.8-inch equivalent		1/1.7-inch equivalent
	Color/Monochrome		Monochrome	Color	Monochrome	Color	Monochrome	Color
	Effective pixels (H x V)		2448 × 2048		3072 × 2048		4000 × 3000
	Pixel size		3.45 × 3.45 µm		2.4 × 2.4 µm		1.85 × 1.85 µm
	Imaging area H × V (opposing corner)		8.5 × 7.1 (11.1 mm)		7.4 × 5.0 (8.9 mm)		7.4 × 5.6 (9.3 mm)
	Shutter system		Global Shutter		Rolling shutter (Global reset mode compatible)
	Shutter function		Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.		Electronic shutter: Shutter speed can be set from 55 µs to 100 ms.		Electronic shutter: Shutter speed can be set from 84 µs to 100 ms.
	Partial function		4 to 2048 lines (4-line increments)		4 to 2048 lines (4-line increments)		4 to 3000 lines (4-line increments)
	Frame rate (image acquisition time)		35 fps (28.0 ms)		59 fps (16.7 ms)		19 fps (25.0 ms)
	Lens mounting		C mount
	Field of view, Installation distance		Selecting a lens according to the field of view and installation distance
External Interface	Serial		RS-232C × 1
	Ethernet		Protocol: Non-procedure (TCP/UDP) I/F: 1000BASE-T × 1
	EtherNet/IP		Yes (Target/Ethernet port)
	PROFINET		Yes (Slave/Ethernet port), Conformance class A
	Parallel I/O		NPN/PNP common
	Parallel I/O	Input signals	4 signals • STEP (Measurement trigger input) • DI 0 to 2 (Command input signal)
		Output signals	5 signals • ERROR (ON when there is an error) • OR (Overall Judgement Result) • BUSY (Processing in progress) • READY (ON when Image input is allowed) • STGOUT/SHTOUT (Strobe trigger signal/Shutter output signal)
	Encoder I/F		N/A
	Monitor I/F		N/A
	USB I/F		N/A
	SD Card I/F		microSD card: SDHC × 1
Indicator Lamps		Main	PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
		SD	SD ACCESS: Yellow
Supply Voltage			21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption			With lighting modules: 4.2 A or less Without lighting modules: 0.60 A
Usage Environ ment	Ambient temperature range		Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range		Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere		No corrosive gases
	Vibration tolerance		Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times With standard lens modules, FHV-LEM-S: Half amplitude: 0.15 mm (Others are the same as above.)
	Shock resistance		Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
	Noise immunity		Fast transient burst • DC power Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min. • I/O line Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
	Grounding		Class D grounding (100 Ω or less grounding resistance) *2
External shape	Dimensions		110 mm × 68.5 mm × 55.5 mm (H × W × D)
	Weight		Approx. 670 g
	Degree of protection		With lighting modules or waterproof hoods: IEC60529 - IP67 (except a connector cap removed) Other than the above: IEC60529 - IP40
	Case material		Aluminum die-casting (ADC12)
Accessories			• Connector cap for Ethernet cable (mounted on the body): 1 • Connector cap for an external lighting (mounted on the body): 1 • C mount cap (mounted on the body): 1 • C mount cover (mounted on the body): 1 • Instruction sheet: 1 • Membership registration: 1 • Compliance sheet: 1

*1. The number of scenes can be increased up to 1,024 with the Conversion scene group data tool.
*2. Existing the third class grounding

Lens Modules

High-speed Lens Modules (Autofocus)

Item		FHV-LEM-H06	FHV-LEM-H19
System		Liquid lens auto focus
Installation distance		102 to 650 mm	202 to 1050 mm
Horizontal field of view range *	0.4 million pixels	64 × 48 mm to 505 × 376 mm	50 × 37 mm to 266 × 200 mm
	1.6 million pixels
	3.2 million pixels	92 × 68 mm to 731 × 539 mm	71 × 53 mm to 378 × 284 mm
	6.3 million pixels	97 × 63 mm to 766 × 499 mm	74 × 49 mm to 394 × 264 mm
Focal length *		6 mm	19 mm
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
External shape	Dimension	50 mm × 41.1 mm × 37.1 mm (H × W × D)	50 mm × 41.1 mm × 36.3 mm (H × W × D)
	Weight	Approx. 25 g
	Case material	Polycarbonate
Accessories		• Special cover for FHV-LEM-H: 1 • Screws: M3 × 8 mm: 5 (including one spare piece) • Instruction sheet: 1 • Compliance sheet: 1

* Refer to optical chart (Catalog) for details.

Standard Lens Modules (Autofocus)

Item		FHV-LEMS06	FHV-LEMS09	FHV-LEMS12	FHV-LEMS16	FHV-LEMS25
System		Mechanical auto focus
Focal length range *1		59 to 1,000 mm	60 to 1,000 mm	60 to 1,000 mm	110 to 2,000 mm	188 to 2,000 mm
Horizon- tal field of view range *1	0.4 million pixels	39 × 29 to 845 × 624 mm	24 × 18 to 543 × 407 mm	17 × 13 to 407 × 305 mm	27 × 20 to 614 × 461 mm	30 × 23 to 391 × 293 mm
	1.6 million pixels
	3.2 million pixels	57 × 42 to 1,234 × 905 mm	34 × 25 to 772 × 579 mm	24 × 18 to 579 × 434 mm	38 × 29 to 874 × 655 mm	43 × 33 to 556 × 417 mm
	6.3 million pixels	50 × 39 to 1,293 × 836 mm	35 × 23 to 807 × 538 mm	25 × 17 to 606 × 404 mm	40 × 27 to 913 × 608 mm	45 × 30 to 581 × 387 mm
Focal length		6 mm	9 mm	12 mm	16 mm	25 mm
Usage environ- ment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.15 mm *2, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
External shape	Dimension	50 mm × 41 mm × 31 mm (H × W × D)
	Weight	Approx. 50 g
	Case material	Polycarbonate
Accessories		• Special cover for FHV-LEM-S: 1 • Screws: M3 × 8 mm: 5 (including one spare piece) • Instruction sheet: 1 • Compliance sheet: 1

<p">*1. Refer to optical chart (Catalog) for details.
*2. When the lens module is mounted to the product, the vibration tolerance is applied for the specifications of the
smart camera.

Lighting Modules

Model		FHV-LTM-W	FHV-LTM-R	FHV-LTM-IR	FHV-LTM-MC
Color		White	Red	Infrared light	Multi color
Peak wave length		-	Typ. 630 nm	Typ. 850 nm	R: Typ. 630 nm G: Typ. 525 nm B: Typ. 465 nm IR: Typ. 850 nm
Light source		LED	LED	LED	LED
Risk group		Group 2	Group 1	Group 1	R: Group 1 G: Group 2 B: Group 2 IR: Group 1
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Dimensions		52 mm × 91 mm × 77 mm (H × W × D)
Weight		270 g	270 g	270 g	270 g
Material		Aluminum die-casting (ADC12), polycarbonate
Accessories		• Waterproof packing (small) FHV-XWP-CAM:1 • Waterproof packing (large) FHV-XWP-LTM: 1 • Light shielding sheet FHV-XLS-LTM: 1 • Lighting cover FHV-XCV: 1 • Hexagonal wrench (length: 60 mm): 1 • Instruction sheet: 1 • Compliance sheet: 1

Optical Filters

Model		FHV-XDF	FHV-XPL	FHV-XPL-IR
Filter type		Diffusion filter	Polarization filter	Polarization filter
Wavelength		Visible to infrared	Visible	Visible to infrared
Adapted lighting module		FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC	FHV-LTM-W FHV-LTM-R FHV-LTM-MC (Infrared light is not used.)	FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Vibration tolerance	No corrosive gases
	Shock resistance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Vibration tolerance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Aluminum (A6061), polycarbonate
Weight		Approx. 70 g	Approx. 70 g	Approx. 70 g

Waterproof Hoods

Model		FHV-XHD-S	FHV-XHD-L	FHV-XHD-LEM
Suitable lens		3Z4S-LE SV-V series SV-0614V SV-0813V SV-1214V SV-1614V SV-2514V	3Z4S-LE SV-H series SV-0614H *1 SV-0814H *2 SV-1214H SV-1614H SV-2514H SV-3514H SV-5014H	FHV-LEM-S series FHV-LEM-S06 FHV-LEM-S09 FHV-LEM-S12 FHV-LEM-S16 FHV-LEM-S25 FHV-LEM-H series FHV-LEM-H06 FHV-LEM-H09
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Aluminum (A6061), polycarbonate
Weight		Approx. 220 g	Approx. 220 g	Approx. 220 g

*1. This is not available in FHV7H-[]050, FHV7H-[]063R, FHV7H-[]120R.
*2. This is not available in FHV7H-[]050.

Smart Camera Data Unit

Item		Parallel interface	EtherCAT interface
Model		FHV-SDU10	FHV-SDU30
Input/output specifications	Parallel I/O	Input: 12 Output: 24 (NPN/PNP combined use)	Input: 1 Output: 2 (NPN/PNP combined use)
	EtherCAT communications	None	Yes (slave)
Smart Camera Interface		Special cable to connect No. of connectable cameras: 1
Indicator	Main	POWER: Green, ERROR: Red, RUN: Green, BUSY: Green, CAMERA: Yellow, OR: Yellow
	EtherCAT	None	ECAT RUN: Green, LINK/ACT IN: Green, LINK/ACT OUT: Green, ECAT ERROR: Red
Power supply voltage		21.6 to 26.4 VDC (Note: 24.0 to 26.4 VDC when a data unit cable with 20 m is connected.)
Insulation resistance		Between DC terminal block and FG terminal: 0.5 MΩ (250V Megger)
Current consumption		4.5 A or less
Usage environment	Ambient temperature range	Operating: 0 to +50°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating and storage: 35 to 85%RH (with no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.1 mm, Vibration direction: X/Y/Z, Sweep time: 8 minutes, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, Three times each (up/down, front/behind, left/right)
	Noise immunity	Fast transient burst • DC power Direct infusion: 2 kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms / 0.75 ms, Period: 300 ms, Application time: 1 minute • I/O line Coupling clamp: 1 kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms / 0.75 ms, Period: 300 ms, Application time: 1 minute
	Grounding	Class D grounding (100 Ω or less grounding resistance) * Existing the third class grounding
External shape	Dimensions	H (90 mm) × W (93 mm) × D (65 mm)	H (90 mm) × W (124 mm) × D (65 mm)
	Weight	Approx. 250 g	Approx. 325 g
	Degree of protection	IEC60529 - IP20
	Case material	PC+ABS, PC
Accessories		• Instruction sheet: 1 • Compliance sheet: 1

I/O cables

Bending Resistance Cables

Item		FHV- VDB 2M	FHV- VDLB 2M	FHV- VDB 3M	FHV- VDLB 3M	FHV- VDB 5M	FHV- VDLB 5M
Cable length		2 m		3 m		5 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Size	Power line	AWG21
	Others	AWG26
Outer diameter		9.0±0.3 mm dia.
Min. bending radius		Fixed use: 54 mm, Sliding use: 72 mm
Input/Output signals	Input signals	4 signals: STEP, DI 0 to 2
	Output signals	5 signals: ERROR, OR, BUSY, READY, STGOUT/SHTOUT
	RS-232C	2 signals: Transmission data, Reception data
Usage environment	Ambient temperature range	Operating: -30 to +80°C, Storage: -30 to +100°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight		Approx. 270 g		Approx. 390 g		Approx. 620 g

Item		FHV-VDB 10M	FHV-VDLB 10M	FHV-VDB 20M	FHV-VDLB 20M
Cable length		10 m		20 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Size	Power line	AWG21
	Others	AWG26
Outer diameter		9.0±0.3 mm dia.
Min. bending radius		Fixed use: 54 mm, Sliding use: 72 mm
Input/Output signals	Input signals	4 signals: STEP, DI 0 to 2
	Output signals	5 signals: ERROR, OR, BUSY, READY, STGOUT/SHTOUT
	RS-232C	2 signals: Transmission data, Reception data
Usage environment	Ambient temperature range	Operating: -30 to +80°C, Storage: -30 to +100°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight		Approx. 1200 g		Approx. 2350 g

Super Bending Resistance Cables

Item		FHV- VDBX 2M	FHV- VDLBX 2M	FHV- VDBX 3M	FHV- VDLBX 3M	FHV- VDBX 5M	FHV- VDLBX 5M	FHV- VDBX 10M	FHV- VDLBX 10M
Cable length		2 m		3 m		5 m		10 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Super bending resistance cable
Outer diameter		7.2±0.3 mm dia.
Min. bending radius		44 mm
Input/ Output signals	Input signals	1 signal: STEP
	Output signals	3 signals: OR, READY, STGOUT/SHTOUT
Usage environ- ment	Ambient temperature range	Operating: -30 to +80°C, Storage: -30 to +100°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight		Approx. 190 g		Approx. 260 g		Approx. 400 g		Approx. 750 g

Ethernet Cables

Bending Resistance Cables

Item		FHV- VNB 2M	FHV- VNLB 2M	FHV- VNB 3M	FHV- VNLB 3M	FHV- VNB 5M	FHV- VNLB 5M
Cable length		2 m		3 m		5 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Outer diameter		7.2+0.3 mm dia.
Min. bending radius		Fixed use: 35 mm, Sliding use: 70 mm
Usage environment	Ambient temperature range	Operating: -40 to +80°C, Storage: -40 to +100°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Polyurethane
Weight		Approx. 210 g		Approx. 240 g		Approx. 310 g

Item		FHV-VNB 10M	FHV-VNLB 10M	FHV-VNB 20M	FHV-VNLB 20M
Cable length		10 m		20 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Outer diameter		7.2+0.3 mm dia.
Min. bending radius		Fixed use: 35 mm, Sliding use: 70 mm
Usage environment	Ambient temperature range	Operating: -40 to +80°C, Storage: -40 to +100°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Polyurethane
Weight		Approx. 380 g		Approx. 730 g

Super Bending Resistance Cables

Item		FHV- VNBX 2M	FHV- VNLBX 2M	FHV- VNBX 3M	FHV- VNLBX 3M	FHV- VNBX 5M	FHV- VNLBX 5M	FHV- VNBX 10M	FHV- VNLBX 10M
Cable length		2 m		3 m		5 m		10 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Super bending resistance cable
Outer diameter		6.3+0.6 mm dia.
Min. bending radius		38 mm
Usage environ- ment	Ambient temperature range	Operating: -30 to +80°C, Storage: -30 to +100°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Low friction PVC
Weight		Approx. 170 g		Approx. 220 g		Approx. 330 g		Approx. 590 g

External Light Junction Cables for MDMC Light

Item		FHV-VFLX-GD
Cable length		0.1 m
Outer diameter		4.0±0.1 mm dia.
Min. bending radius		15 mm
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Shell part: Zinc alloy and Brass, Sheath part: Heat-resistant oilproof polyvinyl chloride
Weight		Approx. 30 g

Smart Camera Data Unit Cable

Bending Resistance Cables

Item		FHV- VUB 2M	FHV- VULB 2M	FHV- VUB 3M	FHV- VULB 3M	FHV- VUB 5M	FHV- VULB 5M
Cable length		2 m		3 m		5 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Bending resistance cable
Outer diameter		7.9±0.2 mm dia.
Min. bending radius		47 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +60°C, Storage: -10 to +60°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon and Thermoplastic polyurethane, Sheath part: PVC
Weight		Approx. 220 g		Approx. 310 g		Approx. 500 g

Item		FHV- VUB 10M	FHV- VULB 10M	FHV- VUB 20M	FHV- VULB 20M
Cable length		10 m		20 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Bending resistance cable
Outer diameter		7.9±0.2 mm dia.
Min. bending radius		47 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +60°C, Storage: -10 to +60°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon and Thermoplastic polyurethane, Sheath part: PVC
Weight		Approx. 980 g		Approx. 1,930 g

Super Bending Resistance Cables

Item		FHV- VUBX 2M	FHV- VULBX 2M	FHV- VUBX 3M	FHV- VULBX 3M	FHV- VUBX 5M	FHV- VULBX 5M	FHV- VUBX 10M	FHV- VULBX 10M
Cable length		2 m		3 m		5 m		10 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Super bending resistance cable
Outer diameter		7.5±0.6 mm dia.
Min. bending radius		47 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +60°C, Storage: -10 to +60°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s2, Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon and Thermoplastic polyurethane, Sheath part: PVC
Weight		Approx. 200 g		Approx. 280 g		Approx. 440 g		Approx. 860 g

Touch panel monitor

Model		PPC-3100S-OMR (Advantech)
LCD	Display Type	10.4" TFT LCD (LED backlight)
	Resolution	1,024 × 768
	Luminance	350 cd/m2
	Contrast Ratio	1200
	Backlight Lifetime	30,000 hr (min.)
	Touch Type	Capacitive
External Interface	Ethernet	10/100/1,000 Mbps Ethernet × 2
	USB I/F	USB 2.0 × 1, USB 3.0 × 1
Power Consumption	Input Voltage	12 to 24 VDC
	Power Consumption	16 W
Environ- ment	Ambient Temperature Range	Operating: 0 to 50°C Storage: -40 to 60°C
	Ambient Humidity Range	10% to 95% at 40°C (With no condensation)
	Vibration	Operating Random Vibration Test 5 to 500 Hz, 2 Grms, follow IEC 60068-2-64
	Shock	Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
	EMC	CE, FCC Class B, BSMI
	Safety	CB, CCC, BSMI, UL
Dimensions		272 × 217 × 46 mm
Weight		1.9 kg
Front Panel Protection		IP65 compliant
Mounting		Panel mount, VESA mount, Wall mount
Accessories		Instruction sheet, Connector for power supply, Mounting screws and brackets for panel mount

Dimensions | Vision system sensor - FH series

Smart Cameras

C Mount Models

FHV7H-[][][][][]-C

All-in-one Models with Lens Module

High-speed Lens Modules
FHV7H-[][][][][]-H06

FHV7H-[][][][][]-H19

Standard Lens Modules
FHV7H-[][][][][]-S[][]

All-in-one Models with Lens and Lighting Modules

FHV7H-[][][][][]-H[][]-[][]/
FHV7H-[][][][][]-S[][]-[][]

Lens Modules

High-speed Lens Modules

FHV-LEM-H06

FHV-LEM-H19

Standard Lens Modules

FHV-LEM-S[][]

Lighting Modules

FHV-LTM-[][]

Smart Camera Data Unit

FHV-SDU10

FHV-SDU30

Smart Camera Data Unit Cables

Bending Resistance Cables (Straight)

FHV-VUB []M

Bending Resistance Cables (Right angle)

FHV-VULB []M

* Cable is available in 2m/3m/5m/10m/20m.

Super Bending Resistance Cables (Straight)

FHV-VUBX []M

Super Bending Resistance Cables (Right angle)

FHV-VULBX []M

* Cable is available in 2m/3m/5m/10m.

Cables

I/O cable (Bend resistant, straight)

FHV-VDB []M

I/O cable (Bend resistant, right angle)

FHV-VDLB []M

* Cable is available in 2m/3m/5m/10m/20m.

I/O cable (Super bend resistant, straight)

FHV-VDBX []M

I/O cable (Super bend resistant, right angle)

FHV-VDLBX []M

* Cable is available in 2m/3m/5m/10m.

Ethernet cable (Bend resistant, straight)

FHV-VNB []M

Ethernet cable (Bend resistant, right angle)

FHV-VNLB []M

* Cable is available in 2m/3m/5m/10m/20m.

Ethernet cable (Super bend resistant, straight)

FHV-VNBX []M

Ethernet cable (Super bend resistant, right angle)

FHV-VNLBX []M

* Cable is available in 2m/3m/5m/10m/20m.

External Light Junction Cables for MDMC Light

FHV-VFLX-GD

Optical Filters/Light Cover

Polarization Filter, Diffusion Filter
FHV-XDF/-XPL/-XPL-IR

FHV-XCV

Touch Panel Monitor

Advantech PPC-3100S-OMR

Waterproof Hoods

for C-mount Lens (Short)

FHV-XHD-S

for C-mount Lens (Long)

FHV-XHD-L

for Lens Modules

FHV-XHD-LEM

Features | Vision system sensor - FHV7 series

The FHV7 Smart Camera provides several options for components, allowing you to freely combine the lens and light with the camera and easily adjust the optical conditions to specific products. The footprint of the camera is not affected by module replacement. Even if a sudden change occurs in the product specification, the system can be ready after minimum rearrangement.

---

Properties | Vision system sensor - FH7V series

Vision system sensor	FH7V series
Resolution pixel	0.4 to 12 M pixel
Lens	C mount
	High-speed Lens Modules (Autofocus)
	Standard Lens Modules (Autofocus)
Light Source	LED
Usage environment	Detect errors
	Read Barcode
	Read number
Weight (g)	670
