OMRON Code Readers - V430-F series

Model Numbers | Vision Code Reader - V430-F series

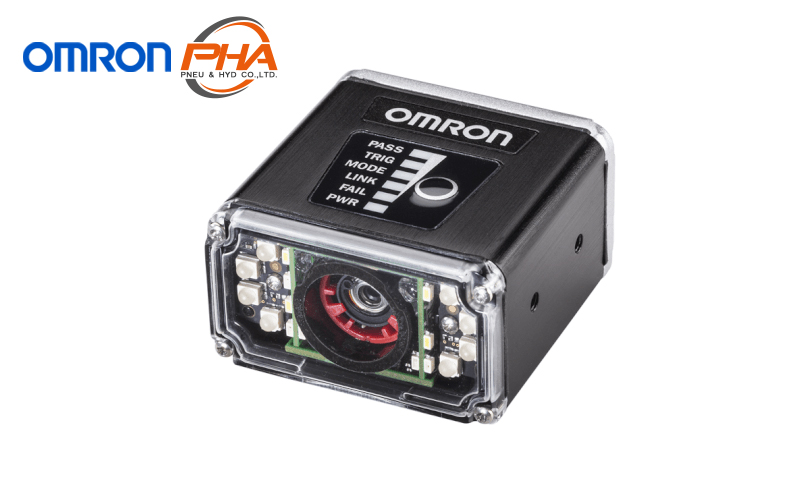

MicroHAWK V430-F

Mounting Options

Appearance	Type	Part Number

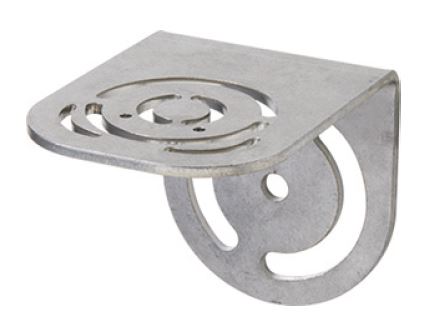

	L Bracket Adjustable Angle Mounting Kit	V430-AM0

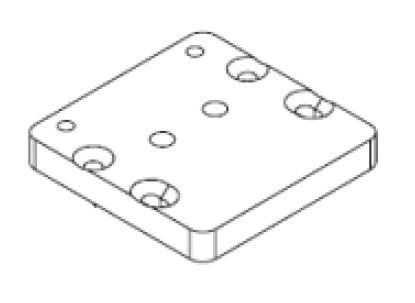

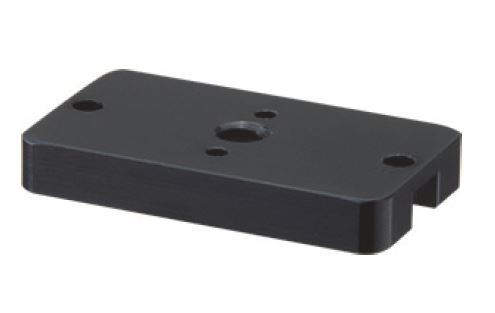

	¼-20 Camera Mounting Block Kit	V430-AM1

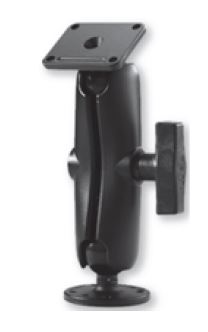

	4” (102 mm) Ram Mount Stand	V430-AM2
	APG Pan and Tilt Camera Mount	V430-AM3

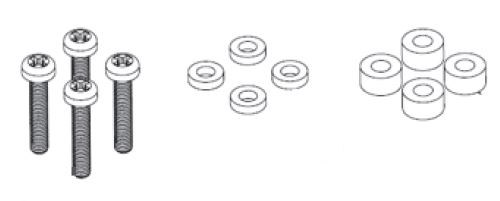

	Nylon Screw and Washer Electrical Isolation Mounting Kit	V430-AM4

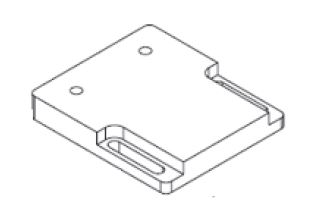

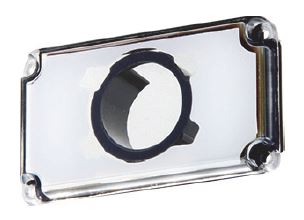

	MS-4 / MINI to V/F4XX-F Adapter Plate	V430-AM5
	Smart Ring Light to V/F4XX-F Mounting Bracket	V430-AM6
	QX / Vision HAWK to V/F4XX-F Adapter Plate	V430-AM7

Optics Options

Appearance	Type	Part Number

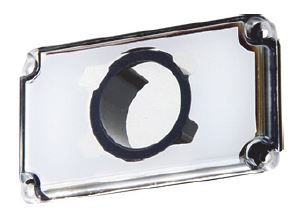

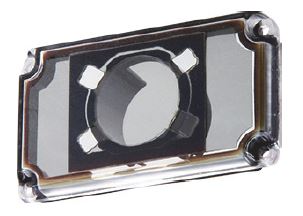

	Front Window Installation Kit	V430-AF10 *

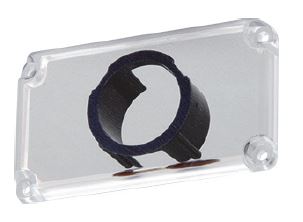

	Diffuser Installation Kit	V430-AF11 *
	Polarizer Installation Kit	V430-AF12 *
	Right Angle Mirror Installation Kit	V430-AF3
	YAG Filter Installation Kit	V430-AF4
	ESD-Safe Window Installation Kit	V430-AF5
	Red Filter Installation Kit	V430-AF6
	Blue Filter Installation Kit	V430-AF7

* Note: V430-AF10, AF11, and AF12 are used for MicroHAWK V/F4X0-FXXXXXXX-XXX readers in this datasheet. The prior generation MicroHAWK V430-FXXXXXXX code reader uses part numbers V430-AF0, AF1, and AF2. Please select the correct accessory from the table based on your camera part number format.

Accessory	Prior V430-FXXXXXXX Code Reader	New V/F4X0-FXXXXXXX-XXX Code Reader and Smart Camera
Front Window Installation Kit	V430-AF0	V430-AF10
Diffuser Installation Kit	V430-AF1	V430-AF11
Polarizer Installation Kit	V430-AF2	V430-AF12

Additional Optics Options

Product	Appearance	Type	Part Number
V430-F Window Kits		Front Window Installation Kit	V430-AF0R
		Diffuser Installation Kit	V430-AF1R
		Polarizer Installation Kit	V430-AF2R

Lighting Options

Product	Appearance	Type	Part Number

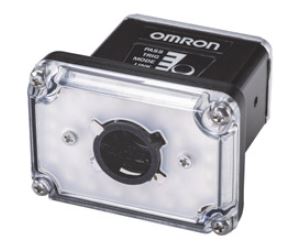

V430-F Ring Light Kits		Red Ring Light Installation Kit	V430-ALRR
		White Ring Light Installation Kit	V430-ALWR
		Blue Ring Light Installation Kit	V430-ALBR
		IR Ring Light Installation Kit	V430-ALIR

Additional Lighting Options

Appearance	Type	Part Number
	Red Light Installation Kit	V430-ALR
	White Light Installation Kit	V430-ALW
	Blue Light Installation Kit	V430-ALB
	IR Light Installation Kit	V430-ALI

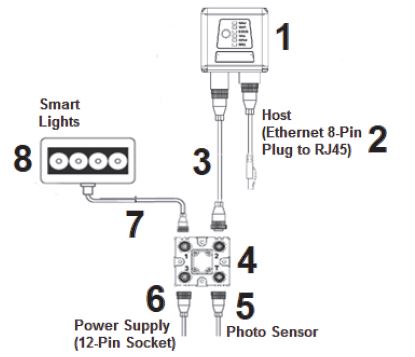

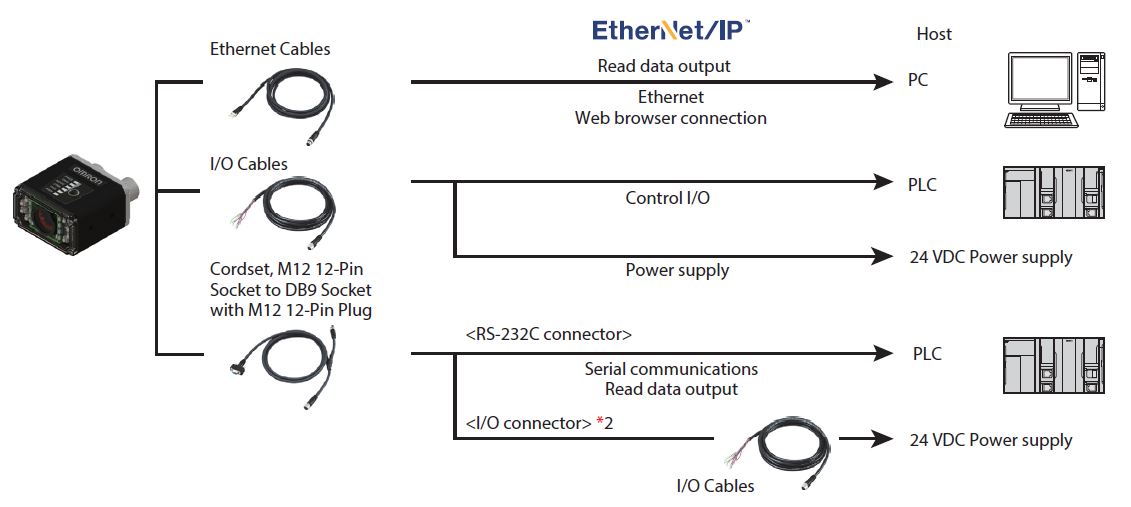

Wiring Options

Drawing Reference	Appearance	Category	Length / Spec	Part Number

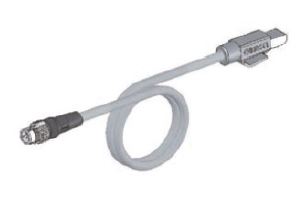

2		Ethernet Communication Cables - Straight Connectors M12 Plug on Camera to RJ45 Connector	1 Meter	V430-WE-1M
			3 Meters	V430-WE-3M
			5 Meters	V430-WE-5M

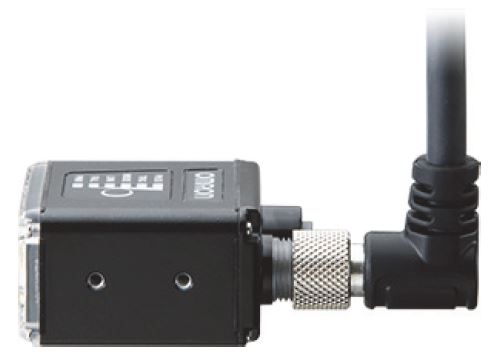

		Ethernet Communication Cables - Right Angle M12 Connectors* M12 Plug on Camera to RJ45 Connector	3 Meters - Right Angle Up*	V430-WELU-3M
			3 Meters - Right Angle Down*	V430-WELD-3M

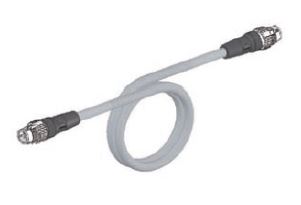

3		Camera to QX-1 Interconnect Cables M12 Socket to M12 Plug QX-1 is used as breakout module for common IO signals and power.	1 Meter	V430-WQ-1M
		M12 Socket to M12 Plug, with Power Filter	300 mm	V430-WQF-1M
		Camera to QX-1 Interconnect Cables M12 Socket to M12 Plug QX-1 is used as breakout module for common IO signals and power.	3 Meters	V430-WQ-3M
			5 Meters	V430-WQ-5M
4		QX-1 Interconnect Module - Power, Trigger, Smart Light Control Breakout		98-000103-02
5		QX-1 Photo Sensor, M12 4-Pin Plug, NPN	2 Meters - Light ON/Dark ON	99-9000016-01
		QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or Photo Sensor	Screw Terminals	98-9000239-01
6		Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket	1 Meter US/Euro Plug	97-000012-01
7		QX-1 M12 to Smart Light Power and Strobe Control Cables M12 Plug on QX-1 to 5 Pin Socket on light	3 Meters - Continuous Power	61-000204-01
			3 Meters - Strobe Control	61-000218-01
8		Omron Microscan Smart Light Series	Integrated Power and Strobe Control Module	See Omron Microscan Smart Light Offering - Ring, DOAL, Large Area Lighting

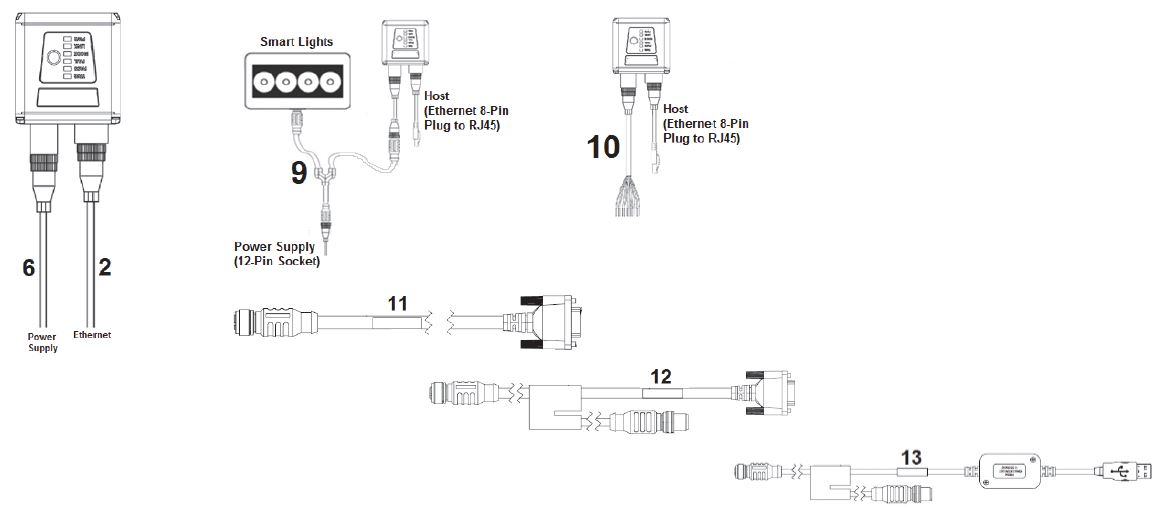

Alternate Wiring Options

Drawing Reference	Appearance	Category	Length/ Spec	Part Number
9		Y Cable, Camera/Power and Smart Light Power (Continuous On)	1 Meter	61-9000135-01
		Y Cable, Camera/Power and Smart Light Strobe Control	1 Meter	61-9000137-01
10		M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB	3 Meters	V430-W8-3M
		M12 to Flying Leads Cable, with Power Filter		V430-W8F-3M
		M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB	5 Meters	V430-W8-5M
		M12 to Flying Leads Cable, with Power Filter		V430-W8F-5M
		M12 to Flying Leads Cable Right Angle Power, IO, RS232, USB	3 Meters - Right Angle Up	V430-W8LU-3M
		M12 to Flying Leads Cable Right Angle, with Power Filter		V430-W8LUF-3M
		M12 to Flying Leads Cable Right Angle Power, IO, RS232, USB	3 Meters - Right Angle Down	V430-W8LD-3M
		M12 to Flying Leads Cable Right Angle, with Power Filter		V430-W8LDF-3M
11		M12 to RS-232 Breakout	1 Meter	V430-WR-1M
			3 Meters	V430-WR-3M
12		Camera to QX-1 Interconnect Cables with RS-232 Breakout	2.7 Meters	V430-WQR-3M
13		Camera to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout	2.7 Meters	V430-WQK-3M

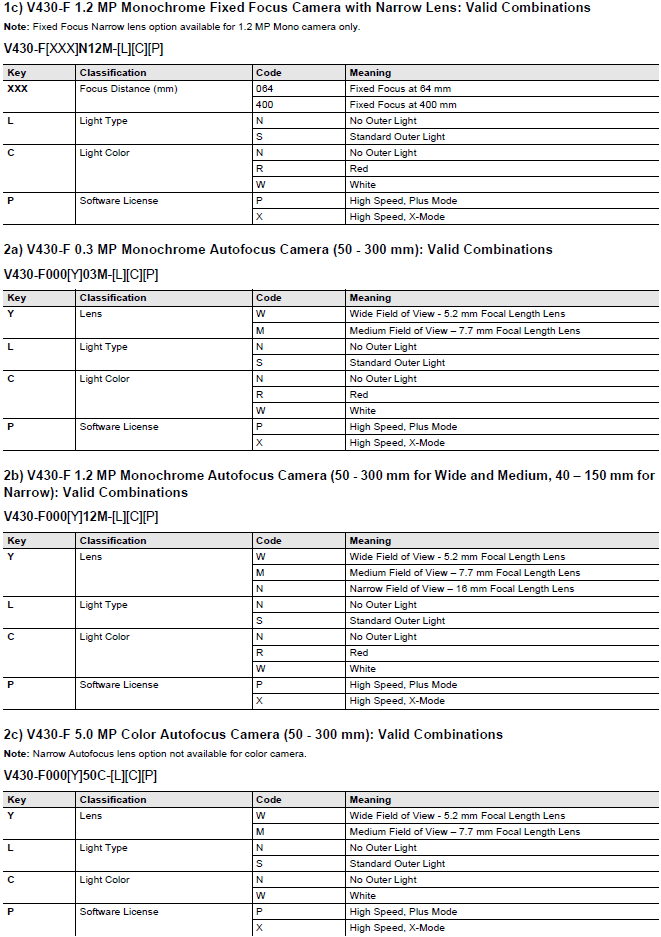

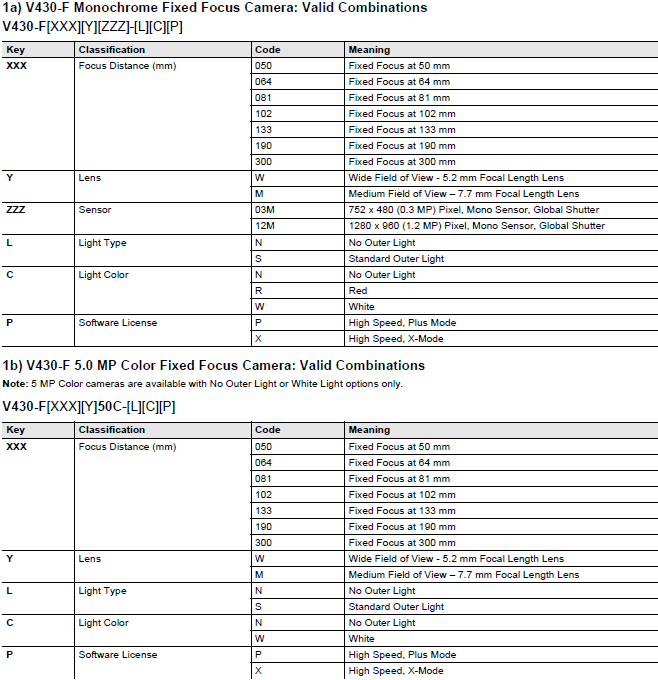

V430-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.

V430-F Ordering Information

Categories:
1. Fixed Focus Camera
a.) V430-F Monochrome Fixed Focus Camera
b.) V430-F Color Fixed Focus Camera
c.) V430-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
a.) V430-F 0.3 MP Monochrome Autofocus Camera (50 - 300 mm)
b.) V430-F 1.2 MP Monochrome Autofocus Camera (50 - 300 mm for Wide and Medium Lens, 40 - 150 mm for Narrow Lens)
c.) V430-F Color Autofocus Camera (50 - 300 mm)

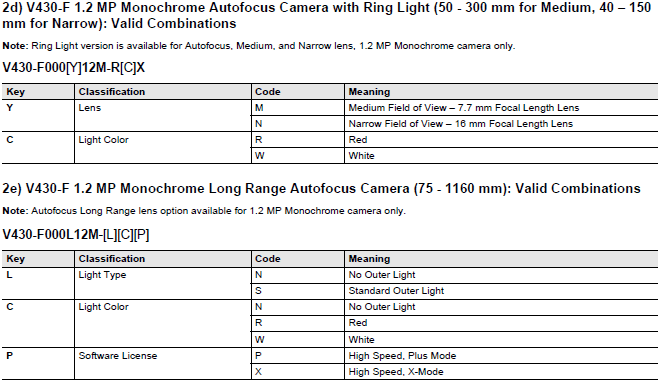

d.) V430-F 1.2 MP Monochrome Autofocus Camera with Ring Light (50 – 300 mm for Medium Lens, 40 - 150 mm for Narrow Lens)
e.) V430-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)

Specifications | Vision Code Reader - V430-F series

MicroHAWK V430-F

V430-F		V430-F[][][][]03M-[][][]	V430-F[][][][]12M-[][][]	V430-F[][][][]50C-[][][]
Symbologies *1	1D Symbologies	Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
	2D Symbologies	Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
	Stacked Symbologies	PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading Performance *2	Number of Reading Digits	No Upper Limit (depending on bar width and reading distance)
	Aiming Light	Two Blue LEDs
	Illumination	Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
		Outer LEDs: 8 Red or White	Outer LEDs: 8 Red or White; 24 Red or White for V430- F[][][][]12M-R[][]	Outer LEDs: 8 White
	Reading Distance/ Field of View	Refer to Read Ranges section for detail.

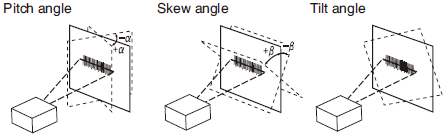

	Pitch Angle (α) *3	±30°
	Skew Angle (β) *3	±30°
	Tilt Angle (γ) *3	±180°
Image Capture	Focus	Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm, L = 16 mm)
	Resolution	752 (H) x 480 (V)	1280 (H) x 960 (V)	2592 (H) x 1944 (V)
	Color / Monochrome	Monochrome CMOS	Monochrome CMOS	Color CMOS
	Shutter	Global Shutter	Global Shutter	Rolling Shutter
	Frames per Second	60 fps	42 fps	5 fps
	Exposure	50 to 100,000 μs
Image Logging		FTP
Trigger		External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C)
I/O Specifications	Input Signals	Trigger Input; New Master: Bi-Directional, Optoisolated, 4.5-28 V rated (10 mA @ 28 VDC)
	Output Signals	3 Signals: Bi-Directional, Optoisolated, 1-28V rated, (ICE < 100 mA at 24VDC, current limited by user)
Communica- tion	Connectivity	RS-232C, Ethernet TCP/IP, EtherNet/IP, PROFINET
	Ethernet Specifications	100BASE-TX / 10BASE-T
Indicator LEDs		PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red), PWR (Green)
Power Supply Voltage		5 to 30.0 VDC, 200 mV p-p max ripple
Current Consumption		0.18 A at 24 VDC (max.)
Environmental Immunity *4	Ambient Temperature Range	Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
	Ambient Humidity Range	Operating and Storage: 5% to 95% (Non-Condensing)
	Ambient Atmosphere	No Corrosive Gases
	Vibration Resistance (Destructive)	Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis. Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
	Shock Resistance (Destructive)	50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
	Degree of Protection	IEC 60529 IP65 and IP67
Weight	Main Body Only	Approx. 68 g
	Packaging Weight	Approx. 174 g (including packing)
Dimensions	Main Body Dimensions	44.5 (W) × 44.5 (D) × 25.4 (H) mm
	Packaging Dimensions	170 (W) × 117 (D) × 86 (H) mm
Accessories		ReadMeFirst, CE Compliance Sheet
LED Safety Standard		IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards		EN 55024:2010, EN 55032:2015 + AC:2016 FCC Part 15, Subpart B (Class B) UL60950-1 BIS RCM, KC, EAC and BSMI Pending
Materials	Case	Aluminum Diecast, Alumite (Black)
	Reading Window	Acrylic
Software		WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that; validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to ensure proper operation.

Dimensions | Vision Code Reader - V430-F series

MicroHAWK V430-F

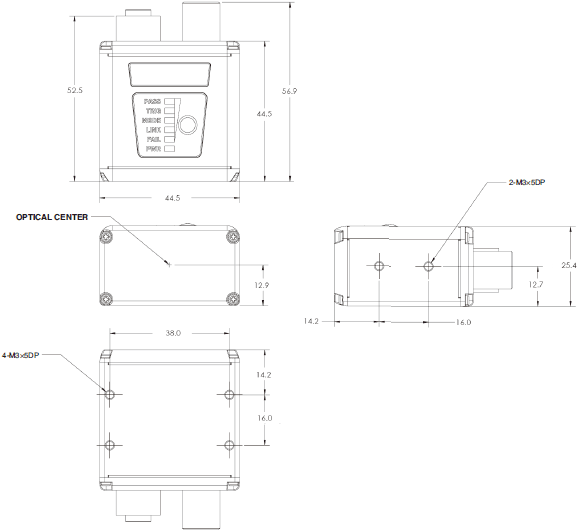

V430-F

V430-F with Alternate Optics and Illumination

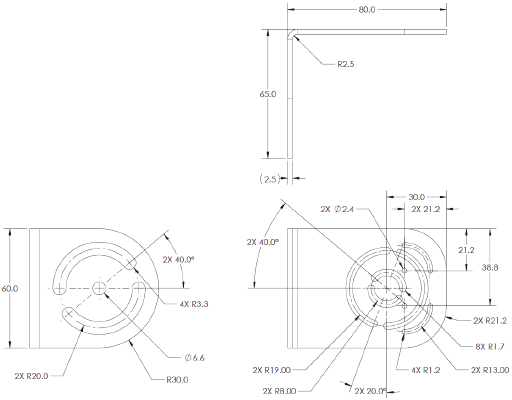

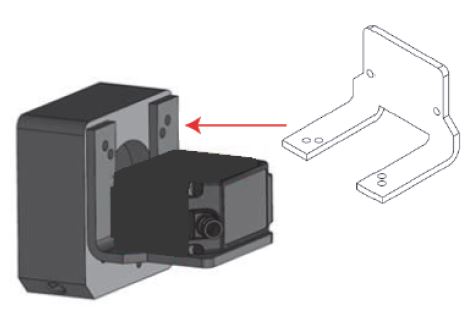

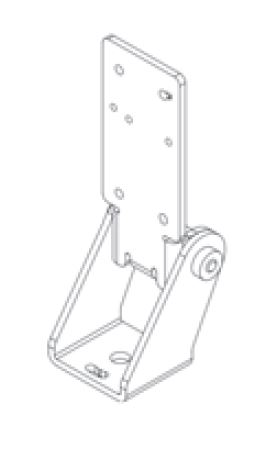

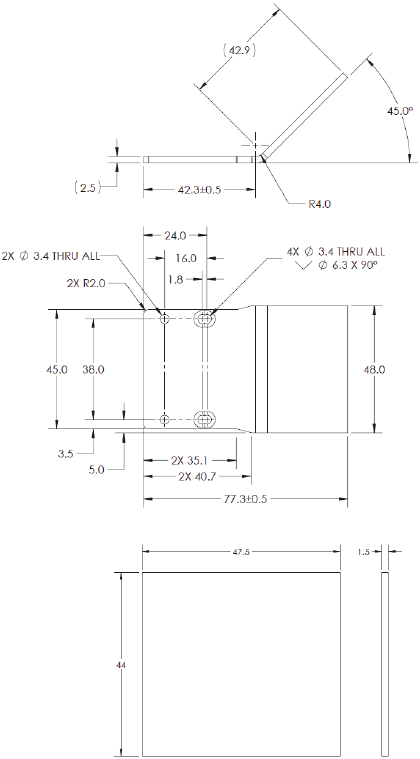

L Bracket Adjustable Angle Mounting Kit
V430-AM0

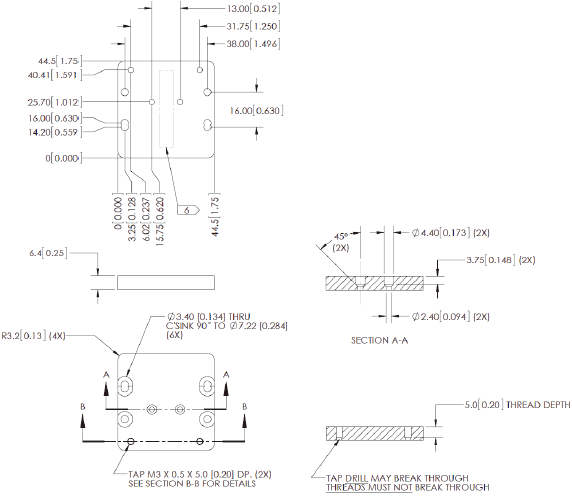

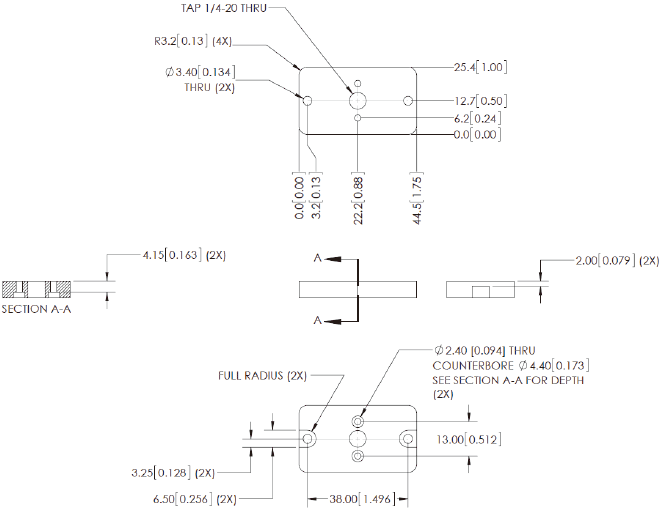

¼-20 Camera Mounting Block Kit
V430-AM1

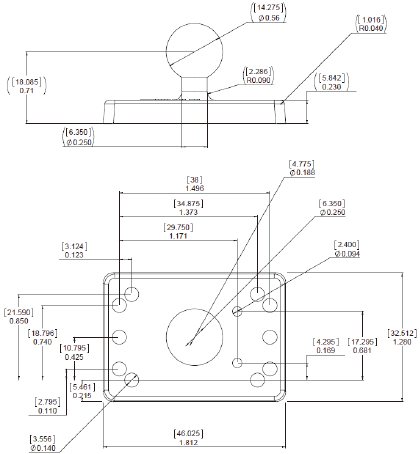

4” (102 mm) Ram Mount Stand
V430-AM2

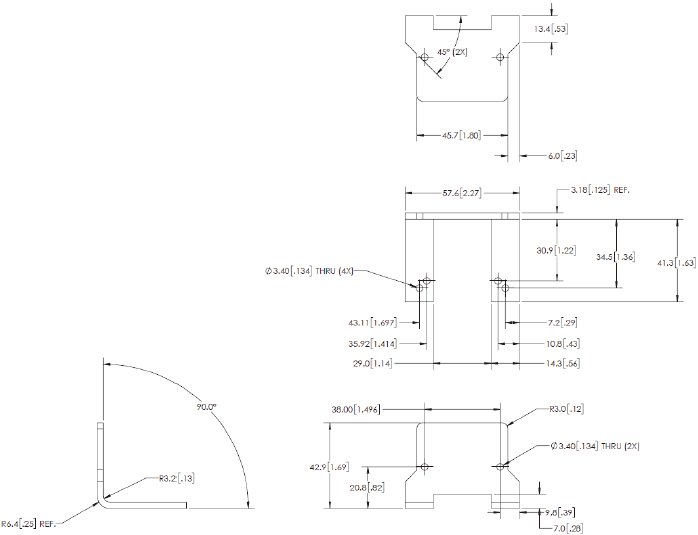

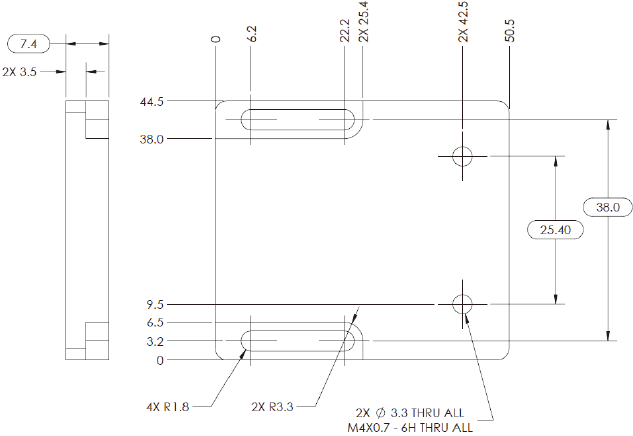

MS-4 / MINI to V/F4XX-F Adapter Plate
V430-AM5

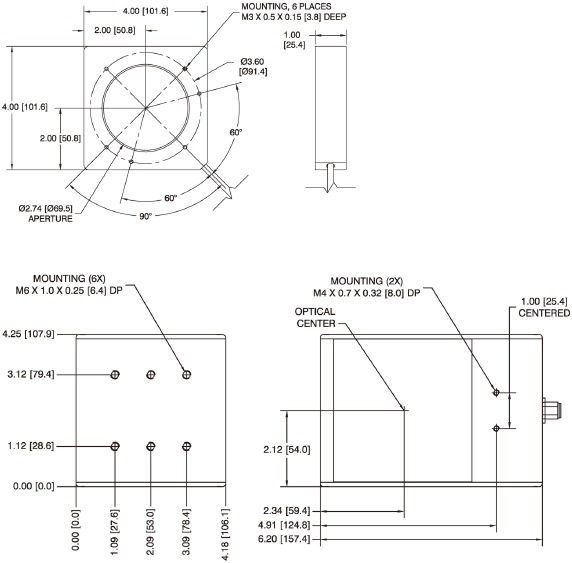

Smart Ring Light to V/F4XX-F Mounting Bracket
V430-AM6

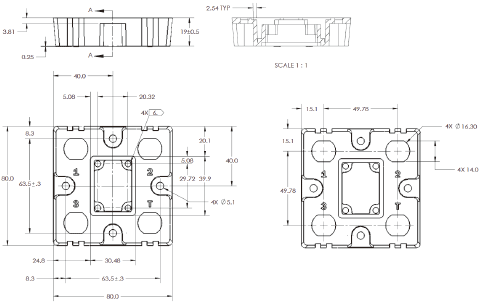

QX / Vision HAWK to V/F4XX-F Adapter Plate
V430-AM7

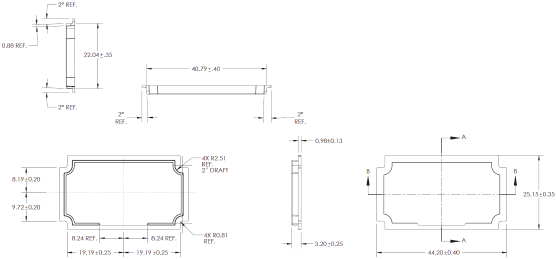

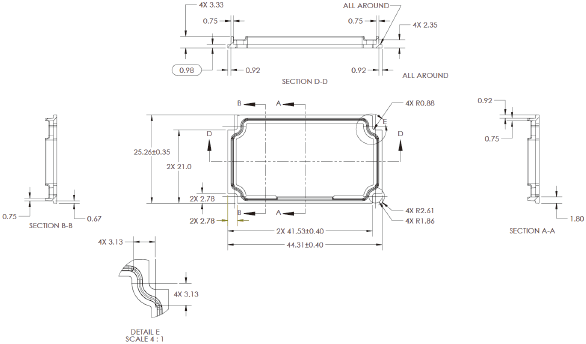

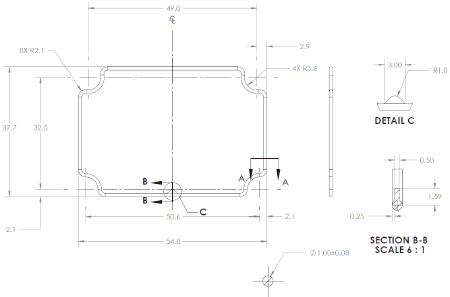

Front Window Installation Kit
V430-AF10
Diffuser Installation Kit
V430-AF11
Polarizer Installation Kit
V430-AF12
YAG Filter Installation Kit
V430-AF4
ESD-Safe Window Installation Kit
V430-AF5

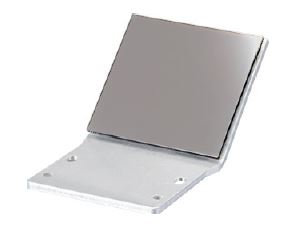

Right Angle Mirror Installation Kit
V430-AF3

Red Filter Installation Kit
V430-AF6
Blue Filter Installation Kit
V430-AF7

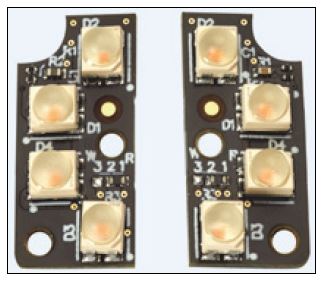

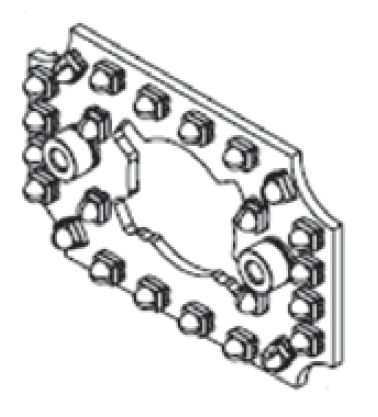

Red Light Installation Kit
V430-ALR
White Light Installation Kit
V430-ALW
Blue Light Installation Kit
V430-ALB
IR Light Installation Kit
V430-ALI

Front Window Installation Kit
V430-AF0R
Diffuser Installation Kit
V430-AF1R
Polarizer Installation Kit
V430-AF2R
Red Ring Light Installation Kit
V430-ALRR
White Ring Light Installation Kit
V430-ALWR
Blue Ring Light Installation Kit
V430-ALBR
IR Ring Light Installation Kit
V430-ALIR

QX-1 Interconnect Module – Power, Trigger, Smart Light Control Breakout
98-000103-02

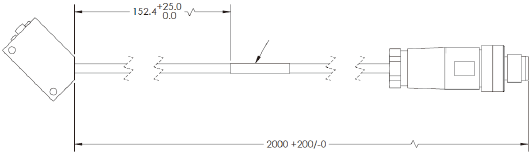

QX-1 Photo Sensor, M12 4-Pin Plug, NPN – 2 Meters – Light ON / Dark ON
99-9000016-01

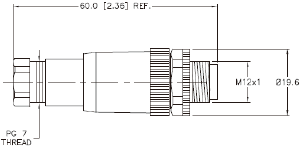

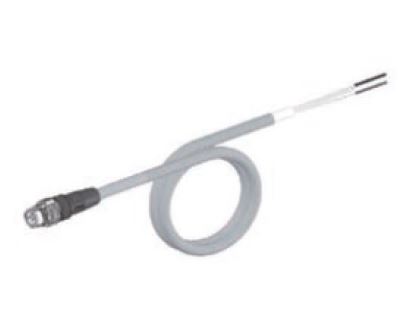

QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or Photo Sensor – Screw Terminals
98-9000239-01

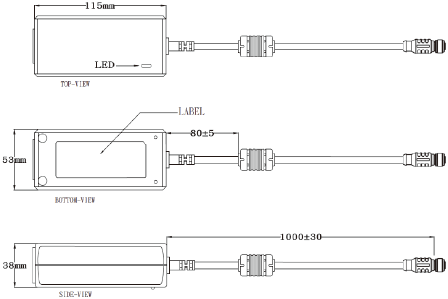

Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket – 1 Meter – U.S. / Euro Plug
97-000012-01

Omron Microscan Smart Light Series – Integrated Power and Strobe Control Module
See Omron Microscan Smart Light Offering – Ring, DOAL, Large Area Lighting

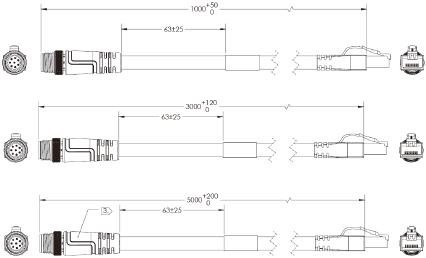

Ethernet Communication Cables – Straight Connectors – 1 Meter, 3 Meters, or 5 Meters
M12 Plug on Camera to RJ45 Connector
V430-WE-1M
V430-WE-3M
V430-WE-5M

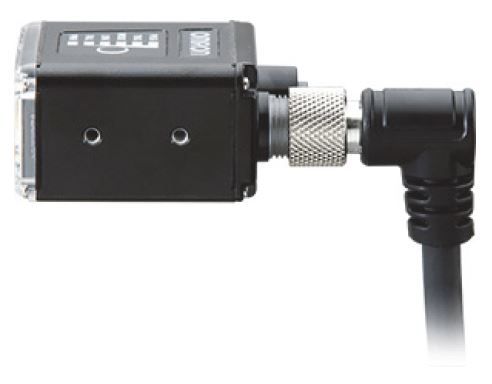

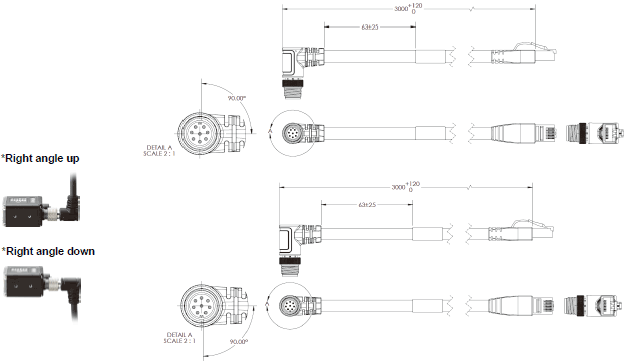

Ethernet Communication Cables – Right Angle M12 Connectors – 3 Meters
M12 Plug on Camera to RJ45 Connector
V430-WELU-3M (Right Angle Up)*
V430-WELD-3M (Right Angle Down)*

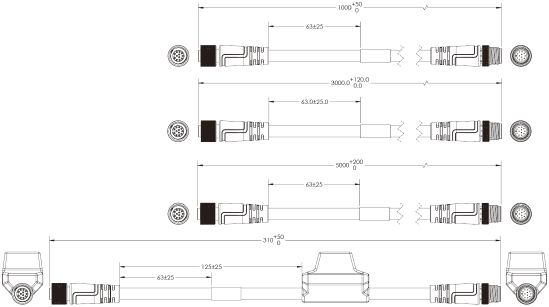

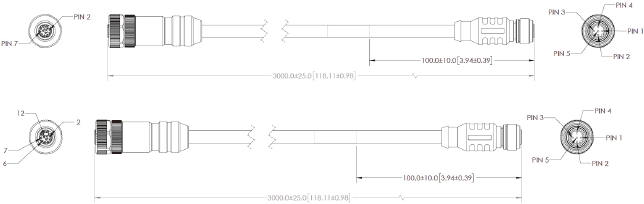

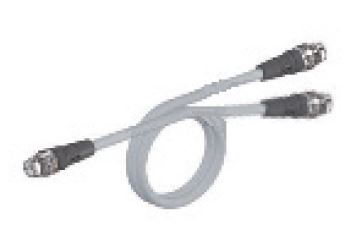

Camera to QX-1 Interconnect Cables – 1 Meter, 3 Meters, or 5 Meters
M12 Socket to M12 Plug
QX-1 is used as breakout module for common IO signals and power.
V430-WQ-1M
V430-WQ-3M
V430-WQ-5M
M12 Socket to M12 Plug, with Power Filter – 300 mm
V430-WQF-1M

QX-1 M12 to Smart Light Power and Strobe Control Cables – 3 Meters
M12 Plug on QX-1 to 5 Pin Socket on Light
61-000204-01 (Continuous Power)
61-000218-01 (Strobe Control)

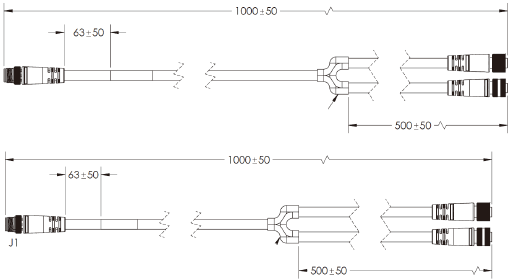

Y Cable, Camera/Power and Smart Light Power (Continuous On) – 1 Meter
61-9000135-01
Y Cable, Camera/Power and Smart Light Strobe Control – 1 Meter
61-9000137-01

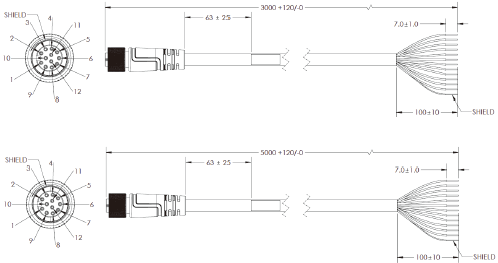

M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB – 3 Meters or 5 Meters
V430-W8-3M
V430-W8-5M

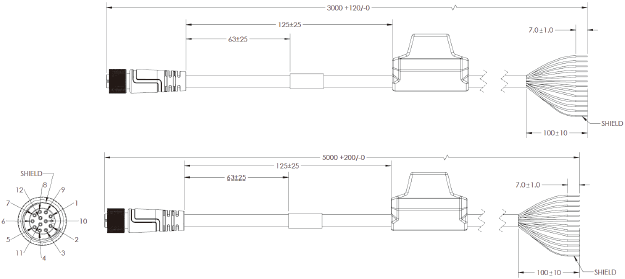

M12 to Flying Leads Cable, with Power Filter – 3 Meters or 5 Meters
V430-W8F-3M
V430-W8F-5M

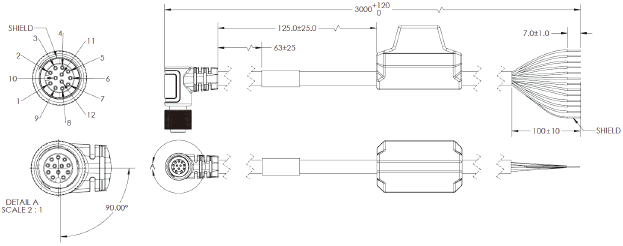

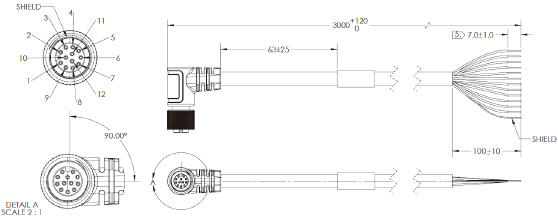

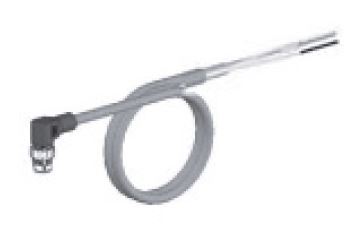

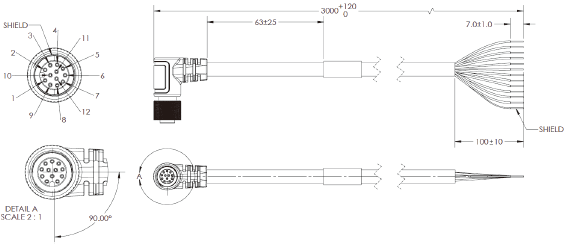

M12 to Flying Leads Cable Right Angle Up Power, IO, RS232, USB – 3 Meters
V430-W8LU-3M

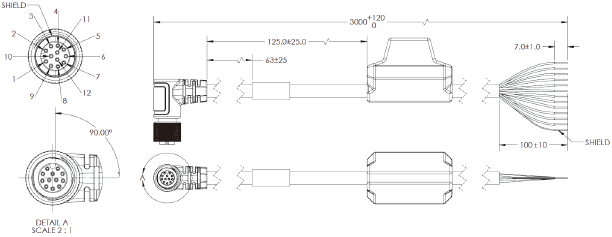

M12 to Flying Leads Cable Right Angle Up, with Power Filter – 3 Meters
V430-W8LUF-3M

M12 to Flying Leads Cable Right Angle Down Power, IO, RS232, USB – 3 Meters
V430-W8LD-3M

M12 to Flying Leads Cable Right Angle Down, with Power Filter – 3 Meters
V430-W8LDF-3M

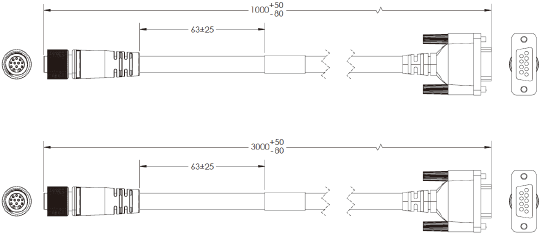

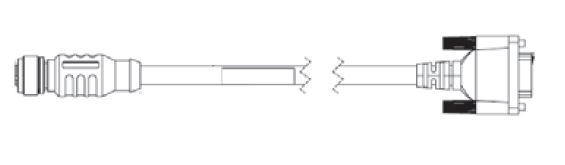

M12 to RS-232 Breakout – 1 Meter or 3 Meters
V430-WR-1M
V430-WR-3M

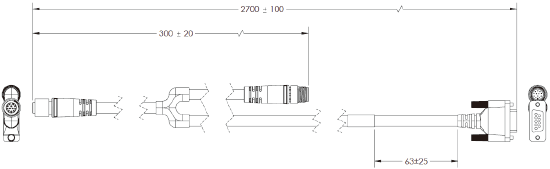

Camera to QX-1 Interconnect Cables with RS-232 Breakout – 2.7 Meters
V430-WQR-3M

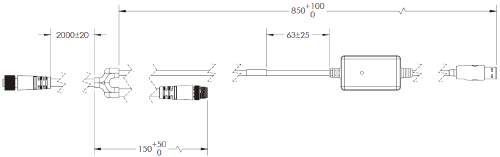

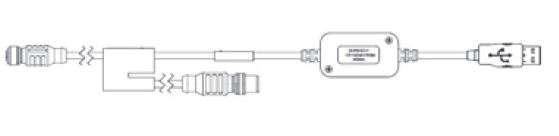

Camera to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout – 2.7 Meters
V430-WQK-3M

Features | Vision Code Readers - V430-F series

Autofocus to read codes at different distances.

• Simple configuration with WebLink.
• 5 megapixel sensor available.
• Autofocus available.
• Alternate LED configuration available.
• Smallest in class.
• IP65 / IP67.
• Ethernet TCP/IP, EtherNet/IP, and PROFINET

---

Properties | Vision Code Reader - V430-F series

Code Readers	V430-F series
Code 1D	Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, RoyalMail, Intelligent Mail, KIX
Code 2D	Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Focus	Liquid Lens Autofocus or Fixed Focus
FPS	60, 42, 5
