OMRON Proximity Sensor - E2FQ

Model Numbers | Proximity Sensor Cylindrical - E2FQ

Sensors

Appearance		Sensing distance	Output configuration	Operation mode	Model
Shielded	M12	2 mm	DC 2-wire	NO	E2FQ-X2D1 2M
			DC 3-wire, NPN		E2FQ-X2E1 2M
	M18	5 mm	DC 2-wire		E2FQ-X5D1 2M
			DC 3-wire, NPN		E2FQ-X5E1 2M
			AC 2-wire		E2FQ-X5Y1 2M
	M30	10 mm	DC 2-wire		E2FQ-X10D1 2M
			DC 3-wire, NPN		E2FQ-X10E1 2M
			AC 2-wire		E2FQ-X10Y1 2M

Specifications | Proximity Sensor Cylindrical - E2FQ

Model		E2FQ-X2E1 E2FQ-X2D1	E2FQ-X5E1 E2FQ-X5D1, E2FQ-X5Y1	E2FQ-X10E1 E2FQ-X10D1, E2FQ-X10Y1
Sensing distance		2 mm ±10%	5 mm ±10%	10 mm ±10%
Set distance		0 to 1.6 mm	0 to 4 mm	0 to 8 mm
Differential travel		E1/Y1 Models: 10% max. of sensing distance, D1 Models: 20% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm
Response frequency *		E1 Models: 1.5 kHz D1 Models: 800 Hz	E1 Models: 600 Hz D1 Models: 500 Hz	E1 Models: 400 Hz D1 Models: 300 Hz
			Y1 Models: 25 Hz
Power supply voltage (operating voltage range)		E1 Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. Y1 Models: 24 to 240 VAC (20 to 264 VAC), 50/60 Hz D1 Models: 12 to 24 VDC (10 to 36 VDC), ripple (p-p): 20% max.
Current consumption		E1 Models: 17 mA max.
Leakage current		D1 Models: 0.8 mA max., Y1 Models: 1.7 mA max. (at 200 VAC)
Control output	Load current	E1 Models: 200 mA max., D1 Models: 5 to 100 mA, Y1 Models: 5 to 300 mA
	Residual voltage	E1 Models: 2 V max. (Load current: 200 mA, Cable length: 2 m) Y1 Models: Refer to Engineering Data on Data Sheet. D1 Models: 3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators		E Models: Detection indicator (red), Y Models: Operation indicator (red), D Models: Operation indicator (red), Setting indicator (green) (NO only)
Operation mode (with sensing object approaching)		E1/D1/Y1 Models: NO (Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.)
Protection circuits		E1 Models: Load short-circuit protection, Reverse polarity protection, Surge suppressor, D1/Y1 Models: Surge suppressor
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		E1 Models: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range D1 Models: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±20% range Y1 Models: ±1% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		E1/D1 Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 4,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 10 times each in X, Y, and Z directions	Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67, in-house standards: oil-resistant
Connection method		Pre-wired Models (Cable length: 2 m)
Weight (packed state)		Approx. 70 g	Approx. 130 g	Approx. 170 g
Materials	Case	Fluororesin
	Sensing surface
	Clamping nuts
	Toothed washer	Zinc-plated iron
	Cable	Vinyl chloride
Accessories		Instruction manual

Note:The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.

Dimensions | Proximity Sensor Cylindrical - E2FQ

Note:Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

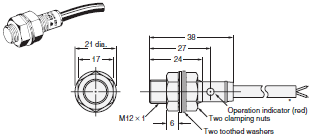

E2FQ-X2E1

Note:6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

E2FQ-X2D1

Note:6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

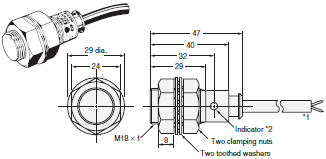

E2FQ-X5E1

Note:6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

E2FQ-X5D1
E2FQ-X5Y1

Note:6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

Note:D1: Operation indicator (red) and Setting indicator (green)
Y1: Operation indicator (red)

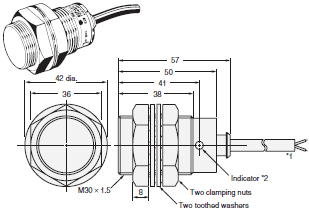

E2FQ-X10E1

Note:6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

E2FQ-X10D1
E2FQ-X10Y1

Note:6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

Note:D1: Operation indicator (red) and Setting indicator (green)
Y1: Operation indicator (red)

Mounting Hole Dimensions

Features | Proximity Sensor Cylindrical - E2FQ

• Housing and mounting are made of Fluororesin resistant to chemicals.
• Maximum sensing distance: 10 mm.

---

Properties | Proximity Sensor Cylindrical - E2FQ

Proximity Sensor Cylindrical	E2FQ
Model type	DC 2-wire, DC 3-wire
Sensing distance (mm)	2, 5, 10
Housing size	M12, M18, M30
Housing material	Fluororesin
Power supply	12 - 24 VDC, 24 -240 VAC
Degree of protection	IP67
