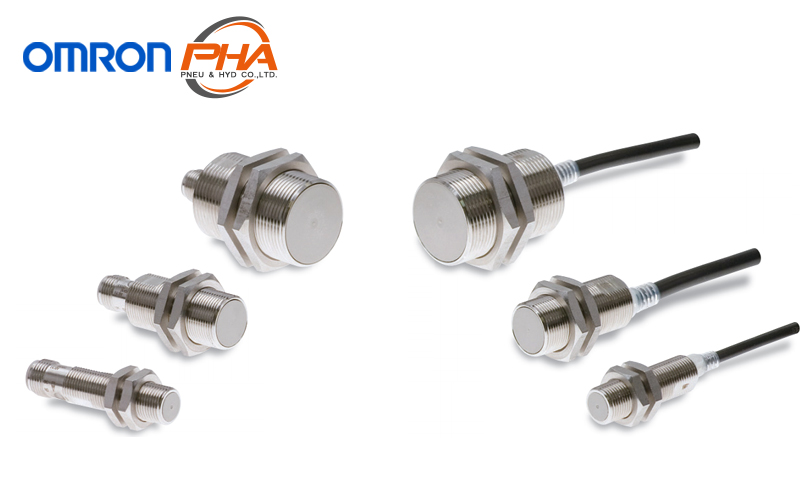

Proximity Sensor Cylindrical - E2EH

Download PDF

Model Numbers

Specifications

Dimensions

Features

Model Numbers | Proximity Sensor Cylindrical - E2EH

Sensors

Pre-wired Models

	Sensing distance	Output configuration	Operation mode: NO	Operation mode: NC
M12	3 mm	DC 2-wire (polarity)	E2EH-X3D1 2M	E2EH-X3D2 2M
		DC 2-wire (no polarity) *	E2EH-X3D1-T 2M	---
		DC 3-wire (PNP)	E2EH-X3B1 2M	E2EH-X3B2 2M
		DC 3-wire (NPN)	E2EH-X3C1 2M	E2EH-X3C2 2M
M18	7 mm	DC 2-wire (polarity)	E2EH-X7D1 2M	E2EH-X7D2 2M
		DC 2-wire (no polarity) *	E2EH-X7D1-T 2M	---
		DC 3-wire (PNP)	E2EH-X7B1 2M	E2EH-X7B2 2M
		DC 3-wire (NPN)	E2EH-X7C1 2M	E2EH-X7C2 2M
M30	12 mm	DC 2-wire (polarity)	E2EH-X12D1 2M	E2EH-X12D2 2M
		DC 2-wire (no polarity) *	E2EH-X12D1-T 2M	---
		DC 3-wire (PNP)	E2EH-X12B1 2M	E2EH-X12B2 2M
		DC 3-wire (NPN)	E2EH-X12C1 2M	E2EH-X12C2 2M

Connector Models (M12)

	Sensing distance	Output configuration	Operation mode: NO	Operation mode: NC
M12	3 mm	DC 2-wire (polarity)	E2EH-X3D1-M1G	E2EH-X3D2-M1G
		DC 3-wire (PNP)	E2EH-X3B1-M1	E2EH-X3B2-M1
		DC 3-wire (NPN)	E2EH-X3C1-M1	E2EH-X3C2-M1
M18	7 mm	DC 2-wire (polarity)	E2EH-X7D1-M1G	E2EH-X7D2-M1G
		DC 3-wire (PNP)	E2EH-X7B1-M1	E2EH-X7B2-M1
		DC 3-wire (NPN)	E2EH-X7C1-M1	E2EH-X7C2-M1
M30	12 mm	DC 2-wire (polarity)	E2EH-X12D1-M1G	E2EH-X12D2-M1G
		DC 3-wire (PNP)	E2EH-X12B1-M1	E2EH-X12B2-M1
		DC 3-wire (NPN)	E2EH-X12C1-M1	E2EH-X12C2-M1

* When using a no-polarity model, there is no need to be concerned about whether to connect to the positive or negative side of the power supply. The load can be connected to either the +V side or 0 V side.

Accessories (Order Separately)

Sensor I/O Connectors (M12, Sockets on One Cable End)

(Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Appearance	Cable length	Sensor I/O Connector model	Applicable Proximity Sensors

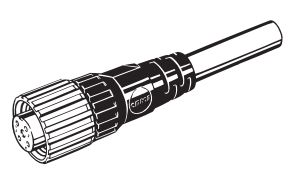

Straight	2 m	XS2F-E421-D80-E	E2EH-X[]D[]-M1G E2EH-X[]B[]-M1 E2EH-X[]C[]-M1
Straight	5 m	XS2F-E421-G80-E

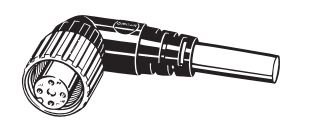

L-shape	2 m	XS2F-E422-D80-E
L-shape	5 m	XS2F-E422-G80-E

Note: The above Connectors conform to DIN40050-9 standard, provide IP69K protection, have a maximum operating temperature of 105°C, and use SUS316L stainless steel.

Specifications | Proximity Sensor Cylindrical - E2EH

E2EH-X[]D[] DC 2-Wire Models

Size Shielded Model		M12	M18	M30
		Shielded
		E2EH-X3D[]	E2EH-X7D[]	E2EH-X12D[]
Sensing distance		3 mm	7 mm	12 mm
Set distance *1		0 to 2.4 mm	0 to 5.6 mm	0 to 9.6 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Datasheet.)
Detectable object
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron 21 × 21 × 1 mm	Iron 36 × 36 × 1 mm
Response frequency *2		500 Hz	300 Hz	100 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC, ripple (p-p): 10% max. (10 to 32 VDC, however, 24 VDC max. at temperatures over 100 ° C)
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA (however, 3 to 50 mA at 100 to 110 ° C)
Control output	Residual voltage *3	Polarity Models: 3 V max. No polarity Models: E2EH-X[]D[]-T : (5 V max. *3 (Load current: 100 mA, Cable length 2 m)
Indicators		D1 Models: Operation indicator (red), Setting indicator (yellow) D2 Models: Operation indicator (yellow)
Operation mode (with sensing object approaching)		D1 Models: NO D2 Models: NC Refer to Datasheet.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: 0 to 100 ° C (0 to 110 ° C 1,000 h) *4 Storage: - 25 to 70 ° (with no icing or condensation)
Ambient humidity range		35% to 95%
Temperature influence		± 10% max. of sensing distance at 23 ° C in the temperature range of 0 to 70 ° C. ± 15% max. of sensing distance at 23 ° C in the temperature range of 70 to 100 ° C. - 15% to +20% of sensing distance at 23 ° C in the temperature range of 100 to 110 ° C.
Voltage influence		± 10% max. of sensing distance at rated voltage in the 15% rated voltage range.
Insulation resistance		50 M Ω min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance		Destruction: 1,000 m/s², 10 times each in X, Y and Z directions
Degree of protection		IEC IP67, DIN 40050-9 IP69K *5
Connection method		Pre-wired Models (Standard cable length 2 m), Connector Models
Weight (packed state)	Pre-wired Models	Approx. 80 g	Approx. 145 g	Approx. 220 g
Weight (packed state)	Connector Models	Approx. 30 g	Approx. 55 g	Approx. 125 g
Materials	Case, clamping nut	Stainless steel (SUS316L)
	Sensing surface	PBT
	Cable	Heat-resistant PVC cable (Pre-wired model)
Accessories		Instruction manual

*1. Use the yellow indicator on D1 Models as a guide.
*2. The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object,
and a set distance of half the sensing distance.
*3. The residual voltage of each E2EH-X[]D[] DC 2-Wire Model is 5 V. When connecting to a device, make sure that the
device can withstand the residual voltage. (Refer to Data Sheet.)
*4. Operation with power supplied for 1,000 h has been verified at 110°C. Do not bend the cable repeatedly at 100°C or
higher.
*5. IP69K Degree of Protection Specification
IP69K is a protection standard against high temperature and high-pressure water defined in the German standard
DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a
specified nozzle shape at a rate of 14 to 16 liters/min.
The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each
at 0°, 30°, 60°, and 90° while rotating the test piece on a horizontal plane.

E2EH-X[]C[]/B[] DC 3-Wire Models

Size Shielded Model		M12	M18	M30
		Shielded
		E2EH-X3C[]/B[]	E2EH-X7C[]/B[]	E2EH-X12C[]/B[]
Sensing distance		3 mm±10%	7 mm±10%	12 mm±10%
Set distance *1		0 to 2.4 mm	0 to 5.6 mm	0 to 9.6 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Datasheet.)
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron 21 × 21 × 1 mm	Iron 36 × 36 × 1 mm
Response frequency *2		500 Hz	300 Hz	100 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC, ripple (p-p): 10% max. (10 to 32 VDC, however, 24 VDC max. at temperatures over 100 ° C)
Current consumption		10 mA max.
Control output	Load current	100 mA max. (however, 50 mA max. at 100 to 120 ° C)
Control output	Residual voltage	2 V max. (Load current: 100 mA, Cable length 2 m)
Indicators		Operation indicator (yellow)
Operating mode (with sensing object approaching)		C1 Models: NO C2 Models: NC B1 Models: NO B2 Models: NC Refer to Datasheet.
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Load short-circuit protection, Reversed output polarity protection
Ambient temperature range		Operating: 0 to 100 ° C (0 to 120 ° C 1,000 h) *2 Storage: - 25 to 70 ° C (with no icing or condensation)
Ambient humidity range		35% to 95%
Temperature influence		± 10% max. of sensing distance at 23 ° C in the temperature range of 0 to 70 ° C. ± 15% max. of sensing distance at 23 ° C in the temperature range of 70 to 100 ° C. - 15% to 20% of sensing distance at 23 ° C in the temperature range of 100 to 120 ° C.
Voltage influence		10% max. of sensing distance at rated voltage in the 15% rated voltage range.
Insulation resistance		50 M Ω min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance		Destruction: 1,000 m/s², 10 times each in X, Y and Z directions
Degree of protection		IEC IP67, DIN 40050-9 IP69K
Connection method		Pre-wired Models (Standard cable length 2 m), Connector Models
Weight (packed state)	Pre-wired Models	Approx. 80 g	Approx. 145 g	Approx. 220 g
Weight (packed state)	Connector Models	Approx. 30 g	Approx. 55 g	Approx. 125 g
Materials	Case, clamping nut	Stainless steel (SUS316L)
	Sensing surface	PBT
	Cable	Heat-resistant PVC cable (Pre-wired Model)
Accessories		Instruction manual

*1. The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. Operation with power supplied for 1,000 h has been verified at 120°C. Do not bend the cable repeatedly at 100°C or
higher.

Resistance to Detergents, Disinfectants, and Chemicals

Performance is assured for typical detergents and disinfectants, but performance may not be maintained for some detergents and disinfectants. Refer to the following table when using these agents.
The E2EH passed testing for resistance to detergents and disinfectants performed using the items in the following table. Refer to this table when considering use of detergents and disinfectants.

Category	Product name	Concentration	Temperature	Time
Chemical	Sodium hydroxide (NaOH)	1.5%	70 ° C	240h
	Potassium hydroxide (KOH)	1.5%	70 ° C	240h
	Phosphoric acid (H3PO4)	2.5%	70 ° C	240h
	Sodium hypochlorite (NaClO)	0.3%	25 ° C	240h
	Hydrogen peroxide (H2O2)	6.5%	25 ° C	240h
Alkaline foam detergent	P3-topax-66s (Manufactured by Ecolab)	3.0%	70 ° C	240h
Acidic foam detergent	P3-topax-56 (Manufactured by Ecolab)	5.0%	70 ° C	240h
Disinfectant	P3-oxonia active 90 (Manufactured by Ecolab)	1.0%	25 ° C	240h

Test Conditions

After the test is completed, check that no problems exist with the following product characteristics.
(1) Appearance (no damage that will affect the product characteristics)
(2) Operation Check (ON/OFF)
(3) Insulation resistance: 50 MΩ min. (at 500 VDC)
(4) Dielectric strength (1,000 VAC for 1 minute)
(5) Water resistance (IP67)

Dimensions | Proximity Sensor Cylindrical - E2EH

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

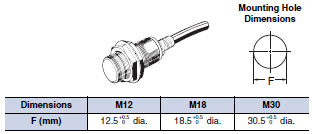

Pre-wired Models (Shielded)

E2EH Dimensions 2 E2EH_Connector Models _Dim

E2EH-X3[][]

E2EH-X7[][]

E2EH-X12[][]

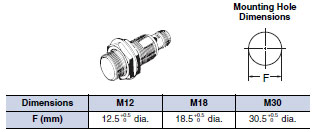

Connector Models (Shielded)

E2EH Dimensions 3 E2EH_Pre-wired Models_Dim

E2EH-X3[][]-M1[]

E2EH-X7[][]-M1[]

E2EH-X12[][]-M1[]

Features | Proximity Sensor Cylindrical - E2EH

Improved resistance to detergents and rusting
Applicable to 120°C (with DC 3-wire connection) (Heat resistance verified to 1,000 hours.)
Resists typical detergents and disinfectants used in the food industry
Water resistant under high-temperature, high-pressure cleaning based on DIN 40050-9. (Pressure: 8,000 to 10,000 kPa, Water temperature: 80°C, For 30 s at all angles)

Properties | Proximity Sensor Cylindrical - E2EH

Proximity Sensor Cylindrical	E2EH
Model type	DC 2-wire, DC 3-wire
Sensing distance (mm)	3, 7, 12
Body size	M12, M18, M30
Material	Stainless steel (SUS316L)
Power supply	12 - 24 VDC
Degree of protection	IP67
