OMRON Counter - H7CX-A

Model Numbers | Counter - H7CX-A

Classification	Configuration	External connections	Settings	Display digits	Outputs	Power supply voltage	Model
Preset counter	1-stage preset counter Total and preset counter	11-pin socket	1-stage	4 digits	Contact output (SPDT)	100 to 240 VAC	H7CX-A114-N
					Transistor output (SPST)		H7CX-A114S-N
					Contact output (SPDT)	12 to 24 VDC/24 VAC	H7CX-A114D1-N
				6 digits	Contact output (SPDT)	100 to 240 VAC	H7CX-A11-N
					Transistor output (SPST)		H7CX-A11S-N
					Contact output (SPDT)	12 to 24 VDC/24 VAC	H7CX-A11D1-N
					Transistor output (SPST)		H7CX-A11SD1-N
		Screw terminals		4 digits	Contact output (SPDT)	100 to 240 VAC	H7CX-A4-N
					Transistor output (SPST)		H7CX-A4S-N
					Contact output (SPDT)	12 to 24 VDC	H7CX-A4D-N
					Transistor output (SPST)		H7CX-A4SD-N
				6 digits	Contact output (SPDT)	100 to 240 VAC	H7CX-A-N
					Transistor output (SPST)		H7CX-AS-N
					Contact output (SPDT)	12 to 24 VDC	H7CX-AD-N
					Transistor output (SPST)		H7CX-ASD-N
	1-stage preset counter 2-stage preset counter Total and preset counter Batch counter Dual counter Twin counter		2-stage	4 digits	Contact output (SPST + SPDT)	100 to 240 VAC	H7CX-A4W-N
					Transistor output (DPST)	12 to 24 VDC	H7CX-A4WSD-N
Preset counter/ Tachom- eter	1-stage preset counter 2-stage preset counter Total and preset counter Batch counter Dual counter Twin counter Tachometer			6 digits	Contact output (SPST + SPDT)	100 to 240 VAC	H7CX-AW-N
					Transistor output (DPST)		H7CX-AWS-N
					Contact output (SPST + SPDT)	12 to 24 VDC/24 VAC	H7CX-AWD1-N
					Transistor output (DPST)		H7CX-AWSD1-N
					Transistor output (DPST)	12 to 24 VDC	H7CX-AWSD-N
					Contact output (SPDT) + Transistor output (SPST)	100 to 240 VAC	H7CX-AU-N
					Contact output (SPDT) + Transistor output (SPST)	12 to 24 VDC/24 VAC	H7CX-AUD1-N
					Transistor output (DPST)		H7CX-AUSD1-N

Note: 1. The functions that are provided depend on the model. Check detailed specifications before ordering.
2. Refer to Catalog and later for information on H7CX-R Tachometers.

---

Accessories (Order Separately)

Front Panels (Replacement Part)

Model	Color	Applicable Counters
Y92P-CXC4G	Light gray (5Y7/1)	4-digit Counter
Y92P-CXC4S	White (5Y9.2/0.5)
Y92P-CXC4B	Black (N1.5)
Y92P-CXC6G	Light gray (5Y7/1)	6-digit Counter
Y92P-CXC6S	White (5Y9.2/0.5)
Y92P-CXC6B	Black (N1.5)

Note: 1. You can change the color of the Front Panel when mounting the Counter. The Counter is shipped with a black (N1.5) Front Panel.
2. "COUNTER" is printed on the front of Replacement Front Panels.

Soft Cover

Models	Remarks
Y92A-48F1	---

Hard Cover

Models	Remarks
Y92A-48	---

Flush Mounting Adapter

Models	Remarks
Y92F-30	Included with models with screw terminals.
Y92F-45	Use this Adapter to install the Counter/Tachometer in a cutout previously made for a DIN 72 × 72 mm device (panel cutout: 68 × 68 mm).

Waterproof Packing

Model	Remarks
Y92S-29	Included with models with screw terminals.

Connection Sockets

Model	Classification	Connectable Counter / Tachometers	Remarks
P2CF-11	Front-connecting Socket	H7CX-[]11[]-N	---
P2CF-11-E	Front-connecting Socket (Finger-safe Type)		Round crimp terminals cannot be used on Finger-safe Sockets. Use forked crimp terminals.
P3GA-11	Back-connecting Sockets		A Y92A-48G Terminal Cover can be used with the Socket to create a finger-safe construction.

Terminal Covers for P3GA-11 Back-connecting Socket

Models	Remarks
Y92A-48G	---

Specifications | Counter - H7CX-A

Ratings

Models		H7CX-A114[]-N	H7CX-A11[]-N	H7CX-A4[]-N
Classification		Preset counter
Configuration		1-stage preset counter, 1-stage preset counter with total counter (selectable) *1
Ratings	Power supply voltage*2	• 100 to 240 VAC, 50/60 Hz • 24 VAC, 50/60 Hz or 12 to 24 VDC		• 100 to 240 VAC, 50/60 Hz • 12 to 24 VDC
	Operating voltage fluctuation range	85% to 110% of rated supply voltage (12 to 24 VDC: 90% to 110%)
	Power consumption	Approx. 9.4 VA at 100 to 240 VAC, Approx. 7.2 VA/4.7 W at 24 VAC/12 to 24 VDC, Approx. 3.7 W at 12 to 24 VDC
Mounting method		Flush mounting or surface mounting		Flush mounting
External connections		11-pin socket		Screw terminals
Degree of protection		IEC IP66, UL508 Type 4X (indoors) for panel surface only and only when Y92S-29 Waterproof Packing is used.
Input signals		CP1, CP2, reset, and total reset
Counter	Maximum counting speed	30 Hz (minimum pulse width: 16.7 ms) or 10 kHz (minimum pulse width: 0.05 ms) (selectable) (ON/OFF ratio 1:1) *Common setting for CP1 and CP2
	Input mode	Increment, decrement, increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs))
	Output mode	N, F, C, R, K-1, P, Q, A, K-2, D, and L.
	One-shot output time	0.01 to 99.99 s
	Reset system	External (minimum reset signal width: 1 ms or 20 ms, selectable), manual, and automatic reset (internal according to C, R, P, and Q mode operation)
Tachometer		Refer to the separate table for tachometer function ratings.
Prescaling function		Yes (0.001 to 9.999)	Yes (0.001 to 99.999)	Yes (0.001 to 9.999)
Decimal point adjustment		Yes (rightmost 3 digits)
Sensor waiting time		290 ms max. (Control output is turned OFF and no input is accepted during sensor waiting time.)
Input method		No-voltage (NPN) input/voltage (PNP) input (switchable) No-voltage inputs: ON impedance: 1 kΩ max. (Leakage current: 12 mA at 0 Ω) ON residual voltage: 3 V max. OFF impedance: 100 kΩ min. Voltage input: High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΩ)
External power supply		12 VDC (±10%), 100 mA (except for H7CX-A[]D models) Refer to on page for details.
Control output		Contact output: 3 A at 250 VAC/30 VDC, resistive load (cosφ=1), Minimum applied load: 10 mA at 5 VDC (failure level: P, reference value) Transistor output: NPN open collector, 100 mA at 30 VDC, Residual voltage: 1.5 VDC max. (approx. 1 V), Leakage current: 0.1 mA max.
Display*3		7-segment, negative transmissive LCD Character height Count value: 12 mm (red) Set value: 6 mm (green)	7-segment, negative transmissive LCD Character height Count value: 10 mm (red) Set value: 6 mm (green)	7-segment, negative transmissive LCD Character height Count value: 12 mm (red, green, or orange selectable) Set value: 6 mm (green)
Digits		4 digits -999 to 9999 (-3 digits to +4 digits)	6 digits -99999 to 999999 (-5 digits to +6 digits)	4 digits -999 to 9999 (-3 digits to +4 digits)
Memory backup		EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.
Operating temperature range		-10 to 55°C (-10 to 50°C if Counter/Tachometers are mounted side by side) (with no icing or condensation)
Storage temperature range		-25 to 70°C (with no icing or condensation)
Operating humidity range		25% to 85%
Case color		Black (N1.5) (Optional Front Panels are available to change the Front Panel color to light gray or white.)
Attachments		---		Flush mounting adapter, waterproof packing, terminal cover

Models		H7CX-A[]-N	H7CX-A4W[]-N	H7CX-AW[]-N/-AU[]-N
Classification		Preset counter		Preset counter/tachometer
Configuration		1-stage preset counter, 1-stage preset counter with total counter (selectable) *1	1-stage/2-stage preset counter, total and preset counter *1, batch counter, dual counter, and twin counter (selectable)	1-stage/2-stage preset counter, total and preset counter *1, batch counter, dual counter, twin counter, and tachometer (selectable)
Ratings	Power supply voltage*2	• 100 to 240 VAC, 50/60 Hz • 12 to 24 VDC		• 100 to 240 VAC at 50/ 60 Hz • 24 VAC at 50/60 Hz or 12 to 24 VDC • 12 to 24 VDC
	Operating voltage fluctuation range	85% to 110% of rated supply voltage (12 to 24 VDC: 90% to 110%)
	Power consumption	Approx. 9.4 VA at 100 to 240 VAC, Approx. 7.2 VA/4.7 W at 24 VAC/12 to 24 VDC, Approx. 3.7 W at 12 to 24 VDC
Mounting method		Flush mounting
External connections		Screw terminals
Degree of protection		IEC IP66, UL508 Type 4X (indoors) for panel surface only and only when Y92S-29 Waterproof Packing is used.
Input signals		CP1, CP2, reset, and total reset	CP1, CP2, reset 1, and reset 2
Counter	Maximum counting speed	30 Hz (minimum pulse width: 16.7 ms) or 10 kHz (minimum pulse width: 0.05 ms) (selectable) (ON/OFF ratio 1:1) *Common setting for CP1 and CP2
	Input mode	Increment, decrement, increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs))
	Output mode	N, F, C, R, K-1, P, Q, A, K-2, D, and L.	N, F, C, R, K-1, P, Q, A, K-2, D, L, and H.
	One-shot output time	0.01 to 99.99 s
	Reset system	External (minimum reset signal width: 1 ms or 20 ms, selectable), manual, and automatic reset (internal according to C, R, P, and Q mode operation)
Tachometer		Refer to the separate table for tachometer function ratings.
Prescaling function		Yes (0.001 to 99.999)	Yes (0.001 to 9.999)	Yes (0.001 to 99.999)
Decimal point adjustment		Yes (rightmost 3 digits)
Sensor waiting time		290 ms max. (Control output is turned OFF and no input is accepted during sensor waiting time.)
Input method		No-voltage (NPN) input/voltage (PNP) input (switchable) No-voltage inputs: ON impedance: 1 kΩ max. (Leakage current: 12 mA at 0 Ω) ON residual voltage: 3 V max. OFF impedance: 100 kΩ min. Voltage input: High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΩ)
External power supply		12 VDC (±10%), 100 mA (except for H7CX-A[]D models) Refer to on page for details.
Control output		Contact output: 3 A at 250 VAC/30 VDC, resistive load (cosφ=1), Minimum applied load: 10 mA at 5 VDC (failure level: P, reference value) Transistor output: NPN open collector, 100 mA at 30 VDC, Residual voltage: 1.5 VDC max. (approx. 1 V), Leakage current: 0.1 mA max.
Display*3		7-segment, negative transmissive LCD Character height Count value: 10 mm (red, green, or orange selectable) Set value: 6 mm (green)	7-segment, negative transmissive LCD Character height Count value: 12 mm (red, green, or orange selectable) Set value: 6 mm (green)	7-segment, negative transmissive LCD Character height Count value: 10 mm (red, green, or orange selectable) Set value: 6 mm (green)
Digits		6 digits -99999 to 999999 (-5 digits to +6 digits)	4 digits -999 to 9999 (-3 digits to +4 digits)	6 digits -99999 to 999999 (-5 digits to +6 digits), tachometer: 0 to 999999
Memory backup		EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.
Operating temperature range		-10 to 55°C (-10 to 50°C if Counter/Tachometers are mounted side by side) (with noicing or condensation)
Storage temperature range		-25 to 70°C (with no icing or condensation)
Operating humidity range		25% to 85%
Case color		Black (N1.5) (Optional Front Panels are available to change the Front Panel color to light gray or white.)
Attachments		Flush mounting adapter, waterproof packing, terminal cover		Flush mounting adapter, waterproof packing, terminal cover, label for DIP switch settings

*1. 1-stage preset counter and total counter functionality.
*2. Do not use the output from an inverter as the power supply.The ripple must be 20% maximum for DC power.
*3. The display is lit only when the power is ON. Nothing is displayed when power is OFF.

---

Tachometer Function Ratings

Model	H7CX-A114[]-N H7CX-A11[]-N H7CX-A4[]-N H7CX-A[]-N H7CX-A4W[]-N	H7CX-AW[]-N/-AU[]-N
Input mode	No tachometer functionality	Selectable from independent measurements for 1 or 2 inputs, differential input for 2 inputs, absolute ratio for 2 inputs, and error ratio for 2 inputs.
Pulse measurement method		Periodic measurement		Pulse width measurement
Maximum counting speed		30 Hz (minimum pulse width: 16.7 ms)	1-input mode: 10 kHz (minimum pulse width: 0.05 ms) Other modes: 5 kHz (minimum pulse width: 0.1 ms)	30 Hz (minimum pulse width: 16.7 ms)	1-input mode: 10 kHz (minimum pulse width: 0.05 ms) Other modes: 5 kHz (minimum pulse width: 0.1 ms)
Minimum input signal width		---	---	30 ms *1	1-input mode: 0.2 ms Other modes: 0.4 ms *
Measuring ranges		0.001 to 30.00 Hz	1-input mode: 0.001 to 10 kHz, Other modes: 0.01 to 5 kHz	0.030 to 999999 s	1-input mode: 0.0002 to 99999 s Other modes: 0.0004 to 99999 s
Sampling period		200 ms min.	200 ms min. or continuous selectable (minimum interval of 10 ms)	Continuous (minimum interval of 10 ms)
Measuring accuracy		±0.1% FS ±1 digit max. (at 23 ±5°C)
Output mode		Input mode: Not 2-input independent measurement: HI-LO, AREA, HI-HI, LO-LO 2-input independent measurement: HI-HI, LO-LO
Auto-zero time		0.1 to 999.9s
Startup time		0.0 to 99.9s
Averaging		Simple averaging/moving averaging selectable, Processing: OFF, 2, 4, 8, or 16 times
Hold input		Minimum input signal width: 20 ms

* An input OFF time of at least 20 ms is required.

---

Characteristics

Insulation resistance		100 MΩ min. (at 500 VDC) between current-carrying terminals and exposed non-current carrying metal parts, and between non-continuous contacts
Dielectric strength		2,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and non-current carrying metal parts 2,000 VAC, 50/60 Hz for 1 min between power supply and input circuit for all models except H7CX-[]D[] (1,000 VAC for 24 VAC/12 to 24 VDC) 1,000 VAC (for H7CX-[]SD[]), 50/60 Hz for 1 min between control output, power supply, and input circuit (2,000 VAC for models other than H7CX-[]SD[]) 1,000 VAC, 50/60 Hz for 1 min between non-continuous contacts
Impulse withstand voltage		3.0 kV between power terminals (1.0 kV for models with 24 VAC/12 to 24 VDC or 12 to 24 VDC) 4.5 kV between current-carrying terminals and exposed non-current-carrying metal parts (1.5 kV for models with 24 VAC/12 to 24 VDC or 12 to 24 VDC)
Noise immunity		±1.5 kV between power terminals (±480 V for models with 12 to 24 VDC) ±600 V between input terminals Square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity		Malfunction: 8 kV Destruction: 15 kV
Vibration resistance	Destruction	10 to 55 Hz with 0.75-mm single amplitude each in three directions for 2 h each
	Malfunction	10 to 55 Hz with 0.35-mm single amplitude each in three directions for 10 min each
Shock rพesistance	Destruction	300 m/s2 each in three directions
	Malfunction	100 m/s2 each in three directions
Life expectancy		Mechanical: 10,000,000 operations min. Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load, ambient temperature condition: 23°C) *
Weight		Approx. 130 g (Counter only)

* Refer to the Life-test Curve.

---

Life-test Curve (Reference Values)

Resistive load

Inductive load

A current of 0.15 A max. can be switched at 125 VDC (cosφ=1) and current of 0.1 A max. can be switched if L/R=7 ms. In both cases, a life of 100,000 operations can be expected.

---

Applicable Standards

Approved safety standards

cULus (or cURus): UL508/CSA C22.2 No. 14 *1 EN 61010-1 (IEC 61010-1): Pollution degree 2/overvoltage category II B300 PILOT DUTY 1/4 HP 120 VAC, 1/3 HP, 240 VAC, 3 A resistive load VDE0106/P100 (finger protection)

EMC

(EMI) EN61326-1 *2 Emission Enclosure: EN 55011 Group 1 class A Emission AC mains: EN 55011 Group 1 class A (EMS) EN61326-1 *2 Immunity ESD: EN 61000-4-2: 4 kV contact discharge; 8 kV air discharge Immunity RF-interference: EN 61000-4-3: 10 V/m (Amplitude-modulated, 80 MHz to 1 GHz); 10 V/m (Pulse- modulated, 900 MHz ±5 MHz) Immunity Conducted Disturbance: EN 61000-4-6: 10 V (0.15 to 80 MHz) Immunity Burst: EN 61000-4-4: 2 kV power-line; 1 kV I/O signal-line Immunity Surge: EN 61000-4-5: 1 kV line to lines (power and output lines); 2 kV line to ground (power and output lines) Immunity Voltage Dip/Interruption: EN 61000-4-11: 0.5 cycle, 100% (rated voltage)

*1. The following safety standards apply to models with sockets (H7CX-A11[] or H7CX-A114[]). cUL (Listing): Applicable when an OMRON P2CF(-E) Socket is used.
cUR (Recognition): Applicable when any other socket is used. *2. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

---

I/O Functions

Using as a Counter *1

Inputs	CP1, CP2	(1) In general (except for Dual Counter Mode) Reads counting signals. Increment, decrement, command, individual, and quadrature inputs accepted. (2) When used as a dual counter or twin counter Reads CP1 count signals with CP1 input and CP2 count signals with CP2 input. Increment signals can be input.
	Reset/reset 1	(1) In general (except for Dual Counter Mode) Resets present value and outputs (OUT2 when using the batch counter) *2. Counting cannot be performed during reset/reset 1 input. Reset indicator is lit while reset input is ON. (2) When used as a dual counter or twin counter. Resets the CP1 present value (to 0). Counting for CP1 input cannot be performed while the reset 1 input is ON. The reset indicator is lit while the reset 1 input is ON.
	Total reset or reset 2	The reset function depends on the selected configuration *3.
Outputs	OUT1, OUT2	Outputs signals according to the specified output mode when a set value is reached.

*1. For information on operation of I/O functions, refer to Catalog.
*2. In increment mode or increment/decrement mode, the present value returns to 0; in decrement mode, the present value returns to the set value with 1-stage models, and returns to set value 2 with 2-stage models.
*3. Reset operates as described in the following table. (The reset indicator will not be lit.)

Configuration	Reset operation
1-stage / 2-stage preset counter	Does not operate (not used).
Total and preset counter	Resets the total count value. The total count value is held at 0 while the total reset input is ON.
Batch counter	Resets the batch count value and batch output (OUT1). The batch count value is held at 0 while the reset 2 input is ON.
Dual counter	Resets the CP2 present value. Counting for CP2 input cannot be performed while the reset 2 input is ON.
Twin counter	Resets the CP2 present value.

• The following table shows the delay from when the reset signal is input until the output is turned OFF. (Reference values)

Minimum reset signal width	Output delay time
1 ms	0.8 to 1.2 ms
20 ms	15 to 25 ms

---

Operating Procedures (Tachometer Function)

Inputs	CP1, CP2	Reads counting signals. (The CP2 input can be used when the input mode is not 1-input mode.)
	Reset / reset 1	Holds the measurement value and outputs. (The reset 2 input can be used when the input mode is 2-input independent measurement.) Functions as a hold input. The measurement value (displayed value) and the outputs are held while the RST Key on the front panel is pressed. The reset indicator is lit when the value is being held.
Outputs	OUT1, OUT2	Outputs signals according to the specified output mode when a set value is reached.

Dimensions | Counter - H7CX-A

Counters

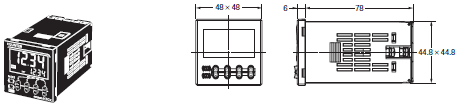

H7CX-A-N/-AS-N/-AW-N/-AWS-N/-AWD1-N/-AWSD1-N/-A4-N/-A4S-N/-A4W-N/-AU-N/-AUD1-N/-AUSD1-N (Flush Mounting Models)

Note: M3.5 terminal screw (effective length: 6 mm)

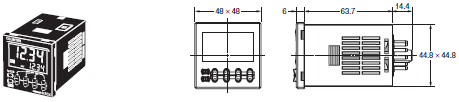

H7CX-AD-N/-ASD-N/-AWSD-N/-A4D-N/-A4SD-N/-A4WSD-N (Flush Mounting Models)

Note: M3.5 terminal screw (effective length: 6 mm)

H7CX-A11-N/-A11S-N/-A11D1-N/-A11SD1-N/-A114-N/-A114S-N/-A114D1-N (Flush Mounting/Surface Mounting Models)

---

Dimensions with Flush Mounting Adapter

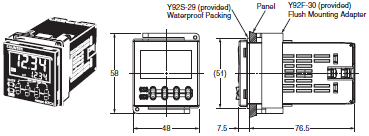

H7CX-A-N/-AS-N/-AW-N/-AWS-N/-AWD1-N/-AWSD1-N/-A4-N/-A4S-N/-A4W-N
(Provided with Adapter and Waterproof Packing)

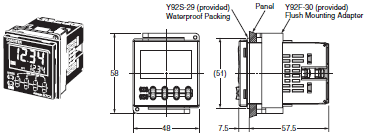

H7CX-AD-N/-ASD-N/-AWSD-N/-A4D-N/-A4SD-N/-A4WSD-N
(Provided with Adapter and Waterproof Packing)

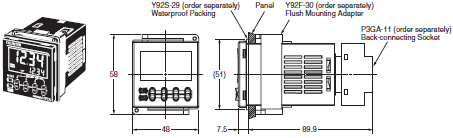

H7CX-A11-N/-A11S-N/-A11D1-N/-A11SD1-N/-A114-N/-A114S-N/-A114D1-N
(Adapter and Waterproof Packing Ordered Separately)

---

Panel Cutouts

Panel cutouts are as shown below. (according to DIN43700).

Note: 1. The mounting panel thickness should be 1 to 5 mm. Note: 2. To allow easier operation, it is recommended that Adapters be mounted so that the gap between sides with hooks is at least 15 mm (i.e., with the panel cutouts separated by at least 60 mm). Note: 3. It is possible to horizontally mount Timers side by side. Attach the Flush Mounting Adapters so that the surfaces without hooks are on the sides of the Timers. If they are mounted side-byside, water-resistance will be lost.

Dimensions with Front Connecting Socket

* These dimensions depend on the kind of DIN Track. (Reference value)

Features | Counter - H7CX-A

1. One-input measurement
2. Independent Measurement for Two Inputs
3. Differential Input for Two Inputs
4. Absolute Ratio for Two Inputs
5. Error Ratio between Two Inputs

---

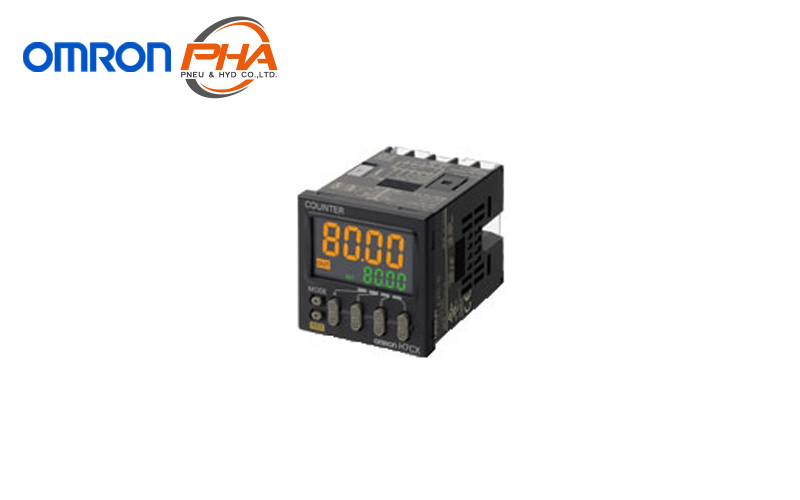

Properties | Counter - H7CX-A

Counter	H7CX-R
Power supply	100 – 240 Vac (50 – 60Hz) 24 Vac (50 – 60Hz) 10 – 24 Vdc
Max counting speed	30 Hz
Input method	No-voltage (NPN) input/voltage (PNP) input
	High (logic) level: 4.5 to 30 VDC, Low (logic) level: 0 to 2 VDC
Output	Contact output:3 A at 250 VAC/30 VDC
Reset system	External
	automatic reset
Output mode	N, F, C, R, K-1, P, Q, A, K-2, D, L, and H
Dimensions	width 48 mm length 48 mm height(59 – 72 mm)
Weight	130 g
