PLC - CP1L series

DOwnload PDF

Model Numbers

Specifications

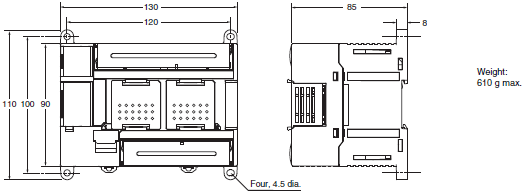

Dimensions

Features

Model Numbers | PLC - CP1L series

Applicable standards

Refer to the OMRON website or ask your OMRON representative for the most recent applicable standards for each model.

CPU Units

Built-in Ethernet port

CPU Unit	Specifications					Model
CPU Unit	CPU type	Power supply	Output method	Inputs	Out- puts	Model
CP1L-EM CPU Units with 40 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	24	16	CP1L-EM40DR-D
			Transistor output (sinking)			CP1L-EM40DT-D
			Transistor output (sourcing)			CP1L-EM40DT1-D
CP1L-EM CPU Units with 30 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	18	12	CP1L-EM30DR-D
			Transistor output (sinking)			CP1L-EM30DT-D
			Transistor output (sourcing)			CP1L-EM30DT1-D
CP1L-EL CPU Units with 20 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	12	8	CP1L-EL20DR-D
			Transistor output (sinking)			CP1L-EL20DT-D
			Transistor output (sourcing)			CP1L-EL20DT1-D

Built-in USB port

CPU Unit	Specifications					Model
CPU Unit	CPU type	Power supply	Output method	Inputs	Outputs	Model
CP1L-M CPU Units with 60 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	36	24	CP1L-M60DR-A
		AC power supply	Transistor output (sinking)			CP1L-M60DT-A
		DC power supply	Relay output			CP1L-M60DR-D
			Transistor output (sinking)			CP1L-M60DT-D
			Transistor output (sourcing)			CP1L-M60DT1-D
CP1L-M CPU Units with 40 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	24	16	CP1L-M40DR-A
		AC power supply	Transistor output (sinking)			CP1L-M40DT-A
		DC power supply	Relay output			CP1L-M40DR-D
			Transistor output (sinking)			CP1L-M40DT-D
			Transistor output (sourcing)			CP1L-M40DT1-D
CP1L-M CPU Units with 30 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	18	12	CP1L-M30DR-A
		AC power supply	Transistor output (sinking)			CP1L-M30DT-A
		DC power supply	Relay output			CP1L-M30DR-D
			Transistor output (sinking)			CP1L-M30DT-D
			Transistor output (sourcing)			CP1L-M30DT1-D
CP1L-L CPU Units with 20 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	12	8	CP1L-L20DR-A
		AC power supply	Transistor output (sinking)			CP1L-L20DT-A
		DC power supply	Relay output			CP1L-L20DR-D
			Transistor output (sinking)			CP1L-L20DT-D
			Transistor output (sourcing)			CP1L-L20DT1-D
CP1L-L CPU Units with 14 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	8	6	CP1L-L14DR-A
		AC power supply	Transistor output (sinking)			CP1L-L14DT-A
		DC power supply	Relay output			CP1L-L14DR-D
			Transistor output (sinking)			CP1L-L14DT-D
			Transistor output (sourcing)			CP1L-L14DT1-D
CP1L-L CPU Units with 10 Point	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	6	4	CP1L-L10DR-A
		AC power supply	Transistor output (sinking)			CP1L-L10DT-A
		DC power supply	Relay output			CP1L-L10DR-D
			Transistor output (sinking)			CP1L-L10DT-D
			Transistor output (sourcing)			CP1L-L10DT1-D

Note: 1. Refer to "Models and Software Versions" about supported software.
2. Refer to "Option Unit Specifications" about supported Option Units.

Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
EtherNet/IP^TM is the trademarks of ODVA.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Options for CPU Units

Name	Specifications	Model
RS-232C Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *1	CP1W-CIF01
RS-422A/485 Option Board		CP1W-CIF11
RS-422A/485 (Isolated-type) Option Board		CP1W-CIF12-V1
Ethernet Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. 1 2 *4	CP1W-CIF41
Analog Input Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *3 2 analog inputs. 0-10V(Resolution:1/4000), 0-20mA (Resolution: 1/2000).	CP1W-ADB21
Analog Output Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *3 2 analog outputs. 0-10V (Resolution:1/4000).	CP1W-DAB21V
Analog I/O Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *3 2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution: 1/2000). 2 analog outputs. 0-10V (Resolution:1/4000).	CP1W-MAB221
LCD Option Board	Can be mounted only in the CPU Unit Option Board slot 1. *1	CP1W-DAM01
Memory Cassette	Can be used for backing up programs or auto-booting.	CP1W-ME05M

*1. Cannot be used for the CP1L-L10.
*2. When using CP1W-CIF41 Ver.1.0, one Ethernet port can be added.
*3. CP1L-EM/EL only.
*4. Cannot be used for the CP1L-EM/EL.

Programming Devices

Name	Specifications			Model
Name		Number of licenses	Media	Model
FA Integrated Tool Package CX-One Lite Version 4.[]	CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bitversion) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes Micro PLC Edition CX-Programmer Ver. 9.[].	1 license	DVD	CXONE-LT01D-V4
FA Integrated Tool Package CX-One Ver.4.[]	CX-One is a package that integrates the Support Software for OMRON PLCs and components. CX- One runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].	1 license *1	DVD	CXONE-AL01D-V4
Programming Device Connecting Cable for CP1W-CIF01 RS-232C Option Board *2	Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m)	For anti-static connectors		XW2Z-200S-CV
	Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m)	For anti-static connectors		XW2Z-500S-CV
	Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m)			XW2Z-200S-V
	Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m)			XW2Z-500S-V

Note: 1. Refer to "Models and Software Versions" about supported software.
2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*1. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
*2. Cannot be used with a peripheral USB port.
To connect to a personal computer via a peripheral USB port, use commercially-available USB cable (A or B type, male).

The following tables lists the Support Software that can be installed from CX-One

Support Software in CX-One		CX-One Lite Ver.4.[]	CX-One Ver.4.[]
Micro PLC Edition CX-Programmer	Ver.9.[]	Yes	No
CX-Programmer	Ver.9.[]	No	Yes
CX-Integrator	Ver.2.[]	Yes	Yes
Switch Box Utility	Ver.1.[]	Yes	Yes
CX-Protocol	Ver.1.[]	No	Yes
CX-Simulator	Ver.1.[]	Yes	Yes
CX-Position	Ver.2.[]	No	Yes
CX-Motion-NCF	Ver.1.[]	No	Yes
CX-Motion-MCH	Ver.2.[]	No	Yes
CX-Motion	Ver.2.[]	No	Yes
CX-Drive	Ver.2.[]	Yes	Yes
CX-Process Tool	Ver.5.[]	No	Yes
Faceplate Auto-Builder for NS	Ver.3.[]	No	Yes
CX-Designer	Ver.3.[]	Yes	Yes
NV-Designer	Ver.1.[]	Yes	Yes
CX-Thermo	Ver.4.[]	Yes	Yes
CX-ConfiguratorFDT	Ver.1.[]	Yes	Yes
CX-FLnet	Ver.1.[]	No	Yes
Network Configurator	Ver.3.[]	Yes	Yes
CX-Server	Ver.4.[]	Yes	Yes

Note: For details, refer to the CX-One Catalog (Cat. No: R134).

Models and Software Versions

The following versions of the CX-One, CX-Programmer are required.

Model		CX-One	CX-Programmer
CP1L-EM40[][]-[] CP1L-EM30[][]-[] CP1L-EL20[][]-[]	*1	Ver. 4.25 or higher	Ver. 9.40 or higher
CP1L-M60[][]-[]	*2	Ver. 2.11 or higher	Ver. 7.20 or higher
CP1L-M40[][]-[] CP1L-M30[][]-[] CP1L-M20[][]-[] CP1L-L14[][]-[]	*2	Ver. 2.10 or higher	Ver. 7.10 or higher
CP1L-L10[][]-[]	*2	Ver. 2.13 or higher	Ver. 7.30 or higher

*1. Update The CX-Programmer version automatically from the website using CX-Programmer version 9.0 (included with
CX-One version 4.0).
*2. Update The CX-Programmer version automatically from the website using CX-Programmer version 7.0 (included with
CX-One version 2.0).

Expansion Units

Product name	Inputs	Outputs	Output type		Model
Input Unit	8	--	24 VDC Input		CP1W-8ED
Output Units	--	8	Relay		CP1W-8ER
			Transistor (sinking)		CP1W-8ET
			Transistor (sourcing)		CP1W-8ET1
	--	16	Relay		CP1W-16ER
			Transistor (sinking)		CP1W-16ET
			Transistor (sourcing)		CP1W-16ET1
	--	32	Relay		CP1W-32ER
			Transistor (sinking)		CP1W-32ET
			Transistor (sourcing)		CP1W-32ET1
I/O Units	12	8	Relay		CP1W-20EDR1
			Transistor (sinking)		CP1W-20EDT
			Transistor (sourcing)		CP1W-20EDT1
	24	16	Relay		CP1W-40EDR
			Transistor (sinking)		CP1W-40EDT
			Transistor (sourcing)		CP1W-40EDT1
Analog Input Unit	4CH	--	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	CP1W-AD041
Analog Input Unit	4CH	--		Resolution: 1/12000	CP1W-AD042
Analog Output Unit	--	2CH	Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	CP1W-DA021
	--	4CH		Resolution: 1/6000	CP1W-DA041
	--	4CH		Resolution: 1/12000	CP1W-DA042
Analog I/O Unit	4CH	4CH	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/12000	CP1W-MAD44
	4CH	2CH		Resolution: 1/12000	CP1W-MAD42
	2CH	1CH		Resolution: 1/6000	CP1W-MAD11
Temperature Sensor Unit	2CH	--	Sensor type: Thermocouple (J or K)		CP1W-TS001
	4CH	--	Sensor type: Thermocouple (J or K)		CP1W-TS002
	2CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		CP1W-TS101
	4CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		CP1W-TS102
	4CH	--	Sensor type: Thermocouple (J or K) 2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA	Resolution: 1/12000	CP1W-TS003
	12CH	--	Sensor type: Thermocouple (J or K)		CP1W-TS004
CompoBus/S I/O Link Unit	8	8	CompoBus/S slave		CP1W-SRT21

Note: CP1L (L Type) CPU Units with 10 points do not support Expansion Units.

I/O Connecting Cable

Name	Specifications	Model
I/O Connecting Cable	80 cm (for CP1W/CPM1A Expansion Units)	CP1W-CN811

Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion Units.

Optional Products, Maintenance Products and DIN Track Accessories

Name		Specifications	Model
Battery Set		For CPU Units (Use batteries within two years of manufacture.)	CJ1W-BAT01
DIN Track		Length: 0.5 m; Height: 7.3 mm	PFP-50N
		Length: 1 m; Height: 7.3 mm	PFP-100N
		Length: 1 m; Height: 16 mm	PFP-100N2
	End Plate	A stopper to secure the Units on the DIN Track.	PFP-M

Industrial Switching Hubs

Product name	Appear- ance	Specifications			Accessories	Current con- sump- tion (A)	Model
Product name	Appear- ance		No. of ports	Failure de- tection	Accessories	Current con- sump- tion (A)	Model
Industrial Switching Hubs		Quality of Service (QoS): EtherNet/IP™ control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation	3	No	Power supply connector	0.22	W4S1-03B
			5	No	Power supply connector	0.22	W4S1-05B
			5	Yes	Power supply connector Connector for informing error	0.22	W4S1-05C

Specifications | PLC - CP1L series

General Specifications

Type	AC power supply models	DC power supply models
Model	CP1L-[][][]-A	CP1L-[][][]-D
Power supply	100 to 240 VAC 50/60 Hz	24 VDC
Operating voltage range	85 to 264 VAC	20.4 to 26.4 VDC
Power consumption	50 VA max. (CP1L-M60/-M40/-M30[][]-A) 30 VA max. (CP1L-L20/-L14/-L10[][]-A)	20 W max. (CP1L-EM40/-EM30/-M60/-M40/ -M30[][]-D) 13 W max. (CP1L-EL20/-L20/-L14/ -L10[][]-D)
Inrush current *	100 to 120 VAC inputs: 20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max.	30 A max. (for cold start at room temperature) 20 ms max.
External power supply	300 mA at 24 VDC (CP1L-M60/-M40/ -M30[][]-A) 200 mA at 24 VDC (CP1L-L20/-L14/ -L10[][]-A)	None
Insulation resistance	20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals	No insulation between primary and secondary for DC power supply
Dielectric strength	2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max.	No insulation between primary and secondary for DC power supply
Noise immunity	Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance	CP1L-L/M: Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) CP1L-EL/EM: 5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 100 minutes each (time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 minutes)
Shock resistance	Conforms to JIS C60068-2-27. 147 m/s² three times each in X, Y, and Z directions
Ambient operating temperature	0 to 55°C
Ambient humidity	10% to 90% (with no condensation)
Ambient operating environment	No corrosive gas
Ambient storage temperature	-20 to 75°C (Excluding battery.)
Power holding time	10 ms min.	2 ms min.

* The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC power
supply.
• A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control circuitry
forthe AC power supply. The thermistor will not be sufficiently cooled if the ambient temperature is high or if a hot
startis performed when the power supply has been OFF for only a short time. In those cases the inrush current
values maybe higher (as much as two times higher) than those shown above. Always allow for this when selecting
fuses andbreakers for external circuits.
• A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The
capacitor will not be charged if a hot start is performed when the power supply has been OFF for only a short time,
so in those cases the inrush current values may be higher (as much as two times higher) than those shown above.

Performance Specifications

CP1L CPU Unit (EM/EL Type)

Type			CP1L-EM40 (40 points)	CP1L-EM30 (30 points)	CP1L-EL20 (20 points)
Models			CP1L-EM40D[]-[]	CP1L-EM30D[]-[]	CP1L-EL20D[]-[]
Control method			Stored program method
I/O control method			Cyclic scan with immediate refreshing
Program language			Ladder diagram
Function blocks			Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length			1 to 7 steps per instruction
Instructions			Approx. 500 (function codes: 3 digits)
Instruction execution time			Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing time			0.4ms
Program capacity			10K steps		5K steps
	FB program memory		10K steps
Number of tasks			288 (32 cyclic tasks and 256 interrupt tasks)
	Scheduled interrupt tasks		1 (interrupt task No. 2, fixed)
	Input interrupt tasks		6 (interrupt task No. 140 to 145, fixed)
	Input interrupt tasks		(High-speed counter interrupts and interrupt tasks specified by external interrupts can also be executed.)
Maximum subroutine number			256
Maximum jump number			256
I/O areas	Input Area		1,600 bits (100 words) CIO 0 to CIO 99
	Built-in Input Area		24 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11	18 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.05	12 bits: CIO 0.00 to CIO 0.11
	Output Area		1,600 bits (100 words) CIO 100 to CIO 199
	Built-in Output Area		16 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07	12 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.03	8 bits: CIO 100.00 to CIO 100.07
	1:1 Link Area		256 bits (16 words): CIO 3000.00 to CIO 3015.15 (CIO 3000 to CIO 3015)
	Serial PLC Link Area		1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits			4,800 bits (300 words): CIO 1200.00 to CIO 1499.15 (words CIO 1200 to CIO 1499) 6,400 bits (400 words): CIO 1500.00 to CIO 1899.15 (words CIO 1500 to CIO 1899) 15,360 bits (960 words): CIO 2000.00 to CIO 2959.15 (words CIO 2000 to CIO 2959) 9,600 bits (600 words): CIO 3200.00 to CIO 3799.15 (words CIO 3200 to CIO 3799) 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (words CIO 3800 to CIO 6143)
TR Area			16 bits: TR0 to TR15
Holding Area			8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area			Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers			4,096 timer numbers: T0 to T4095
Counters			4,096 counter numbers: C0 to C4095
DM Area			32 Kwords: D0 to D32767		10 Kwords: D0 to D9999, D32000 to D32767
Data Register Area			16 registers (16 bits): DR0 to DR15
Index Register Area			16 registers (32 bits): IR0 to IR15
Task Flag Area			32 flags (32 bits): TK0000 to TK0031
Trace Memory			4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette			A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
Clock function			Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
Communications functions			Built-in Ethernet Port (Connecting Support Software, Message Communications, Socket Service)
Communications functions			A maximum of two Serial Communications Option Boards can be mounted.		A maximum of one Serial Communications Option Board can be mounted.
Memory backup			Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life			Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years depending on model, power supply rate, and ambient temperature.)
Built-in input terminals			40 (24 inputs, 16 outputs)	30 (18 inputs, 12 outputs)	20 (12 inputs, 8 outputs)
Number of connectable Expansion Units and Expansion I/O Units			CP-series Expansion Unit and Expansion I/O Units: 3 max.		CP-series Expansion Units and Expansion I/O Units: 1 max.
Max. number of I/O points			160 (40 built in + 40 per Expansion (I/O) Unit x 3 Units)	150 (30 built in + 40 per Expansion (I/O) Unit x 3 Units)	60 (20 built in + 40 per Expansion (I/O) Unit x 1 Unit)
Interrupt inputs			6 inputs (Response time: 0.3 ms)
Interrupt inputs counter mode			6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters
Quick-response inputs			6 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts			1
High-speed counters			4 inputs/2 axes (24 VDC) Differential phases (4x), 50 kHz Single-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison
Pulse outputs (models with transistor outputs only)		Pulse outputs	Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
Pulse outputs (models with transistor outputs only)		PWM outputs	Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%) 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and +5%/0% at 10,000 Hz to 32,800 Hz)
Analog input			2 input (Resolution: 1/1000, Input range: 0 to 10 V). Not isolated.

CP1L CPU Unit (M/L Type)

Type			CP1L-M60 (60 points)	CP1L-M40 (40 points)	CP1L-M30 (30 points)	CP1L-L20 (20 points)	CP1L-L14 (14 points)	CP1L-L10 (10 points)
Models			CP1L- M60[][]-[]	CP1L- M40[][]-[]	CP1L- M30[][]-[]	CP1L- L20[][]-[]	CP1L- L14[][]-[]	CP1L- L10[][]-[]
Control method			Stored program method
I/O control method			Cyclic scan with immediate refreshing
Program language			Ladder diagram
Function blocks			Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length			1 to 7 steps per instruction
Instructions			Approx. 500 (function codes: 3 digits)
Instruction execution time			Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing time			0.4 ms
Program capacity			10K steps			5K steps
Number of tasks			288 (32 cyclic tasks and 256 interrupt tasks)
	Scheduled interrupt tasks		1 (interrupt task No. 2, fixed)
	Input interrupt tasks		6 (interrupt task No. 140 to 145, fixed)				4 (interrupt task No. 140 to 143, fixed)	2 (interrupt task No. 140 to 141, fixed)
	Input interrupt tasks		(Interrupt tasks can also be specified and executed for high-speed counter interrupts and executed.)
Maximum subroutine number			256
Maximum jump number			256
I/O areas	Input Area		1,600 bits (100 words) CIO 0 to CIO 99
	Built-in Input Area		36 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11 and CIO 2.00 to CIO 2.11	24 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11	18 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.05	12 bits: CIO 0.00 to CIO 0.11	8 bits: CIO 0.00 to CIO 0.07	6 bits: CIO 0.00 to CIO 0.05
	Output Area		1,600 bits (100 words) CIO 100 to CIO 199
	Built-in Output Area		24 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07 and CIO 102.00 to CIO 102.07	16 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07	12 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 100.03	8 bits: CIO 100.00 to CIO 100.07	6 bits: CIO 100.00 to CIO 100.05	4 bits: CIO 100.00 to CIO 100.03
	1:1 Link Area		1,024 bits (64 words): CIO 3000.00 to CIO 3063.15 (CIO 3000 to CIO 3063)
	Serial PLC Link Area		1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits			8,192 bits (512 words): W000.00 to W511.15 (W0 to W511) CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143)
TR Area			16 bits: TR0 to TR15
Holding Area			8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area			Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers			4,096 timer numbers: T0 to T4095
Counters			4,096 counter numbers: C0 to C4095
DM Area			32 Kwords: D0 to D32767			10 Kwords: D0 to D9999, D32000 to D32767
Data Register Area			16 registers (16 bits): DR0 to DR15
Index Register Area			16 registers (32 bits): IR0 to IR15
Task Flag Area			32 flags (32 bits): TK0000 to TK0031
Trace Memory			4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette			A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
Clock function			Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
Communications functions			One built-in peripheral port (USB 1.1): For connecting Support Software only.
			A maximum of two Serial Communications Option Boards can be mounted.			A maximum of one Serial Communications Option Board can be mounted.		Not supported.
			A maximum of two Ethernet Option Board can be mounted. When using CP1W-CIF41 Ver.1.0, one Ethernet Option Board can be mounted.			A maximum of one Ethernet Option Board can be mounted.		Not supported.
Memory backup			Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life			Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years depending on model, power supply rate, and ambient temperature.)
Built-in input terminals			60 (36 inputs, 24 outputs)	40 (24 inputs, 16 outputs)	30 (18 inputs, 12 outputs)	20 (12 inputs, 8 outputs)	14 (8 inputs, 6 outputs)	10 (6 inputs, 4 outputs)
Number of connectable Expansion Units and Expansion I/O Units			CP-series Expansion Unit and Expansion I/O Units: 3 max.			CP-series Expansion Units and Expansion I/O Units: 1 max.		Not supported.
Max. number of I/O points			180 (60 built in + 40 per Expansion (I/O) Unit × 3 Units)	160 (40 built in + 40 per Expansion (I/O) Unit × 3 Units)	150 (30 built in + 40 per Expansion (I/O) Unit × 3 Units)	60 (20 built in + 40 per Expansion (I/O) Unit × 1 Unit)	54 (14 built in + 40 per Expansion (I/O) Unit × 1 Unit)	10 (10 built in)
Interrupt inputs			6 inputs (Response time: 0.3 ms)				4 inputs (Response time: 0.3 ms)	2 inputs (Response time: 0.3 ms)
Interrupt inputs counter mode			6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters				4 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters	2 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters
Quick-response inputs			6 points (Min. input pulse width: 50 μs max.)				4 points (Min. input pulse width: 50 μs max.)	2 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts			1
High-speed counters			4 inputs/2 axes (24 VDC): Differential phases (4x), 50 kHz Single-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison
Pulse outputs (models with transistor outputs only)		Pulse outputs	Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
Pulse outputs (models with transistor outputs only)		PWM outputs	Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%) 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and +5%/0% at 10,000 Hz to 32,800 Hz)
Analog control			1 (Setting range: 0 to 255)
Analog input			1 input (Resolution: 1/256, Input range: 0 to 10 V). Not isolated.

Dimensions | PLC - CP1L series

CP1L-EM CPU Units with 40 Points

CP1L-EM CPU Units with 30 Points

CP1L-EL CPU Units with 20 Points

CP1L CPU Units with 60 I/O Points

CP1L CPU Units with 40 I/O Points

CP1L CPU Units with 30 I/O Points

CP1L CPU Units with 14 or 20 I/O Points

CP1L CPU Units with 10 I/O Points

Expansion Units and Expansion I/O Units

CP1W-20ED[][], CP1W-16[][],
CP1W-AD04[], CP1W-DA021/04[],
CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1W-8E[][]
CP1W-SRT21

CP1W-40ED[]
CP1W-32E[][]
CP1W-TS004

Features | PLC - CP1L series

Diverse range of functions for your machine.
Improved connectivity for ethernet and serial devices.
Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.(CP1H/CP1L)

Properties | PLC - CP1L series

PLC	CP1L series
Power Supply voltage	- max 100 VA (CP1H-[][][]-A)
Externalconnectionterminals	Maximum number of CJ unit:0-7 Unit
Communication connector	-Peripheral USB port EtherNet Port
Program capacity size	-20 K steps
dimensions (W x H x D) (mm)	150 x 90 x 85
Width (g)	590 CP1H 740 CP1H

PLC - CP1L series

ดาวน์โหลดไฟล์ PDF CP1L series

คุณสมบัติ | PLC - CP1L series

CP1L series เป็นอุปกรณ์ควบคุมอัตโนมัติ (PLC) ที่สามารถเลือกบอร์ดเสริมได้สูงสุด 2 บอร์ดและมีสัญญาณพัลส์เอาต์พุต 2 แกน

ข้อมูลจำเพาะ | PLC - CP1L series

PLC	CP1L series
แหล่งจ่ายแรงดันไฟฟ้า	- 24 VDC(CP1L-[][][]-D) -100 ถึง 240 VAC 50/60 Hz(CP1L-[][][]-A)
การใช้พลังงาน	CP1L-[][][]-A - สูงสุด 30 VA (CP1L-L20/-L14/-L10[][]-A) - สูงสุด 50 VA (CP1L-M60/-M40/-M30[][]-A) CP1L-[][][]-D - สูงสุด 13W (CP1L-EL20/-L20/-L14/-L10[][]-D) - สูงสุด 20 W(CP1L-EM40/-EM30/-M60/-M40/-M30[][]-D)
จำนวนจุด I/O สูงสุด	- 60 (ในตัว 20+ 40ต่อยูนิตส่วนขยาย (I/O)× 1ยูนิต)(CP1L-EL20D[]-[]) - 150 (ในตัว 30+ 40ต่อยูนิตส่วนขยาย (I/O)× 3ยูนิต)(CP1L-EM30D[]-[]) - 160 (ในตัว 40+ 40ต่อยูนิตส่วนขยาย (I/O)× 3ยูนิต)(CP1L-EM40D[]-[])
การเชื่อมต่อการสื่อสาร	- Peripheral USB port - EtherNet Port
ขนาดความจุโปรแกรม	- 5K steps(CP1L-EL20D[]-[]) - 10K steps(CP1L-EM30D[]-[], CP1L-EM40D[]-[])
ขนาด (W x H x D) (mm)	(66 ถึง 150) x 150 x 90 x 85
น้ำหนัก (g)	300 ถึง 820
