Basic Model
Renewal-type
E[][]S-type CP1E CPU Units (Built-in USB port)
Product name | Specifications | External power supply (24 VDC) (A) | Current consumption (A) | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Power Supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | 5 V | 24 V | |||
E[][]S-type CPU Units with 14 I/O Points |
100 to 240 VAC |
8 | 6 | Relay | 2K steps | 2K words | -- | 0.16 | 0.07 | CP1E-E14SDR-A |
E[][]S-type CPU Units with 20 I/O Points |
100 to 240 VAC |
12 | 8 | Relay | 2K steps | 2K words | -- | 0.17 | 0.08 | CP1E-E20SDR-A |
E[][]S-type CPU Units with 30 I/O Points |
100 to 240 VAC |
18 | 12 | Relay | 2K steps | 2K words | 0.30 | 0.17 | 0.07 | CP1E-E30SDR-A |
E[][]S-type CPU Units with 40 I/O Points |
100 to 240 VAC |
24 | 16 | Relay | 2K steps | 2K words | 0.30 | 0.17 | 0.09 | CP1E-E40SDR-A |
E[][]S-type CPU Units with 60 I/O Points |
100 to 240 VAC |
36 | 24 | Relay | 2K steps | 2K words | 0.30 | 0.17 | 0.13 | CP1E-E60SDR-A |
Normal-type
E[][]-type CP1E CPU Units (Built-in USB port)
Product name | Specifications | External power supply (24 VDC) (A) | Current consumption (A) | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Power Supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | 5 V | 24 V | |||
E[][]-type CPU Units with 10 I/O Points |
100 to 240 VAC |
6 | 4 | Relay | 2K steps | 2K words | --- | 0.08 | 0.04 | CP1E-E10DR-A |
Transistor (sinking) |
--- | 0.11 | --- | CP1E-E10DT-A | ||||||
Transistor (sourcing) |
--- | 0.11 | --- | CP1E-E10DT1-A | ||||||
24 VDC | Relay | --- | 0.08 | 0.04 | CP1E-E10DR-D | |||||
Transistor (sinking) |
--- | 0.11 | --- | CP1E-E10DT-D | ||||||
Transistor (sourcing) |
--- | 0.11 | --- | CP1E-E10DT1-D | ||||||
E[][]-type CPU Units with 14 I/O Points |
100 to 240 VAC |
8 | 6 | Relay | 2K steps | 2K words | --- | 0.16 | 0.07 | CP1E-E14DR-A |
E[][]-type CPU Units with 20 I/O Points |
100 to 240 VAC |
12 | 8 | Relay | 2K steps | 2K words | --- | 0.17 | 0.08 | CP1E-E20DR-A |
E[][]-type CPU Units with 30 I/O Points |
100 to 240 VAC |
18 | 12 | Relay | 2K steps | 2K words | 0.30 | 0.17 | 0.07 | CP1E-E30DR-A |
E[][]-type CPU Units with 40 I/O Points |
100 to 240 VAC |
24 | 16 | Relay | 2K steps | 2K words | 0.30 | 0.17 | 0.09 | CP1E-E40DR-A |
Application Model
Renewal-type
N[][]S1-type CP1E CPU Units (Built-in RS-232C, RS-485, USB ports)
Product name | Specifications | External power supply (24 VDC) (A) | Current consumption (A) | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Power Supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | 5 V | 24 V | |||
N[][]S1-type CPU Units with 30 I/O Points |
100 to 240 VAC | 18 | 12 | Relay | 8K steps |
8K words |
0.30 | 0.21 | 0.07 | CP1E-N30S1DR-A |
DC 24 V | Transistor (sinking) |
-- | 0.27 | 0.02 | CP1E-N30S1DT-D | |||||
Transistor (sourcing) |
-- | 0.27 | 0.02 | CP1E-N30S1DT1-D | ||||||
N[][]S1-type CPU Units with 40 I/O Points |
100 to 240 VAC | 24 | 16 | Relay | 8K steps |
8K words |
0.30 | 0.21 | 0.09 | CP1E-N40S1DR-A |
DC 24 V | Transistor (sinking) |
-- | 0.31 | 0.02 | CP1E-N40S1DT-D | |||||
Transistor (sourcing) |
-- | 0.31 | 0.02 | CP1E-N40S1DT1-D | ||||||
N[][]S1-type CPU Units with 60 I/O Points |
100 to 240 VAC | 36 | 24 | Relay | 8K steps |
8K words |
0.30 | 0.21 | 0.13 | CP1E-N60S1DR-A |
DC 24 V | Transistor (sinking) |
-- | 0.31 | 0.02 | CP1E-N60S1DT-D | |||||
Transistor (sourcing) |
-- | 0.31 | 0.02 | CP1E-N60S1DT1-D |
N[][]S-type CP1E CPU Units (Built-in RS-232C, USB ports)
Product name | Specifications | External power supply (24 VDC) (A) | Current consumption (A) | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Power Supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | 5 V | 24 V | |||
N[][]S-type CPU Units with 30 I/O Points |
100 to 240 VAC | 18 | 12 | Relay | 8K steps |
8K words |
0.30 | 0.21 | 0.07 | CP1E-N30SDR-A |
DC 24 V | Transistor (sinking) |
-- | 0.27 | 0.02 | CP1E-N30SDT-D | |||||
Transistor (sourcing) |
-- | 0.27 | 0.02 | CP1E-N30SDT1-D | ||||||
N[][]S-type CPU Units with 40 I/O Points |
100 to 240 VAC | 24 | 16 | Relay | 8K steps |
8K words |
0.30 | 0.21 | 0.09 | CP1E-N40SDR-A |
DC 24 V | Transistor (sinking) |
-- | 0.31 | 0.02 | CP1E-N40SDT-D | |||||
Transistor (sourcing) |
-- | 0.31 | 0.02 | CP1E-N40SDT1-D | ||||||
N[][]S-type CPU Units with 60 I/O Points |
100 to 240 VAC | 36 | 24 | Relay | 8K steps |
8K words |
0.30 | 0.21 | 0.13 | CP1E-N60SDR-A |
DC 24 V | Transistor (sinking) |
-- | 0.31 | 0.02 | CP1E-N60SDT-D | |||||
Transistor (sourcing) |
-- | 0.31 | 0.02 | CP1E-N60SDT1-D |
Normal-type
N/NA[][]-type CP1E CPU Units (Built-in RS-232C, USB ports)
Product name | Specifications | Ex- ternal power supply (24 VDC) (A) | Current consumption (A) | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Power Supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | 5 V | 24 V | |||
N[][]-type CPU Units with 14 I/O Points |
100 to 240 VAC | 8 | 6 | Relay | 8K steps |
8K words |
--- | 0.17 | 0.07 | CP1E-N14DR-A |
Transistor (sinking) |
--- | 0.22 | 0.02 | CP1E-N14DT-A | ||||||
Transistor (sourcing) |
--- | 0.22 | 0.02 | CP1E-N14DT1-A | ||||||
DC 24 V | Relay | --- | 0.17 | 0.07 | CP1E-N14DR-D | |||||
Transistor (sinking) |
--- | 0.22 | 0.02 | CP1E-N14DT-D | ||||||
Transistor (sourcing) |
--- | 0.22 | 0.02 | CP1E-N14DT1-D | ||||||
N[][]-type CPU Units with 20 I/O Points |
100 to 240 VAC | 12 | 8 | Relay | 8K steps |
8K words |
--- | 0.18 | 0.08 | CP1E-N20DR-A |
Transistor (sinking) |
--- | 0.23 | 0.02 | CP1E-N20DT-A | ||||||
Transistor (sourcing) |
--- | 0.23 | 0.02 | CP1E-N20DT1-A | ||||||
DC 24 V | Relay | --- | 0.18 | 0.08 | CP1E-N20DR-D | |||||
Transistor (sinking) |
--- | 0.23 | 0.02 | CP1E-N20DT-D | ||||||
Transistor (sourcing) |
--- | 0.23 | 0.02 | CP1E-N20DT1-D | ||||||
N[][]-type CPU Units with 30 I/O Points |
100 to 240 VAC | 18 | 12 | Relay | 8K steps |
8K words |
0.3 | 0.21 | 0.07 | CP1E-N30DR-A |
Transistor (sinking) |
0.3 | 0.27 | 0.02 | CP1E-N30DT-A | ||||||
Transistor (sourcing) |
0.3 | 0.27 | 0.02 | CP1E-N30DT1-A | ||||||
DC 24 V | Relay | --- | 0.21 | 0.07 | CP1E-N30DR-D | |||||
Transistor (sinking) |
--- | 0.27 | 0.02 | CP1E-N30DT-D | ||||||
Transistor (sourcing) |
--- | 0.27 | 0.02 | CP1E-N30DT1-D | ||||||
N[][]-type CPU Units with 40 I/O Points |
100 to 240 VAC | 24 | 16 | Relay | 8K steps |
8K words |
0.3 | 0.21 | 0.09 | CP1E-N40DR-A |
Transistor (sinking) |
0.3 | 0.31 | 0.02 | CP1E-N40DT-A | ||||||
Transistor (sourcing) |
0.3 | 0.31 | 0.02 | CP1E-N40DT1-A | ||||||
DC 24 V | Relay | --- | 0.21 | 0.09 | CP1E-N40DR-D | |||||
Transistor (sinking) |
--- | 0.31 | 0.02 | CP1E-N40DT-D | ||||||
Transistor (sourcing) |
--- | 0.31 | 0.02 | CP1E-N40DT1-D | ||||||
N[][]-type CPU Units with 60 I/O Points |
100 to 240 VAC | 36 | 24 | Relay | 8K steps |
8K words |
0.3 | 0.21 | 0.13 | CP1E-N60DR-A |
Transistor (sinking) |
0.3 | 0.31 | 0.02 | CP1E-N60DT-A | ||||||
Transistor (sourcing) |
0.3 | 0.31 | 0.02 | CP1E-N60DT1-A | ||||||
DC 24 V | Relay | --- | 0.21 | 0.13 | CP1E-N60DR-D | |||||
Transistor (sinking) |
--- | 0.31 | 0.02 | CP1E-N60DT-D | ||||||
Transistor (sourcing) |
--- | 0.31 | 0.02 | CP1E-N60DT1-D | ||||||
NA-type CPU Units with 20 I/O Points (Built-in analog) |
100 to 240 VAC | 12 (Built-in analog inputs: 2) |
8 (Built-in analog outputs: 1) |
Relay | 8K steps |
8K words |
0.3 | 0.18 | 0.11 | CP1E-NA20DR-A |
DC 24 V | Transistor (sinking) |
--- | 0.23 | 0.09 | CP1E-NA20DT-D | |||||
Transistor (sourcing) |
--- | 0.23 | 0.09 | CP1E-NA20DT1-D |
Optional Products
Battery Set
Product name | Specifications | Model |
---|---|---|
Battery Set |
For N/NA[][](S[])-type CP1E CPU Units Note: Mount a Battery to an N/NA[][](S[])-type CPU Unit if the data in the following areas must be backed up for power interruptions. • DM Area (D) (except backed up words in the DM Area), Holding Area (H), Counter Completion Flags (C), Counter Present Values (C), Auxiliary Area (A), and Clock Function (Use batteries within two years of manufacture.) |
CP1W-BAT01 |
Option Board (for CP1E N30/40/60 or NA20 CPU Units)
The Options cannot be used for CP1E N14/20, N30/40/60S(1), E10/14/20/30/40/60(S) CPU Units.
Product name | Specifications | Model | |
---|---|---|---|
RS-232C Option Board | One RS-232C Option Board can be mounted to the Option Board slot. | CP1W-CIF01 | |
RS-422A/485 Option Board | One RS-422A/485 Option Board can be mounted to the Option Board slot. |
CP1W-CIF11 | |
RS-422A/485 Isolated-type Option Board | CP1W-CIF12-V1 | ||
Ethernet Option Board | One Ethernet Option Board can be mounted to the Option Board slot. CP1E CPU Units are supported by CP1W-CIF41 version 2.0 or higher. When using CP1W-CIF41, CX-Programmer version 9.12 or higher is required. |
CP1W-CIF41 | |
Analog Input Option Board | Can be mounted in CPU Unit Option Board slot. 2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution: 1/2000). |
CP1W-ADB21 * | |
Analog Output Option Board | Can be mounted in CPU Unit Option Board slot. 2 analog outputs. 0-10V (Resolution:1/4000). |
CP1W-DAB21V * | |
Analog I/O Option Board | Can be mounted in CPU Unit Option Board slot. 2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution:1/2000). 2 analog outputs. 0-10V (Resolution:1/4000). |
CP1W-MAB221 * |
Note: It is not possible to use a CP-series Ethernet Option Board version 1.0 (CP1W-CIF41), LCD Option Board (CP1W-DAM01), or Memory Card(CP1W-ME05M) with a CP1E CPU Unit.
* Support is provided with CP1E CPU Unit version 1.2 and later.
Expansion I/O Units and Expansion Units (for CP1E E30/40/60(S), N30/40/60(S[]), or NA20 CPU Units)
CP1E E10/14/20(S) or N14/20 CPU Units do not support Expansion I/O Units and Expansion Units.
Unit type | Product name | Specifications | Current consumption (A) | Model | ||||
---|---|---|---|---|---|---|---|---|
Inputs | Out- puts | Output type | 5 V | 24 V | ||||
CP1W Expansion I/O Units | Input Unit |
8 | --- | 24 VDC Input | 0.018 | -- | CP1W-8ED | |
Output Units |
--- | 8 | Relay | 0.026 | 0.044 | CP1W-8ER | ||
Transistor (sinking) | 0.075 | -- | CP1W-8ET | |||||
Transistor (sourcing) | 0.075 | -- | CP1W-8ET1 | |||||
Output Units |
--- | 16 | Relay | 0.042 | 0.090 | CP1W-16ER | ||
Transistor (sinking) | 0.076 | -- | CP1W-16ET | |||||
Transistor (sourcing) | 0.076 | -- | CP1W-16ET1 | |||||
Output Units |
--- | 32 | Relay | 0.049 | 0.131 | CP1W-32ER | ||
Transistor (sinking) | 0.113 | -- | CP1W-32ET | |||||
Transistor (sourcing) | 0.113 | -- | CP1W-32ET1 | |||||
I/O Units |
12 | 8 | Relay | 0.103 | 0.044 | CP1W-20EDR1 | ||
Transistor (sinking) | 0.130 | -- | CP1W-20EDT | |||||
Transistor (sourcing) | 0.130 | -- | CP1W-20EDT1 | |||||
I/O Units |
24 | 16 | Relay | 0.080 | 0.090 | CP1W-40EDR | ||
Transistor (sinking) | 0.160 | -- | CP1W-40EDT | |||||
Transistor (sourcing) | 0.160 | -- | CP1W-40EDT1 | |||||
CP1W Expansion Units | Analog Input Unit |
4CH | -- | Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 |
0.100 | 0.090 | CP1W-AD041 |
Resolution: 1/12000 |
0.100 | 0.050 | CP1W-AD042 | |||||
Analog Output Unit |
-- | 2CH | Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 |
0.040 | 0.095 | CP1W-DA021 | |
-- | 4CH | Resolution: 1/6000 |
0.080 | 0.124 | CP1W-DA041 | |||
Resolution: 1/12000 |
0.070 | 0.160 | CP1W-DA042 | |||||
Analog I/O Unit |
4CH | 4CH | Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/12000 |
0.120 | 0.170 | CP1W-MAD44 | |
4CH | 2CH | Resolution: 1/12000 |
0.120 | 0.120 | CP1W-MAD42 | |||
2CH | 1CH | Resolution: 1/6000 |
0.083 | 0.110 | CP1W-MAD11 | |||
Temperature Sensor Unit |
2CH | -- | Sensor type: Thermocouple (J or K) | 0.040 | 0.059 | CP1W-TS001 | ||
4CH | -- | Sensor type: Thermocouple (J or K) | 0.040 | 0.059 | CP1W-TS002 | |||
2CH | -- | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) |
0.054 | 0.073 | CP1W-TS101 | |||
4CH | -- | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) |
0.054 | 0.073 | CP1W-TS102 | |||
4CH | -- | Sensor type: Thermocouple (J or K) 2channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA |
Resolution: 1/12000 |
0.070 | 0.030 | CP1W-TS003 | ||
12CH | -- | Sensor type: Thermocouple (J or K) | 0.080 | 0.050 | CP1W-TS004 | |||
CompoBus/S I/O Link Unit |
8 | 8 | CompoBus/S slave | 0.029 | -- | CP1W-SRT21 |
I/O Connecting Cable
Product name | Specifications | Model |
---|---|---|
I/O Connecting Cable | 80 cm (for CP1W Expansion I/O Units and Expansion Units) Only one I/O Connecting Cable can be used in each PLC. |
CP1W-CN811 |
Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion I/O Units and
Expansion Units.
DIN Track Accessories
Name | Specifications | Model | |
---|---|---|---|
DIN Track | Length: 0.5 m; Height: 7.3 mm | PFP-50N | |
Length: 1 m; Height: 7.3 mm | PFP-100N | ||
Length: 1 m; Height: 16 mm | PFP-100N2 | ||
End Plate | A stopper to secure the Units on the DIN Track. | PFP-M |
Programming Devices
Software
Product name | Specifications | Model | ||
---|---|---|---|---|
Number of licenses | Media | |||
FA Integrated Tool Package CX-One Lite Ver.4.[] |
CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes Micro PLC Edition CX-Programmer Ver.9.[]. |
1 license | DVD | CXONE-LT01D-V4 |
FA Integrated Tool Package CX-One Package Ver. 4.[] |
CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[]. |
1 license * |
DVD | CXONE-AL01D-V4 |
Note: 1. The E20/30/40(S), N20/N30/N40(S) CPU Units are supported by CX-Programmer version 8.2 or higher.
The E10, E14, N14, N60, and NA20 CPU Units are supported by CX-Programmer version 9.03 or higher. When
Micro PLC Edition CXProgrammer is used, you need version 9.03 or higher.
The E60S CPU Units are supported by CX-Programmer version 9.42 or higher. When Micro PLC Edition CX-
Programmer is used, you need version 9.42 or higher.
2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
The following tables lists the Support Software that can be installed from CX-One
Support Software in CX-One | CX-One Lite Ver.4.[] | CX-One Ver.4.[] | |
---|---|---|---|
Micro PLC Edition CX-Programmer | Ver.9.[] | Yes | No |
CX-Programmer | Ver.9.[] | No | Yes |
CX-Integrator | Ver.2.[] | Yes | Yes |
Switch Box Utility | Ver.1.[] | Yes | Yes |
CX-Protocol | Ver.1.[] | No | Yes |
CX-Simulator | Ver.1.[] | Yes | Yes |
CX-Position | Ver.2.[] | No | Yes |
CX-Motion-NCF | Ver.1.[] | No | Yes |
CX-Motion-MCH | Ver.2.[] | No | Yes |
CX-Motion | Ver.2.[] | No | Yes |
CX-Drive | Ver.1.[] | Yes | Yes |
CX-Process Tool | Ver.5.[] | No | Yes |
Faceplate Auto-Builder for NS | Ver.3.[] | No | Yes |
CX-Designer | Ver.3.[] | Yes | Yes |
NV-Designer | Ver.1.[] | Yes | Yes |
CX-Thermo | Ver.4.[] | Yes | Yes |
CX-ConfiguratorFDT | Ver.1.[] | Yes | Yes |
CX-FLnet | Ver.1.[] | No | Yes |
Network Configurator | Ver.3.[] | Yes | Yes |
CX-Server | Ver.4.[] | Yes | Yes |
Note: For details, refer to the CX-One Catalog (Cat. No. R134).
Specifications | PLC - CP1E series
General Specifications
Type | AC power supply models | DC power supply models | |
---|---|---|---|
Model | CP1E-[][][]S[]D[]-A CP1E-[][][]D[]-A | CP1E-[][][]S[]D[]-D CP1E-[][][]D[]-D | |
Enclosure | Mounted in a panel | ||
Dimensions (H × D × W) | E/N/NA[][]-type CPU Unit with 10 I/O points (CP1E-E10D[]-[]): 90mm *1 × 85mm *2 × 66 mm CPU Unit with 14 or 20 I/O points (CP1E-[]14D[]-[]/[]20D[]-[]): 90mm *1 × 85mm *2 × 86 mm CPU Unit with 30 I/O points (CP1E-[]30D[]-[]): 90mm *1 × 85mm *2 × 130 mm CPU Unit with 40 I/O points (CP1E-[]40D[]-[]): 90mm *1 × 85mm *2 × 150 mm CPU Unit with 60 I/O points (CP1E-N60D[]-[]): 90mm *1 × 85mm *2 × 195 mm CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D[]-[]): 90mm *1 × 85mm *2 × 130 mm E/N/[][]S(1)-type CPU Unit with 14 or 20 I/O points (CP1E-[]14SD[]-[]/[]20SD[]-[]): 90mm *1 × 79mm *2 × 86 mm CPU Unit with 30 I/O points (CP1E-[]30S(1)D[]-[]): 90mm *1 × 79mm *2 × 130 mm CPU Unit with 40 I/O points (CP1E-[]40S(1)D[]-[]): 90mm *1 × 79mm *2 × 150 mm CPU Unit with 60 I/O points (CP1E-[]60S(1)D[]-[]): 90mm *1 × 79mm *2 × 195 mm |
||
Weight | CPU Unit with 10 I/O points (CP1E-E10D[]-[]): 300g max. CPU Unit with 14 I/O points (CP1E-[]14(S)D[]-[]): 360g max. CPU Unit with 20 I/O points (CP1E-[]20(S)D[]-[]): 370g max. CPU Unit with 30 I/O points (CP1E-[]30(S[])D[]-[]): 600g max. CPU Unit with 40 I/O points (CP1E-[]40(S[])D[]-[]): 660g max. CPU Unit with 60 I/O points (CP1E-[]60(S[])D[]-[]): 850g max. CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D[]-[]): 680g max. |
||
Elec- trical spec- ifica- tions | Supply voltage | 100 to 240 VAC 50/60 Hz | 24 VDC |
Operating voltage range |
85 to 264 VAC | 20.4 to 26.4 VDC | |
Power consumption |
15 VA/100 VAC max. 25 VA/240 VAC max. (CP1E-E10D[]-A/[]14(S)D[]-A/ []20(S)D[]-A) |
9 W max. (CP1E-E10D[]-D) 13 W max. (CP1E-N14D[]-D/N20D[]-D) |
|
50 VA/100 VAC max. 70 VA/240 VAC max. (CP1E-NA20D[]-A/[]30(S[])D[]-A/ []40(S[])D[]-A/N60(S[])D[]-A) |
20 W max. (CP1E-NA20D[]-D/N30(S[])D[]-D/ N40(S[])D[]-D/N60(S[])D[]-D) *4 |
||
Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
24 VDC, 30 A for 20 ms max. for cold start at room temperature |
|
External power supply *3 |
Not provided. (CP1E-E10D[]-A/[]14(S)D[]-A/ []20(S)D[]-A) 24 VDC, 300 mA (CP1E-NA20D[]-A/[]30D[]-A/ []40D[]-A/[]60D[]-A/[]30SDR-A/ []40SDR-A/[]60SDR-A) |
Not provided | |
Insulation resistance |
20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals |
Except between DC primary current and DC secondary current |
|
Dielectric strength |
2,300 VAC 50/60Hz for 1 min between AC external and GR terminals Leakage current: 5 mA max. |
Except between DC primary current and DC secondary current |
|
Power OFF detection time |
10 ms min. | 2 ms min. | |
Appli- cation envi- ron- ment | Ambient operating temperature |
0 to 55 °C | |
Ambient humidity | 10% to 90% | ||
Atmosphere | No corrosive gas. | ||
Ambient storage temperature |
-20 to 75 °C (excluding battery) | ||
Altitude | 2,000 m max. | ||
Pollution degree | 2 or less: Meets IEC 61010-2-201. | ||
Noise resistance | 2 kV on power supply line (Conforms to IEC61000-4-4.) | ||
Overvoltage category |
Category II: Meets IEC 61010-2-201. | ||
EMC Immunity Level |
Zone B | ||
Vibration resistance |
Conforms to JIS 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
||
Shock resistance | Conforms to JIS 60068-2-27. 147 m/s2, 3 times in X, Y, and Z directions |
||
Terminal block | Fixed (not removable) | ||
Terminal screw size | M3 | ||
Applicable standards | Conforms to EC Directive | ||
Grounding method | Ground to 100 Ω or less. |
* 1 Total of 110 mm with mounting brackets.
* 2 Excluding cables.
* 3 Use the external power supply to power input devices. Do not use it to drive output devices.
* 4 This is the rated value for the maximum system configuration. Use the following formula to calculate power
consumption for CPU Units with DC power.
Formula: DC power consumption = (5 V current consumption ✕ 5 V/70% (internal power efficiency) + 24V current
consumption) ✕ 1.1 (current fluctuation factor)
The above calculation results show that a DC power supply with a greater capacity is required.
Performance Specifications
Item | CP1E-E[][]SD[]-[] CP1E-[][]D[]-[] | CP1E-N[][]S[]D[]-[] CP1E-N[][]D[]-[] CP1E-NA[][]D[]-[] | ||
---|---|---|---|---|
Program capacity | 2 K steps (8 Kbytes) including the symbol table, comments, and program indices of the CX-Programmer |
8 K steps (32 Kbytes) including the symbol table, comments, and program indices of the CX-Programmer |
||
Control method | Stored program method | |||
I/O control method | Cyclic scan with immediate refreshing | |||
Program language | Ladder diagram | |||
Instructions | Approximately 200 | |||
Proc- essing speed | Overhead processing time | 0.4 ms | ||
Instruction execution times | Basic instructions (LD): 1.19 µs min. Special instructions (MOV): 7.9 µs min. |
|||
Number of CP1W-series Expansion Units connected |
CP1E-E10D[]-[]/[]14(S)D[]-[]/[]20(S)D[]-[]: None CP1E-[]30(S[])D[]-[]/[]40(S[])D[]-[]/[]60(S[])D[]-[]/NA20(S[])D[]-[]: 3 units |
|||
Maximum number of I/O points | CP1E-E10D[]-[]: 10 CP1E-[]14(S)D[]-[]: 14 CP1E-[]20(S)D[]-[]: 20 CP1E-[]30(S[])D[]-[]: 150 (30 built in, 40 × 3 expansion) CP1E-[]40(S[])D[]-[]: 160 (40 built in, 40 × 3 expansion) CP1E-[]60(S[])D[]-[]: 180 (60 built in, 40 × 3 expansion) CP1E-NA20D[]-[]: 140 (20 built in, 40 × 3 expansion) |
|||
Built-in I/O | CP1E-E10D[]-[]: 10 (6 inputs, 4 outputs) CP1E-[]14(S)D[]-[]: 14 (8 inputs, 6 outputs) CP1E-[]20(S)D[]-[]: 20 (12 inputs, 8 outputs) CP1E-[]30(S[])D[]-[]: 30 (18 inputs, 12 outputs) CP1E-[]40(S[])D[]-[]: 40 (24 inputs, 16 outputs) CP1E-[]60(S[])D[]-[]: 60 (36 inputs, 24 outputs) CP1E-NA20D[]-[]: 20 (12 inputs, 8 outputs) |
|||
Built-in input func- tions | High- speed counters | High-speed counter mode/ maximum frequency |
Incremental Pulse Inputs 10 kHz: 6 counters 5 counters (only for 10 I/O points) Up/Down Inputs 10 kHz: 2 counters Pulse + Direction Inputs 10 kHz: 2 counters Differential Phase Inputs (4x) 5 kHz: 2 counters |
Incremental Pulse Inputs 100 kHz: 2 counters, 10 kHz: 4 counters Up/Down Inputs 100 kHz: 1 counters, 10 kHz: 1 counters Pulse + Direction Inputs 100 kHz: 2 counters Differential Phase Inputs (4x) 50 kHz: 1 counter, 5 kHz: 1 counter |
Counting mode | Linear mode Ring mode |
|||
Count value | 32 bits | |||
Counter reset modes |
Phase Z and software reset (excluding increment pulse input) Software reset |
|||
Control method | Target Matching Range Comparison |
|||
Input interrupts | 6 inputs (4 inputs only for 10 I/O points) Interrupt input pulse width: 50 µs min. |
|||
Quick-response Inputs | 6 inputs (4 inputs only for 10 I/O points) Input pulse width: 50 µs min. |
|||
Normal input | Input constants | Delays can be set in the PLC Setup (0 to 32 ms, default: 8 ms). Set values: 0, 1, 2, 4, 8, 16, or 32 ms |
||
Built-in output func- tions | Pulse outputs (Models with transistor outputs only) | Pulse output method and output frequency |
Pulse output function not included |
Pulse + Direction Mode 1 Hz to 100 kHz: 2 outputs |
Output mode | Continuous mode (for speed control) Independent mode (for position control) |
|||
Number of output pulses |
elative coordinates: 0000 0000 to 7FFF FFFF hex (0 to 2147483647) Absolute coordinates: 8000 0000 to 7FFF FFFF hex (-2147483647 to 2147483647) |
|||
Acceleration/ deceleration curves |
Trapezoidal acceleration and deceleration (Cannot perform S-curve acceleration and deceleration.) |
|||
Changing SVs during instruction execution |
Only target position can be changed. | |||
Origin searches | Included | |||
Pulse outputs (Models with transistor outputs only) | Frequency | PWM output function not included |
2.0 to 6,553.5 Hz (in increments of 0.1 Hz) with 1 output or 2 Hz to 32,000 Hz (in increments of 1 Hz) with 1 output |
|
Duty factor | 0.0% to 100.0% (in increments of 0.1%) Accuracy: +1%/-0% at 2 Hz to 10,000 Hz and +5%/-0% at 10,000 Hz to 32,000 kHz |
|||
Output mode | Continuous Mode | |||
Built-in analog | Analog input | Analog function not included | Setting range: 0 to 6,000 (2 channels only for NA-type) |
|
Analog output | Setting range: 0 to 6,000 (1 channels only for NA-type) |
|||
Analog adjusters | E/N/NA[][]-type: 2 adjusters (Setting range: 0 to 255) E/N[][]S(1)-type: None |
|||
Com- muni- cations | B-type Peripheral USB Port | Conforming to USB 2.0 B type connector | ||
Transmission distance |
5 m max. | |||
Built-in RS-232C port | No built-in RS-232C port | Interface: Conforms to EIA RS-232C. | ||
Communications method |
Half duplex | |||
synchronization | Start-stop | |||
Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps |
|||
Transmission distance |
15 m max. | |||
Supported protocol |
• Host Link • 1:N NT Link • No-protocol mode • Serial PLC Links (master, slave) • Modbus-RTU Easy Master |
|||
Built-in RS-485 port | No built-in RS-485 port | N30/40/60S1-type only Interface: Conforms to EIA RS-485. 2-wire sensors No isolation |
||
Communications method |
Half duplex | |||
synchronization | Start-stop | |||
Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps |
|||
Transmission distance |
50 m max. | |||
Supported protocol |
• Host Link • 1:N NT Link • No-protocol mode • Serial PLC Links (master, slave) • Modbus-RTU Easy Master |
|||
Serial Option port | Option Board cannot be mounted. |
N30/40/60 and NA20-type only 1 port |
||
Mountable Option Boards |
One RS-232C port: CP1W-CIF01 One RS-422A/485 port (not isolated): CP1W-CIF11 One RS-422A/485 port (isolated): CP1W-CIF12-V1 One Ethernet port: CP1W-CIF41 |
|||
Communications method |
Depends on Option Board. | |||
synchronization | Depends on Option Board. | |||
Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps |
|||
Compatible protocols |
• Host Link • 1:N NT Link • No-protocol mode • Serial PLC Links (master, slave) • Modbus-RTU Easy Master |
|||
Number of tasks | 17 • One cyclic execution task • One scheduled interrupt task (always interrupt task 1) • Six input interrupt tasks (interrupt tasks 2 to 7) • Sixteen high-speed counter interrupt tasks (interrupt tasks 1 to 16) |
|||
Maximum subroutine number | 128 | |||
Maximum jump number | 128 | |||
Scheduled interrupt tasks | 1 interrupt task | |||
Clock | Clock function not included. The time of error occurrence displays 01-01-01 01:01:01 Sunday |
Included. Accuracy (monthly deviation): -4.5 min to -0.5 min at ambient temperature of 55°C, -2.0 min to +2.0 min at ambient temperature of 25°C, -2.5 min to +1.5 min at ambient temperature of 0°C |
||
Memory backup | Built-in EEPROM | Ladder programs and parameters are automatically saved to built-in EEPROM A section of the Data Memory Area can be saved to the built-in EEPROM. |
||
Battery backup With CP1W-BAT01 Battery (Sold separately) |
Battery cannot be mounted. | CP1W-BAT01 can be used. Maximum battery service life: 5 years Backup Time Guaranteed value (ambient temperature: 55°C): 13,000 hours (approx. 1.5 years) Effective value (ambient temperature: 25°C): 43,000 hours (approx. 5 years) |
||
CIO Area | Input Bits | 1,600 bits (100 words): CIO 0.00 to CIO 99.15 (CIO 00 to CIO 99) | ||
Output Bits | 1,600 bits (100 words): CIO 100.00 to CIO 199.15 (CIO 100 to CIO 199) | |||
Serial PLC Link Words | 1,440 bits (90 words): CIO 200.00 to CIO 289.15 (words CIO 200 to CIO 289) | |||
Work Area (W) | 1,600 bits (100 words): W0.00 to W99.15 (W0 to W99) | |||
Holding Area (H) | 800 bits (50 words): H0.00 to H49.15 (H0 to H49) Bits in this area maintain their ON/OFF status when operating mode is changed. |
|||
Auxiliary Area (A) | Read-only: 7,168 bits (448 words) A0 to A447 Read/write: 4,896 bits (306 words) in words A448 to A753 |
|||
Temporary Relay Area (TR) (TR Area) | 16 bits: TR0 to TR15 | |||
Timer Area (T) | 256 timer numbers (T0 to T255 (separate from counters)) | |||
Counter Area (C) | 256 counter numbers (C0 to C255 (separate from timers)) | |||
Data Memory Area (D) | 2 Kwords: D0 to D2047 Of these, 1,500 words can be saved to the backup memory (built-in EEPROM) using settings in the Auxiliary Area. |
8 Kwords: D0 to D8191 Of these, 7,000 words can be saved to the backup memory (built-in EEP-ROM) using settings in the Auxiliary Area |
||
Operating modes | PROGRAM mode: Program execution is stopped. Preparations can be executed prior to program execution in this mode. MONITOR mode: Programs are executed. Some operations, such as online editing, and changes to present values in I/O memory, are enabled in this mode. RUN mode: Programs are executed. This is the normal operating mode. |
Dimensions | PLC - CP1E series
CP1E CPU Unit

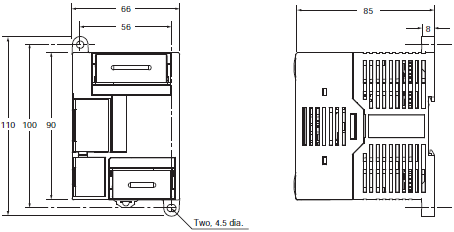

CPU Units with 10 I/O Points

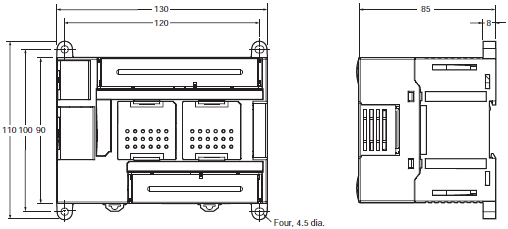

CPU Units with 14 or 20 I/O Points
CP1E-[]14/20D[][]-[]
CP1E-[]14/20SD[][]-[]

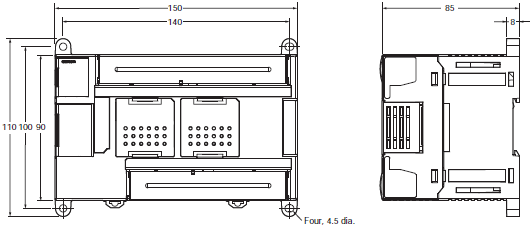

CPU Units with 30 I/O Points
CPU Units with 20 I/O Points and Built-in Analog
CP1E-[]30D[][]-[], CP1E-NA20D[]-[]
CP1E-[]30S(1)D[][]-[]

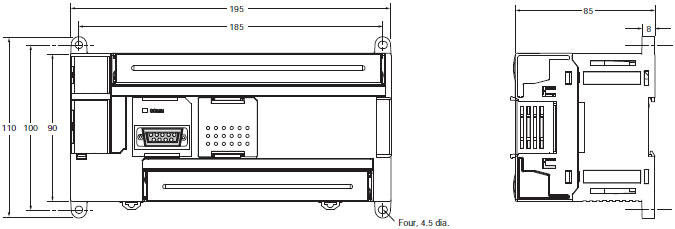

CPU Units with 40 I/O Points
CP1E-[]40D[][]-[]
CP1E-[]40S(1)D[][]-[]
CPU Units with 60 I/O Points
CP1E-N60D[]-[]
CP1E-[]60S(1)D[][]-[]
Expansion I/O Units and Expansion Units
CP1W-8E[][]/CP1W-SRT21
CP1W-20ED[]/CP1W-16E[][]/CP1W-AD04[]/CP1W-DA021/CP1W-DA04[]/CP1W-MAD[][]/ CP1W-TS[][]1/[][]2/[][]3
CP1W-40ED[]/CP1W-32E[][]/CP1W-TS004
Features | PLC - CP1E series
The CP1E series is a cost-effective version of Automatic Control Equipment (PLC). Easy to use And it can be used with a wide variety of systems. LED display and easy to set up. Connect to a computer using a commercially available USB cable. It has a complete high-speed counter function and has built-in analog I / O, 2 inputs and 1 output for the NA type CPU unit.
Properties | PLC - CP1E series
PLC | CP1E series |
---|---|
Power supply voltage | - 24 VDC(CP1E-[][][]S[]D[]-D, CP1E-[][][]D[]-D) -100 ถึง 240 VAC 50/60 Hz(CP1E-[][][]S[]D[]-A, CP1E-[][][]D[]-A) |
Power Consumption | - 15 to 70VA Max(CP1E-[][][]S[]D[]-A, CP1E-[][][]D[]-A) - 9 to 20 W Max(CP1E-[][][]S[]D[]-D, CP1E-[][][]D[]-D) |
Maximum number of I / O points | - 10 (CP1E-E10D[]-[]) - 14 (CP1E-[]14(S)D[]-[]) - 20 (CP1E-[]20(S)D[]-[]) - 150 (30+ built-in 40 per expansion unit (I / O) × 3) (CP1E - [] 30 (S []) D [] - []) - 160 (built-in 40+ 40 per expansion unit ( I / O) × 3 units) (CP1E - [] 40 (S []) D [] - []) - 180 (built-in 60+ 40 per expansion unit (I / O) × 3 units) (CP1E- [] 60 (S []) D [] - []) - 140 (Built-in 20+ 40 per expansion unit (I / O) × 1 unit) (CP1E-NA20D [] - []) |
Communication | - Peripheral USB port - EtherNet Port |
Program capacity | - 2 K steps (8 Kbytes) (CP1E-E[][]SD[]-[], CP1E-[][]D[]-[]) - 8 K steps (32 Kbytes) (CP1E-N[][]S[]D[]-[], CP1E-N[][]D[]-[], CP1E-NA[][]D[]-[]) |
Size (W x H x D) (mm) | (66 to 195) x 90 x 85 (E/N/NA[][]-type) (86 to 195) x 90 x 79 (E/N/[][]S(1)-type) |
Weight (g) | 300 to 850 |
PLC - CP1E series
ดาวน์โหลดไฟล์ PDFคุณสมบัติ | PLC - CP1E series
CP1E series เป็นอุปกรณ์ควบคุมอัตโนมัติ (PLC) รุ่นที่คุ้มค่า ใช้งานได้ง่าย และประยุกต์ใช้งานกับระบบต่างๆได้หลากหลายมี LED แสดงผลและตั้งค่าเชื่อมต่อกับคอมพิวเตอร์ได้ง่ายโดยใช้สาย USB ที่มีจำหน่ายทั่วไป มีฟังก์ชันตัวนับความเร็วสูงที่สมบูรณ์และมี I/O อนาล็อกในตัว, 2 อินพุตและ 1 เอาต์พุตสำหรับยูนิต CPU ชนิด NA
ข้อมูลจำเพาะ | PLC - CP1E series
PLC | CP1E series |
---|---|
แหล่งจ่ายแรงดันไฟฟ้า | - 24 VDC(CP1E-[][][]S[]D[]-D, CP1E-[][][]D[]-D) -100 ถึง 240 VAC 50/60 Hz(CP1E-[][][]S[]D[]-A, CP1E-[][][]D[]-A) |
การใช้พลังงาน | - สูงสุด 15 ถึง 70VA (CP1E-[][][]S[]D[]-A, CP1E-[][][]D[]-A) - สูงสุด 9 ถึง 20 W(CP1E-[][][]S[]D[]-D, CP1E-[][][]D[]-D) |
จำนวนจุด I/O สูงสุด | - 10 (CP1E-E10D[]-[]) - 14 (CP1E-[]14(S)D[]-[]) - 20 (CP1E-[]20(S)D[]-[]) - 150 (ในตัว 30+ 40ต่อยูนิตส่วนขยาย (I/O)× 3ยูนิต)(CP1E-[]30(S[])D[]-[]) - 160 (ในตัว 40+ 40ต่อยูนิตส่วนขยาย (I/O)× 3ยูนิต)(CP1E-[]40(S[])D[]-[]) - 180 (ในตัว 60+ 40ต่อยูนิตส่วนขยาย (I/O)× 3ยูนิต)(CP1E-[]60(S[])D[]-[]) - 140 (ในตัว 20+ 40ต่อยูนิตส่วนขยาย (I/O)× 1ยูนิต)(CP1E-NA20D[]-[]) |
การเชื่อมต่อการสื่อสาร | - Peripheral USB port - EtherNet Port |
ขนาดความจุโปรแกรม | - 2 K steps (8 Kbytes) (CP1E-E[][]SD[]-[], CP1E-[][]D[]-[]) - 8 K steps (32 Kbytes) (CP1E-N[][]S[]D[]-[], CP1E-N[][]D[]-[], CP1E-NA[][]D[]-[]) |
ขนาด (W x H x D) (mm) | (66 ถึง 195) x 90 x 85 (E/N/NA[][]-type) (86 ถึง 195) x 90 x 79(E/N/[][]S(1)-type) |
น้ำหนัก (g) | 300 ถึง 850 |
