Model Numbers | PLC - CP1H series

Applicable standards

Refer to the OMRON website or ask your OMRON representative for the most recent applicable standards for each model.

CPU Units

CPU Unit	Specifications					Model
	CPU type	Power supply	Output method	Inputs	Out- puts
CP1H-X CPU Units	Memory capacity: 20K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 4 axes (Models with transistor outputs only)	AC power supply	Relay output	24	16	CP1H-X40DR-A
		DC power supply	Transistor output (sinking)			CP1H-X40DT-D
			Transistor output (sourcing)			CP1H-X40DT1-D
CP1H-XA CPU Units	Memory capacity: 20K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 4 axes (Models with transistor outputs only) Analog inputs: 4 Analog outputs: 2	AC power supply	Relay output	24	16	CP1H-XA40DR-A
		DC power supply	Transistor output (sinking)			CP1H-XA40DT-D
			Transistor output (sourcing)			CP1H-XA40DT1-D
CP1H-Y CPU Units	Memory capacity: 20K steps High-speed counters: 1 MHz, 2 axes 100 kHz, 2 axes Pulse outputs: 1 MHz, 2 axes 100 kHz, 2 axes	DC power supply	Transistor output (sinking)	12 + line- driver input, 2 axes	8 + line- driver output, 2 axes	CP1H-Y20DT-D

Note: 1. CP1H PLCs are supported by CX-Programmer version 6.1 or higher.
2. Purchase a separately sold Option Unit if you will use RS-232C, RS-422A/485, Ethernet, or LCD.

Options for CPU Units

Name		Specifications	Model
RS-232C Option Board		Can be mounted in either CPU Unit Option Board slot 1 or 2.	CP1W-CIF01
RS-422A/485 Option Board			CP1W-CIF11
RS-422A/485 (Isolated-type) Option Board			CP1W-CIF12-V1
Ethernet Option Board		Can be mounted in either CPU Unit Option Board slot 1 or 2. *	CP1W-CIF41
LCD Option Board		Can be mounted only in the CPU Unit Option Board slot 1.	CP1W-DAM01
Memory Cassette		Can be used for backing up programs or auto-booting.	CP1W-ME05M

* When using CP1W-CIF41 Ver.1.0, one Ethernet port can be added.

Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Programming Devices

Name		Specifications			Model
			Number of licenses	Media
FA Integrated Tool Package CX-One Lite Version 4.[]		CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes Micro PLC Edition CXProgrammer Ver. 9.[].	1 license	DVD	CXONE-LT01C-V4
FA Integrated Tool Package CX-One Ver.4.[]		CX-One is a package that integrates the Support Software for OMRON PLCs and components. CX- One runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].	1 license *3	DVD	CXONE-AL01D-V4
Programming Device Connecting Cable for CP1W-CIF01 RS-232C Option Board *4		Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m)	For anti-static connectors		XW2Z-200S-CV
		Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m)			XW2Z-500S-CV
		Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m)			XW2Z-200S-V
		Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m)			XW2Z-500S-V

*1. CP1H PLCs are supported by CX-Programmer version 6.1 or higher.
Update The CX-Programmer version automatically from the website using CX-Programmer version 7.0 (included with
CX-One version 2.0).
*2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*3. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
*4. Cannot be used with a peripheral USB port.
To connect to a Personal Computers via a peripheral USB port, use commercially-available USB cable (A or B type,
male).

The following tables lists the Support Software that can be installed from CX-One

Support Software in CX-One		CX-One Lite Ver.4.[]	CX-One Ver.4.[]
Micro PLC Edition CX-Programmer	Ver.9.[]	Yes	No
CX-Programmer	Ver.9.[]	No	Yes
CX-Integrator	Ver.2.[]	Yes	Yes
Switch Box Utility	Ver.1.[]	Yes	Yes
CX-Protocol	Ver.1.[]	No	Yes
CX-Simulator	Ver.1.[]	Yes	Yes
CX-Position	Ver.2.[]	No	Yes
CX-Motion-NCF	Ver.1.[]	No	Yes
CX-Motion-MCH	Ver.2.[]	No	Yes
CX-Motion	Ver.2.[]	No	Yes
CX-Drive	Ver.1.[]	Yes	Yes
CX-Process Tool	Ver.5.[]	No	Yes
Faceplate Auto-Builder for NS	Ver.3.[]	No	Yes
CX-Designer	Ver.3.[]	Yes	Yes
NV-Designer	Ver.1.[]	Yes	Yes
CX-Thermo	Ver.4.[]	Yes	Yes
CX-ConfiguratorFDT	Ver.1.[]	Yes	Yes
CX-FLnet	Ver.1.[]	No	Yes
Network Configurator	Ver.3.[]	Yes	Yes
CX-Server	Ver.4.[]	Yes	Yes

Note: For details, refer to the CX-One Catalog (Cat. No: R134).

Expansion Units

Product name	Inputs	Outputs	Output type		Model
Input Unit	8	--	24 VDC Input		CP1W-8ED
Output Units	--	8	Relay		CP1W-8ER
			Transistor (sinking)		CP1W-8ET
			Transistor (sourcing)		CP1W-8ET1
	--	16	Relay		CP1W-16ER
			Transistor (sinking)		CP1W-16ET
			Transistor (sourcing)		CP1W-16ET1
	--	32	Relay		CP1W-32ER
			Transistor (sinking)		CP1W-32ET
			Transistor (sourcing)		CP1W-32ET1
I/O Units	12	8	Relay		CP1W-20EDR1
			Transistor (sinking)		CP1W-20EDT
			Transistor (sourcing)		CP1W-20EDT1
	24	16	Relay		CP1W-40EDR
			Transistor (sinking)		CP1W-40EDT
			Transistor (sourcing)		CP1W-40EDT1
Analog Input Unit	4CH	--	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20mA, or 4 to 20 mA.	Resolution: 1/6000	CP1W-AD041
				Resolution: 1/12000	CP1W-AD042
Analog Output Unit	--	2CH	Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	CP1W-DA021
	--	4CH		Resolution: 1/6000	CP1W-DA041
				Resolution: 1/12000	CP1W-DA042
Analog I/O Unit	4CH	4CH	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/12000	CP1W-MAD44
	4CH	2CH		Resolution: 1/12000	CP1W-MAD42
	2CH	1CH		Resolution: 1/6000	CP1W-MAD11
Temperature Sensor Unit	2CH	--	Sensor type: Thermocouple (J or K)		CP1W-TS001
	4CH	--	Sensor type: Thermocouple (J or K)		CP1W-TS002
	2CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		CP1W-TS101
	4CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		CP1W-TS102
	4CH	--	Sensor type: Thermocouple (J or K) 2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA	Resolution: 1/12000	CP1W-TS003
	12CH	--	Sensor type: Thermocouple (J or K)		CP1W-TS004
CompoBus/S I/O Link Unit	8	8	CompoBus/S slave		CP1W-SRT21

I/O Connecting Cable

Name	Specifications	Model
I/O Connecting Cable	80 cm (for CP1W Expansion Units)	CP1W-CN811

Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion Units.

Optional Products, Maintenance Products and DIN Track Accessories

Name		Specifications	Model
Battery Set		For CP1H CPU Units (Use batteries within two years of manufacture.)	CJ1W-BAT01
DIN Track		Length: 0.5 m; Height: 7.3 mm	PFP-50N
		Length: 1 m; Height: 7.3 mm	PFP-100N
		Length: 1 m; Height: 16 mm	PFP-100N2
	End Plate	There are 2 stoppers provided with a CJ Unit Adapter as standard accessories to secure the Units on the DIN Track.	PFP-M

CJ-series Special I/O Units and CPU Bus Units

Category	Name	Specifications		Model
CP1H CPU Unit options	CJ Unit Adapter	Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates)		CP1W-EXT01
CJ1 Special I/O Units	Analog Input Units	4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000), -10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000)) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points		CJ1W-AD042
		8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.)		CJ1W-AD081-V1
		4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.)		CJ1W-AD041-V1
	Analog Output Units	4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points		CJ1W-DA042V
		8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 μs/output.)		CJ1W-DA08V
		8 outputs (4 to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 μs/ output.)		CJ1W-DA08C
		4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max.		CJ1W-DA041
		2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max.		CJ1W-DA021
	Analog I/O Unit	4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max. (Can be set to 1/8,000, 500 μs/point.)		CJ1W-MAD42
	Process Input Units	4 fully universal inputs: Pt100 (3-wire), JPt100 (3- wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range, -1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle: 60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points)		CJ1W-PH41U *
		4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V Conversion speed: 250 ms/4 points		CJ1W-AD04U
		4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs		CJ1W-PTS51
		4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs		CJ1W-PTS52
		2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV, Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs		CJ1W-PTS15
		2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA		CJ1W-PDC15
	Temperature Control Units	4 loops, thermocouple input, NPN output		CJ1W-TC001
		4 loops, thermocouple input, PNP output		CJ1W-TC002
		2 loops, thermocouple input, NPN output, heater burnout detection function		CJ1W-TC003
		2 loops, thermocouple input, PNP output, heater burnout detection function		CJ1W-TC004
		4 loops, platinum resistance thermometer input, NPN output		CJ1W-TC101
		4 loops, platinum resistance thermometer input, PNP output		CJ1W-TC102
		2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function		CJ1W-TC103
		2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function		CJ1W-TC104
	High-speed Counter Unit	2 inputs, max. input frequency: 500 kpps		CJ1W-CT021
	Position Control Units	Pulse train, open collector output, 1 axis		CJ1W-NC113
		Pulse train, open collector output, 2 axes		CJ1W-NC213
		Pulse train, open collector output, 4 axes		CJ1W-NC413
		Pulse train, line driver output, 1 axis		CJ1W-NC133
		Pulse train, line driver output, 2 axes		CJ1W-NC233
		Pulse train, line driver output, 4 axes		CJ1W-NC433
	Space Unit	---		CJ1W-SP001
	ID Sensor Units	For V680 Series, 1 R/W Head		CJ1W-V680C11
		For V680 Series, 2 R/W Heads		CJ1W-V680C12
		For V600 Series, 1 R/W Head		CJ1W-V600C11
		For V600 Series, 2 R/W Heads		CJ1W-V600C12
	CompoNet Master Unit	Word slaves: 2,048 points, Bit slaves: 512 points		CJ1W-CRM21
	CompoBus/S Master Unit	CompoBus/S remote I/O, 256 points max.		CJ1W-SRM21
CJ1 CPU Bus Units	Controller Link Units	Wired (shielded twisted-pair cable)		CJ1W-CLK23
	Serial Communications Units	1 RS-232C port and 1 RS-422A/485 port		CJ1W-SCU42
		2 RS-232C ports		CJ1W-SCU22
		2 RS-422A/485 ports		CJ1W-SCU32
		1 RS-232C port and 1 RS-422A/485 port		CJ1W-SCU41-V1
		2 RS-232C ports		CJ1W-SCU21-V1
		2 RS-422A/485 ports		CJ1W-SCU31-V1
	EtherNet/IP Unit	Shielded twisted-pair cable (STP), category 5 or 5e or higher Tag data links and message communications supported		CJ1W-EIP21
	Ethernet Unit	100Base-TX		CJ1W-ETN21
	DeviceNetTM Unit	Functions as master and/or slave; allows control of 32,000 points max. per master		CJ1W-DRM21
	MECHATROLINK-II Position Control Unit	Control commands sent using MECHATROLINK-II synchronized communications 16 axes max., direct operation from ladder diagram, control modes: position/ speed/torque	2 axes	CJ1W-NC271
			4 axes	CJ1W-NC471
			16 axes	CJ1W-NCF71
			16 axes	CJ1W-NCF71-MA
	Fl-net Unit	100Base-TX		CJ1W-FLN22
	SPU	High-speed Data Storage Unit		CJ1W-SPU01-V2

* If a CJ1W-PH41U is used, do not use a CP1H CPU Unit with relay contact outputs or Expansion Units with relay contact outputs.
Note: Refer to the CJ1 catalog (Cat. No. P052) for information on the CJ1 Special I/O Units.

Industrial Switching Hubs

Product name	Appear- ance	Specifications			Accessories	Current con- sump- tion (A)	Model
		Functions	No. of ports	Failure detec- tion
Industrial Switching Hubs		Quality of Service (QoS): EtherNet/IP™ control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation	3	No	Power supply connector	0.22	W4S1-03B
			5	No		0.22	W4S1-05B
			5	Yes	Power supply connector Connector for informing error	0.22	W4S1-05C

Specifications | PLC - CP1H series

General Specifications

Type	AC power supply models	DC power supply models
Model	CP1H-[][][]-A	CP1H-[][][]-D
Power supply	100 to 240 VAC 50/60 Hz	24 VDC
Operating voltage range	85 264 VAC	20.4 to 26.4 VDC (with 4 or more Expansion Units and Expansion I/O Units: 21.6 to 26.4 VDC)
Power consumption	100 VA max. (CP1H-[][][]-A)	50 W max. (CP1H-[][][]-D)
Inrush current *	100 to 120 VAC inputs: 20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max.	30 A max. (for cold start at room temperature) 20 ms max.
External power supply	300 mA at 24 VDC	None
Insulation resistance	20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals	No insulation between primary and secondary for DC power supply
Dielectric strength	2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max.	No insulation between primary and secondary for DC power supply
Noise immunity	Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance	Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes)
Shock resistance	Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions
Ambient operating temperature	0 to 55°C
Ambient humidity	10% to 90% (with no condensation)
Ambient operating environment	No corrosive gas
Ambient storage temperature	-20 to 75°C (Excluding battery.)
Power holding time	10 ms min.	2 ms min.

Note: The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC
power supply.
• A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control
circuitry for the AC power supply. The thermistor will not be sufficiently cooled if the ambient temperature is
high or if a hot start is performed when the power supply has been OFF for only a short time. In those cases
the inrush current values may be higher (as much as two times higher) than those shown above. Always allow
for this when selecting fuses and breakers for external circuits.
• A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The
capacitor will not be charged if a hot start is performed when the power supply has been OFF for only a short
time, so in those cases the inrush current values may be higher (as much as two times higher) than those
shown above.

Performance Specifications

Type		CP1H-XA CPU Units	CP1H-X CPU Units	CP1H-Y CPU Units
Models		CP1H-XA[][][]-[]	CP1H-X[][][]-[]	CP1H-Y[][][]-[]
Control method		Stored program method
I/O control method		Cyclic scan with immediate refreshing
Program language		Ladder diagram
Function blocks		Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length		1 to 7 steps per instruction
Instructions		Approx. 500 (function codes: 3 digits)
Instruction execution time		Basic instructions: 0.10 μs min. Special instructions: 0.15 μs min.
Common processing time		0.7 ms
Program capacity		20K steps
Number of tasks		288 (32 cyclic tasks and 256 interrupt tasks)
	Scheduled interrupt tasks	1 (interrupt task No. 2, fixed)
	Input interrupt tasks	8 (interrupt task No. 140 to 147, fixed)		6 (interrupt task No. 140 to 145, fixed)
		(Interrupt tasks can also be specified and executed for high-speed counter interrupts.)
Maximum subroutine number		256
Maximum jump number		256
I/O areas *	Input bits	272bits (17 words): CIO 0.00 to 16.15
	Output bits	272bits (17 words): CIO 100.00 to 116.16
	Built-in Analog Inputs	CIO 200 to CIO 203	---
	Built-in Analog Outputs	CIO 210 to CIO 211	---
	Serial PLC Link Area	1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits		8,192 bits (512 words): W0.00 to W511.15 (W0 to W511) CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143)
TR Area		16 bits: TR0 to TR15
Holding Area		8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area		Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers		4,096 bits: T0 to T4095
Counters		4,096 bits: C0 to C4095
DM Area		32 Kwords: D0 to D32767
Data Register Area		16 registers (16 bits): DR0 to DR15
Index Register Area		16 registers (32 bits): IR0 to IR15
Task Flag Area		32 flags (32 bits): TK0000 to TK0031
Trace Memory		4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette		A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
Clock function		Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
Communications functions		One built-in peripheral port (USB 1.1): For connecting Support Software only.
		A maximum of two Serial Communications Option Boards can be mounted.
		A maximum of two Ethernet Option Boards can be mounted. When using CP1W-CIF41 Ver.1.0, one Ethernet Option Board can be mounted.
Memory backup		Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life		5 years at 25°C. (Use the replacement battery within two years of manufacture.)
Built-in input terminals		40 (24 inputs, 16 outputs)		20 (12 inputs, 8 outputs) Line-driver inputs: Two axes for phases A, B, and Z Line-driver outputs: Two axes for CW and CCW
Number of connectable Expansion (I/O) Units		CP Expansion I/O Units: 7 max.; CJ-series Special I/O Units or CPU Bus Units: 2 max.
Max. number of I/O points		320 (40 built in + 40 per Expansion (I/O) Unit × 7 Units)		300 (20 built in + 40 per Expansion (I/O) Unit × 7 Units)
Interrupt inputs		8 inputs (Shared by the external interrupt inputs (counter mode) and the quick- response inputs.)		6 inputs (Shared by the external interrupt inputs (counter mode) and the quick- response inputs.)
Interrupt input counter mode		8 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters		6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters
Quick-response inputs		8 points (Min. input pulse width: 50 μs max.)		6 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts		1
High-speed counters		4 inputs: Differential phases (4x), 50 kHz or Single-phase (pulse plus direction, up/ down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison		2 inputs: Differential phases (4x), 500 kHz or Single- phase, 1 MHz and 2 inputs: Differential phases (4x), 50 kHz or Single- phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison
Pulse outputs (models with transistor outputs only)	Pulse outputs	Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 4 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)		Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 1 MHz (CCW/CW or pulse plus direction) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
	PWM outputs	Duty ratio: 0.0% to 100.0% (Unit: 0.1%) 2 outputs, 0.1 to 6553.5 Hz (Accuracy: ±5% at 1 kHz)
Built-in analog I/O terminals		4 analog inputs and 2 analog outputs	None
Analog control		1 (Setting range: 0 to 255)
External analog input		1 input (Resolution: 1/256, Input range: 0 to 10 V), not isolated

Note: The memory areas for CJ-series Special I/O Units and CPU Bus Units are allocated at the same as for the CJ-series. For details, refer to the CJ Series catalog (Cat. No. P052).

Dimensions | PLC - CP1H series

CP1H CPU Units (X/XA/Y Types)

Expansion Units and Expansion I/O Units

CP1W-20ED[][], CP1W-16E[][],
CP1W-AD04[], CP1W-DA021/04[],
CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1W-8E[][]
CP1W-SRT21

CP1W-40ED[]
CP1W-32E[][]
CP1W-TS004

CJ-series Special I/O Units and CPU Bus Units

Note: It takes an example about the size.

CJ Unit Adaptor

CP1W-EXT01

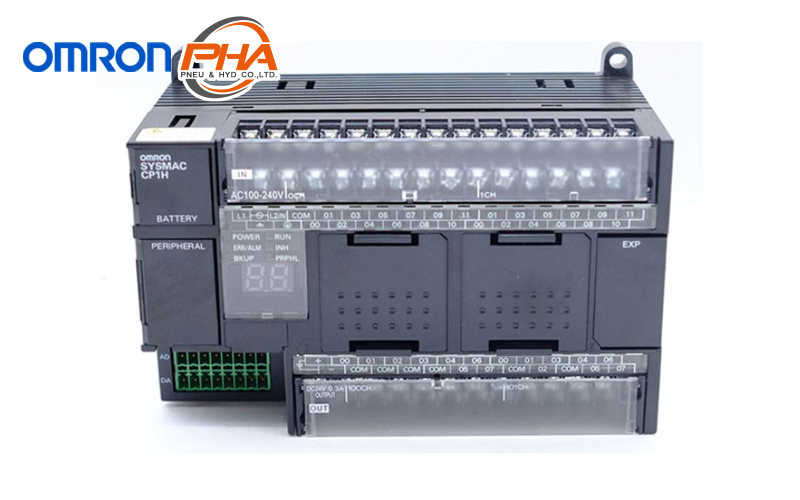

CP1H

Example: Two CJ-series Units (31-mm widths) Connected Using a CJ Unit Adapter

Features | PLC - CP1H series

• Diverse range of functions for your machine.
• Improved connectivity for ethernet and serial devices.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.(CP1H/CP1L)

---

Properties | PLC - CP1H series

PLC	CP1H series
Power Supply voltage	- max 100 VA (CP1H-[][][]-A)
Externalconnectionterminals	Maximum number of CJ unit:0-7 Unit
Communication connector	-Peripheral USB port EtherNet Port
Program capacity size	-20 K steps
dimensions (W x H x D) (mm)	150 x 90 x 85
Width (g)	590 CP1H 740 CP1H
