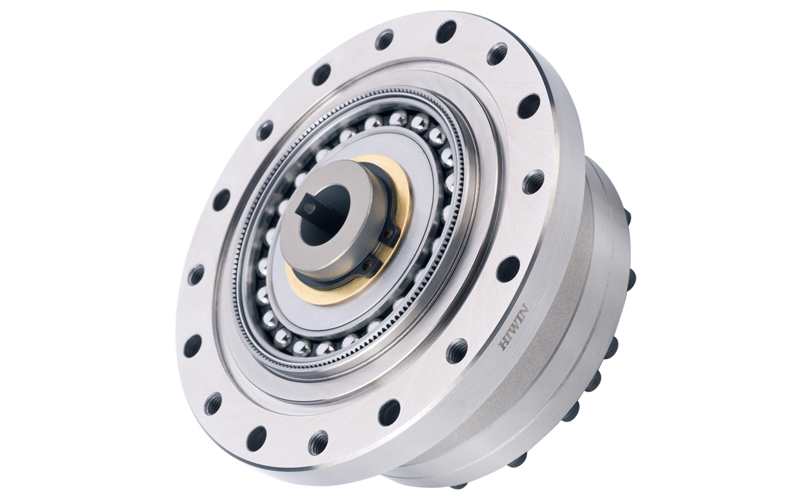

HIWIN Datorker Robot Reducer - WUT-PO Type

DATORKER (DT) - Robot Reducer has the characteristics of high precision, high efficiency, high torsional rigidity and low starting torque.

Datorker Robot Reducer - WUT-PO

It is widely used in robots, automation equipment, semiconductor equipment, machine tools and other industries. HIWIN has developed various specifications and reduction ratios to provide customers with wide range of choice. HIWIN is able to provide customized services to meet customers various design and requirement.

---

Feature | Hiwin Datorker Robot Reducer - WUT-PO

• Compact and light weight : Easy for user to assembly and work with.
• High Torque : Used in wide range of robotic automation and testing equipment.
• High Precision : Offers stable positioning and repeatability accuracy.
• High Speed : Offers various reduction ratio options for the same size.
• Customization : Offers customized solution to meet customer requirement.

---

Application | Hiwin Datorker Robot Reducer - WUT-PO

• Input shaft self-aligning.
• Withstand axial and radial load.

---

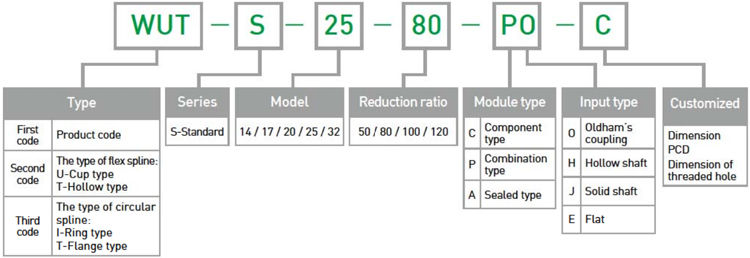

Specifications Code | Hiwin Datorker Robot Reducer - WUT-PO

---

Specifications | Datorker Robot Reducer - WUT-PO

Model/Items	Reduction Ratio	Rated torque at input 2000r/min		Peak torque at start/stop		Instantaneous permissible max. torque
		Nm	kgfm	Bm	kgfm	Nm	kgfm
14	50	5.4	0.55	18	1.8	35	3.6
	80	7.8	0.8	23	2.4	47	4.8
	100	7.8	0.8	28	2.9	54	5.5
17	50	16	1.6	34	3.5	70	7.1
	80	22	2.2	43	4.4	87	8.9
	100	24	2.4	54	5.5	108	11
	120	24	2.4	54	5.5	86	8.8
20	50	25	2.5	56	5.7	98	10
	80	34	3.5	74	7.5	127	13
	100	40	4.1	82	8.4	147	15
	120	40	4.1	87	8.9	147	15
25	50	39	4	98	10	186	19
	80	63	6.4	137	14	255	26
	100	67	6.8	157	16	284	29
	120	67	6.8	167	17	304	31
32	50	76	7.8	216	22	382	39
	80	118	12	304	31	568	58
	100	137	14	333	34	647	66
	120	137	14	353	36	686	70

---

Model Specifications | Datorker Robot Reducer - WUT-PO

Model	14	17	20	25	32
ØA	73	79	93	107	138
B*	41 0-0.9	45 0-0.9	45.5 0-1	52 0-1	62 0-1.1
C	34	37	38	46	57
D	27	29	28	36	45
E	7	8	10	10	12
F	2	2	3	3	3
G	3.5	4	5	5	5
H	9.4	9.5	9	12	15
I	17.6 0-0.1	19.5 0-0.1	20.1 0-1	20.2 0-1	22 0-1.1
ØJ h7	56	63	72	86	113
ØK H7	11	10	14	20	26
ØL h7	38	48	56	67	90
ØM	14	18	21	26	26
ØN H7	6	8	12	14	14
O Js9	-	-	4	5	5
P	-	-	13.8 +0.10	16.3 +0.10	16.3 +0.10
Q	6	6	8	8	8
R	M4xDP8	M5xDP10	M6xDP9	M8xDP12	M10xDP15
S (P.C.D)	23	27	32	42	55
T	6	6	6	8	12
ØU	4.5	4.5	5.5	5.5	6.6
V (P.C.D)	65	71	82	96	125
W	6	6	6	8	12
X	M4	M4	M5	M5	M6
Y (degree)	30°	30°	30°	22.5°	15°

*B is the tolerance and the matching position of axial direction.
