HIWIN Datorker Robot Reducer - WUI-CO Type

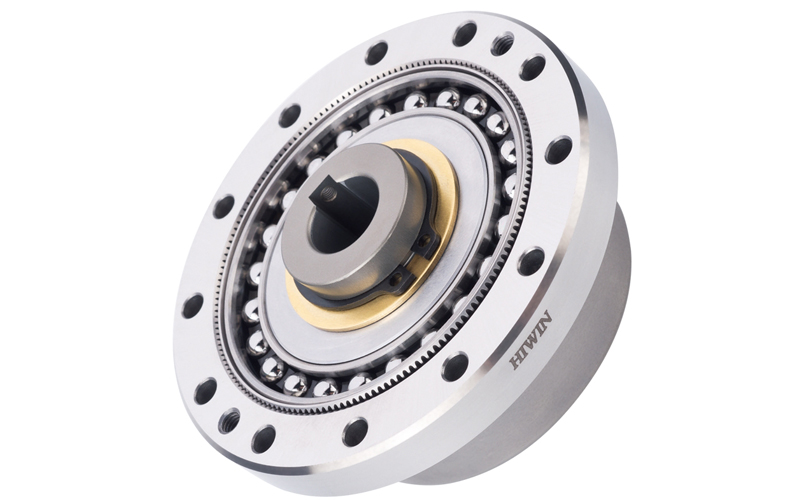

DATORKER (DT) - Robot Reducer has the characteristics of high precision, high efficiency, high torsional rigidity and low starting torque.

Datorker Robot Reducer - WUI-CO

It is widely used in robots, automation equipment, semiconductor equipment, machine tools and other industries. HIWIN has developed various specifications and reduction ratios to provide customers with wide range of choice. HIWIN is able to provide customized services to meet customers various design and requirement.

---

Feature | Datorker Robot Reducer - WUI-CO

• Compact and light weight : Easy assembly
• High Torque : Used in wide range of robotic automation and testing equipment.
• High Precision : Offers stable positioning and repeatability accuracy.
• High Speed : Offers various reduction ratio options for the same size.
• Customization : Offers customized solution to meet customer requirement.

---

Application | Datorker Robot Reducer - WUI-CO

• Input shaft self-aligning.
• Self-assembly of parts required.

---

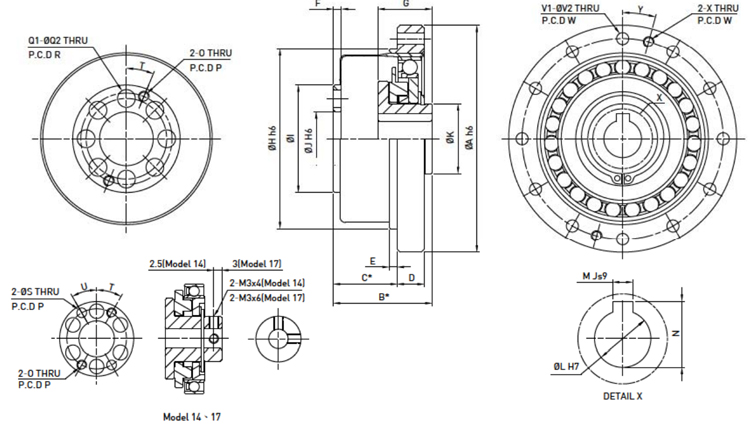

Specifications Code | Datorker Robot Reducer - WUI-CO

---

Specifications | Datorker Robot Reducer - WUI-CO

Model	14	17	20	25	32
ØA h6	50	60	70	85	110
B*	28.5 0-0.8	32.5 0-0.9	33.5 0-1.0	37 0-1.0	44 0-1.1
C*	17 +0.40	20 +0.50	21.5 +0.60	24 +0.40	28 +0.60
D	6	6.5	7.5	10	14
E	2	2.5	3	3	3
F	2.4	3	3	3	3.2
G	17.6 0-0.1	19.5 0-0.1	20.1 0-0.1	20.2 0-0.1	22 0-0.1
ØH h6	38	48	54	67	90
ØI	23	27.2	32	40	52
ØJ H6	11	10	16	20	26
ØK	14	18	21	26	26
ØL H7	6	8	9	11	14
M Js9	-	-	3	4	5
N	-	-	10.4 +0.10	12.8 +0.10	16.3 +0.10
O	M3	M3	M3	M4	M5
P (P.C.D)	18.5	21.5	27	34	45
Q1	6	6	8	8	8
ØQ2	4.5	5.5	5.5	6.6	9
R (P.C.D)	17	19	24	30	40
S	3 +0.0150	3 +0.0150	-	-	-
T (degree)	30°	30°	22.5°	22.5°	22.5°
U (degree)	30°	30°	-	-	-
V1	6	12	12	12	12
ØV2	3.5	3.5	3.5	4.5	5.5
W (P.C.D)	44	54	62	75	100
X	M3	M3	M3	M4	M5
Y (degree)	30°	15°	15°	15°	15°

*B and C is the tolerance and the matching position of axial direction.

---

Model Specifications | Datorker Robot Reducer - WUI-CO

Model	14	17	20	25	32
ØA	73	79	93	107	138
B*	41 0-0.9	45 0-0.9	45.5 0-1	52 0-1	62 0-1.1
C	34	37	38	46	57
D	27	29	28	36	45
E	7	8	10	10	12
F	2	2	3	3	3
G	3.5	4	5	5	5
H	9.4	9.5	9	12	15
I	17.6 0-0.1	19.5 0-0.1	20.1 0-0.1	20.2 0-0.1	22 0-0.1
ØJ H7	56	63	72	86	113
ØK H7	11	10	14	20	26
ØL h7	38	48	56	67	90
ØM	14	18	21	26	26
ØN H7	6	8	12	14	14
O Js9	-	-	4	5	5
P	-	-	13.8 +0.10	16.3 +0.10	16.3 +0.10
Q	6	6	8	8	8
R	M4xDP8	M5xDP10	M6xDP9	M8xDP12	M10xDP15
S (P.C.D)	23	27	32	42	55
T	6	6	6	8	12
ØU	4.5	4.5	5.5	5.5	6.6
V (P.C.D)	65	71	82	96	125
W	6	6	6	8	12
X	M4	M4	M5	M5	M6
Y (degree)	30°	30°	30°	22.5°	15°

* B is the tolerance and the matching position of axial direction.
