HIWIN Crossed Roller Bearing CRBD
Split outer an inner ring and two outer semi-rings with mounting holes. The mounting holes enable the bearing to be fixed it is suitable for inner ring rotation.
HIWIN Crossed Roller Bearings CRBD
Feature | HIWIN Crossed Roller Bearing CRBD
- Patented design features high loading capacity
- High rigidity
- Accepts loads from all directions at the same time
- Smooth rotation
- Compact, space saving
- Easy installation and adjustment
- Various bearing types and sizes to accommodate your requirements
- Customized designs available

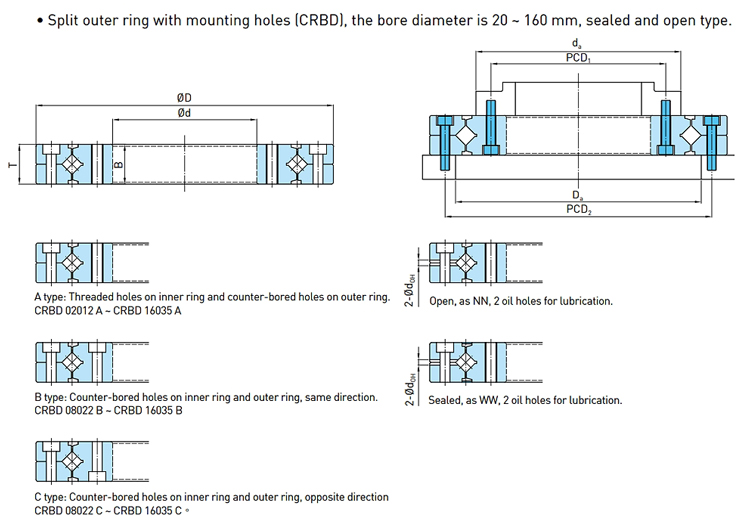

Specifications Code | HIWIN Crossed Roller Bearing CRBD
Specifications Code | HIWIN Crossed Roller Bearings CRBD
| Dimensions (mm) | Bearings No. | Dimensions of mounting holes (mm) | Basic load Ratings (kN) | Mounting dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner dia (d) | Outer dia (D) | Width (B, T) | Chamfer (rmin) | Oil holes (dOH) | Inner rings | Outer rings | Dynamic load, C | Static load, C0 | da | Da | |||
| PCD1 | Mounting holes | PCD2 | Mounting holes | ||||||||||
| 20 | 70 | 12 | 0.6 | 3 | CRBD 02012 A | 28 | 6-M3 through | 57 | 6-ϕ3.4 through ϕ6.5 counter bore depth 3.3 |
8.26 | 9.16 | 35 | 47 |
| 35 | 95 | 15 | 0.6 | 3 | CRBD 03515 A | 45 | 8-M4 throungh | 83 | 8-ϕ4.5 through ϕ8 counter nore depth 4.4 |
18.9 | 23.4 | 57 | 73 |
| 55 | 120 | 15 | 0.6 | 3 | CRBD 05515 A | 65 | 8-M5 through | 105 | 8-ϕ5.5 through ϕ9.5 counter bore depth 5.4 |
51.7 | 30.6 | 77 | 92 |
| 80 | 165 | 22 | 1 | 3 | CRBD 08022 A | 97 | 10-M through | 148 | 10-ϕ5.5 through ϕ9.5 counter bore depth 5.4 |
40.4 | 63.6 | 117 | 132 |
| CRBD 08022 B | 10-ϕ5.5 through ϕ9.5 counter bore depth 5.4 |
||||||||||||
| CRBD 08022 C | |||||||||||||
| 90 | 210 | 25 | 1.5 | 3 | CRBD 09022 A | 112 | 12-M8 through | 187 | 12-ϕ9 through ϕ14 counter bore depth 8.6 |
46 | 80.2 | 139 | 157 |
| CRBD 09022 B | 12-ϕ9 through ϕ14 counter bore depth 8.6 |
||||||||||||
| CRBD 09022 C | |||||||||||||
| 115 | 240 | 28 | 1.5 | 3 | CRBD 11528 A | 139 | 12-M8 through | 217 | 12-ϕ9 through ϕ14 counter bore depth 8.6 |
73.1 | 131.9 | 168 | 188 |
| CRBD 11528 B | 12-ϕ9 through ϕ14 counter bore depth 8.6 |
||||||||||||
| CRBD 11528 C | |||||||||||||
| 160 | 295 | 35 | 2 | 6 | CRBD 16035 A | 184 | 12-M10 through | 148 | 12-ϕ11 through ϕ17.5 counter bore depth 10.8 |
102 | 192.3 | 218 | 238 |
| CRBD 16035 B | 12-ϕ11 through ϕ17.5 counter bore depth 10.8 |
||||||||||||
| CRBD 16035 C | |||||||||||||
- The Basic load ratings are based on ISO76/ISO281.
- For specific dimensional requirements, please contact HIWIN.
