Hiwin Ironless Motors - LMCF series
The HIWIN LMCF series: LCMF = Height of stator 131.3mm, Peak: 912N - 2736N / Continuous: 228N - 648N
Linear Ironless Motors - LMCF series
The HIWIN LMC coreless U-shaped linear motor has no cogging, an excellent low velocity ripple and excellent dynamic characteristics. With no attraction between forcers and stators and very low-profille structure, the motor can be applied to the installation platform without deformation and has a light load demand for continuous movement curve. For exemple: high-speed, light-load automation equipment, dust-free environment automation equipment, flat panel equipment, optical detection quipment, scanning electron microscope equipment, semiconductor equipment.
ดาวน์โหลดไฟล์ PDF
Feature | Ironless Motors - LMCF series
- Three-phase
- Excellent dynamic characteristics
- Excellent synchronization and high speed coordination
- Small inertia, high acceleration
- Low installation height
- No cogging
- No attraction between force
- Same movement axis can with multiple forcers

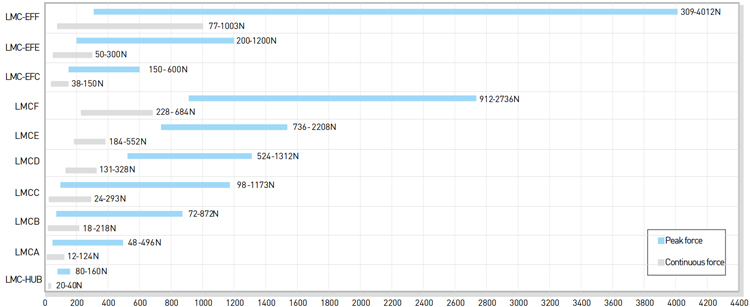

Force Chart | Ironless Motors - LMCF series
Code | Ironless Motors - LMCF series
Specifications | Ironless Motors - LMCF series
| Detail | Symbol | Unit | LMCF4 | LMCF6 | LMCF8 | LMCFA | LMCFC |
|---|---|---|---|---|---|---|---|
| Cnotinuous force | Fc | N | 228 | 342 | 456 | 570 | 684 |
| Continuous cerrent | Lc | Arms | 3.8 | 5.7 | 7.6 | 9.5 | 11.4 |
| Peak force (1s) | Fp | N | 912 | 1368 | 1824 | 2280 | 2736 |
| Peak current (1s) | Ip | Arms | 15.2 | 22.8 | 30.4 | 38.0 | 45.6 |
| Force constant | Kf | N/Arms | 60 | ||||
| Maximum winding temperature | Tmax | °C | 100 | ||||
| Electrical time constant | Ke | ms | 1 | ||||
| Resistance (line to line 25°C) | R25 | Ω | 3.3 | 2.2 | 1.7 | 1.3 | 1.1 |
| Inductance (line to line) | L | mH | 3.3 | 2.2 | 1.7 | 1.3 | 1.1 |
| Pole pair pitch | 2T | mm | 60 | ||||
| Minimum bending radius of cable | Rbend | mm | 57.5 | ||||
| Back emf constant (line to line) | Kv | Vrms/(m/s) | 34.4 | ||||
| Motor constant (25°C) | Km | N/✓W | 27.0 | 33.0 | 37.7 | 43.0 | 46.2 |
| Thermal resistance | RTH | °C/W | 0.84 | 0.56 | 0.41 | 0.34 | 0.27 |
| Thermal switch | - | - | PTC | ||||
| Maximum DC bus voltage | - | VDC | 330 | ||||
| Mass of forcer | Mf | kg | 2.50 | 3.75 | 5.00 | 6.25 | 7.50 |
| Unit mass of stator | Ms | kg/m | 25.6 | ||||
| Length of forcer/dimension n | Lf | mm | 260/7 | 380/10 | 500/13 | 620/16 | 740/19 |
| Lengtth of stator/dimension N | Ls | mm | 120mm/N=2, 180mm/N=3, 300mm/N=5 | ||||
- Values in this table are motor at 25°C ambient temperature and no forced cooling.
- Except diemensions, the electrical specifications are in ±10% of tolerance.
- We reserve the right of changes,please follow customer recognition drawings.
