The HIWIN LMC-HUB series: LMC-HUB = Height of stator 41.5mm, Peak: 80N - 160N / Continuous: 20N - 40N

Linear Ironless Motors - LMC-HUB series

The HIWIN LMC coreless U-shaped linear motor has no cogging, an excellent low velocity ripple and excellent dynamic characteristics. With no attraction between forcers and stators and very low-profille structure, the motor can be applied to the installation platform without deformation and has a light load demand for continuous movement curve. For exemple: high-speed, light-load automation equipment, dust-free environment automation equipment, flat panel equipment, optical detection quipment, scanning electron microscope equipment, semiconductor equipment.

ดาวน์โหลดไฟล์ PDF
Ironless Motor - LMC-HUB series Ironless Motor - LMC-HUB series
Hiwin Ironless Motors - LMC-HUB series

Feature | Ironless Motors - LMC-HUB series

  • Three-phase
  • Excellent dynamic characteristics
  • Excellent synchronization and high speed coordination
  • Small inertia, high acceleration
  • Low installation height
  • No cogging
  • No attraction between force
  • Same movement axis can with multiple forcers

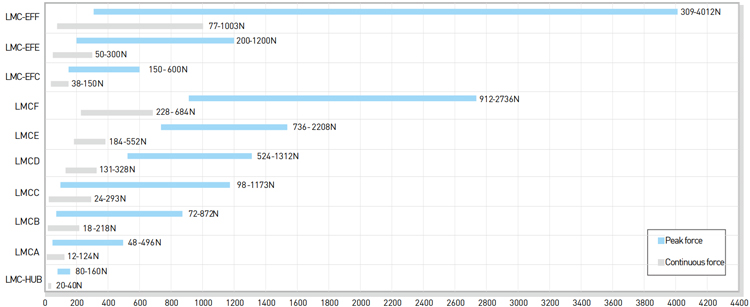

Force Chart | Ironless Motors - LMC-HUB series

Ironless Motor - LMC-HUB series


Code | Ironless Motors - LMC-HUB series

Ironless Motor - LMC-HUB series


Specifications | Ironless Motors - LMC-HUB series

DetailSymbolUnitLMC-HUB1LMC-HUB2
Continuous force Fc N 20 40
Continuous current Ic Arms 1.5 3.1
Peak force (1s) Fp N 80 160
Peak current (1s) Ip Arms 6.2 12.3
Force constant Kf N/Arms 13.0
Maximum winding temerperature Tmax °C 120 -
Electrical time constant Ke ms 0.19
Resistance (line to line 25°C) R25 Ω 7.5 3.8
Inductance (line to line) L mH 1.4 0.7
Pole pair pitch 2T mm 24
Minimum bending radius of cable Rbend mm 27.5
Back emf constant (line to line) Kv Vrms/(m/s) 7.5
Motor constant (25°C) Km N/√W 3.9 5.5
Thermal resistance RTH °C/W 2.68 1.34
Thermal switch - - PTC
Maximum DC bus voltage - VDC 330
Mass of forcer Mf kg 0.05 0.10
Unit mass of stator Ms kg/m 3.4
Legnth of forcer Lf mm 49 97
Length of stator Ls mm 72mm, 12mm
Heat sink dimension - mm 100 x 60 x 14
  1. Values in this table are motor at 25°C ambient temperature and no forced cooling.
  2. Thermal resistance data are the values measured of forcer on heat sink.
  3. Except diemensions, the electrical specifications are in ±10% of tolerance.
  4. We reserve the right of chages, please follow customer recognition drawings.
