Hiwin Ironless Motors - LMC-EFC series

The HIWIN LMC-EFC series: LMC-EFC = Height of stator 50.8mm, Peak: 150N - 600N / Continuous: 38N - 150N

Linear Ironless Motors - LMC-EFC series

The HIWIN LMC coreless U-shaped linear motor has no cogging, an excellent low velocity ripple and excellent dynamic characteristics. With no attraction between forcers and stators and very low-profille structure, the motor can be applied to the installation platform without deformation and has a light load demand for continuous movement curve. For exemple: high-speed, light-load automation equipment, dust-free environment automation equipment, flat panel equipment, optical detection quipment, scanning electron microscope equipment, semiconductor equipment.

ดาวน์โหลดไฟล์ PDF

Feature | Ironless Motors - LMC-EFC series

• Three-phase
• Excellent dynamic characteristics
• Excellent synchronization and high speed coordination
• Small inertia, high acceleration
• Low installation height
• No cogging
• No attraction between force
• Same movement axis can with multiple forcers

---

Force Chart | Ironless Motors - LMC-EFC series

---

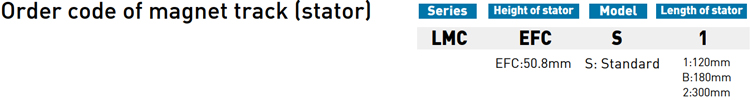

Code | Ironless Motors - LMC-EFC series

---

Specifications | Ironless Motors - LMC-EFC series

Detail	Symbol	Unit	LMC-EFC1	LMC-EFC2	LMC-EFC3	LMC-EFC4
Cnotinuous force	Fc	N	38	75	113	150
Continuous cerrent	Lc	Arms	3.4
Peak force (1s)	Fp	N	150	300	450	600
Peak current (1s)	Ip	Arms	13.6
Force constant	Kf	N/Arms	11.2	22.3	33.5	44.6
Maximum winding temperature	Tmax	°C	120
Electrical time constant	Ke	ms	0.7
Resistance (line to line 25°C)	R25	Ω	1.8	3.3	4.8	6.3
Inductance (line to line)	L	mH	1.2	2.3	3.4	4.5
Pole pair pitch	2T	mm	60
Minimum bending radius of cable	Rbend	mm	46.5
Back emf constant (line to line)	Kv	Vrms/(m/s)	6.4	12.9	19.4	25.8
Motor constant (25°C)	Km	N/✓W	6.8	9.9	12.3	14.4
Thermal resistance	RTH	°C/W	2.31	1.26	0.87	0.66
Thermal switch	-	-	PTC
Maximum DC bus voltage	-	VDC	330
Mass of forcer	Mf	kg	0.24	0.48	0.72	0.96
Unit mass of stator	Ms	kg/m	9.2

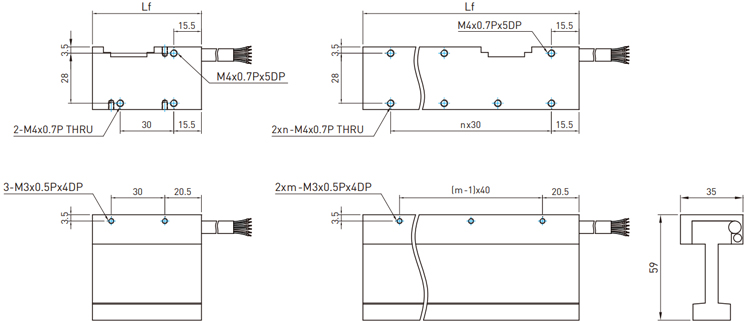

Length of forcer/dimension n	Lf	mm	61	121/3	181/5	241/7
Height of forcer/dimension m	h	mm	61	59/3	59/4	59/6

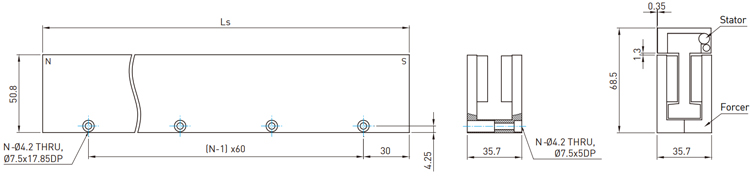

Length of stator/dimension m	Ls	mm	120mm/N=2, 180mm/N=3, 300mm/N=5
Hear sink dimension	-	mm	210 x 210 x 10

1. Values in this table are motor at 25°C ambient temperature and no forced cooling.
2. Thermal resistance data are the values measured of forcer on heat sink.
3. Except diemensions, the electrical specifications are ±10% of tolerance.
4. We reserve the right of changes, please follow customer recognition drawings.
