Hiwin Controller and Drive - PCI4P

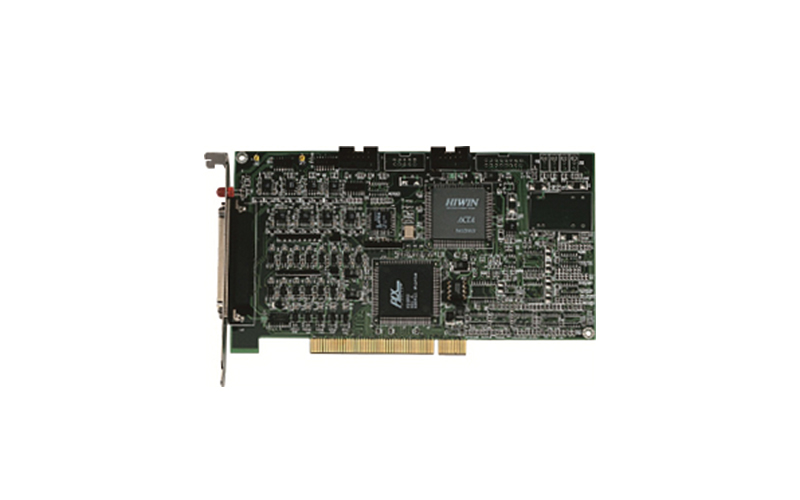

The HIWIN control card PCI4P controls up to four axes . It can be used for stepping motors and for pulse-controlled servo motors

Controller and Drive - PCI4P

ดาวน์โหลดไฟล์ PDF

Feature | Controller and Drive - PCI4P

• PCI-BUS pulse type motion board
• Pulse output rate up to 2.4 Mpps
• Supports STP / DIR , CW / CCW , A / B pulse formats
• 3-axis circular and linear interpolation
• 4x32 bits encoder input counter
• Equipped with home and limit sensors for each axis
• Provides MCCL motion library for Microsoft Windows

---

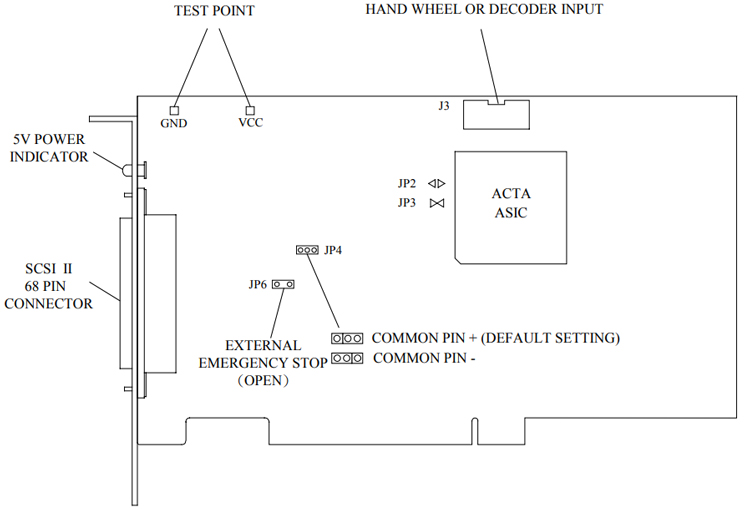

Model | Controller and Drive - PCI4P
