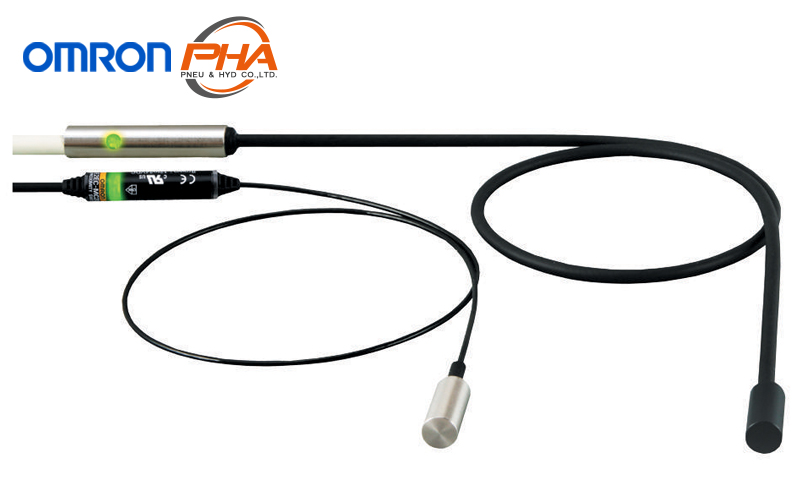

Proximity Sensor Separate Amplifier - E2EC-M-Q

Download PDF

Model Numbers

Specifications

Dimensions

Features

Model Numbers | Proximity Sensor Separate Amplifier - E2EC-M-Q

Sensors

Appearance		Sensing distance	Output configuration	Model
Appearance		Sensing distance	Output configuration	Operation mode: NO
Shielded When mounting to an iron surface	8 dia.	2 mm	DC 3-wire PNP	E2EC-MC2B1 2M
			DC 2-wire (polarity)	E2EC-MC2D1 2M
			DC 2-wire (no polarity) (3)-(4) pin arrangement	E2EC-QC2D1-M1GJ-T 0.3M

Accessories (Order Separately)

Sensor I/O Connector

Models with Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.

Appearance	Cable length	Sensor I/O Connector model	Applicable Proximity Sensors
Straight	2 m	XS2F-D421-DD0	E2EC-QC2D1-M1GJ-T
Straight	5 m	XS2F-D421-GD0
L-shape	2 m	XS2F-D422-DD0
L-shape	5 m	XS2F-D422-GD0

Note: The Sensor I/O Connector models in the previous table are for standard cables. Be sure to use a heat-resistant
cable (XS2F-D42[]-[]80F) when using the Sensor in environments susceptible to spatter.

Specifications | Proximity Sensor Separate Amplifier - E2EC-M-Q

Type			DC 3-Wire PNP Models	DC 2-Wire Models	DC 2-Wire Models (no polarity) (spatter-resistant type)
Model			E2EC-MC2B1	E2EC-MC2D1	E2EC-QC2D1-M1GJ-T
Size			8 dia. (Sensing Head)
Shielding			Shielded
Sensing distance			2 mm ± 15%	2 mm ± 10%
Set distance			0 to 1.2 mm	0 to 1.4 mm
Differential travel			15% max. of sensing distance
Detectable object			Ferrous metals (The sensing distance will decreases with non-ferrous metal. Refer to Engineering Data (Reference Value) on Data Sheet.)
Standard sensing object			Iron, 8 × 8 × 1 mm
Response frequency			100 Hz
Power supply voltage (operating voltage range)			12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC)
Current consumption			10 mA max.	---
Leakage current			---	0.8 mA max.
Control output	Load current		100 mA max.	3 to 50 mA
Control output	Residual voltage		2 V max. (Load current: 100 mA, Cable length: 2 m)	3 V max. (Load current: 50 mA, Cable length: 2 m)	5 V max. (Load current: 50 mA, Cable length: 2 m)
Indicators			Operation indicator (yellow)	Operation indicator (red), Setting indicator (green)
Operation mode (with sensing object approaching)			NO (normally open) Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits			Power supply reverse polarity protection, Surge suppressor, Load short-circuit protection, Reversed output polarity protection	Surge suppressor, Load short-circuit protection
Ambient temperature range			Operating and storage: - 25 to 70 ° C (with no icing or condensation)
Ambient humidity range			Operating and storage: 35% to 95% (with no condensation)
Temperature influence			± 20% max. of sensing distance at 23 ° C in the temperature range of - 25 to 70 ° C
Voltage influence			± 5% max. of sensing distance at rated voltage in the rated voltage ± 15% range	± 1% max. of sensing distance at the rated voltage range in the voltage range of ± 15%
Insulation resistance			50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength			1,000 VAC for 1 min between current carrying-parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance			Destruction: 1,000 m/s² 10 times each in X, Y, Z directions
Degree of protection			IEC IP67, In-house standards: oil-resistant (For Sensor Head only)
Connection method			Pre-wired Connector Models (Standard cable length: 2 m)		Connector Models (Standard cable length: 0.3 m)
Weight (packed state)			Approx. 65 g		Approx. 95 g
Materials	Sensor Head	Case	Stainless steel (SUS303)		Stainless steel (SUS303) Fluororesin coated
		Sensing surface (thickness)	Stainless steel (SUS303) (0.2 mm)		Stainless steel (SUS303) Fluororesin coated (0.2 mm)
		Cable	Polyester elastomer (TPEE) (Shielded)		Fluoro-rubber (Shielded)
	Cable Amplifier	Case	ABS resin		Stainless steel (SUS303)
	Cable Amplifier	Cable	Polyvinyl chloride (PVC)		Fluorocarbon cable (flame-resistant)
Accessories			Amplifier Mounting Bracket, instruction manual

Note: Time is required for the sensing distance to stabilize after the power supply is turned ON. Confirm operation
sufficiently in the actual operating environment and use the Sensor within the set distance to obtain a sufficient sensing distance.

Dimensions | Proximity Sensor Separate Amplifier - E2EC-M-Q

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

E2EC-MC2B1, E2EC-MC2D1

E2EC-QC2D1-M1GJ-T

Sensing Head Mounting Hole Dimensions

Features | Proximity Sensor Separate Amplifier - E2EC-M-Q

Improved Durability with Stainless Steel Sensing Head
Models with improved spatter resistance ideal for welding also available.

Properties | Proximity Sensor Separate Amplifier - E2EC-M-Q

Proximity Sensor Separate Amplifier		E2EC-M-Q
Sensor Head	Sensing Distances	0 - 1.5, 0 - 2, 0 - 3 mm
	Sensing object	Non-ferrous metal
	Degree of protection	IP67
	Material	Stainless steel, Zinc die-cast
Amplifier	Power supply voltage	10 - 30 VDC
	Power consumption	1,080 mW max
	Degree of protection	IP50
	Materials Case	PBT

Proximity Sensor Separate Amplifier - E2EC-M-Q

ดาวน์โหลดไฟล์ PDF

คุณสมบัติ | Proximity Sensor Separate Amplifier - E2EC-M-Q

เพิ่มความทนทานด้วยหัวตรวจสแตนเลส
เป็นรุ่นที่ทนทานต่อสะเก็ดไฟที่ดีขึ้นซึ่งเหมาะสมสำหรับงานเชื่อม

ข้อมูลจำเพาะ | Proximity Sensor Separate Amplifier - E2EC-M-Q

Proximity Sensor Separate Amplifier		E2EC-M-Q
หัวเซนเซอร์	ระยะตรวจจับ	0 - 1.5, 0 - 2, 0 - 3 mm
	การตรวจจับ	วัตถุโลหะไม่ใช่เหล็ก
	ระดับการป้องกัน	IP67
	วัสดุ	สแตนเลส, สังกะสีหล่อ
แอมพลิฟายเออร์	แรงดันไฟฟ้า	10 - 30 VDC
	การใช้พลังงาน	1,080 มิลลิวัตต์
	ระดับการป้องกัน	IP50
	วัสดุตัวเรือน	PBT
