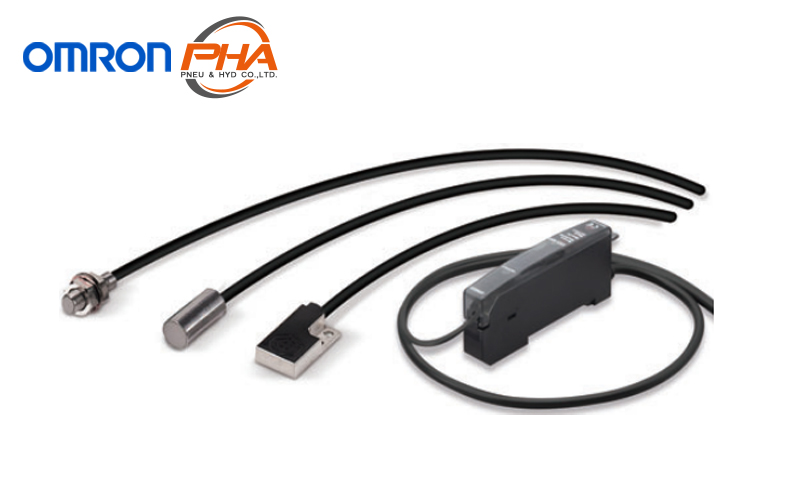

Proximity Sensor Separate Amplifier - E2CY-SD
Achieve stable detection of non-ferrous metals such as aluminum, copper, and stainless steel.
Download PDF
Model Numbers
Specifications
Dimensions
Features
Model Numbers | Proximity Sensor Separate Amplifier - E2CY-SD
| Sensors | Amplifier Unit | ||||
|---|---|---|---|---|---|
| Appearance | Stable sensing distance | Model | Output configuration | Model | |
Shielded
 |
M5 | 1.5 mm | E2CY-X1R5A 3M | DC 3-wire NPN open collector |
E2CY-SD11 2M |
| 5.4 dia. | E2CY-C1R5A-1 3M | ||||
| 8 dia. | 2 mm | E2CY-C2A 3M | |||
| Flat | 3 mm | E2CY-V3A 3M | |||
| 8 dia. | 2 mm | E2CY-C2AF 3M | |||
Specifications | Proximity Sensor Separate Amplifier - E2CY-SD
Sensors
| Model | E2CY-X1R5A E2CY-C1R5A-1 | E2CY-C2A(F) | E2CY-V3A | |
|---|---|---|---|---|
| Stable sensing distance | 0 to 1.5 mm | 0 to 2 mm | 0 to 3 mm | |
| Differential travel | 10% max. of sensing distance with Amplifier Unit in FINE mode 15% max. of sensing distance with Amplifier Unit in NORM mode |
|||
| Detectable object | Non-ferrous metal | |||
| Standard sensing object | Aluminum: 8 × 8 × 1 mm | Aluminum: 12 × 12 × 1 mm | ||
| Response frequency *1 | 40 Hz min. with Amplifier Unit in FINE mode 100 Hz min. with Amplifier Unit in NORM mode |
|||
| Ambient temperature range | Operation: -10 to 55°C, Storage: -25 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating and storage: 35% to 95% (with no condensation) | |||
| Temperature influence *2 | -10 to 55°C | ±15% max. of sensing distance at 23°C |
distance at 23°C ±10% max. of sensing distance at 23°C |
±15% max. of sensing distance at 23°C |
| 0 to 40°C | ±10% max. of sensing distance at 23°C *3 |
±10% max. of sensing distance at 23°C |
||
| Vibration resistance | Destruction: 10 to 500 Hz, 2-mm double amplitude or 150 m/s2 for 2 hours each in X, Y, and Z directions |
|||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection | IEC 60529 IP67 | |||
| Connection method | Pre-wired (High-frequency coaxial cable, Standard cable length: 3 m) | |||
| Cable length compensation | 0.5 to 5 m *4 | |||
| Weight (packed state) | Approx. 35 g | |||
| Materials | Case | Stainless steel | Zinc die-cast | |
| Sensing surface |
Heat-resistant ABS (E2CY-C2AF: Fluororesin) | |||
| Cable | Soft PVC (E2CY-C2AF: Fluororesin) | |||
| Clamping nuts | Nickel-plated brass (E2CY-X1R5A only) | |||
| Toothed washers |
Zinc-plated iron (E2CY-X1R5A only) | |||
| Mounting screws |
Zinc-plated iron (E2CY-V3A only) | |||
*1. The average value when using the DC-switching control output on the Amplifier Unit.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object,
and a set distance of half the stable sensing distance.
*2. When the temperature around the Amplifier Unit is stable at 23°C.
*3. E2CY-C1R5A-1: ±15% max. of sensing distance at 23°C
*4. When extending the cable, use a 1.5D-2V (equivalent to JIS C 3501) cable with characteristic impedance of 50 Ω.
Amplifier Unit
| Model | E2CY-SD11 | |
|---|---|---|
| Power supply voltage | 12 to 24 VDC ±10%, ripple: 10% max. | |
| Power consumption | 1,080 mW max. (45 mA max. at 24 VDC) | |
| Sensing distance adjustment range |
10% max. of stable sensing distance | |
| Sensitivity setting | Teaching/manual adjustment | |
| Control output | NPN open collector (26.4 VDC max.), load current: 100 mA max., residual voltage: 1 V max. |
|
| Functions | OFF-delay timer | 0 to 40 ms (1 to 20 ms: 1-ms increments, 20 to 40 ms: 5-ms increments) |
| Zero reset | Supported. | |
| Intial reset | Supported. (All settings are returned to their default values.) | |
| Hysteresis setting | 3 to variable | |
| Self diagnosis | Displays errors (sensor disconnection, sensor short-circuit, or output short-circuit) | |
| Operation mode | Changed with NO/NC Switch. | |
| Protection circuits | Power supply reverse polarity protection and output short-circuit protection | |
| Indicator | Operation indicator (orange) | |
| Digital display | Detection amount display (FINE: 4,000 max., NORM: 2,000 max.), bar display, function display (red) |
|
| Reverse display | Supported. | |
| Ambient temperature range | Operation: -10 to 55°C, Storage: -25 to 70°C (with no icing or condensation) | |
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |
| Temperature influence * | ±10% max. of sensing distance at 23°C in the temperature range of -10 to 55°C | |
| Voltage influence | ±1% max. of sensing distance in the rated voltage range ±10% | |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between currentcarrying parts and case | |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute. Between current-carrying parts and case | |
| Vibration resistance | Destruction: 10 to 150 Hz, 1.5-mm double amplitude or 100 m/s2 for 2 hours each in X, Y, and Z directions |
|
| Shock resistance | Destruction: 300 m/s2 3 times each in X, Y, and Z directions | |
| Degree of protection | IEC 60529 IP50 (with Sensor cable connected and protective cover attached) | |
| Connection method | Pre-wired (Standard cable length: 2 m) | |
| Weight (packed state) | Approx. 100 g | |
| Materials | Case | PBT |
| Cover | Polycarbonate | |
| Cable connecting screws |
Zinc-plated iron | |
| Accessories | E39-L143 Mounting Bracket (SUS304 stainless steel), instruction manual | |
*1. If the Sensor approaches iron or other ferrous metals, the digital display will show negative values.
There are exceptions. Refer to Fast Moving Ferrous Metals in Safety Precautions on Catalog.
*2. When the temperature around the Sensor is stable at 23°C.
Note: You can mount the Amplifier Unit on a DIN Track without using the Mounting Bracket.
Dimensions | Proximity Sensor Separate Amplifier - E2CY-SD series
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors
E2CY-X1R5A
E2CY-C1R5A-1
E2CY-C2A(F)
* E2CY-C2AF: 2.5-dia. coaxial cable (Fluororesin) with 1 conductor (Conductor cross section: 0.17 mm2),
Standard length: 3 m

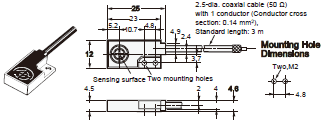

E2CY-V3A
Amplifier Unit

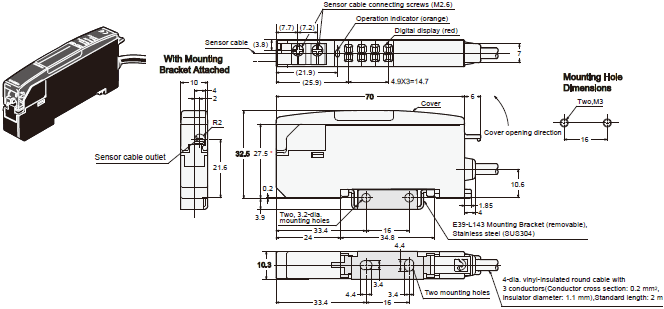

E2CY-SD11
* The dimension to the digital display surface is 29.3 mm, and the dimension to the operation button surface is 29.8 mm.
Note: You can mount the Amplifier Unit on a DIN Track without using the Mounting Bracket.
Features | Proximity Sensor Separate Amplifier - E2CY-SD
- Detects aluminum, copper, and other non-ferrous metals.
- Product lineup includes compact, flat Sensor Head (E2CY-V3A) and model with fluororesin (E2CY-C2AF) for resistance to chemicals.
- Simple teaching function to easily adjust sensitivity.
- Check detection status at a glance with numeric values on a digital display.
Properties | Proximity Sensor Separate Amplifier - E2CY-SD
| Proximity Sensor Separate Amplifier | E2CY-SD | |
|---|---|---|
| Sensor Head | Sensing Distances | 0 - 1.5, 0 - 2, 0 - 3 mm |
| Sensing object | Non-ferrous metal | |
| Degree of protection | IP67 | |
| Amplifier | Stainless steel, Zinc die-cast | |
| Amplifier | Power supply voltage | 10 - 30 VDC |
| Power consumption | 1,080 mW max | |
| Degree of protection | IP50 | |
| Materials Case | PBT | |
Proximity Sensor Separate Amplifier - E2CY-SD
ดาวน์โหลดไฟล์ PDF คุณสมบัติ | Proximity Sensor Separate Amplifier - E2CY-SD
- เซนเซอร์พร็อกซิมิตี้พร้อมนิตแอมฟลิฟายเออร์แยกสำหรับการตรวจจับโลหะที่ไม่ใช้เหล็กด้วยการประกอบการปรับความไวอย่างง่าย
- ตรวจจับอลูมิเนียมทองแดงและโลหะที่ไม่ใช่เหล็กอื่นๆ
- กลุ่มผลิตภัณฑ์ประกอบด้วยหัวเซนเซอร์แบบขนาดกะทัดรัด (E2CY-V3A) และรุ่นที่มีเรซิ่น (E2CY-C2AF) เพื่อให้ทนต่อสารเคมี
- ฟังก์ชันสอนที่ง่ายเพื่อปรับความไวได้อย่างง่ายดาย
- ตรวจสอบสถานการณ์ตรวจจับได้อย่างรวดเร็วด้วยค่าตัวเลขบนขอแสดงผลดิจิตอล
ข้อมูลจำเพาะ | Proximity Sensor Separate Amplifier - E2CY-SD
| Proximity Sensor Separate Amplifier | E2CY-SD | |
|---|---|---|
| หัวเซนเซอร์ | ระยะตรวจจับ | 0 - 1.5, 0 - 2, 0 - 3 mm |
| การตรวจจับ | วัตถุโลหะไม่ใช่เหล็ก | |
| ระดับการป้องกัน | IP67 | |
| วัสดุ | สแตนเลส, สังกะสีหล่อ | |
| แอมพลิฟายเออร์ | แรงดันไฟฟ้า | 10 - 30 VDC |
| การใช้พลังงาน | 1,080 มิลลิวัตต์ | |
| ระดับการป้องกัน | IP50 | |
| วัสดุตัวเรือน | PBT | |
