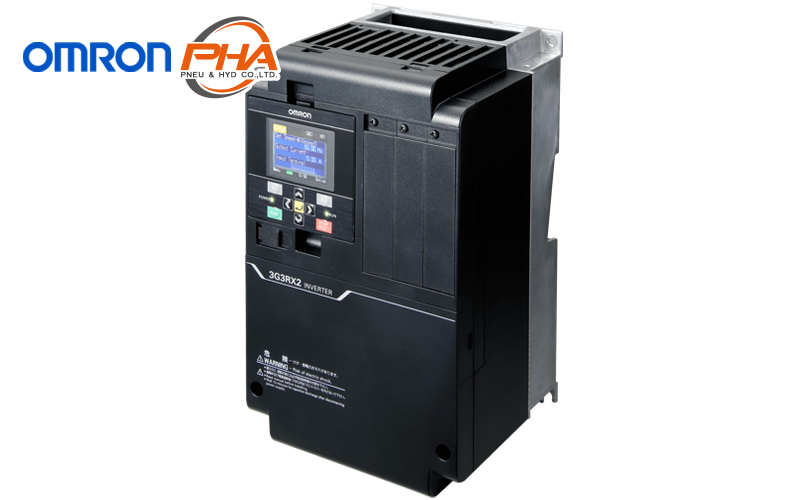

Motion Drive Inverter - 3G3RX2

Download PDF

Model Numbers

Specifications

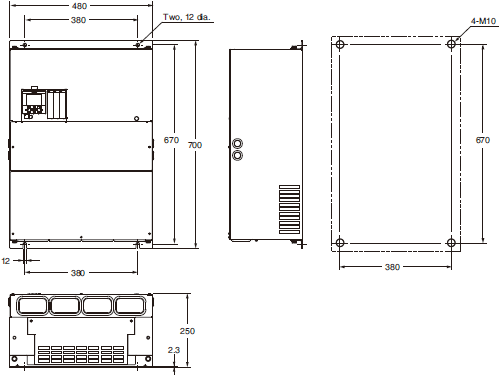

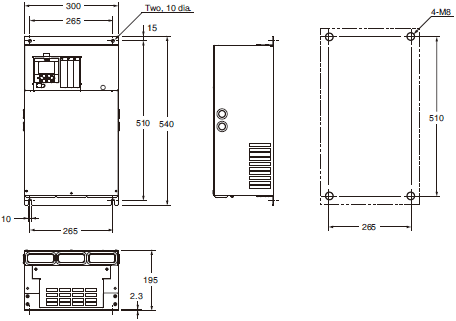

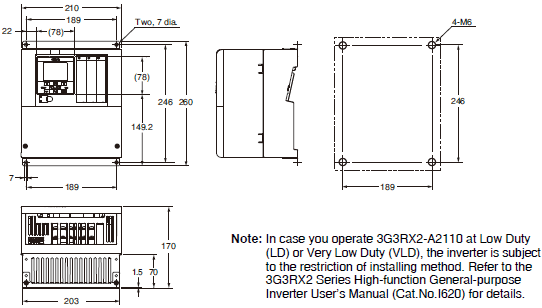

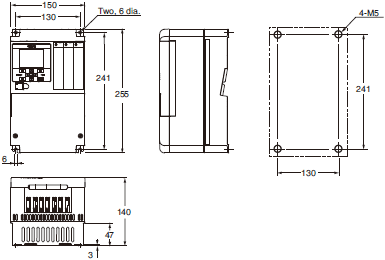

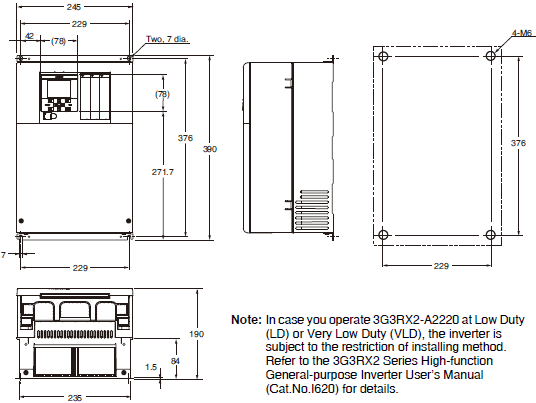

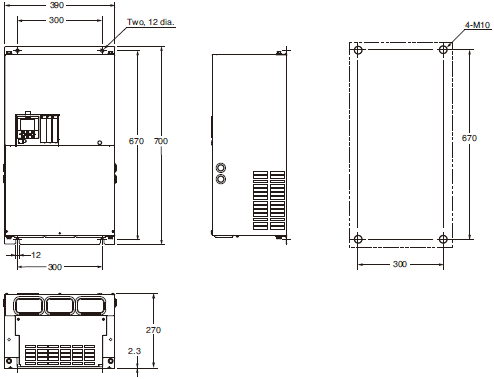

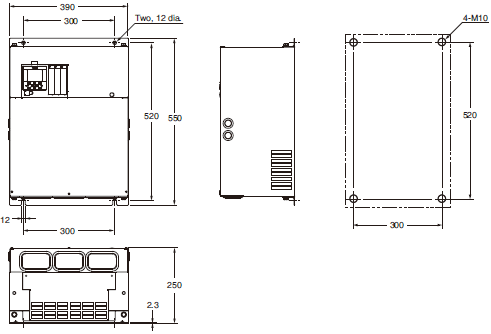

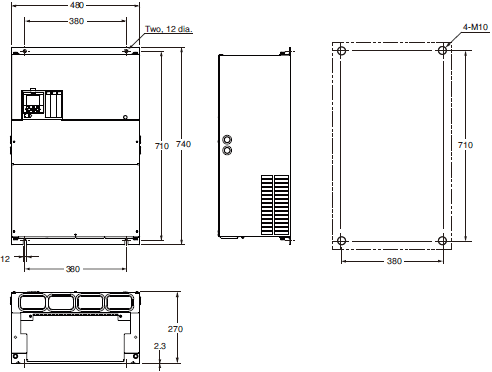

Dimensions

Features

Model Numbers | Motion Drive Inverter - 3G3RX2

RX2 series Inverter Models

Rated voltage	Enclosure ratings	Max. applicable motor capacity		Model
Rated voltage	Enclosure ratings	Normal Duty (ND)	Low Duty (LD) / Very Low Duty (VLD)	Model
3-phase 200 VAC	IP20	0.4 kW	0.75 kW	3G3RX2-A2004
		0.75 kW	1.5 kW	3G3RX2-A2007
		1.5 kW	2.2 kW	3G3RX2-A2015
		2.2 kW	3.7 kW	3G3RX2-A2022
		3.7 kW	5.5 kW	3G3RX2-A2037
		5.5 kW	7.5 kW	3G3RX2-A2055
		7.5 kW	11 kW	3G3RX2-A2075
		11 kW	15 kW	3G3RX2-A2110
		15 kW	18.5 kW	3G3RX2-A2150
		18.5 kW	22 kW	3G3RX2-A2185
		22 kW	30 kW	3G3RX2-A2220
		30 kW	37 kW	3G3RX2-A2300
		37 kW	45 kW	3G3RX2-A2370
		45 kW	55 kW	3G3RX2-A2450
		55 kW	75 kW	3G3RX2-A2550
3-phase 400 VAC	IP20	0.75 kW	1.5 kW	3G3RX2-A4007
		1.5 kW	2.2 kW	3G3RX2-A4015
		2.2 kW	3.7 kW	3G3RX2-A4022
		3.7 kW	5.5 kW	3G3RX2-A4037
		5.5 kW	7.5 kW	3G3RX2-A4055
		7.5 kW	11 kW	3G3RX2-A4075
		11 kW	15 kW	3G3RX2-A4110
		15 kW	18.5 kW	3G3RX2-A4150
		18.5 kW	22 kW	3G3RX2-A4185
		22 kW	30 kW	3G3RX2-A4220
		30 kW	37 kW	3G3RX2-A4300
		37 kW	45 kW	3G3RX2-A4370
		45 kW	55 kW	3G3RX2-A4450
		55 kW	75 kW	3G3RX2-A4550
	IP00	75 kW	90 kW	3G3RX2-B4750
		90 kW	110 kW	3G3RX2-B4900
		110 kW	132 kW	3G3RX2-B411K
		132 kW	160 kW	3G3RX2-B413K

Related Options

Name	Specifications		Model
Regenerative Braking Units	3-phase 200 VAC	General purpose with Braking resistor	3G3AX-RBU21
		High Regeneration purpose with Braking resistor	3G3AX-RBU22
		General purpose for 30 kW *	3G3AX-RBU23
		General purpose for 55 kW *	3G3AX-RBU24
	3-phase 400 VAC	General purpose with Braking resistor	3G3AX-RBU41
		General purpose for 30 kW *	3G3AX-RBU42
		General purpose for 55 kW *	3G3AX-RBU43
Braking Resistor	Compact type	Resistor 120 W, 180 Ω	3G3AX-RBA1201
		Resistor 120 W, 100 Ω	3G3AX-RBA1202
		Resistor 120 W, 50 Ω	3G3AX-RBA1203
		Resistor 120 W, 35 Ω	3G3AX-RBA1204
	Standard type	Resistor 200 W, 180 Ω	3G3AX-RBB2001
		Resistor 200 W, 100 Ω	3G3AX-RBB2002
		Resistor 300 W, 50 Ω	3G3AX-RBB3001
		Resistor 400 W, 35 Ω	3G3AX-RBB4001
	Medium capacity type	Resistor 400 W, 50 Ω	3G3AX-RBC4001
		Resistor 600 W, 35 Ω	3G3AX-RBC6001
		Resistor 1200 W, 17 Ω	3G3AX-RBC12001

* The braking resistor is optionally required.

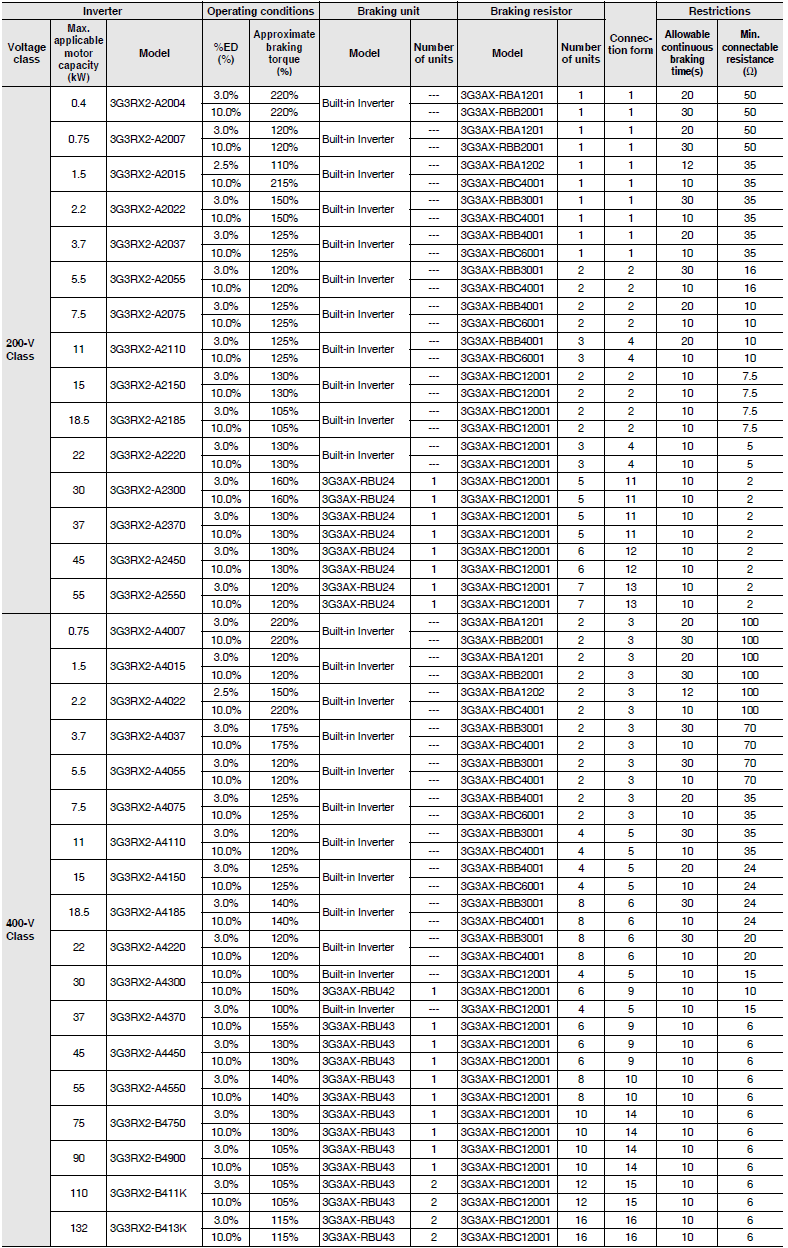

Regenerative Braking Unit and Braking Resistor Combination

Select the combination of the regenerative braking unit(s) and the braking resistor(s) as follows, according to your inverter. If the usage rate exceeds 10% ED, or if you need a torque larger than the approximate braking torque, you need to follow the instruction provided in Braking Resistor Selection.
• Inverter: Select the model of your inverter. The table below assumes that your inverter is used in the heavy load mode and
connected to a single motor with the same capacity. Make sure that the approximate braking torque in the table
shows the assumed value per a motor with the same capacity at ND mode. When using this inverter at LD or VLD
mode, you need to calculate the torque value by dividing VLD by ND.
• Operating conditions: Show the torque during deceleration and the deceleration time (in % ED) calculated as a percentage
of the cycle time for 1 cycle of operation including the stop time.
• Braking unit/Breaking resistor: Show the required the model and number of units.
• Connection form: Show the configuration of the regenerative braking unit(s) and braking resistor(s) illustrated in the
connection form table below.
• Restrictions: Show the maximum deceleration time allowable for the combination shown here and the minimum resistance
that can be connected to the inverter's built-in regenerative braking circuit or external regenerative braking unit(s).

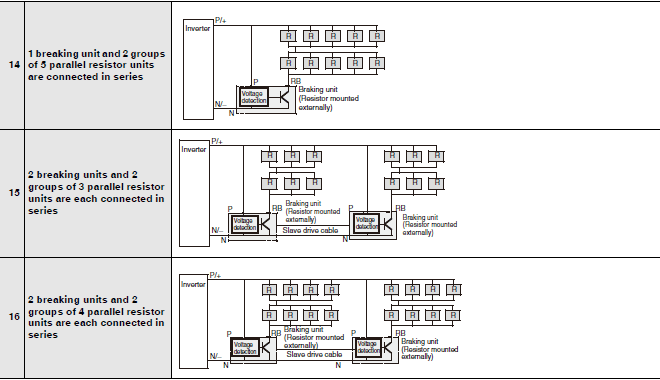

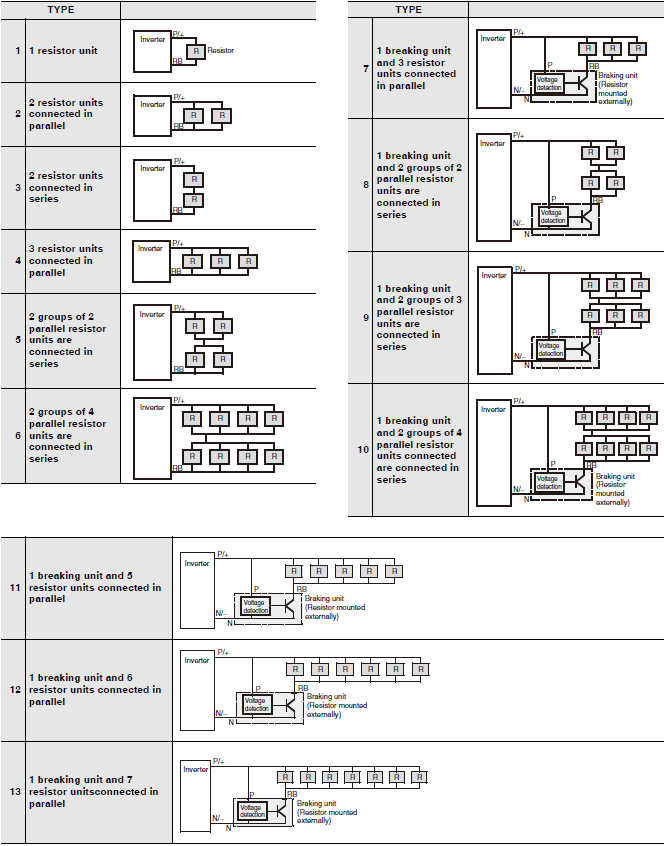

Connection configuration

Name	Model
Radio Noise Filter	3G3AX-ZCL2
Radio Noise Filter	3G3AX-ZCL1

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
Input Noise Filter	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-NFI21
				LD	0.75	3.9
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2	3G3AX-NFI22
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-NFI23
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-NFI24
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37	3G3AX-NFI25
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-NFI26
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64	3G3AX-NFI27
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-NFI28
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94	3G3AX-NFI29
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150	3G3AX-NFI2A
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	3G3AX-NFI2B
				VLD	45	186
		45	3G3RX2-A2450	ND	45	200
				LD	55	240	3G3AX-NFI2C
				VLD	55	240
		55	3G3RX2-A2550	ND	55	242
				LD	75	280	---
				VLD	75	280	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-NFI41
				LD	1.5	4.3
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1	3G3AX-NFI42
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-NFI43
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-NFI44
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
LD				15	32	3G3AX-NFI45
VLD				15	32
15		3G3RX2-A4150	ND	15	35
			LD	18.5	41	3G3AX-NFI46
			VLD	18.5	41
18.5		3G3RX2-A4185	ND	18.5	42
			LD	22	47	3G3AX-NFI47
			VLD	22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-NFI48
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77	3G3AX-NFI49
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-NFI4A
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	---
			VLD	75	149	---

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
EMC Noise Filter *	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-EFI41
				LD	0.75	3.9
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2	3G3AX-EFI42
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-EFI43
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-EFI44
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37	3G3AX-EFI45
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-EFI47
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64	3G3AX-EFI48
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-EFI49
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94	3G3AX-EFI4A
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150	3G3AX-EFI4B
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	---
				VLD	45	186	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-EFI41
				LD	1.5	4.3
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1	3G3AX-EFI42
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-EFI43
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-EFI44
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
				LD	15	32	3G3AX-EFI45
				VLD	15	32
		15	3G3RX2-A4150	ND	15	35
				LD	18.5	41	3G3AX-EFI46
				VLD	18.5	41
		18.5	3G3RX2-A4185	ND	18.5	42
LD				22	47	3G3AX-EFI47
VLD				22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-EFI48
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77	3G3AX-EFI49
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-EFI4A
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	3G3AX-EFI4B
			VLD	75	149
75		3G3RX2-B4750	ND	75	164
			LD	90	176
			VLD	90	176
90		3G3RX2-B4900	ND	90	194
			LD	110	199	---
			VLD	110	199	---

* Although an EMC Noise Filter is built into the RX2, it may be necessary to provide another EMC Noise Filter when the
cable between the Motor and the Inverter is long.

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
Output Noise Filter	200-V class	0.4	3G3RX2-A2004	ND	0.4	3	3G3AX-NFO01
				LD	0.75	3.7
				VLD	0.75	3.7
		0.75	3G3RX2-A2007	ND	0.75	5
				LD	1.5	6.3	3G3AX-NFO02
				VLD	1.5	6.3
		1.5	3G3RX2-A2015	ND	1.5	7.5
				LD	2.2	9.4
				VLD	2.2	9.4
		2.2	3G3RX2-A2022	ND	2.2	10.5
				LD	3.7	12	3G3AX-NFO03
				VLD	3.7	12
		3.7	3G3RX2-A2037	ND	3.7	16.5
				LD	5.5	19.6
				VLD	5.5	19.6
		5.5	3G3RX2-A2055	ND	5.5	24
				LD	7.5	30	3G3AX-NFO04
				VLD	7.5	30
		7.5	3G3RX2-A2075	ND	7.5	32
				LD	11	44
				VLD	11	44
		11	3G3RX2-A2110	ND	11	46
				LD	15	58	3G3AX-NFO05
				VLD	15	58
		15	3G3RX2-A2150	ND	15	64
				LD	18.5	73	3G3AX-NFO06
				VLD	18.5	73
		18.5	3G3RX2-A2185	ND	18.5	76
				LD	22	85
				VLD	22	85
		22	3G3RX2-A2220	ND	22	95
				LD	30	113	3G3AX-NFO07
				VLD	30	113
		30	3G3RX2-A2300	ND	30	121
				LD	37	140
				VLD	37	140
		37	3G3RX2-A2370	ND	37	145
				LD	45	169	---
				VLD	45	169	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.5	3G3AX-NFO01
				LD	1.5	3.1
				VLD	1.5	3.1
		1.5	3G3RX2-A4015	ND	1.5	3.8
				LD	2.2	4.8
				VLD	2.2	4.8
		2.2	3G3RX2-A4022	ND	2.2	5.3
				LD	3.7	6.7	3G3AX-NFO02
				VLD	3.7	6.7
		3.7	3G3RX2-A4037	ND	3.7	9
				LD	5.5	11.1	3G3AX-NFO03
				VLD	5.5	11.1
		5.5	3G3RX2-A4055	ND	5.5	14
				LD	7.5	16
				VLD	7.5	16
		7.5	3G3RX2-A4075	ND	7.5	19
				LD	11	22
				VLD	11	22
		11	3G3RX2-A4110	ND	11	25
				LD	15	29	3G3AX-NFO04
				VLD	15	29
		15	3G3RX2-A4150	ND	15	32
				LD	18.5	37
				VLD	18.5	37
		18.5	3G3RX2-A4185	ND	18.5	38
LD				22	43
VLD				22	43
22		3G3RX2-A4220	ND	22	48
			LD	30	57	3G3AX-NFO05
			VLD	30	57
30		3G3RX2-A4300	ND	30	58
			LD	37	70
			VLD	37	70
37		3G3RX2-A4370	ND	37	75
			LD	45	85	3G3AX-NFO06
			VLD	45	85
45		3G3RX2-A4450	ND	45	91
			LD	55	105	3G3AX-NFO07
			VLD	55	105
55		3G3RX2-A4550	ND	55	112
			LD	75	135
			VLD	75	135
75		3G3RX2-B4750	ND	75	149
			LD	90	160	---
			VLD	90	160	---

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
DC Reactor	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-DL2004
				LD	0.75	3.9	3G3AX-DL2007
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2	3G3AX-DL2015
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-DL2022
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9	3G3AX-DL2037
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-DL2055
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37	3G3AX-DL2075
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-DL2110
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64	3G3AX-DL2150
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-DL2220
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120	3G3AX-DL2300
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150	3G3AX-DL2370
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	3G3AX-DL2450
				VLD	45	186
		45	3G3RX2-A2450	ND	45	200
				LD	55	240	3G3AX-DL2550
				VLD	55	240
		55	3G3RX2-A2550	ND	55	242
				LD	75	280	---
				VLD	75	280	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-DL4007
				LD	1.5	4.3	3G3AX-DL4015
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9	3G3AX-DL4022
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1	3G3AX-DL4037
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-DL4055
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20	3G3AX-DL4075
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-DL4110
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
LD				15	32	3G3AX-DL4150
VLD				15	32
15		3G3RX2-A4150	ND	15	35
			LD	18.5	41	3G3AX-DL4220
			VLD	18.5	41
18.5		3G3RX2-A4185	ND	18.5	42
			LD	22	47
			VLD	22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-DL4300
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77	3G3AX-DL4370
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-DL4450
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116	3G3AX-DL4550
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	---
			VLD	75	149	---

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
AC Reactor	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-AL2025
				LD	0.75	3.9
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-AL2055
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-AL2110
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-AL2220
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-AL2330
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120	3G3AX-AL2500
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	3G3AX-AL2750
				VLD	45	186
		45	3G3RX2-A2450	ND	45	200
				LD	55	240
				VLD	55	240
		55	3G3RX2-A2550	ND	55	242
				LD	75	280	---
				VLD	75	280	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-AL4025
				LD	1.5	4.3
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9	3G3AX-AL4055
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-AL4110
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-AL4220
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
LD				15	32
VLD				15	32
15		3G3RX2-A4150	ND	15	35
			LD	18.5	41	3G3AX-AL4330
			VLD	18.5	41
18.5		3G3RX2-A4185	ND	18.5	42
			LD	22	47
			VLD	22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-AL4500
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-AL4750
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	---
			VLD	75	149	---

Name	Specifications	Model
PG Option Unit	For Position or Frequency Control	3G3AX-RX2-PG01
Digital Operator Connecting Cable	RJ45 connector, EIA568-compliant cable (UTP category 5), Cable Length 1 m	3G3AX-OPCN1
Digital Operator Connecting Cable	RJ45 connector, EIA568-compliant cable (UTP category 5), Cable Length 3 m	3G3AX-OPCN3

Software

FA Integrated Tool Package CX-One

Product name	Specifications			Model
Product name		Number of licenses	Media	Model
FA Integrated Tool Package CX-One Ver.4.[]	The CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One runs on the following OS. Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) CX-One Version 4.[] includes CX-Drive Ver.3.[]. For details, refer to the CX-One catalog (Cat. No. R134)	1 license *	DVD	CXONE-AL01D-V4

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
Note: The RX2 Series is supported by CX-Drive version 3.0 or higher.

Specifications | Motion Drive Inverter - 3G3RX2

Performance Specifications

Inverter 3G3RX2

3-phase 200-V Class

Very Low Duty (VLD)/Low Duty (LD)/Normal Duty (ND)

3G3RX2-A2[][][][][]				A2004	A2007	A2015	A2022	A2037
Applicable motor (4-pole) capacity (kW)			VLD	0.75	1.5	2.2	3.7	5.5
			LD	0.75	1.5	2.2	3.7	5.5
			ND	0.4	0.75	1.5	2.2	3.7
Output	Rated output current (A)		VLD	4.4	8.0	10.4	15.6	22.8
			LD	3.7	6.3	9.4	12.0	19.6
			ND	3.2	5.0	8.0	11.0	17.5
	Overload current rating		VLD	110% 60 sec / 120% 3 sec
			LD	120% 60 sec / 150% 3 sec
			ND	150% 60 sec / 200% 3 sec
	Rated output voltage			3-phase (3-wire) 200 to 240 V (depending on receiving voltage)
	Rated capacity (kVA)	200 V	VLD	1.5	2.8	3.6	5.4	7.9
			LD	1.3	2.2	3.3	4.2	6.8
			ND	1.1	1.7	2.8	3.8	6.1
		240 V	VLD	1.8	3.3	4.3	6.5	9.5
			LD	1.5	2.6	3.9	5.0	8.1
			ND	1.3	2.1	3.3	4.6	7.3
Input	Rated input current (A) *1		VLD	5.2	9.5	12.4	18.6	27.1
			LD	4.4	7.5	11.2	14.3	23.3
			ND	3.8	6.0	9.5	13.1	20.8
	Rated input AC voltage			Control power supply: Power supply single phase 200 to 240 V/allowable variation range 170 to 264 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Rated input AC voltage			Main circuit power supply: 3-phase (3-wire) 200 to 240 V/allowable variation range 170 to 264 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Power supply equipment capacity (kVA) *2		VLD	2.0	3.6	4.7	7.1	10.3
			LD	1.7	2.9	4.3	5.4	8.9
			ND	1.5	2.3	3.6	5.0	7.9
Carrier frequency operating range *3			VLD	0.5 to 10.0 kHz
			LD	0.5 to 12.0 kHz
			ND	0.5 to 16.0 kHz
Motor start torque *4				200%/0.3 Hz
Braking	Regenerative braking			Equipped with BRD circuit (with a discharging resistor separately installed)
Braking	Minimum resistance that can be connected (Ω)			50	50	35	35	35
Dimension	Height (mm)			255	255	255	255	255
	Width (mm)			150	150	150	150	150
	Depth (mm)			140	140	140	140	140
Protective construction				IP20 *5 / UL open type
Approximate mass (kg)				3	3	3	3	3

3G3RX2-A2[][][][][]				A2055	A2075	A2110	A2150	A2185
Applicable motor (4-pole) capacity (kW)			VLD	7.5	11	15	18.5	22
			LD	7.5	11	15	18.5	22
			ND	5.5	7.5	11	15	18.5
Output	Rated output current (A)		VLD	33.0	46.0	60.0	80.0	93.0
			LD	30.0	40.0	56.0	73.0	85.0
			ND	25.0	32.0	46.0	64.0	76.0
	Overload current rating		VLD	110% 60 sec / 120% 3 sec
			LD	120% 60 sec / 150% 3 sec
			ND	150% 60 sec / 200% 3 sec
	Rated output voltage			3-phase (3-wire) 200 to 240 V (depending on receiving voltage)
	Rated capacity (kVA)	200 V	VLD	11.4	15.9	20.8	27.7	32.2
			LD	10.4	13.9	19.4	25.3	29.4
			ND	8.7	11.1	15.9	22.2	26.3
		240 V	VLD	13.7	19.1	24.9	33.3	38.7
			LD	12.5	16.6	23.3	30.3	35.3
			ND	10.4	13.3	19.1	26.6	31.6
Input	Rated input current (A) *1		VLD	39.3	54.8	71.4	95.2	110.7
			LD	35.7	47.6	66.7	86.9	101.2
			ND	29.8	38.1	54.8	76.2	90.5
	Rated input AC voltage			Control power supply: Power supply single phase 200 to 240 V/allowable variation range 170 to 264 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Rated input AC voltage			Main circuit power supply: 3-phase (3-wire) 200 to 240 V/allowable variation range 170 to 264 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Power supply equipment capacity (kVA) *2		VLD	15.0	20.9	27.2	36.3	42.2
			LD	13.6	18.1	25.4	33.1	38.6
			ND	11.3	14.5	20.9	29.0	34.5
Carrier frequency operating range *3			VLD	0.5 to 10.0 kHz
			LD	0.5 to 12.0 kHz
			ND	0.5 to 16.0 kHz
Motor start torque *4				200%/0.3 Hz
Braking	Regenerative braking			Equipped with BRD circuit (with a discharging resistor separately installed)
Braking	Minimum resistance that can be connected (Ω)			16	10	10	7.5	7.5
Dimension	Height (mm)			260	260	260	390	390
	Width (mm)			210	210	210	245	245
	Depth (mm)			170	170	170	190	190
Protective construction				IP20 *5 / UL open type
Approximate mass (kg)				6	6	6	10	10

3G3RX2-A2[][][][][]				A2220	A2300	A2370	A2450	A2550
Applicable motor (4-pole) capacity (kW)			VLD	30	37	45	55	75
			LD	30	37	45	55	75
			ND	22	30	37	45	55
Output	Rated output current (A)		VLD	124	153	185	229	295
			LD	113	140	169	210	270
			ND	95.0	122	146	182	220
	Overload current rating		VLD	110% 60 sec / 120% 3 sec
			LD	120% 60 sec / 150% 3 sec
			ND	150% 60 sec / 200% 3 sec
	Rated output voltage			3-phase (3-wire) 200 to 240 V (depending on receiving voltage)
	Rated capacity (kVA)	200 V	VLD	43.0	53.0	64.1	79.3	102.2
			LD	39.1	48.5	58.5	72.7	93.5
			ND	32.9	42.3	50.6	63.0	76.2
		240 V	VLD	51.5	63.6	76.9	95.2	122.6
			LD	47.0	58.2	70.3	87.3	112.2
			ND	39.5	50.7	60.7	75.7	91.5
Input	Rated input current (A) *1		VLD	147.6	182.1	220.2	272.6	351.2
			LD	134.5	166.7	201.2	250.0	321.4
			ND	113.1	145.2	173.8	216.7	261.9
	Rated input AC voltage			Control power supply: Power supply single phase 200 to 240 V/allowable variation range 170 to 264 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Rated input AC voltage			Main circuit power supply: 3-phase (3-wire) 200 to 240 V/allowable variation range 170 to 264 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Power supply equipment capacity (kVA) *2		VLD	56.3	69.4	83.9	103.9	133.8
			LD	51.3	63.5	76.7	95.3	122.5
			ND	43.1	55.3	66.2	82.6	99.8
Carrier frequency operating range *3			VLD	0.5 to 10.0 kHz
			LD	0.5 to 12.0 kHz
			ND	0.5 to 16.0 kHz
Motor start torque *4				200%/0.3 Hz
Braking	Regenerative braking			Equipped with BRD circuit (with a discharging resistor separately installed)	Regenerative braking unit separately installed
Braking	Minimum resistance that can be connected (Ω)			5	---	---	---	---
Dimension	Height (mm)			390	540	550	550	700
	Width (mm)			245	300	390	390	480
	Depth (mm)			190	195	250	250	250
Protective construction				IP20 *5 / UL open type
Approximate mass (kg)				10	22	33	33	47

*1. The rated input currents shown in the table are the values when the rated current is output. The values vary depending
on impedance on the power supply (wiring, breaker, input reactor option, etc.)
*2. The power supply equipment capacities shown in the table are the values when 220 V rated current is output. The values
vary depending on impedance on the power supply (wiring, breaker, input reactor option, etc.)
*3. The setting of rated values for carrier frequencies [bb101]/[bb201] are internally limited in accordance with the
description. Also, it is recommended to set values equivalent to or above (maximum output frequency for driving ×10)
Hz for the setting of carrier frequencies [bb101]/[bb201]. Also, in the case of induction motor (IM) control, for items
other than those subject to V/f control, it is recommended to set carrier frequency at 2 kHz or more. In the case of
synchronous motor (SM)/permanent magnet motor (PMM) control, it is recommended to set carrier frequency at 8 kHz
or more.
*4. The value of the sensor-less vector control applied to the ND rating in the Standard motor. Torque characteristics may
vary depending on the control method and the motor used.
*5. Based on self declaration.

3-phase 400-V Class

Very Low Duty (VLD)/Low Duty (LD)/Normal Duty (ND)

3G3RX2-[][][][][]				A4007	A4015	A4022	A4037	A4055	A4075
Applicable motor (4-pole) capacity (kW)			VLD	1.5	2.2	3.7	5.5	7.5	11
			LD	1.5	2.2	3.7	5.5	7.5	11
			ND	0.75	1.5	2.2	3.7	5.5	7.5
Output	Rated output current (A)		VLD	4.1	5.4	8.3	12.6	17.5	25.0
			LD	3.1	4.8	6.7	11.1	16.0	22.0
			ND	2.5	4.0	5.5	9.2	14.8	19.0
	Overload current rating		VLD	110% 60 sec / 120% 3 sec
			LD	120% 60 sec / 150% 3 sec
			ND	150% 60 sec / 200% 3 sec
	Rated output voltage			3-phase (3-wire) 380 to 500 V (depending on receiving voltage)
	Rated capacity (kVA)	400 V	VLD	2.8	3.7	5.8	8.7	12.1	17.3
			LD	2.1	3.3	4.6	7.7	11.1	15.2
			ND	1.7	2.8	3.8	6.4	10.3	13.2
		500 V	VLD	3.6	4.7	7.2	10.9	15.2	21.7
			LD	2.7	4.2	5.8	9.6	13.9	19.1
			ND	2.2	3.5	4.8	8.0	12.8	16.5
Input	Rated input current (A) *1		VLD	4.9	6.4	9.9	15.0	20.8	29.8
			LD	3.7	5.7	8.0	13.2	19.0	26.2
			ND	3.0	4.8	6.5	11.0	17.6	22.6
	Rated input AC voltage			Control power supply: Power supply single phase 380 to 500 V (allowable variation range 323 to 550 V), 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Rated input AC voltage			Main circuit power supply: 3-phase (3-wire) 380 to 500 V (allowable variation range) 323 to 550 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Power supply equipment capacity (kVA) *2		VLD	3.7	4.9	7.5	11.4	15.9	22.7
			LD	2.8	4.4	6.1	10.1	14.5	20.0
			ND	2.3	3.6	5.0	8.3	13.4	17.2
Carrier frequency range *3			VLD	0.5 to 10.0 kHz
			LD	0.5 to 12.0 kHz
			ND	0.5 to 16.0 kHz
Motor start torque *4				200%/0.3 Hz
Braking	Regenerative braking			Equipped with braking resistance circuit (with a discharging resistor separately installed)
Braking	Minimum resistance that can be connected (Ω)			100	100	100	70	70	35
Dimen- sion	Height (mm)			255	255	255	255	260	260
	Width (mm)			150	150	150	150	210	210
	Depth (mm)			140	140	140	140	170	170
Protective construction				IP20 *5 / UL open type
Approximate mass (kg)				3	3	3	3	6	6

3G3RX2-[][][][][]				A4110	A4150	A4185	A4220	A4300	A4370
Applicable motor (4-pole) capacity (kW)			VLD	15	18.5	22	30	37	45
			LD	15	18.5	22	30	37	45
			ND	11	15	18.5	22	30	37
Output	Rated output current (A)		VLD	31.0	40.0	47.0	62.0	77.0	93.0
			LD	29.0	37.0	43.0	57.0	70.0	85.0
			ND	25.0	32.0	39.0	48.0	61.0	75.0
	Overload current rating		VLD	110% 60 sec / 120% 3 sec
			LD	120% 60 sec / 150% 3 sec
			ND	150% 60 sec / 200% 3 sec
	Rated output voltage			3-phase (3-wire) 380 to 500 V (depending on receiving voltage)
	Rated capacity (kVA)	400 V	VLD	21.5	27.7	32.6	43.0	53.3	64.4
			LD	20.1	25.6	29.8	39.5	48.5	58.9
			ND	17.3	22.2	27.0	33.3	42.3	52.0
		500 V	VLD	26.8	34.6	40.7	53.7	66.7	80.5
			LD	25.1	32.0	37.2	49.4	60.6	73.6
			ND	21.7	27.7	33.8	41.6	52.8	65.0
Input	Rated input current (A) *1		VLD	36.9	47.6	56.0	73.8	91.7	110.7
			LD	34.5	44.0	51.2	67.9	83.3	101.2
			ND	29.8	38.1	46.4	57.1	72.6	89.3
	Rated input AC voltage			Control power supply: Power supply single phase 380 to 500 V (allowable variation range 323 to 550 V), 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Rated input AC voltage			Main circuit power supply: 3-phase (3-wire) 380 to 500 V (allowable variation range) 323 to 550 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Power supply equipment capacity (kVA) *2		VLD	28.1	36.3	42.6	56.3	69.9	84.4
			LD	26.3	33.6	39.0	51.7	63.5	77.1
			ND	22.7	29.0	35.4	43.5	55.3	68.0
Carrier frequency range *3			VLD	0.5 to 10.0 kHz
			LD	0.5 to 12.0 kHz
			ND	0.5 to 16.0 kHz
Motor start torque *4				200%/0.3 Hz
Braking	Regenerative braking			Equipped with braking resistance circuit (with a discharging resistor separately installed)
Braking	Minimum resistance that can be connected (Ω)			35	24	24	20	15	15
Dimen- sion	Height (mm)			260	390	390	390	540	550
	Width (mm)			210	245	245	245	300	390
	Depth (mm)			170	190	190	190	195	250
Protective construction				IP20 *5 / UL open type
Approximate mass (kg)				6	8.5	8.5	8.5	22	31

3G3RX2-[][][][][]				A4450	A4550	B4750	B4900	B411K	B413K
Applicable motor (4-pole) capacity (kW)			VLD	55	75	90	110	132	160
			LD	55	75	90	110	132	160
			ND	45	55	75	90	110	132
Output	Rated output current (A)		VLD	116	147	176	213	252	316
			LD	105	135	160	195	230	290
			ND	91.0	112	150	180	217	260
	Overload current rating		VLD	110% 60 sec / 120% 3 sec
			LD	120% 60 sec / 150% 3 sec
			ND	150% 60 sec / 200% 3 sec
	Rated output voltage			3-phase (3-wire) 380 to 500 V (depending on receiving voltage)
	Rated capacity (kVA)	400 V	VLD	80.4	101.8	121.9	147.6	174.6	218.9
			LD	72.7	93.5	110.9	135.1	159.3	200.9
			ND	63.0	77.6	103.9	124.7	150.3	180.1
		500 V	VLD	100.5	127.3	152.4	184.5	218.2	273.7
			LD	90.9	116.9	138.6	168.9	199.2	251.1
			ND	78.8	97.0	129.9	155.9	187.9	225.2
Input	Rated input current (A) *1		VLD	138.1	175.0	209.5	253.6	300.0	376.2
			LD	125.0	160.7	190.5	232.1	273.8	345.2
			ND	108.3	133.3	178.6	214.3	258.3	309.5
	Rated input AC voltage			Control power supply: Power supply single phase 380 to 500 V (allowable variation range 323 to 550 V), 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Rated input AC voltage			Main circuit power supply: 3-phase (3-wire) 380 to 500 V (allowable variation range) 323 to 550 V, 50 Hz (allowable variation range: 47.5 to 52.5 Hz)/60 Hz (allowable variation range: 57 to 63 Hz)
	Power supply equipment capacity (kVA) *2		VLD	105.2	133.4	159.7	193.2	228.6	286.7
			LD	95.3	122.5	145.2	176.9	208.7	263.1
			ND	82.6	101.6	136.1	163.3	196.9	235.9
Carrier frequency range *3			VLD	0.5 to 10.0 kHz		0.5 to 8.0 kHz
			LD	0.5 to 12.0 kHz		0.5 to 8.0 kHz
			ND	0.5 to 16.0 kHz		0.5 to 10.0 kHz
Motor start torque *4				200%/0.3 Hz		180%/0.3 Hz
Braking	Regenerative braking			Regenerative braking unit separately installed
Braking	Minimum resistance that can be connected (Ω)			10	10	---	---	---	---
Dimen- sion	Height (mm)			550	550	700	700	740	740
	Width (mm)			390	390	390	390	480	480
	Depth (mm)			250	250	270	270	270	270
Protective construction				IP20 *5 / UL open type		IP00 / UL open type
Approximate mass (kg)				31	31	41	41	53	53

Function Specifications

Inverter 3G3RX2

Item			Specifications
Control mode (output to the motor)			Sine wave PWM control voltage output (line sine wave modulation)
Output frequency range *1			0.00 to 590.00 Hz
Frequency accuracy			Digital command ±0.01% and analog command ±0.2% (25°C±10°C) against the maximum frequency
Frequency resolution			Digital setting: 0.01 Hz Analog setting: maximum frequency/4000 (Ai1 terminal/Ai2 terminal: 12 bit/0 to +10 V or 0 to +20 mA, Ai3 terminal 12 bit/ -10 to +10 V)
Control mode (frequency/voltage calculation) *2			IM	V/f control (fixed torque/reduced torque/free), automatic boost control, cascade model sensorless vector control, 0 Hz range sensorless vector control, vector control with sensor.
Control mode (frequency/voltage calculation) *2			SM/PMM	Synchronous starting sensorless vector control, IVMS starting smart sensorless vector control
Speed fluctuation *3			±0.5% (during sensorless vector control)
Acceleration or deceleration time			0.00 to 3600.00 sec (linear, S-shaped, U-shaped, reverse U-shaped, EL-S shaped)
Display monitor			Output frequency, output current, output torque, trip history, I/O terminal status, I/O power *4, P-N voltage.
Starting functions			Start after DC braking, frequency collection start, frequency entrainment start, reduced voltage start, retry start
Stopping functions			Free-run stop, DC braking after deceleration stop or terminal DC braking (braking power, operating speed adjustment)
Stall prevention function			Overload restraining function, overcurrent suppression function, overvoltage suppression function
Protective function *5			Overcurrent error, Motor overload error, Braking resister Overload error, Overvoltage error, Memory error, Undervoltage error, Current detector error, CPU error, External trip error, USP error, Ground fault error, Incoming over voltage error, Instantaneous power failure error, Temperature detector error, Cooling fan rotation speed reduction temperature error, Temperature error, Input open-phase error, IGBT error, Output open-phase error, Thermistor error, Brake error, Low- speed range overload error, Controller overload error, RS485 communication error, Operator keypad disconnection error.
Other functions			V/f free settings (7 points), Upper/lower limit frequency limiter, Frequency jump, Curve acceleration/deceleration, Manual torque boost, Energy-saving operation, Analog output adjustment function, Minimum frequency, Carrier frequency adjustment, Motor electronic thermal function (free setting is also possible), Inverter electronic thermal function, External start/end (volume/ratio), Frequency input selection, Trip retry, Restart after instantaneous stop, Output of signals, Initialization settings, PID control, Automatic deceleration at power shut-off, Brake control function, and Auto-tuning for commercial switching function (online/offline).
Input	Fre- quency setting	Standard operator keypad	Parameter setting using arrow keys
		External signals *6	Ai1/Ai2 terminal (when changing voltage)	Setting through input of 0 to 10 VDC voltage (input impedance: 10 kΩ)
			Ai1/Ai2 terminal (when changing current)	Setting through input of 0 to 20 mA current (input impedance: 100 Ω)
			Ai3 terminal	Setting through input of -10 to +10 V voltage (input impedance: 10 kΩ)
			Multistage speed terminal (use of input terminal function)	15 speed
			Pulse string input (A/B terminal, use of input terminal function)	32 kHz × 2 at maximum
		External port	Setting via RS485 serial communication (protocol: Modbus-RTU)
	Normal rotation/ reverse rotation Run/stop	Standard operator keypad	Execution with the RUN /STOP key (normal rotation/reverse rotation can be switched by setting parameters)
		External signals	Normal rotation operation (FW)/reverse rotation (RV) (when an input terminal function is assigned) 3-wire input available (when an input terminal function is assigned)
		External port	Setting via RS485 serial communication (protocol: Modbus-RTU (maximum: 115.2 kbps)
	Input terminal function		11 terminals (input of pulse string is available on terminal A and B)
	Input terminal function		FW (Normal rotation)/RV (Reverse rotation), CF1-4 (Multistage speed 1-4), SF1-7 (Multistage speed bit 1-7), ADD (Addition of frequency), SCHG (Switching of frequency command), STA (3-wire start)/STP (3-wire stop)/F_R (3-wire normal/ reverse), AHD (Retention of analog command), FUP (Increase of speed via remote operation/FDN (Deceleration via remote operation), UDC (Deletion of data via remote operation), F-OP (Forced command switching), SET (Second control), RS (Reset), JG (Jogging), DB (External current braking), 2CH (2-stage acceleration/deceleration), FRS (Free-run stop), EXT (External abnormality), USP (Prevention of restart after restoration of power), CS (Commercial switching), SFT (Soft-lock), BOK (Brake check), OLR (Overload restriction switching), KHC (Clearance of integrated input power), OKHC (Clearance of integrated output power), PID (PID1 disabled), PIDC (PID1 integration reset), PID2 (PID2 disabled), PIDC2 (PID2 integration reset), SVC1-4 (PID1 multistage target values 1-4), PRO (PID gain switching), PIO (PID output switching), SLEP (SLEEP condition satisfied)/WAKE (WAKE condition satisfied), TL (Torque restriction enabled), TRQ1, 2 (Switching of torque limit 1, 2), PPI (Switching of P/PI control), CAS (Switching of control gain), FOC (Preparatory excitation), ATR (Torque control enabled), TBS (Torque bias enabled), LAC (Cancellation of acceleration/ deceleration), Mi1-11 (General-purpose input 1-11), PCC (Clearance of pulse counter), ECOM (Start of EzCOM), PRG (Program run), HLD (Acceleration/ deceleration stop), REN (Operation permission signal), PLA (Pulse string input A), and PLB (Pulse string input B)
	Backup power supply terminal		P+/P-: DC24V input (allowable input voltage: 24 V±10%)
	STO input terminal		2 terminals (simultaneous input)
	Thermistor input terminal		1 terminal (possible to switch between positive temperature coefficient/negative temperature coefficient resistance element)
Output	Output terminal function		Transistor output 5 terminal, 1a contact relay 1 point, 1c contact relay 1 point
	Output terminal function		RUN (During operation), FA1-5 (Reached signal), IRDY (Operation ready completion), FWR (During normal rotation operation), RVR (During reverse rotation operation), FREF (Frequency command operator keypad), REF (Operation command operator keypad), SETM (Second control under selection), AL (Alarm signal), MJA (Severe failure signal), OTQ (Over torque) *7, IP (During instantaneous power failure), UV (Under insufficient voltage), TRQ (During torque limitation), IPS (During power failure deceleration), RNT (RUN time over), ONT (Power on time over), THM (Electronic thermal warning), THC (Electronic thermal warning), WAC (Capacitor life advance notice), WAF (Fan life advance notice), FR (Operation command signal), OHF (Cooling fin heating advance notice), LOC/ LOC2 (Low-current signal), OL/OL2 (Overload advance notice), BRK (Brake release), BER (Brake abnormality), ZS (Zero-speed detection signal), OD/OD2 (PID deviation excessive), FBV/FBV2 (PID feedback comparison), NDc (Communication disconnection), Ai1Dc/Ai2Dc/Ai3Dc (Analog disconnection Ai1/ Ai2/Ai3), WCAi1/WCAi2/WCAi3 (Window comparator Ai1/Ai2/Ai3), LOG1-7 (Logical operation result 1-7), MO1-7 (General output 1-7), and OVS (Receiving overvoltage).
	Relay and alarm relay (16, AL)
	EDM output terminal		Output for STO diagnosis
	Monitor output terminal *8		Possible to output through selection from monitor data of parameters
EMC filter switching *9			Possible to enable the EMC noise filter (switching method is different depending on the model)
External access to PC			USB Micro-B
Use environ- ment	Ambient temperature *10		ND (normal duty)	-10 to 50°C
			LD (low duty)	-10 to 45°C
			VLD (very low duty)	-10 to 40°C
	Storage temperature *11		-20 to 65°C
	Humidity		20-90%RH (location free of condensation)
	Vibration *12		5.9 m/s² (0.6 G) 10 to 55 Hz: 3G3RX2-A2004 to A2220 / 3G3RX2-A4007 to A4220 2.94 m/s² (0.3 G) 10 to 55 Hz: 3G3RX2-A2300 to A2550 / 3G3RX2-A4300 to A413K
	Use location *13		1000 m altitude or lower (location free from corrosive gas, oil mist, and dust)
Expected Life time			Smoothing capacitor 10 years
			Designed life of cooling fan 10 years (models equipped with a cooling fan) free from dust
			Memory element on the control circuit board
Applicable standards *14			Compliance with UL/cUL/CE standards, RCM, Functional Safety SIL3/PLe
Painting color			Black
Operating, display			LCD Operator *15
Number of option slots			3 ports
Other options			Braking resistor, AC reactor, DC reactor, noise filter

*1. The output frequency range depend on the control and motor used. When running the inverter exceeding 60 Hz, check
the maximum allowable frequency with the manufacturer of the motor.
*2. When the control mode is changed, unless the motor constant is appropriately configured, you cannot obtain the desired
starting torque or the inverter may trip.
*3. The variable range of motor speed may vary depending on your system or the environment where the motor is used.
Please contact us for details.
*4. Both the input power and output power are reference values, which are not appropriate for use in calculation of efficiency
values, etc. To obtain an accurate value, use an external device.
*5. The IGBT error [E030] is generated by the protective function not only for short circuit protection but also when IGBT is
damaged. Depending on the operating conditions of the inverter, the overcurrent error [E001] may occur, instead of the
IGBT error.
*6. At the factory default setting, when voltage and current on Ai1/Ai2 terminal is changed using a switch, with input of
voltage at 9.8 V and current at 19.8 mA, the maximum frequency is commanded. To change characteristics, make
adjustments using the analog start/end function.
*7. The threshold for signal output varies depending on the motor to be combined with the inverter, parameter adjustment,
etc.
*8. The output data of analog voltage monitor and analog current monitor are reference values for connecting an analog
meter. Due to the meter to be connected and variation in analog output circuit, the maximum output value may slightly
vary from 10 V or 20 mA. To change characteristics, make adjustments using the Ao1 adjustment and Ao2 adjustment
functions. Some monitor data cannot be output.
*9. To enable the EMC filter, connect with a power supply grounded at a neutral point. Otherwise, the leakage current may
increase.
*10. Use the 400 V class inverter at an input voltage of 500 VAC or below. If input voltage exceeds 500 VAC due to
fluctuation of power, use the inverter at 40°C or lower ambient temperature.
*11. The storage temperature is the temperature during transport.
*12. To be in accordance with the testing method specified in JIS C 60068-2-6: 2010 (IEC 60068-2-6:2007)
*13. When the inverter is used in a location at 1000 m or higher altitude, air pressure reduces approximately 1% every 100
m elevation. Perform 1% current der- ating and conduct evaluation for every 100 m elevation.
*14. For insulation distance, comply with UL and CE standards
*15. When a clock function is used, the optional battery (CR2032, 3 V) is required. When you purchase, this LCD operator
does not come with the battery.

Dimensions | Motion Drive Inverter - 3G3RX2

Inverter 3G3RX2

3G3RX2-A2004
3G3RX2-A2007
3G3RX2-A2015
3G3RX2-A2022
3G3RX2-A2037
3G3RX2-A4007
3G3RX2-A4015
3G3RX2-A4022
3G3RX2-A4037

3G3RX2-A2055
3G3RX2-A2075
3G3RX2-A2110
3G3RX2-A4055
3G3RX2-A4075
3G3RX2-A4110

3G3RX2-A2150
3G3RX2-A2185
3G3RX2-A2220
3G3RX2-A4150
3G3RX2-A4185
3G3RX2-A4220

3G3RX2-A2300
3G3RX2-A4300

3G3RX2-A2370
3G3RX2-A2450
3G3RX2-A4370
3G3RX2-A4450
3G3RX2-A4550

3G3RX2-A2550

3G3RX2-B4750
3G3RX2-B4900

3G3RX2-B411K
3G3RX2-B413K

Features | Motion Drive Inverter - 3G3RX2

This highperformance inverter offer the same usability as the previous model, which allows easy replacement

Built-in EMC Filter
Easy setup and operation via LCD operator
Support simple sequence control programing without PLC
Double rating is upgraded to triple rating
The PM motor conforming to high-efficiency regulations can be controlled

Properties | Motion Drive Inverter - 3G3RX2

Inverter	3G3RX2
3-phase 400 V	Output 0.75-160 kW
Speed synchronization
Positioning functionality
input	Frequency settings
	RUN/STOP command
	Multi-function input
	Analog input
	Pulse input
	Vector control with/without sensor
Output	Multi-function output
	Relay output
	Analog output (Frequency monitor)

Motion Drive Inverter - 3G3RX2

ดาวน์โหลดไฟล์ PDF

คุณสมบัติ | Motion Drive Inverter - 3G3RX2

อินเวอร์เตอร์อเนกประสงค์คุณภาพสูงง่ายในติดตั้งและเปลี่ยนแปลง

มี EMC Filter ติดตั้งมาแล้ว
ตั้งค่าและเข้าถึงได้ง่ายผ่านจอ LCD
รองรับการเขียนโปรแกรมควบคุมลำดับโดยไม่ต้องใช้ PLC
มีช่วงกำลังมอเตอร์ให้เลือกควบคุมถึง 3 เท่า
รองรับการควบคุมแม่เหล็กถาวร

ข้อมูลจำเพาะ | Motion Drive Inverter - 3G3RX2

Inverter	3G3RX2
3 เฟรส 400 โวลต์	เอาต์พุต 0.75-160 กิโลวัตต์
รองรับโหมดความคุมความเร็ว
รอบรับโหมดการควบแบบเวคเตอร์โดยใช้และไม่ใช้เซนเซอร์
รูปแบบสัญญาณอินพุต	การตั้งค่าความถี่
	คำสั่งหมุนทวนเข็ม / ตามเข็ม
	คำสั่ง Start / Stop
	มัลติฟังก์ชันอินพุต
	เทอร์มิสเตอร์อินพุต
	อินพุตจำลอง
รูปแบบสัญญาณเอาต์พุต	มัลติฟังก์ชันเอาต์พุต
	รีเลย์เอาต์พุต
	มอนิเตอร์เอาต์พุต
