OMRON Power Supplies - S8VK-C

Model Numbers | Power Supplies - S8VK-C

Model Number Structure

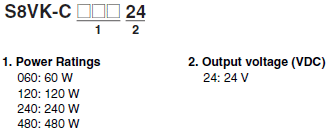

Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.

---

Ordering Information

Note: For details on normal stock models, contact your nearest OMRON representative.

Power ratings	Input voltage	Output Voltage (VDC)	Output current *1	Model number
60 W	Single phase 100 to 240 VAC 90 to 350 VDC	24 V	2.5 A	S8VK-C06024
120 W		24 V	5 A	S8VK-C12024
240 W		24 V	10 A	S8VK-C24024
480 W		24 V	20 A	S8VK-C48024

*1. For rated output current of DC input, refer to Derating Curve on Data Sheet.

---

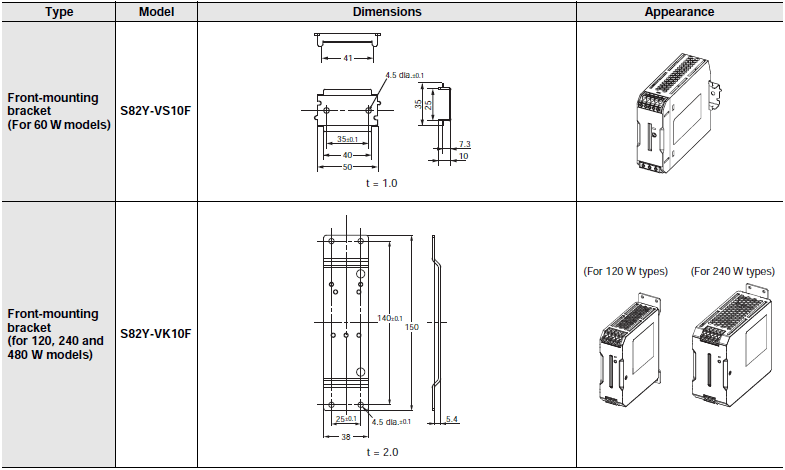

Mounting Brackets

Name	Model
Front-mounting bracket (for 60 W models)	S82Y-VS10F
Front-mounting bracket (for 120, 240 and 480 W models)	S82Y-VK10F
Side-mounting bracket (for 60 W models)	S82Y-VS10S
Side-mounting bracket (for 120 W models)	S82Y-VK10S
Side-mounting bracket (for 240 W models)	S82Y-VK20S

Specifications | Power Supplies - S8VK-C

Ratings, Characteristics, and Functions

Power ratings			60 W	120 W	240 W	480 W
Output voltage (VDC)			24 V	24 V	24 V	24 V
Efficiency (Typical)		230 VAC input	0.88	0.88	0.87	0.91
Input	Voltage *1		100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
	Frequency *1		50/60 Hz (47 to 450 Hz)		50/60 Hz (47 to 63 Hz)
	Current (Typical)	115 VAC input	1.0 A	2.2 A	2.5 A	4.8 A
		230 VAC input	0.7 A	1.4 A	1.3 A	2.4 A
	Power factor (Typical)	230 VAC input	0.44	0.45	0.92	0.97
	Harmonic current emissions		---		Conforms to EN61000-3-2
	Leakage current (Typical)	115 VAC input	0.19 mA	0.19 mA	0.24 mA	0.26 mA
		230 VAC input	0.34 mA	0.36 mA	0.54 mA	0.65 mA
	Inrush current (Typical) *2	115 VAC input	16 A
		230 VAC input	32 A
Output	Voltage adjustment range *3		-10% to 15% (with V.ADJ) (guaranteed)
	Ripple at 20 MHz (Typical) *4	230 VAC input	70 mV	120 mV	150 mV	130 mV
	Input variation influence		0.5% max. (at 85 to 264 VAC input, 100% load)
	Load variation Influence (Rated Input voltage)		1.5% max., at 0% to 100% load
	Temperature variation influence		0.05%/°C max.
	Start up time (Typical) *2	115 VAC input	530 ms	800 ms	790 ms	770 ms
		230 VAC input	410 ms	760 ms	750 ms	670 ms
	Hold time (Typical) *2	115 VAC input	24 ms	27 ms	34 ms	21 ms
		230 VAC input	117 ms	128 ms	36 ms	22 ms
Additional functions	Overload protection *2		105% to 160% of rated load current
	Overvoltage protection *2		Yes *5
	Parallel operation		No
	Series operation		Possible for up to two Power Supplies (with external diode)
Others	Ambient operating temperature		-25 to 60°C (Refer to Engineering Data)
	Storage temperature		-25 to 65°C
	Ambient operating humidity		20% to 90% (Storage humidity: 10% to 95%)
	Dielectric strength (detection current: 20 mA)		3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal)
	Insulation resistance		100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
			10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W, 120W, 240 W, 3 G max for 480 W) for 80 min. each in X, Y, and Z directions
	Shock resistance		150 m/s2, 3 times each in ±X, ±Y, and ±Z directions
	Output indicatior		Yes (color: green), lighting from 80% to 90% or more of rated voltage
	EMI	Conducted Emission	Conforms to EN61204-3 EN55011 Class A and based on FCC Class A
		Radiated Emission	Conforms to EN61204-3 EN55011 Class A
	EMS		Conforms to EN61204-3 high severity levels
	Approved Standards		UL Listed: UL508 (Listing) UL UR: UL No. 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.62368-1 EN/VDE: EN62477-1, EN62368-1
	Fulfilled Standards		SELV (EN 62368-1/EN 62477-1/UL No. 62368-1)
	Degree of protection		IP20 by EN/IEC60529
	SEMI		F47-0706 (200 to 240 VAC)
	Weight		260 g	580 g	940 g	1,550 g

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the
　　rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment
　　range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that
　　the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 60°C.
*5. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*6. Safety Standard for a DC Input
　　 The following safety standards apply to a DC input: UL No. 62368-1, cUR (CSA C22.2 No.62368-1), EN 62477-1, EN62368-1.
　　 For a DC input, safety is ensured by external fuse.
　　 Select an external fuse the meets the following conditions.
　　 S8VK-C06024: 350 VDC min, 6A
　　 S8VK-C12024: 350 VDC min, 8A
　　 S8VK-C24024: 350 VDC min, 8A
　　 S8VK-C48024: 350 VDC min, 12A

Dimensions | Power Supplies - S8VK-C

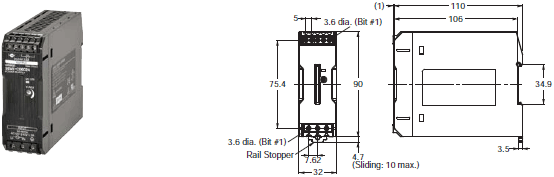

S8VK-C06024 (60 W)

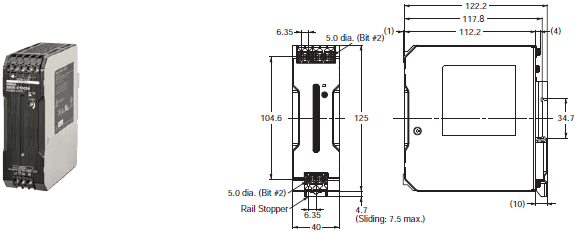

S8VK-C12024 (120 W)

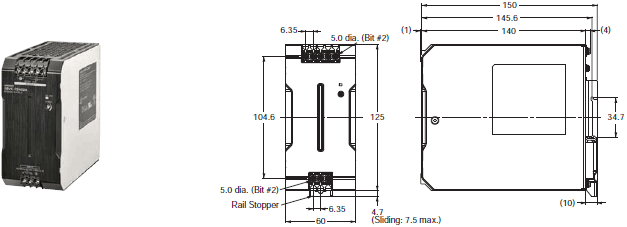

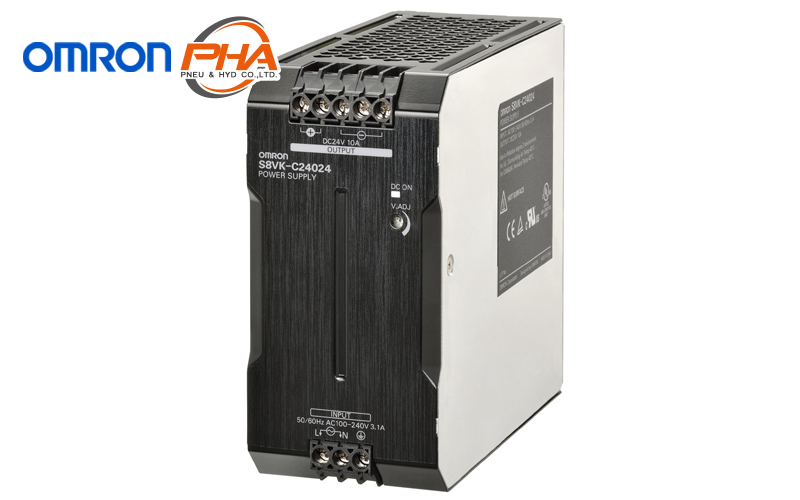

S8VK-C24024 (240 W)

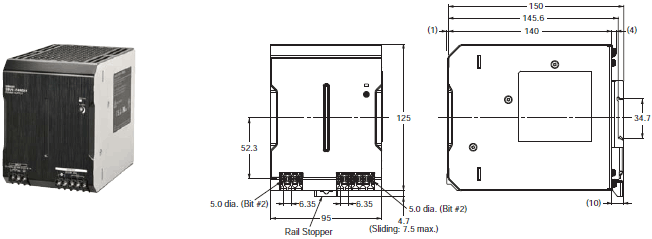

S8VK-C48024 (480 W)

DIN Rail (Order Separately)

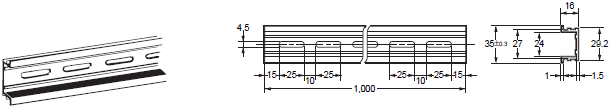

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)
PFP-100N2

End Plate
PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

---

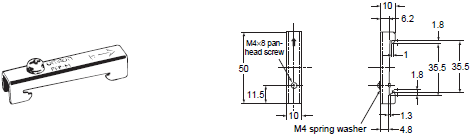

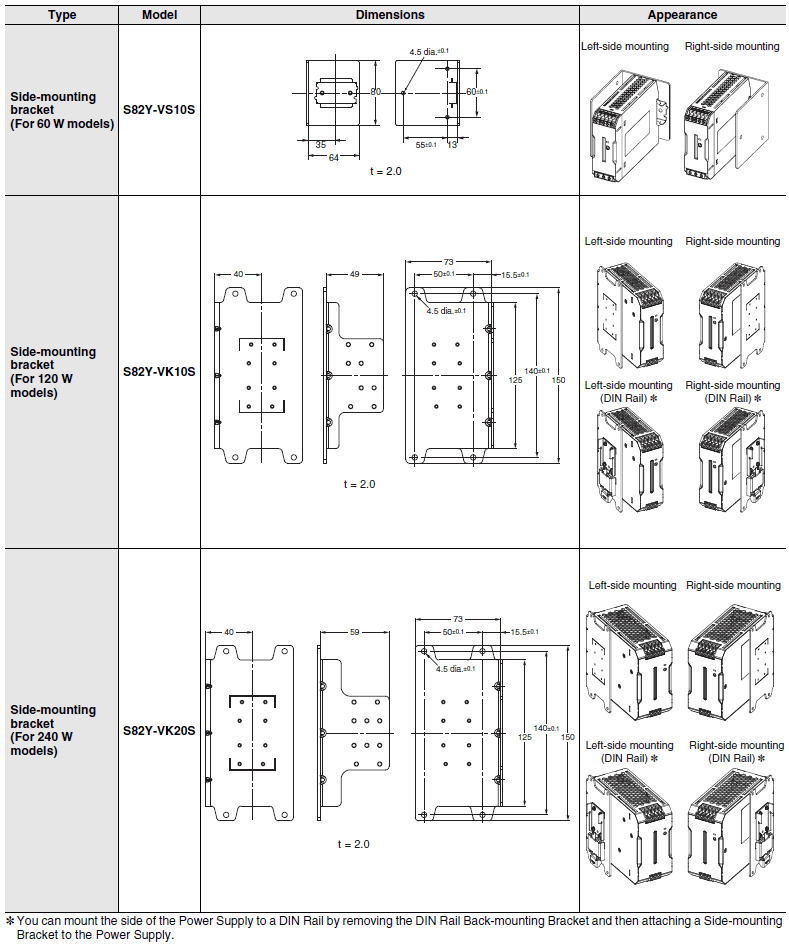

Mounting Brackets

Features | Power Supplies - S8VK-C

Cost-effective Single Phase Power Supply Universal input and Safety standards for worldwide applications Space-saving Compact Design

---

Properties | Power Supplies - S8VK-C

Power Supplies		S8VK-C
Power rating		60 - 480 W
Output		24 V
Input		100 - 240 VAC, 90 - 350 VDC
Frequency		50 – 60 Hz
Power factor		N/A
Rated output current		N/A
Dimensions (W x L x D) mm	60 W	32 x 90 x 110
	120 W	40 x 125 x 122.2
	240 W	60 x 125 x 150
	480 W	95 x 125 x 150
Weight		260g - 1,550g
