Model Numbers | Power Supplies - S8V-NF

Model Number Structure

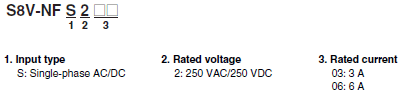

Model Number Legend

Note: Not all combinations are possible. Refer to List of Model number in Ordering Information, below.

---

Ordering Information

Note: For details on normal stock models, contact your nearest OMRON representative.

Rated voltage	Rated current	Model number
250 VAC 250 VDC	3 A	S8V-NFS203
	6 A	S8V-NFS206

Mounting Brackets

Name	Model number
Front-mounting bracket	S82Y-VS10F
Side-mounting bracket	S82Y-VS10S

Specifications | Power Supplies - S8V-NF

Ratings and Characteristics

Rated current		3 A	6 A
Rated voltage		Single-phase 250 VAC 50/60 Hz *1, 250 VDC
I/O characteristics	Leakage current	1.0 mA max. (250 VAC/60 Hz)
	DC resistance	110 MΩ max.
	Attenuation	25 dB min. (Common Mode: 0.1 to 10 MHz, Normal Mode: 0.2 to 30 MHz)
	Withstand voltage	2.5 kVAC for 1 min. (between line and ground), current cutoff 10 mA
	Insulation resistance	100 MΩ min. (500 VDC, 1 min.)
Environment	Ambient operating temperature	-40 to 85°C (Derating is required. Refer to Engineering Data) (with no condensation or icing)
	Derating start temperature	+85°C	+60°C
	Storage temperature	-40 to 85°C (with no condensation or icing)
	Ambient operating humidity	95% (Storage humidity: 95% max.)
	Vibration resistance	10 to 55 Hz, maximum 5 G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance	150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Construction	Weight	140 g max.
	Degree of protection	IP20 by EN/IEC 60529
Standards	Safety standards	UL 60939 (Recognition) OVC III (≤3000 m) Pol2 CSA C22.2 No.8 EN 60939 OVC III (≤3000 m) Pol2 ENEC *2 EAC (TR CU 004 / 2011)

*1. If the input is connected to a UPS, do not connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or damage.
*2. ENEC is a certification that makes product distribution to EU member countries, EFTA (European Free Trade Association) tmember countries, and Eastern European countries possible.

Dimensions | Power Supplies - S8V-NF

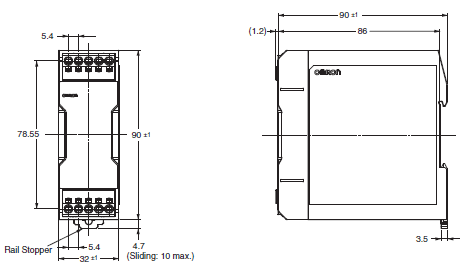

(Unit: mm)

S8V-NFS203
S8V-NFS206

Mounting Brackets

---

DIN Rails (Order Separately)

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

PFP-100N2

End Plate

PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

Features | Power Supplies - S8V-NF

DIN Rail Mounting Type Ideal for Control Panels Featuring a Slim Design that Saves Space Push-In Connections for Safe and Easy Wiring

---

Properties | Power Supplies - S8V-NF

Power Supplies	S8V-NF
Output	24V
Input	Single-phase 250 VAC
Attenuation	25 dB min
DC resistance	110 MΩ max
Withstand voltage	2.5 kVAC for 1 min
Rated current	3A to 6A
Dimensions (W x L x H) mm	32 x 90 x 90 (3-6A)
Weight	140 g
