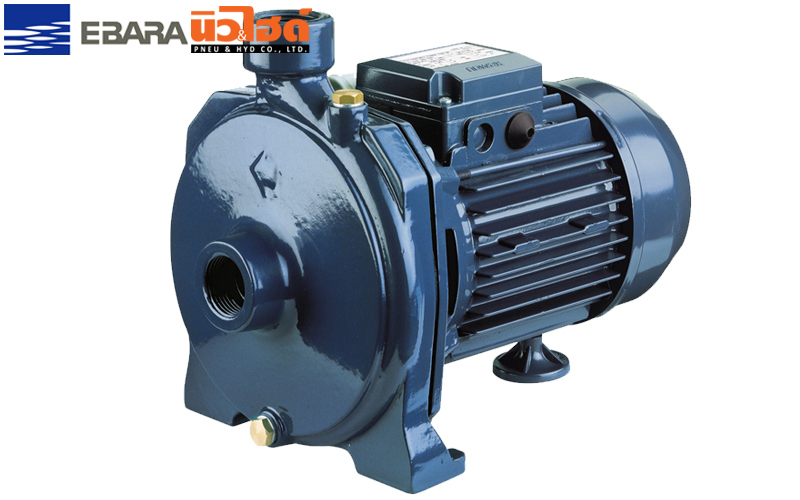

EBARA Water Pump - CM (A-B-C-D) Centrifugal

Water Pump - CM (A-B-C-D) Centrifugal

ดาวน์โหลดไฟล์ PDF

Feature | Water Pump - CM (A-B-C-D) Centrifugal

ปั๊มหอยโข่งใบพัดเดี่ยวผลิตเหล็กหล่อเหมาะสำหรับการเพิ่มแรงดันของน้ำเพื่อการชลประทาน และของเหลวที่ไม่มีการกัดกร่อนรุนแรงสำหรับการใช้งานทั่วไปและในอุตสาหกรรม ซีรีส์ CMR ติดตั้งใบพัดแบบเปิดสำหรับการจัดการสารแขวนลอย

---

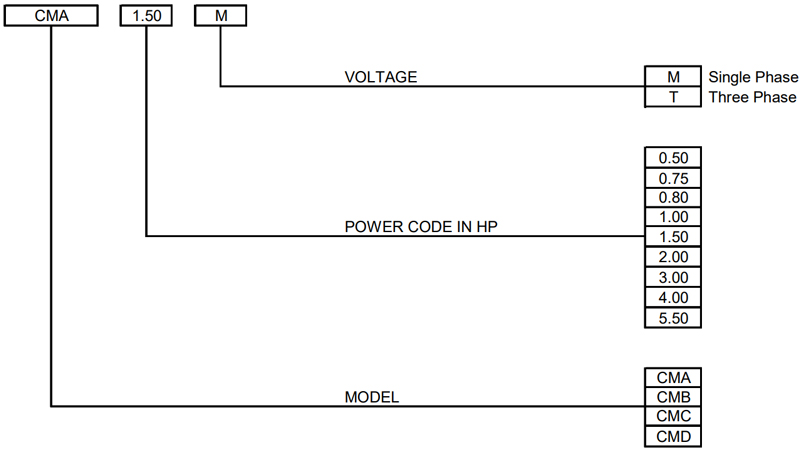

Code Type | Water Pump - CM (A-B-C-D) Centrifugal

---

Specifications | Water Pump - CM (A-B-C-D) Centrifugal

PUMP
Liquid Handled	Type of liquid	Clean water
	Max temperature [°C]	min. -5 max. +40 (CMA up to 1.00) max. +90 (the other)
Maximum working pressure [MPa]		0.6 (CMA up to 1.00; CMB up to 3.00; CMC; CMD) 0.8 (the other)
Construction	Impeller	Closed centrifugal
	Shaft seal type	Mechanical seal
	Bearing	Sealed ball bearing
Pipe Connection	Suction [inch]	G 1" (CMA up to 1.00) UNI ISO 228 G 1"1/4 (CMA 1.50 and above) UNI ISO 228 G 2" (CMB - CMC) UNI ISO 228 G 2"1/2 (CMD) UNI ISO 228
	Discharge [inch]	G 1" (CMA) UNI ISO 228 G 1"1/4 (CMB) UNI ISO 228 G 2" (CMC) UNI ISO 228 G 2"1/2 (CMD) UNI ISO 228
Material	Casing	Cast iron
	Impeller	PPE+PS glass fibre reinforced - Brass - Cast iron see application page 301-303
	Shaft seal	Ceramic / Carbon / NBR
	Shaft	AISI 416 (integral) AISI 303 (wet extension) AISI 304 (wet extension) see application page 301 - 303
	Bracket	Cast iron - Aluminium see application page 301 - 303
	Casing cover	AISI 304 see applicatino page 301 - 303
Applicable standard of test		ISO 9906:2012 - Grade 3B

MOTOR
Type		Electric - TEFC
		Single Phase	Three Phase
Efficiency level (Reg. 640/2009)		-	- from 0.37 up to 0.6 kW IE2 from 0.75 up to 4.0 kW IE3 from 0.75 up to 4.0 kW
No. of Poles		2
Rotation Speed	[min-1]	~ 2800
Insulation Class		F
Protection degree (CEI EN 60034-5)		IP 44
Power rating	[kW]	0.37 ÷ 1.5	3.7 ÷ 4
	[HP]	0.5 ÷ 2	0.5 ÷ 5.5
Frequency	[Hz]	50
Voltage	[V]	230 ±10%	230/400 ±10%
Capacitor		Built in	-
Over load protection		Built in	Provided by the user
Casing material		Aluminium
Base material / motor support		Aluminium / Cast in / Plastic foot
Dimensions of cable entry		PG11 - P13.5 - M16x1.5 - M20x1.5 (see diamensions table page 401)

---

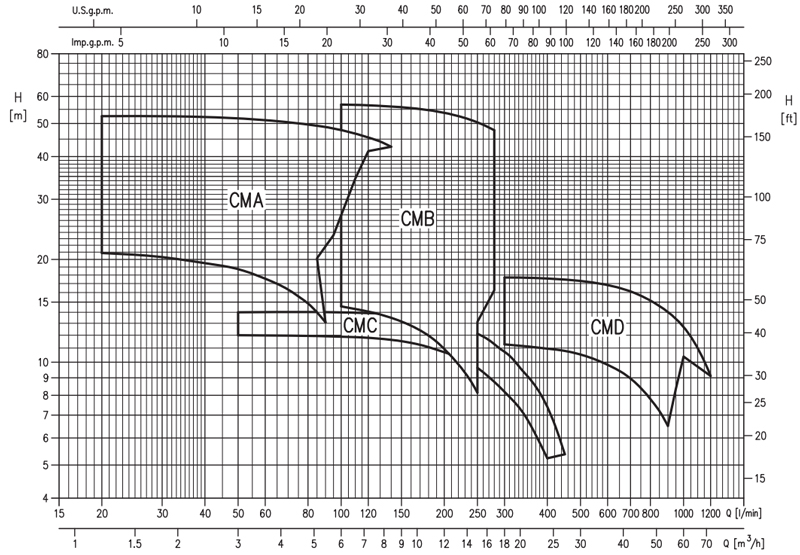

Section Chart | Water Pump - CM (A-B-C-D) Centrifugal

CMA
Type Pumps		Power		Q=Capacity H = Total manometric head in meters
Single Phase	Three Phase	[kW]	[HP]	l/min	0	20	40	60	80	85	90	95	110	120	140
				m3/h	0	1.2	2.4	3.6	4.8	5.1	5.4	5.7	6.6	7.2	8.4
CMA 0.50 M	CMA 0.50 T	0.37	0.5	Unit	21.7	20.9	19.5	17.6	14.9	14.0	13.1	-	-	-	-
CMA 0.75 M	CMA 0.75 T	0.55	0.75		31.6	29.7	27.8	24.9	21.1	20.2	-	-	-	-	-
CMA 1.00 M	CMA 1.00 T	0.75	1		33.6	33.0	31.9	29.9	26.6	25.6	24.6	23.5	-	-	-
CMA 1.50 M	CMA 1.50 T	1.1	1.5		39.8	39.5	39.0	38.3	37.0	36.5	36.1	35.6	34.5	-	-
CMA 2.00 M	CMA 2.00 T	1.5	2		48	47.5	47	46	45	45	44.5	44	43	42	-
-	CMA 3.00 T	2.2	3		53.5	53	52.5	51	49.5	49	49	48.5	46.5	45.5	42.5

CMB
Type Pumps		Power		Q=Capacity H = Total manometric head in meters
Single Phase	Three Phase	[kW]	[HP]	l/min	0	100	150	200	250	280
				m3/h	0	6.0	9.0	12.0	15.1	16.9
CMB 0.75 M	CMB 0.75 T	0.55	0.75	Unit	14.9	14.6	13.2	10.9	8.1	-
CMB 1.00 M	CMB 1.00 T	0.75	1		18.7	18.6	17.5	15.7	13.1	-
CMB 1.50 M	CMB 1.50 T	1.1	1.5		22.4	22.5	21.6	20	17.8	16.2
CMB 2.00 M	CMB 2.00 T	1.5	2		30.6	30.8	29.7	28.0	25.4	23.6
-	CMB 3.00 T	2.2	3		35.3	35.4	34.4	32.7	30.2	28.5
-	CMB 4.00 T	3	4		46.5	45.5	44	42	37.8	36.2
-	CMB 5.50 T	4	5.5		57	57	56	53.5	50.5	48

CMC
Type Pumps		Power		Q=Capacity H = Total manometric head in meters
Single Phase	Three Phase	[kW]	[HP]	l/min	0	50	100	200	300	400	450
				m3/h	0	3.0	6.0	12.0	18.1	24.1	27.1
CMC 0.75 M	CMC 0.75 T	0.55	0.75	Unit	12	12	11.9	10.7	8.3	5.2	-
CMC 1.00 M	CMC 1.00 T	0.75	1		14	14	14	13.1	10.8	7.4	5.4

CMD
Type Pumps		Power		Q=Capacity H = Total manometric head in meters
Single Phase	Three Phase	[kW]	[HP]	l/min	0	300	400	600	800	900	950	1000
				m3/h	0	18.1	24.1	36.1	48.2	54.2	57.2	60.2
CMD 1.50 M	CMD 1.50 T	1.1	1.5	Unit	11.5	11.3	11	9.8	7.8	6.5	-	-
CMD 2.00 M	CMD 2.00 T	1.5	2		13.2	13.1	12.9	12	10.2	9	8.4	-
-	CMD 3.00 T	2.2	3		15.9	16.1	15.8	15	13.1	11.9	11.2	10.4
