EBARA Water Pump - CDA Centrifugal

Water Pump - CDA Centrifugal

ดาวน์โหลดไฟล์ PDF

Feature | Water Pump - CDA Centrifugal

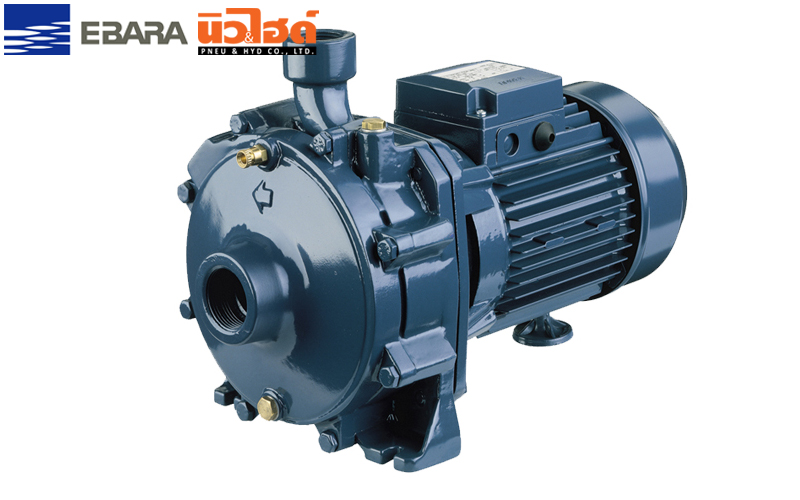

ปั๊มหอยโข่งใบพัดคู่พร้อมชิ้นส่วนไฮดรอลิกที่ผลิตจากเหล็กหล่อเหมาะสำหรับงานชลประทานและของเหลวที่ไม่รุนแรงสำหรับการใช้งานทั่วไปและในอุตสาหกรรม

---

Code Type | Water Pump - CDA Centrifugal

---

Specifications | Water Pump - CDA Centrifugal

PUMP
Liquid Handled	Type of liquid	Clean water
	Max temperature [°C]	min. -5 max. +40 (CDA 0.75 - 1.00) max. +90 (the other)
Maximum working pressure [MPa]		0.6 (CDA 0.75 - 1.00) 1.0 (CDA 1.50 - 2.00 - 3.00 - 4.00 - 5.50)
Construction	Impeller	Twin closed type
	Shaft seal type	Mechanical seal
	Bearing	Sealed ball bearing
Pipe Connection	Suction	G 1" (CDA 0.75 - 1.00) UNI ISO 228 G 1"1/4 (CDA 1.50 - 2.00 - 3.00) UNI ISO 228 G 1"1/2 (CDA 4.00 - 5.00) UNI ISO 228
	Discharge	G 1" (CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00) UNI ISO 228 G 1"1/4 (CDA 4.00 - 5.50) UNI ISO 228
Material	Casing	Cast iron
	Impeller	PPE+PS glass fibre reinforced (CDA 0.75 - 1.00) Brass (CDA 1.50 - 2.00 - 3.00 - 4.00 - 5.50)
	Casing vocer	AISI 304 (CDA 0.75 - 1.00) Cast iron built-in the motor bracket (CDA 2.00 - 3.00 - 4.00 - 5.50)
	Shaft seal	Ceramic / Carbon / NBR
	Shaft	AISI 303 (CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00) AISI 304 (CDA 4.00 - 5.50)
	Bracket	Aluminium (CDA 0.75 - 1.00) Cast iron (CDA 1.50 - 2.00 - 3.00 - 4.00 - 5.50)
Applicable standard of test		ISO 9906:2012 - Grade 3B

MOTOR
Type		Electric - TEFC
		Single Phase	Three Phase
Efficiency level (Reg. 640/2009)		-	- only for 0.55 kW IE2 from 0.75 up to 4.0 kW IE3 from 0.75 up to 4.0 kW
No. of Poles		2
Rotation Speed	[min-1]	~ 2850
Insulation Class		F
Protection degree (CEI EN 60034-5)		IP 44
Power rating	[kW]	0.55 ÷ 1.5	0.55 ÷ 4
	[HP]	0.75 ÷ 2	0.75 ÷ 5.5
Frequency	[Hz]	50
Voltage	[V]	230 ±10%	230/400 ±10%
Capacitor		Built in	-
Over load protection		Built in	Provided by the user
Casing material		Aluminium
Base material / motor support		Cast iron / Plastic foot
Dimensions of cable entry		PG11 - P13.5 - G1/2 - M16x1.5 - M20x1.5 (see diamensions table page 400)

---

Section Chart | Water Pump - CDA Centrifugal

Type Pumps		Power		Q=Capacity H = Total manometric head in meters
Single Phase	Three Phase	[kW]	[HP]	l/min	0	20	40	50	80	90	100	110	140	170	190	210
				m3/h	0	1.2	2.4	3	4.8	5.4	6.6	6.6	8.4	10.2	11.4	12.6
CDA 0.75 M	CDA 0.75 T	0.55	0.75	Unit	35	33	30.2	27.9	17	-	-	-	-	-	-	-
CDA 1.00 M	CDA 1.00 T	0.75	1		41.5	39.5	37	35.2	27	21	-	-	-	-	-	-
CDA 1.50 M	CDA 1.50 T	1.1	1.5		52	50.8	48.8	47.1	38.4	33.4	27.5	-	-	-	-	-
CDA 2.00 M	CDA 2.00 T	1.5	2		62	60.5	58.6	56.9	49.8	46.5	40.3	32.5	-	-	-	-
-	CDA 3.00 T	2.2	3		64	-	60.5	59.3	54.1	51.6	48.4	44.6	32	-	-	-
-	CDA 4.00 T	3	4		70	-	-	67	64.8	63.9	62.5	62	58	53.5	48	-
-	CDA 5.50 T	4	5.5		80	-	-	76.5	73.9	72.9	71.8	70.5	66.8	62	58.3	54
