HIWIN Linear Bearing - JBL series

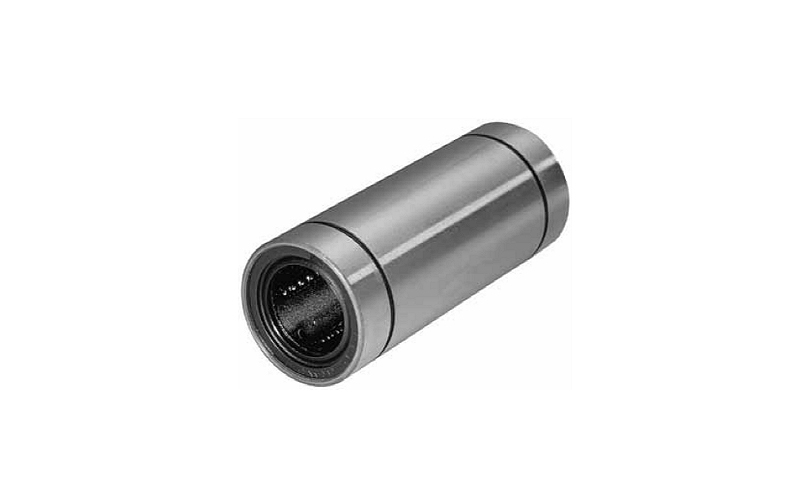

HIWIN linear bearings enable high precision linear motion on round shafts by utilizing recirculating ball pathways.
HIWIN Linear Bearing - JBL series
Feature | HIWIN Linear Bearing - JBL series
- The patented recirculation curve enables HIWIN’s linear bearing to sustain heavy loads with low noise and high stiffness.
- HIWIN’s diverse line of linear bearings perform under almost any conditions and load capacities to satisfy a wide range of applications.

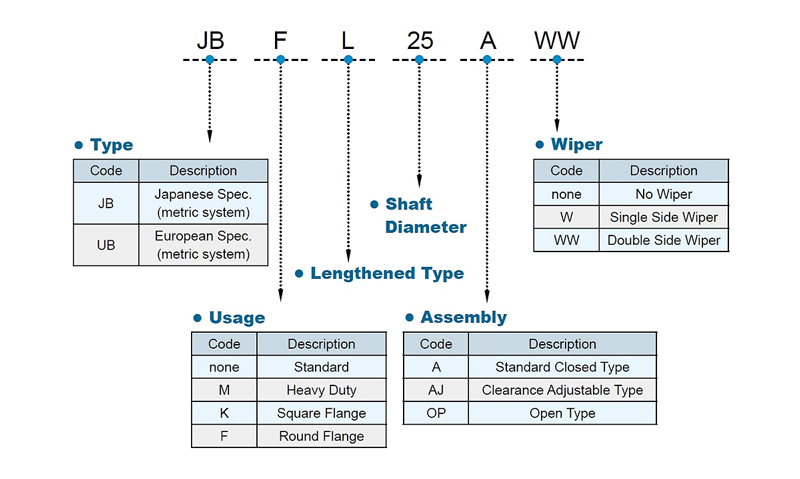

Code | HIWIN Linear Bearing - JBL series

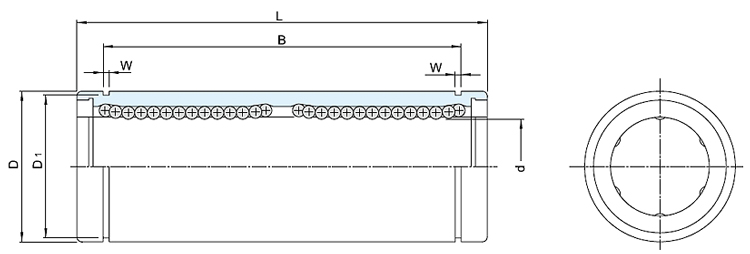

Specifications | HIWIN Linear Bearing - JBL series
| Shaft Diameter d mm | Model JBL Type | Major Dimensions and Tolerance | Load Capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | L | B | W mm | D1 mm | Basic Dynamic Load Rating C(N) | Basic static Load Rating Co(N) | ||||||
| mm | Tolerance µ m | mm | Tolerance µ m | mm | Tolerance µ m | mm | Tolerance µ m | ||||||
| 8 | JBL-08A | 8 | 0 -9 |
15 | 0 -11 |
45 | 0 -200 |
35 | 0 -200 |
1.1 | 14.3 | 441 | 804 |
| 10 | JBL-10A | 10 | 19 | 0 -13 |
55 | 44 | 1.3 | 18 | 608 | 1127 | |||
| 12 | JBL-12A | 12 | 21 | 57 | 46 | 1.3 | 20 | 823 | 1588 | ||||
| 16 | JBL-16A | 16 | 28 | 70 | 53 | 1.6 | 27 | 1245 | 2352 | ||||
| 20 | JBL-20A | 20 | 0 -10 |
32 | 0 -16 |
80 | 61 | 1.6 | 30.5 | 1401 | 2764 | ||
| 25 | JBL-25A | 25 | 40 | 112 | 0 -300 |
82 | 0 -300 |
1.85 | 38 | 1558 | 3136 | ||
| 30 | JBL-30A | 30 | 45 | 123 | 89 | 1.85 | 43 | 2450 | 5488 | ||||
| 35 | JBL-35A | 35 | 0 -12 |
52 | 0 -19 |
135 | 99 | 2.1 | 49 | 2646 | 6272 | ||
| 40 | JBL-40A | 40 | 60 | 151 | 121 | 2.1 | 57 | 3479 | 8232 | ||||
- Both Linear bearing with single side wiper (JBL.....W) and with double side wiper (JBL.....WW) are available.
- 1 Kgf=9.81 N=2.2046 Lbf
