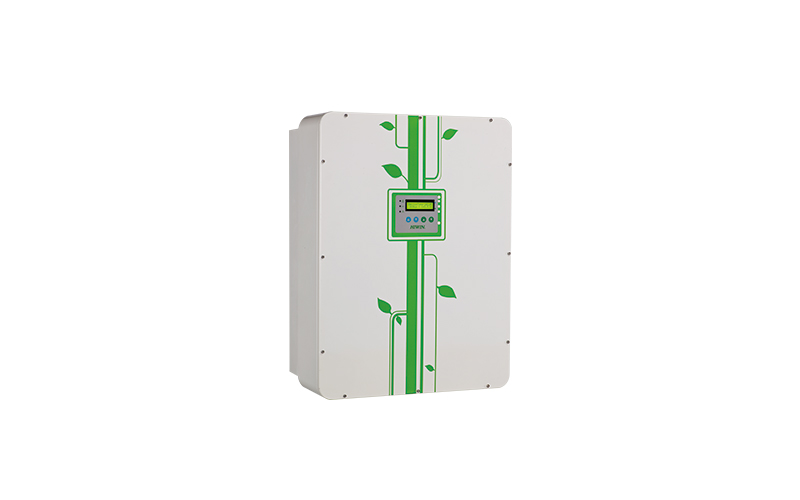

Hiwin Renewable Power Inverter - 2kW

HIWIN Mikrosystem Renewable Energy Converter adopts RS485 human-manchine interface, LCD status display and transformerless design. Not only with PFC function and wide voltage range, it also reduces generator noise, matches well with generator, and is easy for installation since no need to install with wind energy transformer.

Renewable Power Inverter - 2kW

ดาวน์โหลดไฟล์ PDF

Feature | Renewable Power Inverter - 2kW

• Transformer-less design
• Wide input voltage range and better compatible with generators
• High speed MPPT control, rapidly capture remewable energy
• With PFC function, reduce noice from the generator
• No adaptor box with the wind, and easier to install
• Maximum conversion efficiency of 95.2%
• THD<4%
• Automatically detectsgrid frequency 50/60 Hz
• LCD status display
• IP65 protection against dust and water
• HMI RS485 communication

---

Specifications | Renewable Power Inverter - 2kW

MODEL		HWI-200A-1
Input	Working voltage range	45 - 300 Vac / 65 - 450 Vdc
	Maximum input voltage	318 Vac / 450 Vdc
	Nominal input current	7 Aac / 8 Adc
	Maximum input current	10A
	Number of MPPT	1
	Standby power	< 10W
Output	Nominal output power	2000 W
	Maximum output power	2100 W
	Nominal output voltage	230 Vac
	Output voltage range	186 Vac - 264 Vac
	Nominal output current	8.7A
	Maximum output current	10 A
	Frequency	50/60 Hz
	Power factor	> 0.95
	Harmonic distortion	< 4% (nominal power)
	Output connector	Single-phase (L, N, G)
Maximum Efficiency		95.2%
Protection	Temperature	40°C
	Grid system	Voltage abnormal and frequency abnomal
	Islanding	Passive detection Active detection
Environment	Operating temperature range	-20°C to 55°C (-4°F to 131°F) (2kW rating apply at 40°C ambient temperature. At higher temperature (up to 55°C) the derating.)
	Altitude	0 - 2000m ; 0 - 6562ft
Mechanical information	Dimension (H x W x D)	459 x 339 x 179 mm
	Weight	15.5 kg
	Protection grade	IP65
	Cooling mode	Passive cooling
Other	Display	LCD, LED
	Communication	RS485
Authenticate	Certificate	VDE AR-N-4105 EN-50178 EN-61000-6-2 EN-61000-6-3

---

Grid-Connected Renewable Power Inverter
