Hiwin Shaft Motors - LMTC series

The HIWIN LMTC series: LMTC = Diameter of stator = 35mm, Peak = 395N - 1196N, Continuous = 99N - 299N

Linear Shaft Motors - LMTC series

The HIWIN rod-shaped linear motor has a variety of size series, with complete specifications, and easy installation. The maximum peak force for this motor is up to about 2570N. It complies with international safety CE certification, has dustproof and a waterprood IP66 rating. Using direct drive technology, on other mechanical conversion components arr needed to acieve linear tranmission, with high-speed, no cogging and low velocity ripple along with other characteristics including; excellent dynamic performance, no wear, zero backlash, and easy maintenance. Compared to traditional mechanical linear solutions, the motor effectively enhances machine equipment production capacity and reduces maintenance costs to meet the needs of high-precision positioning control and smooth operation applications such as high-speed light-load automation equipment, dust-free environment, automation equipment, panel equipment, optical inspection equipment, tool line cutting equipment, scanning electron microscope equipment, medical automation and other industries.

ดาวน์โหลดไฟล์ PDF

Feature | Shaft Motors - LMTC series

• Excellent dynamic characteristics : no cogging
• Low velocity ripple
• Max. Acceleration up to 5G
• CE certification
• Ingress Protection rating : IP66
• No wear, zero backlash
• Similar to screw mechanism, easy to install

---

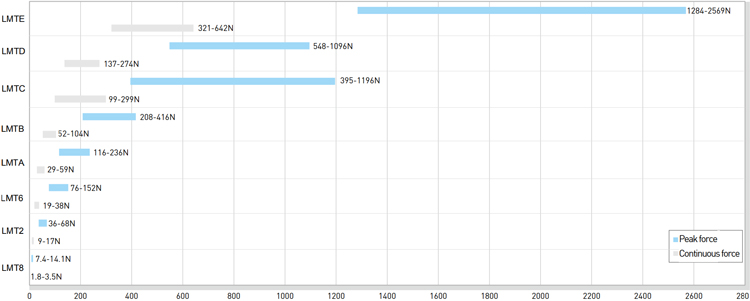

Force Chart | Shaft Motors - LMTC series

---

Code | Shaft Motors - LMTC series

---

Specifications | Shaft Motors - LMTC series

Detail	Symbol	Unit	LMTC2	LMTC3	LMTC4	LMTC5	LMTC6
Continuous force	Fc	N	99	151	200	250	299
Continuous current	Ic	Arms	2.6
Peak force (1s)	Fp	N	395	603	801	998	1196
Peak current (1s)	Ip	Arms	10.4
Force constant	Kf	N/Arms	38	58	77	96	115
Electrical time constant	Ke	ms	1.2
Resistance (line to line 25°C)	R25	Ω	6.2	9.3	12.4	14.5	17.4
Inductance (line to line)	L	mH	7.2	10.8	14.7	17.3	20.7
Pole pair pitch	2T	mm	120
Minimum beanding radius of cable	Rbend	mm	37.5
Back emf constant (line to line)	Kv	Vrms/(m/s)	24.6	36.9	49.2	61.5	73.8
Motor constant ( 25°C)	Km	N/√W	12.5	15.5	17.9	20.6	22.5
Thermal resistance	RTH	°C/W	1.1	0.7	0.6	0.4	0.3
Thermal switch	-	-	PTC
Maximum DC bus voltage	-	VDC	325
Mass of forcer	Mf	kg	1.5	2.1	2.8	3.4	4.0
Unit mass of stator	Ms	kg/m	6.4
Length of forcer	Lf	mm	160	220	280	340	400
Mounting pitch	P1 x P2	mm	140 x 30	200 x 30	260 x 30	320 x 30	380 x 30
Stroke	S	mm	100 ~ 2000 (Take 50 mm as increase unit)
Clamping length	L1	mm	50 (Stroke = 100 ~ 750 mm) 70 (Stroke = 800 ~ 1500 mm) 100 (Stroke = 1550 ~ 2000 mm)
Total stator length	Ls	mm	Ls (Total stator length) = S (Stroke) + Lf (Length of forcer) + 2*L1 (Clamping legnth)

1. Values in the table refer to operation without forced cooling.
2. Except diemensions, the electrical specifications are in ±10% of tolerance.
3. We reserve the right of changes, please follow customer recognition drawings.
