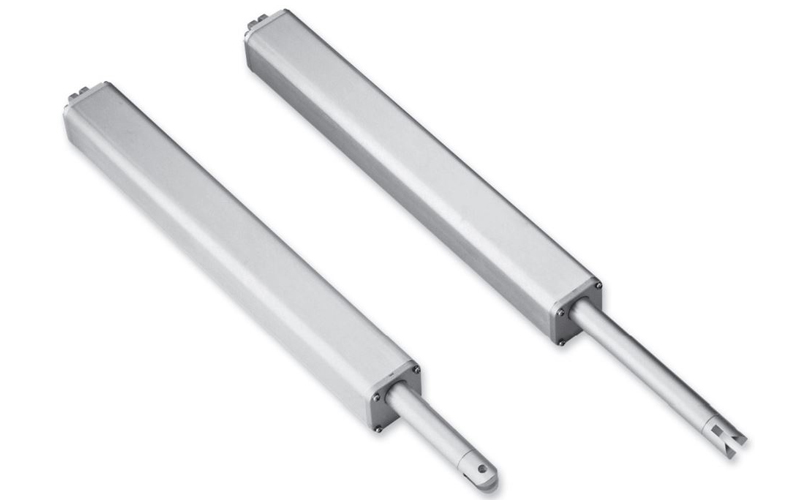

Hiwin Linear Actuator - LAS4
Hiwin Linear Actuator - LAS4 : is square tubular shape, belongs to ACME screw type, small size, and max thrust is 800N. It's mostly applied to automation facilities, medical facilities and furnitures. Te internal digital position feed back devices are optional.
Linear Actuator - LAS4
ดาวน์โหลดไฟล์ PDF
Feature | Linear Actuator - LAS4
- Screw type : ACME
- Weight (Stroke length 200mm) : 1.36kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- IP65
- Hall sensor (RL=S+226, S≤300)
- Plug: DIN 4PIN plug/Stereo plug/Mono plug
Specifications | Linear Actuator - LAS4
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | Hall Sensor Resolution (mm/pulse) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | 24VDC | |||||||||||
| LAS4-1 | 800 | 800 | 600 | 10 | 15 | 100 | 150 | 200 | 250 | 300 | 10 | 5 | 2.3 | 0.0085 |
| LAS4-2 | 300 | 300 | 200 | 30 | 55 | 100 | 150 | 200 | 250 | 300 | 10 | 6 | 3.6 | 0.02 |
*Min input power = Voltage x Current max.

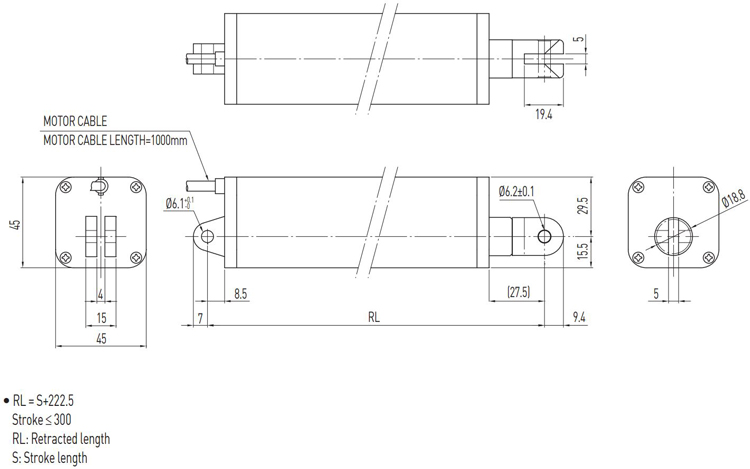

Dimensions | Linear Actuator - LAS4
