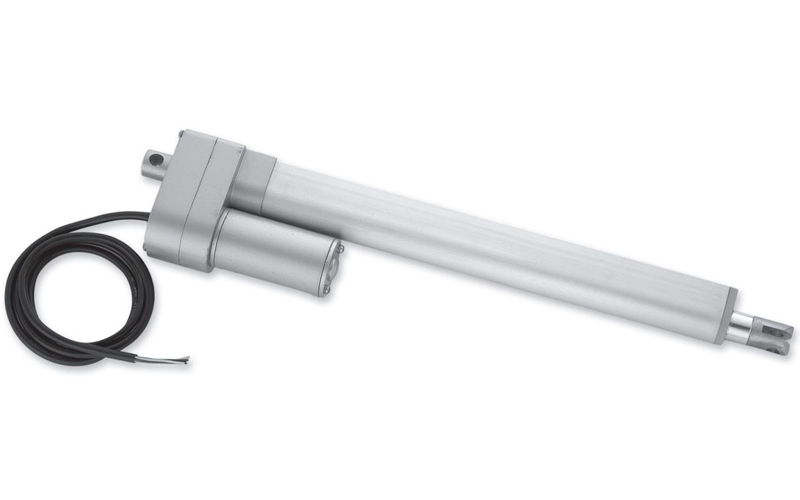

Hiwin Linear Actuator - LAS3

Hiwin Linear Actuator - LAS3 : LAS3 actuator belongs to ACME screw type, small size, compact structure and max thrust is 1200N. It’s mostly applied to automation facilities, automatic windows and doors, household furniture. The front and rear fixture can be customized. The internal digital and analog position feedback devices are optional.

Linear Actuator - LAS3

ดาวน์โหลดไฟล์ PDF

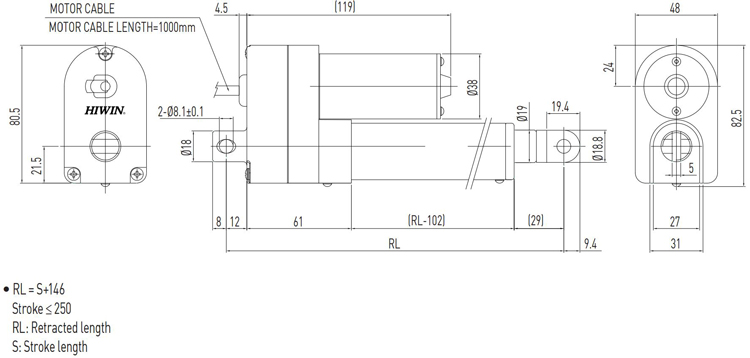

Feature | Linear Actuator - LAS3

Screw type : ACME
Weight (Stroke length 200mm) : 1.27kg
Protection : IP54
Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
Working temp. : 5 - 40 °C
Option
- IP66
- Position feedback
  - Potentiometer 10k ohm (RL=S+154, S≤250)
  - Hall sensor : PNP (standard)
- Gear box housing turned 90°
- Rod end with flat connector (RL=S+133, S≤250 )
- Potentiometer+Rod end with flat connector (RL=S+141, S≤250)
- External reed switch (RL=S+172, S≤250)
- Pulg : DIN 4PIN plug / Stereo plug / Mono plug
- UL version

Specifications | Linear Actuator - LAS3

Model	Thrust max. (N)	Pulling max. (N)	Holding max. (N)	Speed (mm/s)		Standard stroke (mm) : s					Duty cycle %	Current max (A)		Hall Sensor Resolution (mm/pulse)	Potentiometer Resolution (Ohm/mm)
Model	Thrust max. (N)	Pulling max. (N)	Holding max. (N)	Load max	Load 0	Standard stroke (mm) : s					Duty cycle %	12VDC	24VDC	Hall Sensor Resolution (mm/pulse)	Potentiometer Resolution (Ohm/mm)
LAS3-1	1200	1200	800	8	12	50	100	150	200	250	10	6	2.5	0.3175	21
LAS3-2	600	600	300	16	25	50	100	150	200	250	10	6	3	0.635	10.5
