DANA Pump Variable Displacement - MD10V series

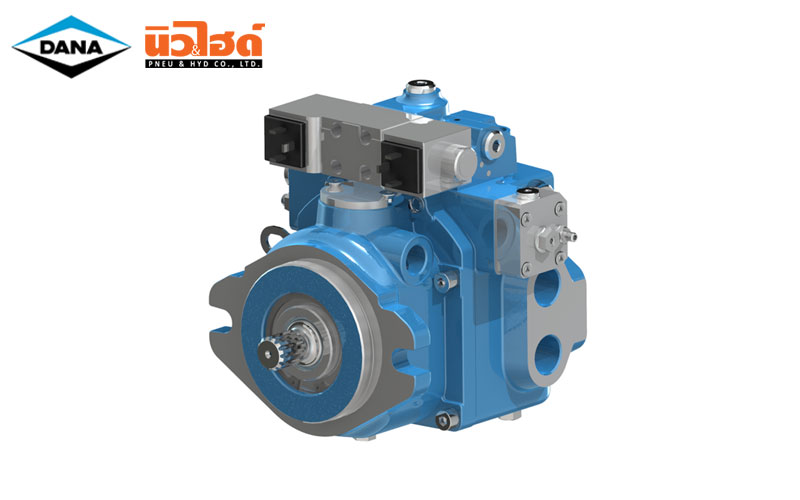

MD10V 14/18 series is a family of variable displacement axial piston pumps for use in closed circuits with housing and distributor cover in aluminium. The displacement is continuously variable E\ PHDQV RI D WLOWLQJ VZDVK SODWH DQG WKH RLO ÀRZ GLUHFWLRQ LV reversible.

DANA Axial piston pump Variable Displacement - MD10V series

ดาวน์โหลดไฟล์ PDF

Feature | DANA Pump Variable Displacement MD10V

MD10V series is a family of variable displacement axial piston pumps for use in closed circuits. The displacement is variable by means of a tilting swash plate: the oil flow can therefore be reversed over the neutral point. Various controls are available: manual, servocontrol lever operated, electric etc. Each pump is provided with a charge pump that makes up for internal leakage, maintains a positive pressure in the main circuit and provides pressure to the control system. All pumps have maximum pressure relief valves and can be supplied single or tandem version. Different through drive options are available for auxiliary pump mounting as well as a wide range of options: bypass valve, pressure filter and others.

The following range of controls is available
Manual without zeroing
Manual with zeroing
Manual lever with feed-back
Electric impulse
Electric two position (ON-OFF)
Electric proportional without feed-back
Electric proportional with feed-back with manual override

Technical | DANA Pump Variable Displacement MD10V

Displacement			14/18
Radial load	F_{q max}	N [lbf]	600 [135]
Axial load	F_{ax max}	N [lbf]	400 [90]

Specifications | DANA Pump Variable Displacement MD10V

Series		MD10V 14/18
Displacement ⁽¹⁾	cm³/giro [in³/rev]	14-18 [0.85-1.09]
Charge pump displacement	cm³/giro [in³/rev]	5.4 [0.32]
Max speed ⁽²⁾	rpm	3600
Min speed	rpm	700
Rated pressure	bar [psi]	250 [3625]
Peak pressure	bar [psi]	300 [4350]
Charge pressure	bar [psi]	10+20 (standard 20) [145+290] [standard 290]
Max case pressure	bar [psi]	2 [29]
Suction pressure	bar [psi]	≥ 0.8 [≥ 11.6]
Moment of inertia rotating parts	kg m² [lbf•ft²]	0.0014 [0.033]
Weight ⁽³⁾	kg [lb]	7 [15.4]
