DANA Pump Variable Displacement - H1V PV series

The H1V PV pumps have been specially designed for pumping and metering polyurethane components with viscosity in the 1-2000 cSt range (polyoils and isocyanates). The high repeatability of the delivery and the accuracy of the metering make the H1V PV pump suitable for use on injection systems.

DANA Axial piston pump Variable Displacement - H1V PV series

ดาวน์โหลดไฟล์ PDF

Feature | DANA Pump Variable Displacement H1V PV

The choice of the materials and seals is aimed at considerably increasing the pumps life compared to other solutions currently used on these types of machines. The pump is designed in such a way that an external flushing circuit can be provided on the shaft seal, aimed at increasing its life; the flushing fluid doesn’t have a preferential direction, the direction shown in the users manual is purely an indication. The pump is not supplied with any hand wheel, which must be requested separately. The H1V PV pumps allow reaching higher casing pressures if compared with standard ones. All units are tested using ISO VG 46 mineral oil.

---

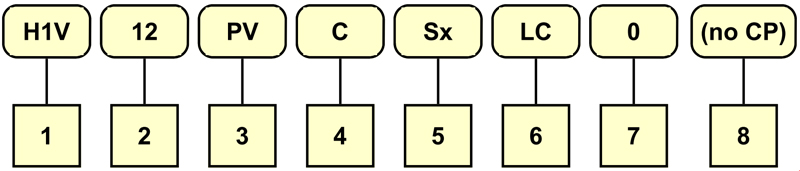

Code | DANA Pump Variable Displacement H1V PV

Series			H1V
Dimension / Size			6	12	30
Version			PV		PV HG
Shaft end	Shaft end	C	Ø 16 mm Ø 0.629in	Ø 20 mm Ø 0.787in	Ø 25 mm Ø 0.984in
Direction of rotation (shaft side)	DX (CW)	Dx	•	•	•
	Sx (CCW)	Sx	•	•	•
Control	LC		•	•	•
Wheel	Without Wheel	0	•	•	•
	With Wheel	1	•	•	•
Front cover	Without front cover	(no CP)	•	•	•
	With Front cover	-	•	•	•
• = Available

---

Specifications | DANA Variable Displacement H1V PV

Series				H1V 6 PV	H1V 12 PV	H1V 30 PV
Deplacement		Vgmax	cm3/rev [in3/rev]	6.3 [0.38]	11.9 [0.726]	30 [1.83]
		Vgmax	cm3/rev [in3/rev]	6.3 [0.38]	11.9 [0.726]	30 [1.83]
Pressure	Cont.	pnom	bar [psi]	250 [3625]	250 [3625]	250 [3625]
	peak*	pmax	bar [psi]	320 [4640]	320 [4640]	320 [4640]
Speed	Min.	nmax	rpm	300	300	300
	Max	nmax	rpm	1800	1800	1800
Flow	Nominal	Qmax	l/min [U.S. gpm]	11.3 [2.98]	21.4 [5.65]	54 [14.26]
Power	Nominal	Nmax	kW [hp]	4.7 [6.3]	8.8 [11.9]	22.5 [30.15]
Permissible max Torque at Vgmax	Cont.	Tnom	Nm [lbf•ft]	29 [21.37]	47.3 [34.86]	119.4 [87.998]
	peak	Tmax	Nm [lbf•ft]	38.7 [28.52]	56.8 [41.86]	143.3 [105.61]
Weight	-	m	kg [lbs]	7.5 [16.53]	13.2 [29.09]	26.3 [57.96]
Max pressure on the frame	-	Pt	bar [psi]	10 [145]	10 [145]	10 [145]
Temperature	Max	-	°C [°F]	80 [176]	80 [176]	80 [176]
	Optimal	-	°C [°F]	10-50 [50-122]	10-50 [50-122]	10-50 [50-122]
