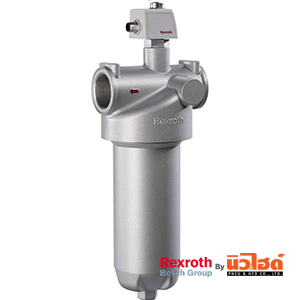

INLINE FILTERS รุ่น 110 LE (N)
ตัวกรองขาเข้า (Rexroth Inline filter with filter element according to DIN 24550)
Inline Filters รุ่น 110 LE (N).รายละเอียด Rexroth Inline filter with filter element according to DIN 24550 รุ่น 110 LE (N).
- Size 0040 … 0400
(ขนาด 0040 ... 0400) - Max. operating pressure 110 bar
(แรงดันใช้งานสูงสุด 100 บาร์) - Flow, max. 300 l/min
(อัตราการไหลสูงสุด 300 ลิตรต่อนาที) - Port G 3/4, G 1, G 1, G 1, G1 1/4, G1 1/2, G1 1/2, G1 1/2
(ช่องน้ำมัน G 3/4, G 1, G 1, G 1, G1 1/4, G1 1/2, G1 1/2, G1 1/2) - Operating temperature -10 … +100 °C
(อุณหภูมิในการทำงาน -10 ... +100 °C )
Features
- Filters for inline installation
(ตัวกรองสำหรับขาเข้า) - Special highly efficient filter media
(กรองชนิดพิเศษที่มีประสิทธิภาพสูงต่อเนื่อง) - Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
(การกรองอนุภาคละเอียดและความสามารถในการยืดฝุ่นสูงในช่วงความแตกต่างของความกว้างที่กว้างขึ้น) - High collapse resistance of the filter elements
(ต้านทานการยุบตัวของกรองสูง) - Standard version equipped with mechanical/visual maintenance indicator with memory function
(รุ่นมาตรฐานที่มีตัวบ่งชี้การบำรุงรักษาทางกล / ภาพด้วยฟังก์ชันหน่วยความจำ) - Optional equipment with various electrical switching elements, modular design
(อุปกรณ์เสริมที่มีองค์ประกอบเปลี่ยนกระแสไฟฟ้าแบบต่างๆ (แบบแยกส่วน))
SPECIFICATION (รายละเอียด)
| ขนาด | 0040 | 0063 | 0100 | 0130 | 0150 | 0160 | 0250 | 0400 | ||
| แรงดันใช้งาน | pmax | bar | 50 | |||||||
| ช่วงอุณหภูมิของของไหล | ϑ | °C | -10 … +100 | |||||||
| ค่ากลางของการนำไฟฟ้าต่ำสุด | pS/m | 300 | ||||||||
| ค่าความล้า ตาม ISO 10771 | รอบภาระ | > 106 with operating pressure | ||||||||
| ทิศทางการกรอง | จากภายนอก มา ภายใน (ระบบ) | |||||||||
Tyye Code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110 LE. | - | - | - | - | - | - | - | 0 |
| Frame size | |||||||
|---|---|---|---|---|---|---|---|
| 01 | Inline filter 100 bar | 110LE | |||||
| Filter element | |||||||
| 02 | with filter element according to DIN 24550 | N | |||||
| Size | |||||||
| 03 | LEN... (filter element according to DIN 24550) | 0040 | |||||
| 0063 | |||||||
| 0100 | |||||||
| 0160 | |||||||
| 0250 | |||||||
| 0400 | |||||||
| LE... (filter element according to Bosch Rexroth standard) | 0130 | ||||||
| 0150 | |||||||
| Filter rating in μm | |||||||
| 04 | Nominal | Stainless steel wire mesh, cleanable | G10 | ||||
| G25 | |||||||
| G40 | |||||||
| G60 | |||||||
| G100 | |||||||
| Nominal | Filter paper, not cleanable | P10 | |||||
| P25 | |||||||
| Absolute (ISO 16889; βx(c)≥ 200) |
Non-woven glass fiber media, not cleanable | H3XL | |||||
| H6XL | |||||||
| H10XL | |||||||
| H20XL | |||||||
| Pressure differential | |||||||
| 05 | max. admissible pressure differential of the filter element 30 bar, with bypass valve | A00 | |||||
| max. admissible pressure differential of the filter element 330 bar, without bypass valve | B00 | ||||||
| Maintenance indicator | |||||||
| 06 | Maintenance indicator, mech./visual, switching pressure 1.5 bar - bypass cracking pressure 2.5 bar | V1,5 | |||||
| Maintenance indicator, mech./visual, switching pressure 2.2 bar - bypass cracking pressure 3.5 bar | V2,2 | ||||||
| Maintenance indicator, mech./visual, switching pressure 5.0 bar - bypass cracking pressure 7 bar | V5,0 | ||||||
| Seal | |||||||
| 07 | NBR | M | |||||
| FKM | V | ||||||
| Port | |||||||
| 08 | Frame size | 0040 | 0063-0100 | 0130-0150 | 0160-400 | ||
| Port | |||||||
| G 3/4 | ● | X | Pipe thread according to ISO 228 | R3 | |||
| G 1 | X | ● | X | R4 | |||
| G 1 1/4 | ● | R5 | |||||
| G 1 1/2 | ● | R6 | |||||
| SAE 12 | X | X | Pipe thread according to SAE J1926 | U4 | |||
| SAE 16 | X | U9 | |||||
| SAE 24 | X | U6 | |||||
| ● = Standard port | |||||||
| X = Alternative connection possibility | |||||||
| Supplementary information | |||||||
| 09 additional threaded couplings, G 1/4, lateral at clean and dirt side (from NG0130) | M | ||||||
| 10 without bypass valve (only possible in connection with filter element version "A00”) 1) | NB | ||||||
| 11 Manufacturer's inspection certificate M according to DIN 55350 T18 | Z1 | ||||||
| 1) Attention: If this option is selected and the maintenance indicator is not observed, the filter element may collapse in case of operating pressures of more than 30 bar. |
|||||||
| Further versions (filter materials, connections,...) are available upon request. | |||||||
Order example:
110LEN0100-H3XLA00-V5,0-M-R4Further versions (filter materials, connections,...) are available upon request.
| Model | Code |
|---|---|
| 110LE0130-00000A00-V5,0-M-R5 | R928054263 |
| 110LE0130-G10A00-V5,0-V-R5 | R928050010 |
| 110LE0130-H10XLA00-V2,2-M-R5 | R928050032 |
| 110LE0130-H10XLA00-V2,2-V-R5 | R928052363 |
| 110LE0130-H10XLA00-V5,0-M-R5 | R928037470 |
| 110LE0130-H10XLA00-V5,0-M-R5-M | R928050033 |
| 110LE0130-H10XLA00-V5,0-M-U9 | R928046926 |
| 110LE0130-H10XLA00-V5,0-V-R5 | R928050035 |
| 110LE0130-H10XLB00-V2,2-M-R5 | R928050038 |
| 110LE0130-H10XLB00-V5,0-M-R5 | R928050039 |
| 110LE0130-H20XLA00-V5,0-M-R5 | R928050049 |
| 110LE0130-H3XLA00-V5,0-M-R5 | R928046909 |
| 110LE0130-H3XLA00-V5,0-M-U9 | R928046917 |
| 110LE0130-H3XLB00-V5,0-M-R5--SP000913-0& | R928055781 |
| 110LE0130-H6XLB00-V2,2-M-R5 | R928050082 |
| 110LE0130-H6XLB00-V5,0-M-R5 | R928050083 |
| 110LE0130-P10B00-V5,0-M-R5 | R928050092 |
| 110LE0150-00000A00-V5,0-M-R5 | R928054264 |
| 110LE0150-G25A00-V5,0-M-R5 | R928050111 |
| 110LE0150-G40A00-V1,5-M-R5 | R928052976 |
| 110LE0150-G40A00-V2,2-M-R5-NB | R928035187 |
| 110LE0150-G60A00-V2,2-M-R5-NB | R928053395 |
| 110LE0150-G60A00-V5,0-M-R5 | R928055558 |
| 110LE0150-H10XLA00-V5,0-M-R5 | R928041642 |
| 110LE0150-H10XLA00-V5,0-M-R5-M | R928050129 |
| 110LE0150-H10XLA00-V5,0-M-U9 | R928046927 |
| 110LE0150-H20XLA00-V5,0-M-R5 | R928050145 |
| 110LE0150-H20XLB00-V2,2-M-R5 | R928050149 |
| 110LE0150-H3XLA00-V5,0-M-R5 | R928046910 |
| 110LE0150-H3XLA00-V5,0-M-U9 | R928046918 |
| 110LE0150-H3XLA00-V5,0-V-U9 | R928050163 |
| 110LE0150-H6XLA00-V2,2-M-R5 | R928050171 |
| 110LE0150-H6XLB00-E5,0-V-U9/TE | R928051918 |
| 110LE0150-PWR10B00-V5,0-M-U9 | R928050137 |
| 110LEN0040-00000A00-V5,0-M-R3 | R928054265 |
| 110LEN0040-G100A00-V2,2-M-R3 | R928048567 |
| 110LEN0040-G100A00-V5,0-M-R3 | R928050191 |
| 110LEN0040-G100A00-V5,0-M-R3-NB | R928053144 |
| 110LEN0040-G100B00-V5,0-V-R3 | R928050197 |
| 110LEN0040-G10A00-V2,2-M-R3 | R928040743 |
| 110LEN0040-G10A00-V5,0-M-R3 | R928050199 |
| 110LEN0040-G25A00-V2,2-M-R3 | R928049450 |
| 110LEN0040-G25A00-V2,2-M-R3-NB | R928053209 |
| 110LEN0040-G25A00-V2,2-M-R3/GU | R928052323 |
| 110LEN0040-G25A00-V2,2-V-R4-NB | R928052906 |
| 110LEN0040-G25A00-V5,0-M-R3 | R928050207 |
| 110LEN0040-G25A00-V5,0-V-R3 | R928050209 |
| 110LEN0040-G25A00-V5,0-V-R3-NB | R928053420 |
| 110LEN0040-G25A00-V5,0-V-R4 | R928052041 |
| 110LEN0040-G40A00-V5,0-M-R3 | R928050215 |
| 110LEN0040-G60A00-V2,2-M-R3 | R928049525 |
| 110LEN0040-H10XLA00-V2,2-M-R3 | R928050223 |
| 110LEN0040-H10XLA00-V5,0-M-R3 | R928046922 |
| 110LEN0040-H10XLA00-V5,0-M-R3-NB | R928052286 |
| 110LEN0040-H10XLA00-V5,0-M-R4 | R928037469 |
| 110LEN0040-H10XLA00-V5,0-M-U4 | R928046923 |
| 110LEN0040-H20XLA00-V2,2-V-R3 | R928050234 |
| 110LEN0040-H20XLA00-V5,0-M-R3 | R928050235 |
| 110LEN0040-H20XLA00-V5,0-M-R4 | R928052677 |
| 110LEN0040-H20XLB00-V5,0-M-R3 | R928050241 |
| 110LEN0040-H3XLA00-V2,2-M-R3 | R928050245 |
| 110LEN0040-H3XLA00-V5,0-M-R3 | R928046899 |
| 110LEN0040-H3XLA00-V5,0-M-U4 | R928046914 |
| 110LEN0040-H3XLB00-V2,2-M-R3 | R928050250 |
| 110LEN0040-H3XLB00-V5,0-M-R3 | R928050251 |
| 110LEN0040-H6XLA00-V2,2-M-R3 | R928050255 |
| 110LEN0040-H6XLA00-V5,0-M-R3 | R928050256 |
| 110LEN0040-H6XLB00-V2,2-M-R3 | R928050260 |
| 110LEN0040-H6XLB00-V5,0-M-R3 | R928050261 |
| 110LEN0040-P10A00-V5,0-M-R3 | R928050265 |
| 110LEN0040-PWR10B00-V2,2-M-R3 | R928050228 |
| 110LEN0040-PWR10B00-V5,0-M-R3 | R928050229 |
| 110LEN0063-00000A00-V5,0-M-R4 | R928054266 |
| 110LEN0063-G100A00-V5,0-M-R4 | R928050271 |
| 110LEN0063-G25A00-V5,0-M-R4 | R928050287 |
| 110LEN0063-G40A00-V5,0-V-R4 | R928050297 |
| 110LEN0063-G60A00-V5,0-M-R3 | R928047862 |
| 110LEN0063-H10XLA00-V2,2-M-R4 | R928050303 |
| 110LEN0063-H10XLA00-V5,0-M-R3 | R928052005 |
| 110LEN0063-H10XLA00-V5,0-M-R3-NB | R928051870 |
| 110LEN0063-H10XLA00-V5,0-M-R4 | R928041640 |
| 110LEN0063-H10XLA00-V5,0-M-U4 | R928046924 |
| 110LEN0063-H10XLA00-V5,0-V-R4 | R928050306 |
| 110LEN0063-H10XLB00-V2,2-M-R4 | R928050308 |
| 110LEN0063-H10XLB00-V5,0-M-R4 | R928050309 |
| 110LEN0063-H20XLA00-V5,0-M-R4 | R928050315 |
| 110LEN0063-H3XLA00-V2,2-M-R4 | R928050325 |
| 110LEN0063-H3XLA00-V5,0-M-R4 | R928046901 |
| 110LEN0063-H3XLA00-V5,0-M-U4 | R928046915 |
| 110LEN0063-H6XLA00-V2,2-M-R4 | R928050335 |
| 110LEN0063-H6XLA00-V5,0-M-R4 | R928050336 |
| 110LEN0063-H6XLA00-V5,0-M-U4 | R928050337 |
| 110LEN0063-H6XLA00-V5,0-V-U4 | R928050339 |
| 110LEN0063-H6XLB00-V2,2-M-R4 | R928050340 |
| 110LEN0063-P25A00-V2,2-M-R3-NB | R928054180 |
| 110LEN0063-P25A00-V5,0-M-R3-NB | R928054249 |
| 110LEN0100-00000A00-V5,0-M-R4 | R928054267 |
| 110LEN0100-G100A00-V2,2-M-R4 | R928019930 |
| 110LEN0100-G100A00-V5,0-M-R4 | R928050351 |
| 110LEN0100-G25A00-V5,0-M-R4 | R928050367 |
| 110LEN0100-G40A00-V5,0-M-R4 | R928050375 |
| 110LEN0100-H10XLA00-V2,2-M-R4 | R928050383 |
| 110LEN0100-H10XLA00-V5,0-M-R3 | R928051702 |
| 110LEN0100-H10XLA00-V5,0-M-R3-NB | R928052448 |
| 110LEN0100-H10XLA00-V5,0-M-R4 | R928041641 |
| 110LEN0100-H10XLA00-V5,0-M-U4 | R928046925 |
| 110LEN0100-H10XLA00-V5,0-V-R4 | R928050386 |
| 110LEN0100-H10XLB00-V2,2-M-R4 | R928050388 |
| 110LEN0100-H10XLB00-V5,0-M-R4 | R928050389 |
| 110LEN0100-H10XLB00-V5,0-M-U4 | R928050390 |
| 110LEN0100-H10XLB00-V5,0-V-R4 | R928050391 |
| 110LEN0100-H20XLA00-E1,5-V-R4-NB/TM | R928052711 |
| 110LEN0100-H20XLA00-V1,5-M-R3 | R928048239 |
| 110LEN0100-H20XLA00-V2,2-M-R4 | R928050393 |
| 110LEN0100-H20XLA00-V5,0-M-R4 | R928050395 |
| 110LEN0100-H20XLA00-V5,0-M-R4-NB | R928051568 |
| 110LEN0100-H20XLB00-V2,2-M-R4 | R928050399 |
| 110LEN0100-H20XLB00-V5,0-M-R4 | R928050401 |
| 110LEN0100-H3XLA00-V5,0-M-R4 | R928046903 |
| 110LEN0100-H3XLA00-V5,0-M-U4 | R928046916 |
| 110LEN0100-H3XLB00-V2,2-M-R4 | R928050410 |
| 110LEN0100-H3XLB00-V5,0-M-R4 | R928050411 |
| 110LEN0100-H6XLA00-V2,2-M-R4 | R928050415 |
| 110LEN0100-H6XLA00-V5,0-M-R4 | R928050416 |
| 110LEN0100-H6XLB00-V5,0-M-R4 | R928050421 |
| 110LEN0100-H6XLB00-V5,0-V-R4 | R928050423 |
| 110LEN0100-P10A00-V1,5-M-R4 | R928054435 |
| 110LEN0160-00000A00-V5,0-M-R6 | R928054268 |
| 110LEN0160-G100A00-V5,0-M-U6 | R928050432 |
| 110LEN0160-G25A00-V5,0-M-R6 | R928050447 |
| 110LEN0160-G40A00-V5,0-M-R6-NB | R928053831 |
| 110LEN0160-H10XLA00-E2,2-V-R6/MT | R928052821 |
| 110LEN0160-H10XLA00-V2,2-M-R6 | R928050463 |
| 110LEN0160-H10XLA00-V2,2-V-R6 | R928052686 |
| 110LEN0160-H10XLA00-V5,0-M-R6 | R928037471 |
| 110LEN0160-H10XLA00-V5,0-M-R6-M | R928050464 |
| 110LEN0160-H10XLA00-V5,0-M-U6 | R928050465 |
| 110LEN0160-H10XLA00-V5,0-M-U6-NB | R928048141 |
| 110LEN0160-H10XLB00-V5,0-M-R6 | R928050470 |
| 110LEN0160-H10XLB00-V5,0-V-R6 | R928050473 |
| 110LEN0160-H20XLA00-V5,0-M-R6 | R928050480 |
| 110LEN0160-H20XLA00-V5,0-M-R6-NB | R928051363 |
| 110LEN0160-H20XLA00-V5,0-M-U6 | R928050481 |
| 110LEN0160-H20XLB00-V5,0-M-R6 | R928050488 |
| 110LEN0160-H3XLA00-V2,2-M-R6 | R928050492 |
| 110LEN0160-H3XLA00-V5,0-M-R6 | R928046911 |
| 110LEN0160-H3XLA00-V5,0-M-U6 | R928046919 |
| 110LEN0160-H3XLB00-V2,2-M-R6 | R928050499 |
| 110LEN0160-H3XLB00-V2,2-V-R6-M | R928048206 |
| 110LEN0160-H3XLB00-V5,0-V-R6 | R928050503 |
| 110LEN0160-H6XLA00-V2,2-M-R6 | R928050506 |
| 110LEN0160-H6XLA00-V5,0-M-R6 | R928050507 |
| 110LEN0160-H6XLA00-V5,0-M-U6 | R928050509 |
| 110LEN0160-H6XLA00-V5,0-V-R6 | R928050510 |
| 110LEN0160-H6XLB00-V2,2-M-R6 | R928050513 |
| 110LEN0160-H6XLB00-V5,0-M-R6 | R928050514 |
| 110LEN0160-P10A00-V5,0-M-R6 | R928050520 |
| 110LEN0160-P25A00-V5,0-M-R6 | R928055411 |
| 110LEN0250-00000A00-V5,0-M-R6 | R928054269 |
| 110LEN0250-00000B00-V5,0-M-R6 | R928047636 |
| 110LEN0250-G100A00-V5,0-M-R6 | R928050526 |
| 110LEN0250-G25A00-V5,0-M-R6 | R928050542 |
| 110LEN0250-G25B00-V5,0-M-R6 | R928050546 |
| 110LEN0250-G40A00-V2,2-M-R6 | R928019766 |
| 110LEN0250-G60A00-V5,0-M-R6 | R928054964 |
| 110LEN0250-H10XLA00-V2,2-M-R6 | R928050558 |
| 110LEN0250-H10XLA00-V5,0-M-R6 | R928041643 |
| 110LEN0250-H10XLA00-V5,0-M-R6-M | R928050560 |
| 110LEN0250-H10XLA00-V5,0-M-U6 | R928046929 |
| 110LEN0250-H10XLB00-V2,2-M-R6 | R928050565 |
| 110LEN0250-H10XLB00-V5,0-M-R6 | R928050566 |
| 110LEN0250-H10XLB00-V5,0-V-R6 | R928050569 |
| 110LEN0250-H20XLA00-V2,2-M-R6 | R928050572 |
| 110LEN0250-H20XLA00-V5,0-M-R6 | R928050576 |
| 110LEN0250-H20XLB00-V5,0-M-R6 | R928050584 |
| 110LEN0250-H3XLA00-V5,0-M-R6 | R928046912 |
| 110LEN0250-H3XLA00-V5,0-M-U6 | R928046920 |
| 110LEN0250-H6XLA00-V2,2-M-R6 | R928050602 |
| 110LEN0250-H6XLA00-V2,2-V-R6 | R928054557 |
| 110LEN0250-H6XLA00-V5,0-M-R6 | R928050603 |
| 110LEN0250-H6XLB00-V5,0-M-R6 | R928050610 |
| 110LEN0250-P10A00-V0,8-V-R6-M-NB | R928048143 |
| 110LEN0400-00000A00-V5,0-M-R6 | R928054270 |
| 110LEN0400-G25A00-V5,0-M-R6 | R928050638 |
| 110LEN0400-H10XLA00-V2,2-M-R6 | R928050654 |
| 110LEN0400-H10XLA00-V2,2-M-R6-M | R928052407 |
| 110LEN0400-H10XLA00-V5,0-M-R6 | R928041644 |
| 110LEN0400-H10XLA00-V5,0-M-R6-NB | R928055514 |
| 110LEN0400-H10XLA00-V5,0-M-U6 | R928046930 |
| 110LEN0400-H10XLA00-V5,0-V-R6 | R928050658 |
| 110LEN0400-H10XLB00-V5,0-M-R6 | R928050662 |
| 110LEN0400-H10XLB00-V5,0-M-R6-M | R928050663 |
| 110LEN0400-H20XLA00-V2,2-M-R6 | R928050668 |
| 110LEN0400-H20XLB00-V5,0-M-R6-M | R928054808 |
| 110LEN0400-H3XLA00-V5,0-M-R6 | R928046913 |
| 110LEN0400-H3XLA00-V5,0-M-U6 | R928046921 |
| 110LEN0400-H3XLB00-V5,0-M-R6 | R928050692 |
| 110LEN0400-H6XLA00-V2,2-M-R6 | R928050698 |
| 110LEN0400-H6XLA00-V5,0-M-R6 | R928050699 |
| 110LEN0400-H6XLA00-V5,0-M-U6 | R928050701 |
| 110LEN0400-H6XLB00-V5,0-M-R6 | R928050706 |
| 110LEN0400-PWR3A00-V5,0-V-U6 | R928050690 |
Data Sheet : Rexroth Inline Filters รุ่น 101 LE (N).
Technology Instrument
T.U Pack
Your Lift
