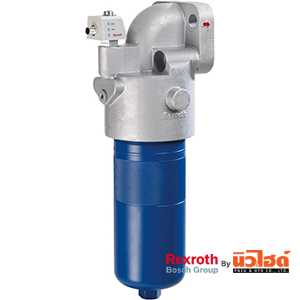

BLOCK MOUNTING FILTERS รุ่น 350 PSF (N)

ชุดติดตั้งตัวกรอง (Rexroth Block mounting filter, for lateral flange-mounting)

รายละเอียด Rexroth Block mountion รุ่น 350 PSF (N)

• Size 0040 … 1000
  (ขนาด 0040 ... 1000)
• Max. operating pressure 350 bar
  (แรงดันใช้งานสูงสุด 350 บาร์)
• Flow, max. 490 l/min
  (อัตราการไหลสูงสุด 490 ลิตรต่อนาที)
• Port DN20, DN20, DN38, DN38, DN38, DN38, DN38, DN32, DN32
  (พอร์ต DN20, DN20, DN38, DN38, DN38, DN38, DN38, DN32, DN32 )
• Operating temperature -10 … +100 °C
  (ช่วงอุณหภูมิใช้งาน -10 ... +100 °C )



Features

• Special highly efficient filter media
  (กรองชนิดพิเศษที่มีประสิทธิภาพสูงต่อสื่อ)
• Adsorption of finest particles over a wide pressure differential range
  (การดูดซับอนุภาคที่ดีที่สุดในช่วงความแตกต่างของความกว้าง)
• High contamination retention capacity due to large specific adsorption surface
  (ความสามารถในการเก็บกักความปนเปื้อนสูงเนื่องจากผิดดูดซับเฉพาะที่มีขนาดใหญ่)
• High collapse resistance of the filter elements
  (ต้านทานของการยุบตัวของกรองสูง)
• Standard version equipped with mechanical/visual maintenance indicator with memory function
  (รุ่นมาตรฐานที่มีตัวบ่งชี้การบำรุงรักษาทางกล / ภาพด้วยฟังก์ชั่นหน่วยความจำ)

---

SPECIFICATION (รายละเอียด)

Type code

01	02	03		04	05	06		07		08	09
350PSF			-			00	-	V5,0	-

Design
01	Block mounting filter, for lateral flange-mounting, 350 bar		350PSF
Filter element
02	with filter element according to DIN 24550		N
	with filter element according to BRFS standard		without information
Size
03	PSFN… (filter element according to DIN 24550)		0040
			0063
			0100
			0160
			0250
			0400
	PSF… (filter element according to BRFS standard)		0130
			0150
Filter rating in μm
04	Nominal	Stainless steel wire mesh, cleanable	G10
			G25
			G40
			G100
	Absolute (ISO 16889)	Non-woven glass fiber media, not cleanable	H3XL
			H6XL
			H10XL
			H20XL
Pressure differential
05	max. admissible pressure differential of the filter element	30 bar, with bypass valve, cracking pressure 7 bar	A
		330 bar, without bypass valve	B
Element design
06	Standard adhesive T = 100 °C		0…
	Standard material		...0
Maintenance indicator
07	Maintenance indicator, mech./visual, switching pressure 5.0 bar		V5,0
Seal
08	NBR		M
	FKM		V
Supplementary information
09	without		without information
	NG 0130 to 1000: 2 minimess connections		‒M

---

Model	Code
350PSF0130-H10XLA00-E5,0-M/LV	R928051992
350PSF0130-H10XLA00-V5,0-M	R928026483
350PSF0130-H3XLB00-V5,0-M	R928026333
350PSF0130-H6XLB00-V5,0-M	R928026413
350PSF0130-PWR10B00-V5,0-M	R928026493
350PSF0130-PWR10B00-V5,0-V	R928026533
350PSF0150-H3XLB00-V5,0-M	R928026334
350PSF0150-H6XLB00-V5,0-M	R928026414
350PSF0150-PWR10B00-V5,0-M	R928026494
350PSFN0040-G40B00-V5,0-M	R928026170
350PSFN0040-H10XLA00-V5,0-M	R928026480
350PSFN0040-H10XLB00-V5,0-M	R928026490
350PSFN0040-H10XLB00-V5,0-M--SP000592-A&	R928048420
350PSFN0040-H10XLB00-V5,0-V	R928026530
350PSFN0040-H3XLA00-V5,0-M	R928026320
350PSFN0040-H3XLB00-V5,0-M	R928026330
350PSFN0040-H3XLB00-V5,0-V	R928026370
350PSFN0040-H6XLB00-V5,0-M	R928026410
350PSFN0063-H10XLA00-E5,0-M/LV	R928051991
350PSFN0063-H10XLA00-V5,0-M	R928026481
350PSFN0063-H10XLB00-V5,0-M	R928026491
350PSFN0063-H10XLB00-V5,0-V	R928026531
350PSFN0063-H3XLA00-V5,0-M	R928026321
350PSFN0063-H3XLB00-V5,0-V	R928026371
350PSFN0063-H6XLA00-V5,0-M	R928026401
350PSFN0063-H6XLB00-V5,0-M	R928026411
350PSFN0063-H6XLB00-V5,0-V	R928026451
350PSFN0100-G40B00-V5,0-M	R928026172
350PSFN0100-H10XLA00-V5,0-M	R928026482
350PSFN0100-H10XLB00-V5,0-M	R928026492
350PSFN0100-H3XLB00-V5,0-M	R928026332
350PSFN0100-H6XLA00-V5,0-M	R928026402
350PSFN0100-H6XLB00-V5,0-M	R928026412
350PSFN0160-H10XLA00-V5,0-M	R928026485
350PSFN0160-H10XLA00-V5,0-V	R928026525
350PSFN0160-H10XLB00-V5,0-M	R928026495
350PSFN0160-H3XLA00-V5,0-M	R928026325
350PSFN0160-H3XLB00-V5,0-M	R928026335
350PSFN0160-H3XLB00-V5,0-V	R928026375
350PSFN0160-H6XLA00-V5,0-M	R928026405
350PSFN0160-H6XLA00-V5,0-V	R928026445
350PSFN0160-H6XLB00-V5,0-M	R928026415
350PSFN0160-H6XLB00-V5,0-M-M	R928027009
350PSFN0160-H6XLB00-V5,0-V	R928026455
350PSFN0160-PWR10B00-V5,0-V	R928026535
350PSFN0250-H10XLA00-E5,0-M/LV	R928052009
350PSFN0250-H10XLA00-E5,0-SP000895-0/LV&	R928038543
350PSFN0250-H10XLA00-V5,0-M	R928026486
350PSFN0250-H10XLB00-V5,0-M	R928026496
350PSFN0250-H10XLB00-V5,0-V	R928026536
350PSFN0250-H20XLA00-V5,0-M	R928026566
350PSFN0250-H20XLB00-V5,0-M	R928026576
350PSFN0250-H3XLA00-V5,0-V	R928026366
350PSFN0250-H3XLB00-V5,0-M	R928026336
350PSFN0250-H6XLA00-V5,0-M	R928026406
350PSFN0250-H6XLB00-V5,0-M	R928026416
350PSFN0250-H6XLB00-V5,0-V	R928026456
350PSFN0400-H10XLA00-V5,0-M	R928026487
350PSFN0400-H10XLA00-V5,0-V	R928026527
350PSFN0400-H10XLB00-V5,0-M	R928026497
350PSFN0400-H10XLB00-V5,0-V	R928026537
350PSFN0400-H20XLA00-V5,0-M	R928026567
350PSFN0400-H3XLA00-V5,0-M	R928026327
350PSFN0400-H3XLB00-V5,0-M	R928026337
350PSFN0400-H3XLB00-V5,0-V	R928026377
350PSFN0400-H6XLA00-V5,0-M	R928026407
350PSFN0400-H6XLA00-V5,0-V	R928026447
350PSFN0400-H6XLB00-V5,0-M	R928026417
350PSFN0630-G40A00-V5,0-M-M	R928026837
350PSFN0630-H10XLA00-V5,0-M	R928026488
350PSFN0630-H10XLA00-V5,0-M-M	R928027061
350PSFN0630-H10XLA00-V5,0-V	R928026528
350PSFN0630-H10XLA00-V5,0-V-M	R928027089
350PSFN0630-H10XLB00-V5,0-M	R928026498
350PSFN0630-H10XLB00-V5,0-V	R928026538
350PSFN0630-H20XLB00-V5,0-M	R928026578
350PSFN0630-H3XLA00-V5,0-M	R928026328
350PSFN0630-H3XLB00-V5,0-M	R928026338
350PSFN0630-H6XLA00-V5,0-M	R928026408
350PSFN0630-H6XLA00-V5,0-V	R928026448
350PSFN0630-H6XLB00-V5,0-M	R928026418
350PSFN1000-G25B00-V5,0-V	R928026139
350PSFN1000-H10XLA00-V5,0-M	R928026489
350PSFN1000-H10XLA00-V5,0-V	R928026529
350PSFN1000-H10XLB00-V5,0-M	R928026499
350PSFN1000-H10XLB00-V5,0-V	R928026539
350PSFN1000-H20XLA00-V5,0-M	R928026569
350PSFN1000-H20XLB00-V5,0-V-M	R928027153
350PSFN1000-H3XLA00-V5,0-M	R928026329
350PSFN1000-H3XLB00-V5,0-M	R928026339
350PSFN1000-H6XLB00-V5,0-M	R928026419
350PSFN1000-H6XLB00-V5,0-V	R928026459
350PSFN1000-H6XLB00-V5,0-V-M	R928027041

---
