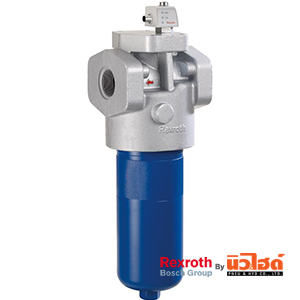

Inline Filters รุ่น 350 LE (N)

ตัวกรองขาเข้า (Rexroth Inline filter with filter element according to DIN 24550)

รายละเอียด Rexroth Inline filter with filter element according to DIN 24550 รุ่น 350 LE (N).

• Size 0063 … 1000
  (ขนาด 0063 ... 1000)
• Max. operating pressure 350 bar
  (แรงดันใช้งานสูงสุด 350 บาร์)
• Flow, max. 650 l/min
  (อัตราการไหลสูงสุด 420 ลิตรต่อนาที)
• Port G 1, G 1, G1 1/4, G1 1/4, G1 1/2, G1 1/2, G1 1/2, G2, G2
  (ช่องน้ำมัน G 1/2, G 1, G 1, G1 1/4, G1 1/4, G1 1/2, G1 1/2, G1 1/2 )
• Operating temperature -10 … +100 °C
  (อุณหภูมิในการทำงาน -10 ... +100 °C )

Features

• Filters for inline installation
  (ตัวกรองสำหรับกรองขาเข้า)
• Special highly efficient filter media
  (กรองชนิดพิเศษที่มีประสิทธิภาพสูงต่อสื่อ)
• Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
  (การกรองอนุภาคละเอียดและความสามารถในการยึดฝุ่นสูงในช่วงความแตกต่างของความกว้างที่กว้างขึ้น)
• High collapse resistance of the filter elements
  (ต้านทานของการยุบตัวของกรองสูง)
• Standard version equipped with mechanical/visual maintenance indicator with memory function
  (รุ่นมาตรฐานที่มีตัวบ่งชี้การบำรุงรักษาทางกล / ภาพด้วยฟังก์ชั่นหน่วยความจำ)
• Optional equipment with various electrical switching elements, modular design
  (อุปกรณ์เสริมที่มีองค์ประกอบการเปลี่ยนกระแสไฟฟ้าแบบต่างๆ (แบบแยกส่วน))

---

SPECIFICATION (รายละเอียด)

Tyye Code

01	02	03		04	05	06		07		08		09		10
350LE.			-				-		-		-		-

Frame size
01	Inline filter 350 bar							350LE
Filter element
02	with filter element according to DIN 24550							N
Size
03	LEN... (filter element according to DIN 24550)							0040
								0063
								0100
								0160
								0250
								0400
								0630
								1000
	LE... (filter element according to Bosch Rexroth standard)							0130
								0150
Filter rating in μm
04	Nominal		Stainless steel wire mesh, cleanable					G10
								G25
								G40
								G60
								G100
	Absolute (ISO 16889; βx(c)≥ 200)		Non-woven glass fiber media, not cleanable					H3XL
								H6XL
								H10XL
								H20XL
Pressure differential
05	max. admissible pressure differential of the filter element 30 bar, with bypass valve 7 bar							A00
	max. admissible pressure differential of the filter element 330 bar, without bypass valve							B00
Element design
06	Standard adhesive in connection with material steel, tin-plated							00
	Special adhesive in connection with element material stainless steel							HV 1)
Maintenance indicator
07	Maintenance indicator, mech./visual, switching pressure 2.2 bar - bypass cracking pressure 3.5 bar							V2,2
	Maintenance indicator, mech./visual, switching pressure 5.0 bar - bypass cracking pressure 7 bar							V5,0
	Maintenance indicator, mech./visual, switching pressure 8.0 bar – without bypass valve							V8,0
Seal
08	NBR							M
	FKM							V
	EPDM							E 2)
Port
09	Frame size	0040	0063-0100	0130-0150	0160-400	0630-1000
	Port
	G 1/2	●	X				Pipe thread according to ISO 228	R2
	G 3/4	X	X					R3
	G 1	X	●	X				R4
	G 1 1/4			●	X			R5
	G 1 1/2			X	●			R6
	G 2					●		R8
	SAE 1 1/2″				X		SAE flange 6000 psi	S6
	SAE 2″					X		S8
	SAE 10	X					Pipe thread according to SAE J1926	U3
	SAE 12		X					U4
	SAE 20			X				U5
	SAE 24				X			U6
	● = Standard port
	X = Alternative connection possibility
Supplementary information
10	Manufacturer's inspection certificate M according to DIN 55350 T18							Z1
1) Only in connection with FKM and EPDM seal 2) Only in connection with maintenance indicator V5.0
Further versions (filter materials, connections,...) are available upon request.

---

Model	Code
