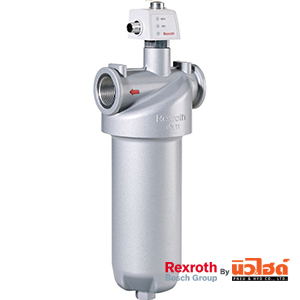

INLINE FILTERS รุ่น 50LE (N)

ตัวกรองขาเข้า (Rexroth Inline filter with filter element according to DIN 24550)

รายละเอียด Rexroth Hydraulic Inline Filters รุ่น 50 LE (N).

Size 0040 … 0400
(ขนาด 0040 ... 0400)
Max. operating pressure 50 bar
(แรงดันใช้งานสูงสุด 50 บาร์)
Flow, max. 300 l/min
(อัตราการไหลสูงสุด 300 ลิตรต่อนาที)
Port G 3/4, G 3/4, G 3/4, G 1, G 1, G 1 1/2, G 1 1/2, G 1 1/2
(ช่องน้ำมัน G 1/2, G 1, G 1, G1 1/4, G 1 1/4, G 1 1/2, G1 1/2, G 1 1/2 )
Operating temperature -10 … +100 °C
(ช่วงอุณหภูมิใช้งาน -10 ... +100 °C )

Features

Filters for inline installation
(ตวกรองสำหรับกรองขาเข้า)
Special highly efficient filter media
( กรองชนิดพิเศษที่มีประสิทธิภาพสูงต่อเนื่อง)
Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
(การกรองอนุภาคละเอียดและความสามารถในการยึดฝุ่นสูงในช่วงความแตกต่างของความกว้างที่กว่างขึ้น)
High collapse resistance of the filter elements
(ต้านทานการยุบตัวของกรองสูง)
Standard version equipped with mechanical/visual maintenance indicator with memory function
(รุ่นมาตรฐานที่มีตัวบ่งชี้การบำรุ่งรักษาทางกล / ภาพด้วยฟังก์ชั่นหน่วยความจำ)
Optional equipment with various electrical switching elements, modular design
(อุปกรณ์เสริมที่มีองค์ประกอบเปลี่ยนกระแสไฟฟ้าแบบต่างๆ (แบบแยกส่วน))

SPECIFICATION (รายละเอียด)

ขนาด			0040	0063	0100	0130	0150	0160	0250	0400
แรงดันใช้งาน	^pmax	bar	50
ช่วงอุณหภูมิของของไหล	ϑ	^°C	-10 … +100
ค่ากลางของการนำไฟฟ้าต่ำสุด		pS/m	300
ค่าความล้า ตาม ISO 10771	รอบภาระ		> 10⁶ with operating pressure
ทิศทางการกรอง			จากภายนอก มา ภายใน (ระบบ)

Type Code

01	02	03		04	05		06		07		08		09		10
50FLE.			-			-		-		-		-		-

Series
01	Inline filter 50 bar					50LE
Filter element
02	with filter element according to DIN 24550					N
Size
03	LEN... (filter element according to DIN 24550)					0040
						0063
						0100
						0160
						0250
						0400
	LE... (filter element according to Bosch Rexroth standard)					0130
						0150
Filter rating in μm
04	Nominal		Stainless steel wire mesh, cleanable			G10
						G25
						G40
						G60
						G100
	Nominal		Filter paper, not cleanable			P10
	Nominal		Filter paper, not cleanable			P25
	Absolute (ISO 16889; βx(c)≥ 200)		Non-woven glass fiber media, not cleanable			H3XL
						H6XL
						H10XL
						H20XL
Pressure differential
05	max. admissible pressure differential of the filter element 30 bar, with bypass valve					A00
05	max. admissible pressure differential of the filter element 330 bar, without bypass valve					B00
Maintenance indicator
06	Maintenance indicator, mech./visual, switching pressure 0.8 bar - bypass cracking pressure 2.5 bar					V0,8
	Maintenance indicator, mech./visual, switching pressure 1.5 bar - bypass cracking pressure 2.5 bar					V1,5
	Maintenance indicator, mech./visual, switching pressure 2.2 bar - bypass cracking pressure 3.5 bar					V2,2
	Maintenance indicator, mech./visual, switching pressure 5.0 bar - bypass cracking pressure 7 bar					V5,0
Seal
07	NBR					M
07	FKM					V
Port
08	Frame size	0040-0100	0130-0150	0160-0400
	Port
	G 3/4	●			Pipe thread according to ISO 228	R3
	G 1		●			R4
	G 1 1/2			●		R6
	SAE 12	X			Pipe thread according to SAE J1926	U4
	SAE 16		X			U9
	SAE 24			X		U6
	● = Standard port
	X = Alternative connection possibility
Supplementary information
09	without bypass valve (only possible in connection with filter element version "A00”) 1)					NB
10	Manufacturer's inspection certificate M according to DIN 55350 T18					Z1
1) Attention: If this option is selected and the maintenance indicator is not observed, the filter element may collapse in case of operating pressures of more than 30 bar.
Further versions (filter materials, connections,...) are available upon request.

Model	Code
50LE0130-AS3A00-V2,2-M-R4	R928053991
50LE0130-G100A00-V2,2-M-R4	R928053985
50LE0130-G10A00-V2,2-M-R4	R928031999
50LE0130-G10A00-V5,0-M-R4	R928050718
50LE0130-G25A00-V1,5-M-R4	R928053557
50LE0130-G25A00-V2,2-M-R4	R928036316
50LE0130-G25A00-V2,2-M-R4-NB	R928049444
50LE0130-G25A00-V5,0-M-R4	R928050726
50LE0130-G40A00-V2,2-M-R4	R928052461
50LE0130-G40A00-V5,0-M-R4	R928050734
50LE0130-H10XLA00-V2,2-M-R4	R928050743
50LE0130-H10XLA00-V5,0-M-R4	R928050744
50LE0130-H10XLA00-V5,0-M-U9	R928050745
50LE0130-H20XLA00-V5,0-M-R4	R928050757
50LE0130-H20XLA00-V5,0-V-R4	R928050759
50LE0130-H3XLA00-V2,2-M-R4	R928050770
50LE0130-H3XLA00-V2,2-V-R4-NB	R928053776
50LE0130-H3XLA00-V5,0-M-U9	R928050772
50LE0130-H6XLA00-V2,2-M-R4	R928050782
50LE0130-P10A00-V2,2-M-R4-NB	R928049968
50LE0130-V2,2-M-R4-SP000635-0/HR	R928049209
50LE0150-AS10A00-V2,2-M-R4	R928053579
50LE0150-G100-A00-V1,5-M-R4	R928049611
50LE0150-G100A00-V2,2-M-R4	R928051929
50LE0150-G100A00-V2,2-M-R4-NB	R928052665
50LE0150-G10A00-V5,0-M-U9	R928050798
50LE0150-G25A00-V2,2-M-R4	R928053135
50LE0150-G25A00-V5,0-M-R4	R928050805
50LE0150-G25A00-V5,0-M-U9	R928050806
50LE0150-G40A00-V2,2-M-R4-NB	R928051900
50LE0150-G40A00-V5,0-M-R4	R928050813
50LE0150-G60A00-V1,5-M-R4	R928049703
50LE0150-G60A00-V2,2-M-R4	R928051567
50LE0150-G60A00-V5,0-M-R4	R928049952
50LE0150-H10XLA00-V1,5-M-R4	R928050821
50LE0150-H10XLA00-V2,2-M-R4	R928050822
50LE0150-H10XLA00-V5,0-M-R4	R928050823
50LE0150-H10XLA00-V5,0-M-U9	R928050824
50LE0150-H20XLA00-V5,0-V-R4	R928050839
50LE0150-H3XLA00-V0,8-M-R4	R928053981
50LE0150-H3XLA00-V1,5-M-R4	R928050849
50LE0150-H3XLA00-V2,2-M-R4	R928050850
50LE0150-H3XLA00-V5,0-M-R4	R928050851
50LE0150-H3XLA00-V5,0-M-U9	R928050852
50LE0150-H3XLA00-V5,0-V-U9	R928050854
50LE0150-H6XLA00-V2,2-M-R4	R928050862
50LE0150-H6XLA00-V5,0-M-R4	R928050863
50LE0150-P10A00-V1,5-M-R4	R928054711
50LE0600-H10XLVA00-V2,2-M-R6/HG	R928022494
50LE0600-H10XLVA00-V5,0-M-R6/HG	R928022511
50LEN0040-AS6A00-V5,0-M-R3	R928054598
50LEN0040-G100A00-V1,5-M-R3	R928052154
50LEN0040-G100A00-V2,2-M-R3	R928047963
50LEN0040-G100A00-V2,2-M-R3-NB	R928052223
50LEN0040-G100A00-V2,2-V-R3	R928052974
50LEN0040-G10A00-V1,5-M-R3	R928049849
50LEN0040-G10A00-V2,2-M-R3	R928049212
50LEN0040-G10A00-V2,2-M-R3/GU	R928053282
50LEN0040-G25A00-V0,8-M-R3	R928049694
50LEN0040-G25A00-V1,5-M-R3	R928051561
50LEN0040-G25A00-V2,2-M-R3	R928049740
50LEN0040-G25A00-V2,2-V-R3	R928049938
50LEN0040-G25A00-V2,2-V-R3-NB	R928051636
50LEN0040-G25A00-V5,0-M-R3	R928050883
50LEN0040-G25B00-V0,8-V-R3	R928055611
50LEN0040-G40A00-V0,8-M-R3	R928048739
50LEN0040-G40A00-V2,2-M-R3	R928049397
50LEN0040-G40A00-V5,0-M-R3	R928050891
50LEN0040-G60A00-V1,5-M-R3	R928049682
50LEN0040-G60A00-V1,5-M-R3-NB	R928053622
50LEN0040-G60A00-V2,2-M-R3	R928049454
50LEN0040-H10XLA00-V2,2-M-R3	R928047959
50LEN0040-H10XLA00-V2,2-M-U4	R928048460
50LEN0040-H10XLA00-V2,2-V-R3	R928054563
50LEN0040-H10XLA00-V5,0-M-R3	R928050899
50LEN0040-H10XLA00-V5,0-M-U4	R928050900
50LEN0040-H10XLA00-V5,0-V-U4	R928050901
50LEN0040-H20XLA00-V1,5-M-R3	R928050906
50LEN0040-H20XLA00-V1,5-V-R3	R928050907
50LEN0040-H20XLA00-V2,2-M-R3	R928050908
50LEN0040-H20XLA00-V5,0-M-R3	R928050910
50LEN0040-H3XLA00-V2,2-M-R3	R928048449
50LEN0040-H3XLA00-V2,2-V-R3	R928053275
50LEN0040-H3XLA00-V5,0-M-R3	R928050922
50LEN0040-H3XLB00-V2,2-M-R3	R928054432
50LEN0040-H6XLA00-V2,2-M-R3	R928048451
50LEN0040-H6XLA00-V5,0-M-R3	R928050930
50LEN0040-P10A00-V2,2-M-R3	R928054784
50LEN0040-P10A00-V2,2-M-R3-NB	R928052983
50LEN0040-P25A00-V1,5-M-R3	R928055878
50LEN0040-P25A00-V1,5-V-R3	R928049914
50LEN0063-G100A00-V2,2-M-R3	R928047863
50LEN0063-G10A00-V2,2-M-R3	R928053606
50LEN0063-G25A00-V2,2-M-R3	R928049391
50LEN0063-G40A00-V0,8-M-R3	R928053968
50LEN0063-G40A00-V2,2-M-R3	R928049585
50LEN0063-G40A00-V2,2-M-R3-NB	R928053969
50LEN0063-G60A00-V1,5-M-R3	R928049770
50LEN0063-G60A00-V1,5-M-R3-NB	R928054868
50LEN0063-G60A00-V1,5-V-R3	R928052401
50LEN0063-G60A00-V2,2-M-R3	R928047861
50LEN0063-G60A00-V2,2-M-R3-NB	R928049875
50LEN0063-G60A00-V2,2-V-R3	R928049760
50LEN0063-H10XLA00-V0,8-M-R3	R928048201
50LEN0063-H10XLA00-V1,5-M-R3	R928050966
50LEN0063-H10XLA00-V2,2-M-R3	R928050967
50LEN0063-H10XLA00-V2,2-V-R3	R928054468
50LEN0063-H10XLA00-V5,0-M-R3	R928050968
50LEN0063-H10XLA00-V5,0-M-U4	R928050969
50LEN0063-H10XLA00-V5,0-V-R3	R928050970
50LEN0063-H20XLA00-V1,5-M-R3	R928050978
50LEN0063-H20XLA00-V2,2-M-R3	R928050980
50LEN0063-H20XLA00-V2,2-V-R3	R928050981
50LEN0063-H20XLA00-V5,0-M-R3	R928050982
50LEN0063-H3XLA00-V2,2-M-R3	R928050995
50LEN0063-H3XLA00-V5,0-M-R3	R928050996
50LEN0063-H6XLA00-V2,2-M-R3	R928051007
50LEN0063-P10A00-V2,2-M-R3	R928049922
50LEN0063-P10A00-V2,2-M-R3-NB	R928055527
50LEN0063-P25A00-V2,2-M-R3	R928025790
50LEN0063-P25A00-V2,2-V-R3	R928049319
50LEN0100-00000A00-V2,2-V-R3-SP000890-A&	R928036906
50LEN0100-G100A00-V2,2-M-R3	R928053423
50LEN0100-G100A00-V2,2-M-R3-NB	R928052649
50LEN0100-G100A00-V2,2-V-R3-NB	R928053477
50LEN0100-G25A00-V1,5-M-R3	R928049676
50LEN0100-G25A00-V2,2-M-R3	R928049638
50LEN0100-G25A00-V2,2-V-R3	R928019373
50LEN0100-G25A00-V5,0-M-R3-NB	R928051034
50LEN0100-G25A00-V5,0-V-R3	R928051032
50LEN0100-G40A00-V0,8-M-R3-NB	R928048359
50LEN0100-G40A00-V2,2-M-R3	R928049192
50LEN0100-G40A00-V5,0-M-R3	R928051038
50LEN0100-G40A00-V5,0-V-R3	R928051040
50LEN0100-G60A00-V2,2-M-R3	R928048266
50LEN0100-G60A00-V5,0-V-R3-NB	R928054865
50LEN0100-H10XLA00-V1,5-M-R3	R928051046
50LEN0100-H10XLA00-V2,2-M-R3	R928051047
50LEN0100-H10XLA00-V2,2-V-R3	R928054607
50LEN0100-H10XLA00-V5,0-M-R3	R928051048
50LEN0100-H10XLA00-V5,0-V-R3	R928051050
50LEN0100-H20XLA00-V2,2-M-R3	R928051060
50LEN0100-H3XLA00-V2,2-M-R3	R928051075
50LEN0100-H3XLA00-V2,2-V-R3	R928049592
50LEN0100-H3XLA00-V2,2-V-R3-NB	R928053546
50LEN0100-H3XLA00-V5,0-M-R3	R928051076
50LEN0100-H3XLA00-V5,0-V-R3	R928051078
50LEN0100-H6XLA00-V2,2-M-R3	R928051087
50LEN0100-H6XLA00-V2,2-V-R3	R928054691
50LEN0100-H6XLA00-V5,0-M-R3	R928051088
50LEN0100-H6XLA00-V5,0-M-U4	R928051089
50LEN0100-P25A00-V1,5-M-R3	R928049683
50LEN0160-0-M-R6-SP000817-0/HR	R928053805
50LEN0160-AS10A00-V2,2-M-R6--SP000591-A&	R928048419
50LEN0160-G100A00-V0,8-M-U6	R928053140
50LEN0160-G100A00-V2,2-M-R6	R928049738
50LEN0160-G100A00-V2,2-V-R6	R928053013
50LEN0160-G25A00-V0,8-M-R6	R928054496
50LEN0160-G25A00-V1,5-V-U6-NB	R928052257
50LEN0160-G25A00-V2,2-M-R6	R928049532
50LEN0160-G25A00-V2,2-M-R6-NB	R928054328
50LEN0160-G25A00-V2,2-V-R6	R928049797
50LEN0160-G25A00-V5,0-M-R6	R928051108
50LEN0160-G25A00-V5,0-M-U6	R928051109
50LEN0160-G300A00-V0,8-V-R6/PS	R928049778
50LEN0160-G40A00-V2,2-M-R6	R928049589
50LEN0160-G40A00-V2,2-V-R6	R928053959
50LEN0160-G40A00-V5,0-M-R6-NB	R928051120
50LEN0160-G60A00-V0,8-M-R6	R928049756
50LEN0160-G60A00-V0,8-M-R6-NB	R928055419
50LEN0160-G60A00-V2,2-M-R6	R928047710
50LEN0160-G60A00-V2,2-V-R6	R928049706
50LEN0160-H10XLA00-V1,5-M-R6	R928051124
50LEN0160-H10XLA00-V2,2-M-R6	R928051125
50LEN0160-H10XLA00-V2,2-V-R6	R928051421
50LEN0160-H10XLA00-V5,0-M-R6	R928051126
50LEN0160-H10XLA00-V5,0-V-R6	R928051767
50LEN0160-H10XLVA00-V2,2-M-R6/HG	R928055197
50LEN0160-H10XLVA00-V5,0-M-R6/HG	R928055198
50LEN0160-H20XLA00-V0,8-M-R6	R928055319
50LEN0160-H20XLA00-V2,2-M-R6	R928051137
50LEN0160-H20XLA00-V5,0-M-R6	R928051139
50LEN0160-H20XLA00-V5,0-M-U6	R928051140
50LEN0160-H20XLB00-V2,2-M-R6	R928051812
50LEN0160-H3XLA00-V2,2-M-R6	R928051152
50LEN0160-H3XLA00-V2,2-M-U6	R928048457
50LEN0160-H3XLA00-V2,2-V-R6	R928053864
50LEN0160-H3XLA00-V2,2-V-U6-NB	R928054579
50LEN0160-H3XLA00-V5,0-M-R6	R928051153
50LEN0160-H6XLA00-V1,5-M-R6	R928051163
50LEN0160-H6XLA00-V2,2-M-R6	R928051164
50LEN0160-H6XLA00-V2,2-V-R6	R928055512
50LEN0160-H6XLA00-V5,0-M-R6	R928051165
50LEN0160-H6XLA00-V5,0-M-U6	R928051166
50LEN0160-H6XLA00-V5,0-V-R6	R928051167
50LEN0250-AS6A00-V2,2-M-R6	R928048874
50LEN0250-G100A00-V0,8-M-R6	R928054470
50LEN0250-G100A00-V2,2-M-R6	R928052279
50LEN0250-G100A00-V2,2-M-R6-NB	R928053859
50LEN0250-G100A00-V5,0-M-R6	R928052268
50LEN0250-G10A00-V2,2-M-R6	R928018877
50LEN0250-G10A00-V2,2-V-R6	R928052493
50LEN0250-G25A00-V2,2-M-R6	R928053587
50LEN0250-G25A00-V5,0-M-R6	R928051187
50LEN0250-G40A00-V2,2-M-R6	R928048120
50LEN0250-G40A00-V2,2-M-R6-NB	R928049986
50LEN0250-G60A00-V1,5-M-R6	R928022895
50LEN0250-G60A00-V2,2-M-R6	R928049073
50LEN0250-G60A00-V5,0-M-R6	R928054778
50LEN0250-H10XLA00-V1,5-M-R6	R928051203
50LEN0250-H10XLA00-V2,2-M-R6	R928051204
50LEN0250-H10XLA00-V2,2-M-R6-SP000585-A&	R928048341
50LEN0250-H10XLA00-V2,2-M-U6	R928048466
50LEN0250-H10XLA00-V2,2-V-R6	R928049029
50LEN0250-H10XLA00-V5,0-M-R6	R928051205
50LEN0250-H10XLA00-V5,0-V-R6	R928051207
50LEN0250-H10XLVA00-V2,2-M-R6/HG	R928055199
50LEN0250-H10XLVA00-V5,0-M-R6/HG	R928055200
50LEN0250-H20XLA00-V1,5-M-R6	R928051215
50LEN0250-H20XLA00-V2,2-M-R6	R928051217
50LEN0250-H20XLA00-V5,0-M-R6	R928051219
50LEN0250-H20XLB00-V5,0-M-R6	R928054541
50LEN0250-H3XLA00-V1,5-M-R6	R928051231
50LEN0250-H3XLA00-V2,2-M-R6	R928051232
50LEN0250-H3XLA00-V2,2-M-U6	R928048458
50LEN0250-H3XLA00-V2,2-V-R6	R928053841
50LEN0250-H3XLA00-V5,0-M-R6	R928051233
50LEN0250-H6XLA00-V2,2-M-R6	R928051244
50LEN0250-H6XLA00-V2,2-M-U6	R928048474
50LEN0250-H6XLA00-V2,2-V-R6	R928055519
50LEN0250-H6XLA00-V5,0-M-R6	R928051245
50LEN0250-H6XLA00-V5,0-V-R6	R928051247
50LEN0250-H6XLB00-V5,0-M-R6	R928037160
50LEN0250-P10A00-V2,2-M-R6	R928052068
50LEN0400-AS10A00-V2,2-M-R6	R928049940
50LEN0400-G100A00-V2,2-M-R6	R928051591
50LEN0400-G100B00-V2,2-V-R6	R928055529
50LEN0400-G10A00-V2,2-M-R6	R928049782
50LEN0400-G10A00-V2,2-M-R6-NB	R928053679
50LEN0400-G25A00-V1,5-V-R6-NB	R928054750
50LEN0400-G40A00-V1,5-M-R6	R928052977
50LEN0400-G40A00-V5,0-V-R6	R928051277
50LEN0400-H10XLA00-E1,5-M-R6/PL	R928048890
50LEN0400-H10XLA00-V1,5-M-R6	R928051283
50LEN0400-H10XLA00-V2,2-M-R6	R928051284
50LEN0400-H10XLA00-V2,2-V-R6	R928055459
50LEN0400-H10XLA00-V5,0-M-R6	R928051285
50LEN0400-H10XLVA00-V2,2-M-R6/HG	R928055201
50LEN0400-H10XLVA00-V5,0-M-R6/HG	R928055202
50LEN0400-H20XLA00-V2,2-M-R6	R928051297
50LEN0400-H20XLA00-V5,0-M-R6	R928051299
50LEN0400-H3XLA00-V2,2-M-R6	R928051312
50LEN0400-H3XLA00-V2,2-M-U6	R928048459
50LEN0400-H3XLA00-V5,0-M-R6	R928051313
50LEN0400-H6XLA00-V2,2-M-R6	R928051324
50LEN0400-H6XLA00-V5,0-M-R6	R928051325
50LEN0400-H6XLA00-V5,0-M-U6	R928051326
50LEN0400-PWR3A00-V2,2-V-R6	R928053051
