OMRON Limit Switches - WL-N / WL

Model Numbers | Limit Switches - WL-N / WL

General-purpose Switches

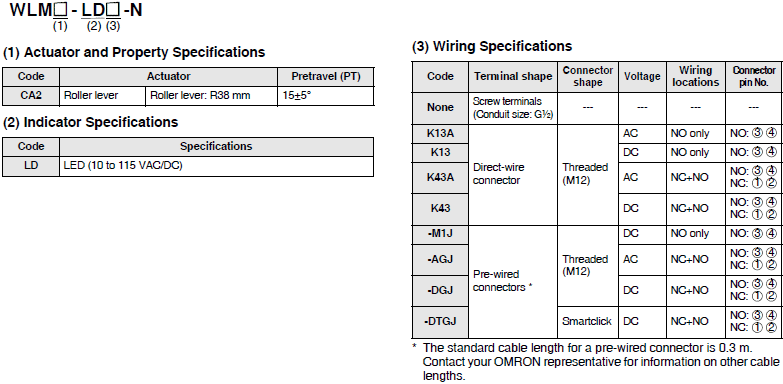

Model Number Structure

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

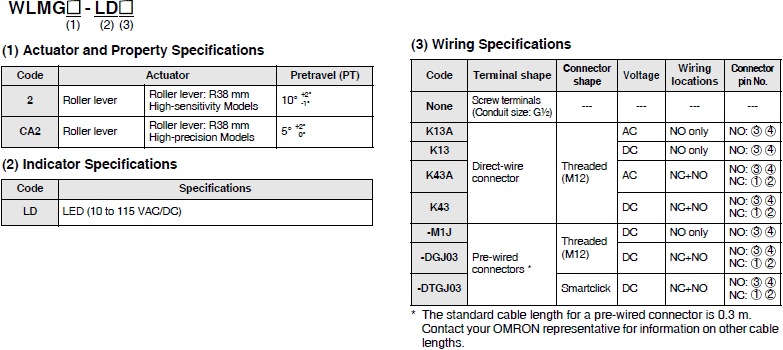

High-sensitivity and High-precision Models

Ordering Information

Roller Lever

Standard built-in switch

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model
	Roller lever: R38 mm	Screw terminals (Conduit size: G½)	15±5°	WLCA2-N	WLCA2-LD-N	WLCA2-LE-N
			25±5°	WLCA2-2-N	WLCA2-2LD-N	WLCA2-2LE-N
			20° max.	WLCA2-2N-N	WLCA2-2NLD-N	WLCA2-2NLE-N
			10°+2°,-1°	WLG2	WLG2-LD	WLG2-LE
			5°+2°, 0°	WLGCA2	WLGCA2-LD	WLGCA2-LE
	Roller lever: R50 mm		15±5°	WLCA2-7-N	WLCA2-7LD-N	WLCA2-7LE-N
			25±5°	---	---	---
			20° max.	---	---	---
	Roller lever: R63 mm		15±5°	WLCA2-8-N	WLCA2-8LD-N	WLCA2-8LE-N
			25±5°	---	---	---
			20° max.	---	---	---

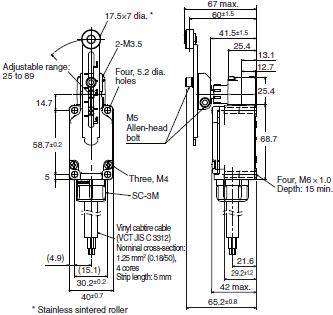

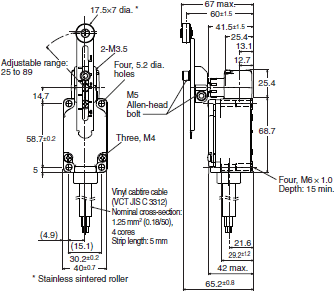

	Adjustable roller lever (R25 to 89 mm)		15±5°	WLCA12-N	WLCA12-LD-N	WLCA12-LE-N
			25±5°	WLCA12-2-N	WLCA12-2LD-N	WLCA12-2LE-N
			20° max.	WLCA12-2N-N	WLCA12-2NLD-N	WLCA12-2NLE-N
			10°+2°,-1°	WLG12	WLG12-LD	WLG12-LE

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
	Roller lever: R38 mm	Direct- wire con- nector	15±5°	Threaded (M12)	AC	NO only	NO: ③④	WLCA2-LDK13A-N
					DC	NO only	NO: ③④	WLCA2-LDK13-N
					AC	NC+NO	NO: ③④ NC: ①②	WLCA2-LDK43A-N
					DC	NC+NO	NO: ③④ NC: ①②	WLCA2-LDK43-N
			10° +2°,-1°			NO only	NO: ③④	WLG2-LDK13
						NC+NO	NO: ③④ NC: ①②	WLG2-LDK43
			5° +2°, 0°			NO only	NO: ③④	WLGCA2-LDK13
						NC+NO	NO: ③④ NC: ①②	WLGCA2-LDK43
	Roller lever: R38 mm	Pre- wired con- nectors	15±5°	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-LD-M1J-N
						NO only	NO: ③④	WLCA2-LD-M1GJ-N
						NC only	NC: ③②	WLCA2-LD-M1JB-N
						NC+NO	NO: ③④ NC: ①②	WLCA2-LD-DGJ-N
						NO only	NO: ③④ NC: ②	WLCA2-LD-DK1EJ-N
				Smartclick		NC+NO	NO: ③④ NC: ①②	WLCA2-LD-DTGJ-N
						NO only	NO: ③④ NC: ②	WLCA2-LD-DTK1EJ-N
			10° +2°,-1°	Threaded (M12)		NO only	NO: ③④	WLG2-LD-M1J
						NO only	NO: ①④	WLG2-LD-M1GJ
						NC only	NC: ③②	WLG2-LD-M1JB
						NC+NO	NO: ③④ NC: ①②	WLG2-LD-DGJ03
						NO only	NO: ③④ NC: ②	WLG2-LD-DK1EJ03
				Smartclick		NO only	NO: ③④	WLG2-LD-M1TJ
						NO only	NO: ①④	WLG2-LD-M1TGJ
						NC only	NC: ③②	WLG2-LD-M1TJB
						NC+NO	NO: ③④ NC: ①②	WLG2-LD-DTGJ03
						NO only	NO: ③④ NC: ②	WLG2-LD-DTK1EJ03
			5°+2°, 0°	Threaded (M12)		NO only	NO: ③④	WLGCA2-LD-M1J
						NO only	NO: ①④	WLGCA2-LD-M1GJ
						NC only	NC: ③②	WLGCA2-LD-M1JB
						NC+NO	NO: ③④ NC: ①②	WLGCA2-LD-DGJ03
				Smartclick		NC+NO	NO: ③④ NC: ①②	WLGCA2-LD-DTGJ03
						NO only	NO: ③④ NC: ②	WLGCA2-LD-DTK1EJ03

Note: 1. The photo shows a typical model.
2. The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON
when operating (NC wiring)

Airtight Built-in Switch

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model
	Roller lever: R38 mm	Screw terminals (Conduit size: G½)	15±5°	WLCA2-55-N	WLCA2-55LD-N	WLCA2-55LE-N
			25±5°	WLCA2-255-N	WLCA2-255LD-N	WLCA2-255LE-N
			20° max.	WLCA2-2N55-N	WLCA2-2N55LD-N	WLCA2-2N55LE-N
			10°+2°,-1°	WLG2-55	WLG2-55LD	WLG2-55LE
			5°+2°, 0°	WLGCA2-55	WLGCA2-55LD	WLGCA2-55LE
	Adjustable roller lever (R25 to 89 mm)	Screw terminals (Conduit size: G½)	15±5°	WLCA12-55-N	WLCA12-55LD-N	WLCA12-55LE-N
			25±5°	---	---	---
			20° max.	---	---	---
			10°+2°,-1°	---	---	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
	Roller lever: R38 mm	Direct- wire con- nector	15±5°	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-55LDK13-N
						NC+NO	NO: ③④ NC: ①②	WLCA2-55LDK43-N
			10° +2°,-1°			NO only	NO: ③④	WLG2-55LDK13
						NC+NO	NO: ③④ NC: ①②	WLG2-55LDK43
			5°+2°, 0°			NO only	NO: ③④	WLGCA2-55LDK13
						NC+NO	NO: ③④ NC: ①②	WLGCA2-55LDK43
	Roller lever: R38 mm	Pre- wired con- nectors	15±5°	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-55LD-M1J-N
						NO only	NO: ①④	WLCA2-55LD-M1GJ-N
						NC only	NC: ③②	WLCA2-55LD-M1JB-N
						NC+NO	NO: ③④ NC: ①②	WLCA2-55LD-DGJ-N
						NO only	NO: ③④ NC: ②	WLCA2-55LD-DK1EJ-N
				Smartclick		NC+NO	NO: ③④ NC: ①②	WLCA2-55LD-DTGJ-N
				Threaded (M12)		NO only	NO: ③④	WLD2-55LD-M1J
						NO only	NO: ①④	WLG2-55LD-M1GJ
						NC only	NC: ③②	WLG2-55LD-M1JB
			10° +2°,-1°			NC+NO	NO: ③④ NC: ①②	WLG2-55LD-DGJ03
						NO only	NO: ③④ NC: ②	WLG2-55LD-DK1EJ03
				Smartclick		NO only	NO: ③④	WLG2-55LD-M1TJ
						NO only	NO: ①④	WLG2-55LD-M1TGJ
						NC only	NC: ③②	WLG2-55LD-M1TJB
						NC+NO	NO: ③④ NC: ①②	WLG2-55LD-DTGJ03
						NO only	NO: ③④ NC: ②	WLG2-55LD-DTK1EJ03

Note: 1. The photo shows a typical model.
2. The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON
when operating (NC wiring))

Plunger Actuators

Standard built-in switch

Appearance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model

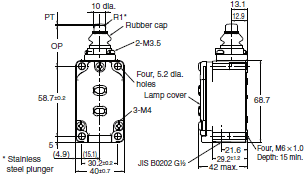

	Sealed top-roller plunger	Screw terminals (Conduit size: G½)	1.7 mm max.	WLD28-N	WLD28-LD-N	WLD28-LE-N
	Top-roller plunger			WLD2-N	WLD2-LD-N	WLD2-LE-N
	Sealed top plunger			WLD18-N	WLD18-LD-N	WLD18-LE-N
	Sealed top-ball plunger			WLD38-N	WLD38-LD-N	WLD38-LE-N

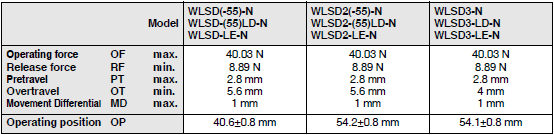

	Horizontal plunger		2.8 mm max.	WLSD-N	WLSD-LD-N	WLSD-LE-N
	Horizontal-roller plunger			WLSD2-N	WLSD2-LD-N	WLSD2-LE-N
	Horizontal-ball plunger			WLSD3-N	WLSD3-LD-N	WLSD3-LE-N

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
	Sealed top-roller plunger	Direct-wire connector type	1.7 mm max.	Threaded (M12)	DC	NO only	NO: ③④	WLD28-LDK13-N
						NC+NO	NO: ③④ NC: ①②	WLD28-LDK43-N
		Pre-wired connector type				NO only	NO: ③④	WLD28-LD-M1J-N
						NO only	NO: ①④	WLD28-LD-M1GJ-N
						NC+NO	NO: ③④ NC: ①②	WLD28-LD-DGJ-N
						NO only	NO: ③④ NC: ②	WLD28-LD-DK1EJ-N

Note: The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON
when operating (NC wiring))

Airtight Built-in Switch

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model
	Sealed top-roller plunger	Screw terminals (Conduit size: G½)	1.7 mm max.	WLD28-55-N	WLD28-55LD-N	WLD28-55LE-N
	Top-roller plunger		1.7 mm max.	WLD2-55-N	WLD2-55LD-N	WLD2-55LE-N
	Horizontal plunger		2.8 mm max.	WLSD-55-N	WLSD-55LD-N	---
	Horizontal-roller plunger		2.8 mm max.	WLSD2-55-N	WLSD2-55LD-N	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
	Sealed top-roller plunger	Direct-wire connector type	1.7 mm max.	Threaded (M12)	DC	NO only	NO: ③④	WLD28-55LDK13-N
						NC+NO	NO: ③④ NC: ①②	WLD28-55LDK43-N
		Pre-wired connectors type				NO only	NO: ③④	WLD28-55LD-M1J-N
						NO only	NO: ①④	WLD28-55LD-M1GJ-N
						NC+NO	NO: ③④ NC: ①②	WLD28-55LD-DGJ-N
						NO only	NO: ③④ NC: ②	WLD28-55LD-DK1EJ-N

Note: The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON
when operating (NC wiring)).

Flexible Rod

Standard built-in switch

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model

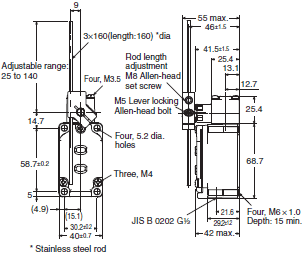

	Adjustable rod lever: (25 to 140 mm)	Screw terminals (Conduit size: G½)	15±5°	WLCL-N	WLCL-LD-N	WLCL-LE-N
			25±5°	WLCL-2-N	WLCL-2LD-N	WLCL-2LE-N
			20° max.	WLCL-2N-N	WLCL-2NLD-N	WLCL-2NLE-N
			10°+2°,-1°	WLGL	WLGL-LD	WLGL-LE
	Adjustable rod lever: (350 to 380 mm)		15±5°	WLCAL4-N	WLCAL4-LD-N	WLCAL4-LE-N
			25±5°	---	---	---
			20° max.	---	---	---
	Rod spring lever		15±5°	WLCAL5-N	WLCAL5-LD-N	WLCAL5-LE-N
			25±5°	---	---	---
			20° max.	---	---	---
	Coil spring (6.5 dia.)		20±10 mm	WLNJ-N	WLNJ-LD-N	WLNJ-LE-N
	Coil spring (4.8 dia.)		20±10 mm	WLNJ-30-N	WLNJ-30LD-N	WLNJ-30LE-N
	Flexible rod		40±20 mm	WLNJ-2-N	WLNJ-2LD-N	WLNJ-2LE-N
	Flexible rod: Steel wire (1 dia.)		40±20 mm	WLNJ-S2-N	WLNJ-S2LD-N	WLNJ-S2LE-N

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Airtight Built-in Switch Specifications

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model
	Adjustable rod lever: 25 to 140 mm	Screw terminals (Conduit size: G½)	15±5°	WLCL-55-N	WLCL-55LD-N	---
			25±5°	---	---	---
			20° max.	---	---	---
	Coil spring (6.5 dia.)		20±10 mm	WLNJ-55-N	WLNJ-55LD-N	---
	Flexible rod: Resin rod (8 dia.)		40±20 mm	WLNJ-255-N	WLNJ-255LD-N	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Fork Lock Lever

Appear- ance	Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
					LED	Neon lamp
				Model	Model	Model
	Fork Lock Lever A	Screw terminals (Conduit size: G½)	55° max.	WLCA32-41-N	WLCA32-41LD-N	WLCA32-41LE-N
	Fork Lock Lever B		55° max.	WLCA32-42-N	---	WLCA32-42LE-N
	Fork Lock Lever C		55° max.	WLCA32-43-N	WLCA32-43LD-N	WLCA32-43LE-N
	Fork Lock Lever D		55° max.	WLCA32-44-N	---	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Environment-resistant Limit Switches

Model Number Structure

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

High-sensitivity and High-precision Models

Ordering Information

Roller Lever

Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Without operation indicator	With operation indicator
						Indicator	LED
					Model	Wiring Specifications	Model
	Roller lever: R38 mm	Screw terminals (Conduit size: G1/2)	Heat-resistant type	15±5°	WLCA2-TH-N	---	---
				25±5°	WLCA2-2TH-N	---	---
				20° max.	WLCA2-2NTH-N	---	---
				10°+2°,-1°	WLG2-TH	---	---
				5°+2°, 0°	WLGCA2-TH	---	---
			Cold-resistant type	15±5°	WLCA2-TC-N	---	---
				25±5°	WLCA2-2TC-N	---	---
				20° max.	WLCA2-2NTC-N	---	---
				10°+2°,-1°	WLG2-TC	---	---
				5°+2°, 0°	WLGCA2-TC	---	---
			Corrosion- resistant type	15±5°	WLCA2-RP-N	---	---
				10°+2°,-1°	WLG2-RP	---	---
				5°+2°, 0°	WLGCA2-RP	---	---
			Weather- resistant type	15±5°	WLCA2-P1-N	---	---
				10°+2°,-1°	WLG2-P1	---	---
		Direct- wire cable	Coolant- resistant type	15±5°	WLCA2-RP60-N	NC wiring	WLCA2-RP60LD2-N
						NO wiring	WLCA2-RP60LD3-N
				25±5°	WLCA2-2RP60-N	NC wiring	WLCA2-2RP60LD2-N
						NO wiring	WLCA2-2RP60LD3-N
				10°+2°,-1°	WLG2-RP60	NC wiring	WLG2-RP60LD2
						NO wiring	WLG2-RP60LD3
				5°+2°, 0°	WLGCA2-RP60	NC wiring	WLGCA2-RP60LD2
						NO wiring	WLGCA2-RP60LD3
			Corrosion- resistant type	15±5°	WLCA2-RP40-N	---	---
			Molded terminal -139	15±5°	WLCA2-139-N	NC wiring	WLCA2-139LD2-N
						NO wiring	WLCA2-139LD3-N
				25±5°	WLCA2-2139-N	NC wiring	WLCA2-2139LD2-N
						NO wiring	WLCA2-2139LD3-N
				20° max.	WLCA2-2N139-N	---	---
				10°+2°,-1°	WLG2-139	NO wiring	WLG2-139LD3
				5°+2°, 0°	WLGCA2-139	NC wiring	WLGCA2-139LD2
						NO wiring	WLGCA2-139LD3
			Molded terminal -140	15±5°	WLCA2-140-N	---	---
				20° max.	WLCA2-2N140-N	---	---
				10°+2°,-1°	WLG2-140	NC wiring	WLG2-140LD2 *
						NO wiring	WLG2-140LD3 *
			Molded terminal -141	15±5°	WLCA2-141-N	NC wiring	WLCA2-141LD2-N
						NO wiring	WLCA2-141LD3-N
				10°+2°,-1°	WLG2-141	NC wiring	WLG2-141LD2
						NO wiring	WLG2-141LD3
				5°+2°, 0°	WLGCA2-141	NO wiring	WLGCA2-141LD3
	Adjustable roller lever (R25 to 89 mm)	Screw terminals (Conduit size: G1/2)	Heat-resistant type	15±5°	WLCA12-TH-N	─	─
				25±5°	WLCA12-2TH-N	─	─
				20° max.	WLCA12-2NTH-N	─	─
				10°+2°,-1°	WLG12-TH	─	─
			Cold-resistant type	15±5°	WLCA12-TC-N	─	─
				25±5°	WLCA12-2TC-N	─	─
				20° max.	WLCA12-2NTC-N	─	─
				10°+2°,-1°	WLG12-TC	─	─
			Corrosion- resistant type	15±5°	WLCA12-RP-N	─	─
				10°+2°,-1°	WLG12-RP	─	─
			Weather- resistant type	15±5°	WLCA12-P1-N	─	─
				10°+2°,-1°	WLG12-P1	─	─
		Direct- wire cable	Coolant- resistant type	15±5°	WLCA12-RP60-N	─	─
			Molded terminal -139	15±5°	WLCA12-139-N	─	─
			Molded terminal -140	15±5°	WLCA12-140-N	─	─

* Ask your OMRON representative for details on Two-core switches.

Plunger

Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Without operation indicator
					Model
	Sealed top-roller plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type	1.7 mm max.	WLD28-TH-N
			Cold-resistant type		WLD28-TC-N
			Corrosion-resistant type		WLD28-RP-N

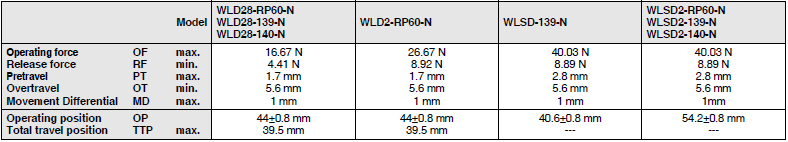

		Direct-wire cable	Coolant-resistant type		WLD28-RP60-N
			Molded terminal -139		WLD28-139-N
			Molded terminal -140		WLD28-140-N
	Top-roller plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type		WLD2-TH-N
		Direct-wire cable	Coolant-resistant type		WLD2-RP60-N
			Molded terminal -139		WLD2-139-N
	Horizontal plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type	2.8 mm max.	WLSD-TH-N
			Cold-resistant type		WLSD-TC-N
			Corrosion-resistant type		WLSD-RP-N
		Direct-wire cable	Coolant-resistant type		WLSD-RP60-N
			Molded terminal -139		WLSD-139-N
	Horizontal- roller plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type		WLSD2-TH-N
			Cold-resistant type		WLSD2-TC-N
			Corrosion-resistant type		WLSD2-RP-N
		Direct-wire cable	Coolant-resistant type		WLSD2-RP60-N
			Molded terminal -139		WLSD2-139-N
			Molded terminal -140		WLSD2-140-N

Flexible Rod

Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Without operation indicator
					Model
	Coil spring (6.5 dia.)	Screw terminals (Conduit size: G1/2)	Heat-resistant type	20±10mm	WLNJ-TH-N
			Cold-resistant type		WLNJ-TC-N
			Corrosion-resistant type		WLNJ-RP-N
		Direct-wire cable	Coolant-resistant type		WLNJ-RP60-N
			Molded terminal -139		WLNJ-139-N
			Molded terminal -140		WLNJ-140-N
	Resin rod (8 dia.)	Screw terminals (Conduit size: G1/2)	Corrosion-resistant type	40±20mm	WLNJ-2RP-N
		Direct-wire cable	Coolant-resistant type	40±20mm	WLNJ-2RP60-N
			Molded terminal -139		WLNJ-2139-N
			Molded terminal -140		WLNJ-2140-N
	Adjustable rod lever (25 to 140 mm)	Screw terminals (Conduit size: G1/2)	Heat-resistant type	15±5°	WLCL-TH-N
				25±5°	WLCL-2TH-N
				20° max.	WLCL-2NTH-N
				10°+2°,-1°	WLGL-TH
			Cold-resistant type	15±5°	WLCL-TC-N
				25±5°	WLCL-2TC-N
				20° max.	WLCL-2NTC-N
				10°+2°,-1°	WLGL-TC
			Corrosion-resistant type	15±5°	WLCL-RP-N
				10°+2°,-1°	WLGL-RP
			Weather-resistant type	15±5°	WLCL-P1-N
				10°+2°,-1°	WLGL-P1
		Direct-wire cable	Coolant-resistant type	15±5°	WLCL-RP60-N
			Molded terminal -139	15±5°	WLCL-139-N
			Molded terminal -140	15±5°	WLCL-140-N

Spatter-prevention Switches

Model Number Structure

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

High-sensitivity and High-precision Models

Ordering Information

Roller Lever

Standard built-in switch

Screw terminals

Appearance	Actuator	Pretravel (PT)	Lever type	With operation indicator *
				LED	Neon lamp
				Model	Model

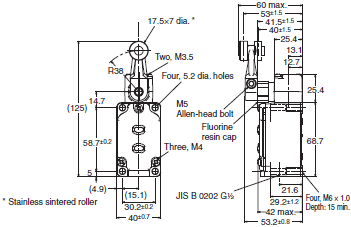

	Roller lever: R38 mm	15±5°	Double nut Lever	WLCA2-LDAS-N	WLCA2-LEAS-N
			Allen-head Lever	WLCA2-LDS-N	WLCA2-LES-N
		10°+2°,-1°	Double nut Lever	WLG2-LDAS	WLG2-LEAS
			Allen-head Lever	WLG2-LDS	WLG2-LES
		5°+2°, 0°		WLGCA2-LDS	WLGCA2-LES

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Pre-wired Connectors

Appear- ance	Actuator	Pretravel (PT)	Lever type	Connector shape	Usage Voltage	Wiring locations	Connector pin No.	With operation indicator *
								LED
								Wiring Specifications
	Roller lever: R38 mm	15±5°	Allen- head Lever	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-LDS-M1J-1-N
						NC+NO	NO: ③④ NC: ①②	WLCA2-LDS-DGJS-N
		10°+2°,-1°					NO: ③④ NC: ①②	WLG2-LDS-DGJS03
						NO only	NO: ③④ NC: ②	WLG2-LDS-DK1EJ03
							NO: ③④	WLG2-LDS-M1J-1
							NO: ①④	WLG2-LDS-M1GJ-1
		5°+2°, 0°					NO: ③④	WLGCA2-LDS-M1J-1
							NO: ①④	WLGCA2-LDS-M1GJ-1
		15±5°		Smartclick		NC+NO	NO: ③④ NC: ①②	WLCA2-LDS-DTGJS-N
		10°+2°,-1°				NO only	NO: ①④	WLG2-LDS-DTGJS03

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON when
operating (NC wiring)

Airtight Built-in Switch

Pre-wired Connector types

Appear- ance	Actuator	Pretravel (PT)	Lever type	Connector shape	Usage Voltage	Wiring locations	Connector pin No.	With operation indicator *
								LED
								Model
	Roller lever: R38 mm	10° +2°,-1°	Allen- head Lever	Threaded (M12)	DC	NO only	NO: ③④	WLG2-55LDS-M1J-1
							NO: ①④	WLG2-55LDS-M1GJ-1
						NC+NO	NO: ③④ NC: ①②	WLG2-55LDS-DGJS03
				Smartclick			NO: ③④ NC: ①②	WLG2-55LDS-M1TGJ

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON when
operating (NC wiring).)

Plunger Actuators

Standard built-in switch

Screw terminals

Appearance	Actuator	Pretravel (PT)	With operation indicator *
			LED	Neon lamp
			Model	Model

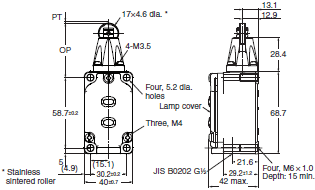

	Sealed top-roller plunger	1.7 mm max.	WLD28-LDS-N	WLD28-LES-N

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Pre-wired Connectors

Appear- ance	Actuator	Pretravel (PT)	Connector shape	Voltage	Wiring locations	Connector pin No.	With operation indicator *
							LED
							Model
	Sealed top-roller plunger	1.7 mm max.	Threaded (M12)	DC	NO only	NO: ③④	WLD28-LDS-M1J-1-N
				DC	NO only	NO: ①④	WLD28-LDS-M1GJ-1-N
				DC	NC+NO	NO: ③④ NC: ①②	WLD28-LDS-DGJS-N
			Smartclick	DC	NC+NO	NO: ③④ NC: ①②	WLD28-LDS-DTGJS-N

Note: The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information on
other cable lengths.
* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON when
operating (NC wiring).)

Long-life Switches

Model Number Structure

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

High-sensitivity and High-precision Switches

Ordering Information

Roller Lever

Screw terminals

Appearance	Actuator	Pretravel (PT)	With operation indicator *
			LED
			Model
	Roller lever: R38 mm	15±5°	WLMCA2-LD-N
		10°+2°,-1°	WLMG2-LD
		5°+2°, 0°	WLMGCA2-LD

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

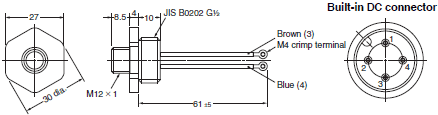

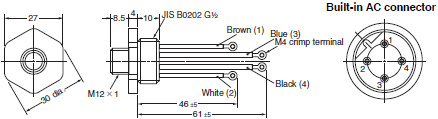

Direct-wire connector

Appearance	Actuator	Pretravel (PT)	Voltage	Wiring locations	Connector pin No.	With operation indicator *
						LED
						Model

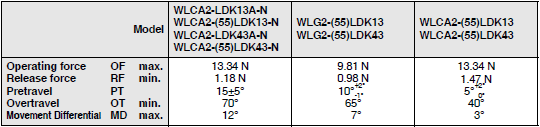

	Roller lever: R38 mm	15±5°	AC	NO only	NO: ③④	WLMCA2-LDK13A-N
				NC+NO	NO: ③④ NC: ①②	WLMCA2-LDK43A-N
			DC	NO only	NO: ③④	WLMCA2-LDK13-N
				NC+NO	NO: ③④ NC: ①②	WLMCA2-LDK43-N
		10°+2°,-1°	AC	NO only	NO: ③④	WLMG2-LDK13A
				NC+NO	NO: ③④ NC: ①②	WLMG2-LDK43A
			DC	NO only	NO: ③④	WLMG2-LDK13
				NC+NO	NO: ③④ NC: ①②	WLMG2-LDK43
		5°+2°, 0°	AC	NO only	NO: ③④	WLMGCA2-LDK13A
				NC+NO	NO: ③④ NC: ①②	WLMGCA2-LDK43A
			DC	NO only	NO: ③④	WLMGCA2-LDK13
				NC+NO	NO: ③④ NC: ①②	WLMGCA2-LDK43

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON when
operating (NC wiring).)

Pre-wired connectors

Appear- ance	Actuator	Pretravel (PT)	Voltage	Connector shape	Wiring locations	Connector pin No.	With operation indicator *
							LED
							Model
	Roller lever: R38 mm	15±5°	AC	Threaded (M12)	NO only	NO: ③④	WLMCA2-LD-M1J-N
					NC+NO	NO: ③④ NC: ①②	WLMCA2-LD-AGJ-N
			DC			NO: ③④ NC: ①②	WLMCA2-LD-DGJ-N
				Smartclick	NC+NO	NO: ③④ NC: ①②	WLMCA2-LD-DTGJ-N
		10° +2°,-1°		Threaded (M12)	NO only	NO: ③④	WLMG2-LD-M1J
					NC+NO	NO: ③④ NC: ①②	WLMG2-LD-DGJ03
				Smartclick		NO: ③④ NC: ①②	WLMG2-LD-DTGJ03
		5°+2°, 0°		Threaded (M12)	NO only	NO: ③④	WLMGCA2-LD-M1J
				Smartclick	NC+NO	NO: ③④ NC: ①②	WLMGCA2-LD-DTGJ03

Note: The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information on
other cable lengths.
* The default setting is for light-ON when not operating. Turn the lamp holder by 180° to change the setting to light-ON when
operating. (However, Four-core Switches cannot be switched to light-ON when operating (NC wiring).

Common Accessories (Sold Separately)

Single-item ordering models

Switches without levers, heads, and actuators can be ordered separately. Use by combining with models that are not available as a set. You can also use them as maintenance parts for inventory management.

General-purpose Models

Actuator	Pretravel (PT)	Set Model Numbers	Switches without levers	Heads (with Actuators)	Actuator *
			Model	Model	Model

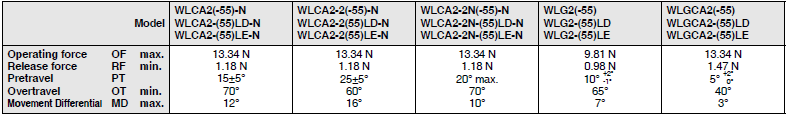

Roller lever: R38 mm	15±5°	WLCA2-N	WLRCA2-N	WL-1H1100-N	WL-1A100
	25±5°	WLCA2-2-N	WLRCA2-2-N	WL-3H1100-N
	20° max.	WLCA2-2N-N	WLRCA2-2N-N	WL-1H1100-N
	10°+2°,-1°	WLG2	---	WL-2H1100-K *
Adjustable roller lever (R25 to 89 mm)	15±5°	WLCA12-N	WLRCA2-N	WL-1H2100-N	WL-2A100
	25±5°	WLCA12-2-N	WLRCA2-2-N	WL-3H2100-N
	20° max.	WLCA12-2N-N	WLRCA2-2N-N	WL-1H2100-N
	10°+2°,-1°	WLG12	WLRG2	WL-2H2100-K *
Adjustable rod lever: (25 to 140mm)	15±5°	WLCL-N	WLRCL-N	WL-4H4100-N	WL-4A100
	25±5°	WLCL-2-N	WLRCA2-2-N	WL-3H4100-N
	20° max.	WLCL-2N-N	WLRCA2-2N-N	WL-1H4100-N
	10°+2°,-1°	WLGL	WLRG2	WL-2H4100-K *
Sealed top plunger	1.7 mm max.	WLD18-N	---	WL-7H100-N	---
Sealed top-roller plunger	1.7 mm max.	WLD28-N	---	WL-7H400-N	---
Sealed top-ball plunger	1.7 mm max.	WLD38-N	---	WL-7H300-N	---
Horizontal plunger	2.8 mm max.	WLSD-N	---	WL-8H100-N	---
Horizontal-roller plunger	2.8 mm max.	WLSD2-N	---	WL-8H200-N	---
Horizontal-ball plunger	2.8 mm max.	WLSD3-N	---	WL-8H300-N	---
Coil spring (6.5 dia.)	20±10 mm	WLNJ-N	---	WL-9H100-N	---
Coil spring (4.8 dia.)	20±10 mm	WLNJ-30-N	---	WL-9H200-N	---
Flexible rod: Resin rod (8 dia.)	40±20 mm	WLNJ-2-N	---	WL-9H300-N	---
Flexible rod: Steel wire (1 dia.)	40±20 mm	WLNJ-S2-N	---	WL-9H400-N	---
Fork Lock Lever A	55° max.	WLCA32-41-N	WLRCA32-N	WL-5H5100-N	WL-5A100
Fork Lock Lever B	55° max.	WLCA32-42-N		WL-5H5102-N	WL-5A102
Fork Lock Lever C	55° max.	WLCA32-43-N		WL-5H5104-N	WL-5A104
Fork Lock Lever D	55° max.	WLCA32-44-N		WL-5H5104-N	WL-5A104

* The WL-2H1100-K, WL-2H2100-K, and WL-2H4100-K correspond with each set model WLG[], the design of which was
changed in April 2019.
Please inquire if you desire a single-item head manufactured before the design change. On products that underwent the
design change in April 2019, the front of the switch box cover at the bottom front has a protruding shape, and on earlier
products has a depressed shape.

Spatter-prevention Models

Actuator	Lever type	Indicator	Pretravel (PT)	Set Model Numbers	Switches without levers	Actuator *
					Model	Model
Roller lever: R38 mm	Double nut lever	LED	15±5°	WLCA2-LDAS-N	WLRCA2-LDS-N	WL-1A105S
		Neon lamp		WLCA2-LEAS-N	WLRCA2-LES-N
		LED	10°+2°,-1°	WLG2-LDAS	WLRG2-LDS
	Allen-head lever	LED	15±5°	WLCA2-LDS-N	WLRCA2-LDS-N	WL-1A103S
		Neon lamp		WLCA2-LES-N	WLRCA2-LES-N
		LED	10°+2°,-1°	WLG2-LDS	WLRG2-LDS

* The actuator is identical for the WL and WL-N models.

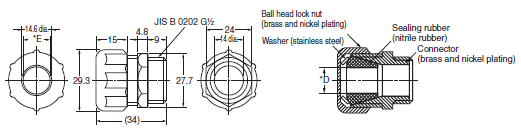

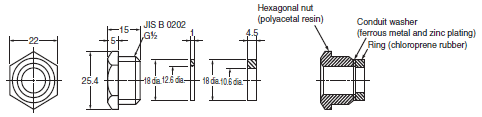

Connector (Conduit size: JIS B0202G1/2)

Actuator	Application/ Specifications	External diameter of cable		Model	Applicable limit switch models
		min.	max.
	Cabtire cable (Metal, with O-ring)	5.5 dia.	7.5 dia.	SC-1M	WL[]-N WLG[] Wiring Specifications: Screw terminals
		7.5 dia.	9.5 dia.	SC-2M
		11 dia.	13 dia.	SC-3M
		12 dia.	14 dia.	SC-4M
		9 dia.	11 dia.	SC-5M
	Cabtire cable (Metal)	5.5 dia.	7.5 dia.	SC-21
		7.5 dia.	9.5 dia.	SC-22
		11 dia.	13 dia.	SC-23
		12 dia.	14 dia.	SC-24
		9 dia.	11 dia.	SC-25
	Cabtire cable (Resin)	7.5 dia.	9 dia.	SC-6
		8.5 dia.	10.5 dia.	SC-P2

Note: Please use sealling tape with SC Connectors. SC-1M to SC-5M, however, are provided with an O-ring (NBR) and therefore sealing tape is not necessary to ensure a proper seal. The SC-6 and SC-P2 models are made of resin. If higher sealing performance is required, use one of SC-1M to SC-5M, which have metal connectors.

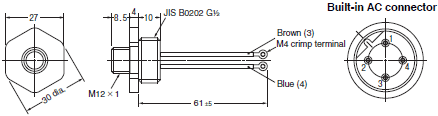

FA Connectors

Model	Number of conductors	Voltage specification	Size of conduit	Size of crimp terminal	Applicable model
SC-2F	2	125 VDC	JIS B0202G1/2	M4	WL-N, WLG
SC-2FAD	2	250 VDC
SC-4F4D	4	125 VDC
SC-4F4AD	4	250 VDC

Sensor I/O connectors

Actuator	AC/DC type	Number of cable cores	Cable length (m)	Cable model	Compatible model
M12 Screw (Straight)	for AC	2	2	XS2F-A421-DB0-F	WL[]-[]K13A-N WLG[]-[]K13A
			5	XS2F-A421-GB0-F
		4	2	XS2F-A421-D90-F	WL[]-[]K43A-N WL[]-[]-AGJ-N WLG[]-[]K43A WLG[]-[]-AGJ03
			5	XS2F-A421-G90-F
	for DC	2	2	XS2F-D421-DD0	WL[]-[]K13-N WL[]-[]-M1J-N WLG[]-[]K13 WLG[]-[]-M1J
			5	XS2F-D421-GD0
			2	XS2F-D421-DA0-F	WL[]-[]-M1GJ[]-N WLG[]-[]-M1GJ[]
			5	XS2F-D421-GA0-F
		4	2	XS2F-D421-D80-F	WL[]-[]K43-N WL[]-[]-M1JB-N WL[]-[]-DGJ-N WL[]-[]-DK1EJ-N WLG[]-[]K43 WLG[]-[]-M1JB WLG[]-[]-DGJ03 WLG[]-[]-DK1EJ03
			5	XS2F-D421-G80-F
M12 Smartclick (Straight)	for DC	4	2	XS5F-D421-D80-F	WL[]-[]-M1TJ-N WL[]-[]-M1TGJ-N WL[]-[]-M1TJB-N WL[]-[]-DTGJ-N WL[]-[]-DTK1EJ-N WLG[]-[]-M1TJ WLG[]-[]-M1TGJ WLG[]-[]-M1TJB WLG[]-[]-DTGJ03 WLG[]-[]-DTK1EJ03
			5	XS5F-D421-G80-F

Note: For details, refer to the data sheet for XS2 Round Water-resistant Connectors (M12 Threads) or XS5 Round Water-
resistant Connectors (M12 Smartclick).

Type	Compatible model		Remarks			Model
Cover with indicator lamps *1	WL-N	General-purpose models Long-life models (Basic models, High- sensitivity Switches)	Indicator *1	LED	Color: Red	WL-LD-N
				Neon lamp	Color: Orange	WL-LE-N
		Spatter Prevention models		LED	Color: Red	WL-LDS-N
				Neon lamp	Color: Orange	WL-LES-N
	WLG	General-purpose models	Indicator	LED	Color: Red	WL-LD-K *2
		Long-life models		Neon lamp	Color: Orange	WL-LE-K *2
		Spatter Prevention models		LED	Color: Red	WL-LDS-K *2
				Neon lamp	Color: Orange	WL-LES-K *2
Terminal Plate	WL[]-N		Change from bipolar to monopolar (contact C).			WL-N TERMINAL PLATE
Side mounting plate	WL[]-2N-N		---			WLN-P001

*1. The default setting is for light-ON when not operating. Turn the lamp holder by 180° to change the setting to light-ON when operating.
*2. The WL-LD-K, WL-LE-K, WL-LDS-K, and WL-LES-K correspond with each set model WLG[], the design of which was
changed in April 2019. Refer to the above for details.

Specifications | Limit Switches - WL-N / WL

General-purpose Switches

Ratings

Screw terminals

Without Operation Indicator

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	125	10		3	1.5	10		5	2.5
	250	10		2	1	10		3	1.5
	500	10		1.5	0.8	3		1.5	0.8
DC	8	10		6	3	10		6
	14	10		6	3	10		6
	30	6		4	3	6		4
	125	0.8		0.2	0.2	0.8		0.2
	250	0.4		0.1	0.1	0.4		0.1

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	125	5
	250	5
DC	125	0.4
	250	0.2

With Operation Indicator (LED)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	115	10		3	1.5	10		5	2.5
DC	12	10		6	3	10		6
	24	6		4	3	6		4
	48	3		2	1.5	3		0.2
	115	0.8		0.2		0.8		0.1

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	115	5
DC	115	0.4

With Operation Indicators (Neon Lamps)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	125	10		3	1.5	10		5	2.5
	250	10		2	1	10		3	1.5

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	125	5
	250	5

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.

Allowable Inrush Current/Minimum Applicable Load

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Inrush current	NC	30 A max.	15 A max.
	NO	20 A max.	10 A max.
Minimum applicable load		5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED	Neon lamp
Rated voltage	10 to 115 VAC/DC	125 to 250 VAC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC	Approx. 0.6 mA at 125 VAC Approx. 1.9 mA at 250 VAC

Direct-wired connector and Pre-wired Connector Type

Connector DC Specifications: With Operation Indicators (LEDs)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
DC	12	3		3		3		3
	24	3		3		3		3
	48	4		2	1.5	3		2
	115	0.8		0.2	0.2	0.8		0.2

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
DC	115	0.4

Connector AC Specifications: With Operation Indicators (LEDs)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	115	3		3	1.5	3		3	2.5

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	115	3

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.

Minimum Applicable Load

Operating characteristics type	Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Minimum applicable load	5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED	Neon lamp
Rated voltage	10 to 115 VAC/DC	125 to 250 VAC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC	Approx. 0.6 mA at 125 VAC Approx. 1.9 mA at 250 VAC

Characteristics

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Permissible operating frequency	Mechanical	120 operations/minute
	Electrical	30 operations/minute
Rated frequency		50/60 Hz
Permissible operating speed		1 mm/s to 1 m/s (in case of WLCA2-N)
Insulation resistance		100 MΩ min. (at 500 VDC)
Contact resistance		25 mΩ max. (initial value for the built-in switch)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max. *2
Durability *1	Mechanical	15,000,000 operations min.	10,000,000 operations min.
	Electrical	750,000 operations min. (3 A at 250 VAC, resistive load), but for high- precision models: *3	500,000 operations min. (3 A at 250 VAC, resistive load), but for high- precision models: *3
Ambient operating temperature		-10 to +80°C (with no icing)
Ambient operating humidity		35 to 95%RH
Degree of protection		IP67
Weight		Approx. 255 g (in case of WLCA2-N)	Approx. 270 g (in case of WLGCA2)

Note: The above figures are initial values.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Except Switches with Flexible Rod Actuators.
*3. In case of Screw terminals without operation indicators.

Operating characteristics type		Basic models (WL-N)		High-sensitivity and High-precision models (WLG)
Wiring Specifications		Screw terminals	Direct-wire connector/ Pre-wired Connector Models	Screw terminals	Direct-wire connector/ Pre-wired Connector Models
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *
	Between current- carrying metal part and ground	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min
	Between each terminal and non- current-carrying metal part	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min

* Excluding those with operation indicators.

Environment-resistant Limit Switches

Ratings

Screw terminals/Direct-wire cable

Without Operation Indicator

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	125	10		3	1.5	10		5	2.5
	250	10		2	1	10		3	1.5
	500	10		1.5	0.8	3		1.5	0.8
DC	8	10		6	3	10		6
	14	10		6	3	10		6
	30	6		4	3	6		4
	125	0.8		0.2	0.2	0.8		0.2
	250	0.4		0.1	0.1	0.4		0.1

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	125	5
	250	5
DC	125	0.4
	250	0.2

With Operation Indicator (LED)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	115	10		3	1.5	10		5	2.5
DC	12	10		6	3	10		6
	24	6		4	3	6		4
	48	3		2	1.5	3		0.2
	115	0.8		0.2		0.8		0.1

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	115	5
DC	115	0.4

With Operation Indicators (Neon Lamps)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	125	10		3	1.5	10		5	2.5
	250	10		2	1	10		3	1.5

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	125	5
	250	5

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.

Allowable Inrush Current/ Minimum applicable load

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Inrush current	NC	30 A max.	15 A max.
	NO	20 A max.	10 A max.
Minimum applicable load		5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED	Neon lamp
Rated voltage	10 to 115 VAC/DC	125 to 250 VAC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC	Approx. 0.6 mA at 125 VAC Approx. 1.9 mA at 250 VAC

Characteristics

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Permissible operating frequency	Mechanical	120 operations/minute
	Electrical	30 operations/minute
Rated frequency		50/60 Hz
Permissible operating speed		1 mm/s to 1 m/s (in case of WLCA2-N)
Insulation resistance		100 MΩ min. (at 500 VDC)
Contact resistance		25 mΩ or less (default value, built-in switch only)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude *2
Shock	Destruction	1,000 m/s2 max.
	Malfunction	300m/s2 max. *2
Durability *1	Mechanical	15,000,000 operations min.	10,000,000 operations min. *3
	Electrical	750,000 operations min. (3 A at 250 VAC, resistive load) *4	500,000 operations min. (3 A at 250 VAC, resistive load) *4
Ambient operating temperature		-10 to +80°C (with no icing) *5
Ambient operating humidity		35 to 95%RH
Degree of protection		IP67
Weight		Approx. 250 g (for WLCL-TH-N)	Approx. 250 g (for WLCL-TH-N)

Note: The above figures are initial values.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Except Switches with Flexible Rod Actuators.
*3. 500,000 operations min. for Weather-resistant models.
*4. In case of models without operation indicators.
*5. For low-temperature models this is -40°C to +40°C (with no icing). For heat-resistant models the range is +5°C to
120°C.

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Wiring Specifications		Screw terminals/ Direct-wire cable models	Screw terminals/ Direct-wire cable models
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *
	Between current-carrying metal part and ground	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min
	Between each terminal and non- current-carrying metal part	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min

* Except models with operation indicators.

Spatter-prevention Switches

Ratings

Screw terminals

With Operation Indicator

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	115	10		3	1.5	10		5	2.5
DC	12	10		6	3	10		6
	24	6		4	3	6		4
	48	3		2	1.5	3		0.2
	115	0.8		0.2		0.8		0.1

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	115	5
DC	115	0.4

With Operation Indicators (Neon Lamps)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	125	10		3	1.5	10		5	2.5
	250	10		2	1	10		3	1.5

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	125	5
	250	5

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.

Allowable Inrush Current/Minimum Applicable Load

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Inrush current	NC	30 A max.	15 A max.
	NO	20 A max.	10 A max.
Minimum applicable load		5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED	Neon lamp
Rated voltage	10 to 115 VAC/DC	125 to 250 VAC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC	Approx. 0.6 mA at 125 VAC Approx. 1.9 mA at 250 VAC

Pre-wired connectors

Connector DC Specifications: With Operation Indicators (LEDs)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
DC	12	3		3		3		3
	24	3		3		3		3
	48	4		2	1.5	3		2
	115	0.8		0.2	0.2	0.8		0.2

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
DC	115	0.4

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current

Minimum Applicable Load

Operating characteristics type	Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Minimum applicable load	5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED	Neon lamp
Rated voltage	10 to 115 VAC/DC	125 to 250 VAC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC; Approx. 0.5 mA at 115 VAC/DC	Approx. 0.6 mA at 125 VAC; Approx. 1.9 mA at 250 VAC

Characteristics

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Permissible operating frequency	Mechanical	120 operations/minute
	Electrical	30 operations/minute
Rated frequency		50/60 Hz
Permissible operating speed		1 mm/s to 1 m/s (for WLCA2-LDS-N)
Insulation resistance		100 MΩ min. (at 500 VDC)
Contact resistance		25 mΩ max. (initial value for the built-in switch)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Durability *	Mechanical	15,000,000 operations min.	10,000,000 operations min.
	Electrical	750,000 operations min. (3 A at 115 VAC, resistive load) *2	500,000 operations min. (3 A at 115 VAC, resistive load) *2
Ambient operating temperature		-10 to +80°C (with no icing)
Ambient operating humidity		35 to 95%RH
Degree of protection		IP67
Weight		Approx. 255 g (in case of WLCA2- LDS-N)	Approx. 270 g (in case of WLGCA2- LDS)

Note: The above figures are initial values.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. In case of models with operation indicators (LEDs).

Operating characteristics type		Basic models (WL-N)		High-sensitivity and High-precision models (WLG)
Wiring Specifications		Screw terminals	Direct-wire connector and Pre-wired Connector Models	Screw terminals	Direct-wire connector and Pre-wired Connector Models
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *
	Between current- carrying metal part and ground	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min
	Between each terminal and non- current carrying metal part	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min

* Excluding those with operation indicators.

Long-life Switches

Ratings

Screw terminals

With Operation Indicator

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	115	10		3	1.5	10		5	2.5
DC	12	10		6	3	10		6
	24	6		4	3	6		4
	48	3		2	1.5	3		0.2
	115	0.8		0.2		0.8		0.1

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	115	5
DC	115	0.4

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.

Allowable Inrush Current/Minimum Applicable Load

Operating characteristics type		Basic models (WL-N)	High-sensitivity/ High-precision models (WLG)
Inrush current	NC	30 A max.	15 A max.
	NO	20 A max.	10 A max.
Minimum applicable load		5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED	Neon lamp
Rated voltage	10 to 115 VAC/DC	125 to 250 VAC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC; Approx. 0.5 mA at 115 VAC/DC	Approx. 0.6 mA at 125 VAC; Approx. 1.9 mA at 250 VAC

Direct-wire connector and Pre-wired Connector Models Type

DC Connector: With Operation Indicators (LEDs)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
DC	12	3		3		3		3
	24	3		3		3		3
	48	4		2	1.5	3		2
	115	0.8		0.2	0.2	0.8		0.2

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
DC	115	0.4

AC Connector: With Operation Indicators (LEDs)

Basic models (WL-N)

Ratings		Non-inductive load (A)				Inductive load (A)
		Basic models (WL-N)				Basic models (WL-N)
		Resistive load		Lamp load		Inductive load		Motor load
Voltage (V)		NC	NO	NC	NO	NC	NO	NC	NO
AC	115	3		3	1.5	3		3	2.5

High-sensitivity and High-precision models (WLG)

Ratings		Non-inductive load (A)
		High-sensitivity and High-precision models (WLG)
		Resistive load
Voltage (V)		NC	NO
AC	115	3

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.

Minimum Applicable Load

Operating characteristics type	Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Minimum applicable load	5 VDC 1 mA, resistive load, P level	5 VDC 1 mA, resistive load, P level

Operation Indicator

Operation indicator type	LED
Rated voltage	10 to 115 VAC/DC
Leakage current (Reference value)	Approx. 0.4 mA at 10 VAC/DC; Approx. 0.5 mA at 115 VAC/DC

Characteristics

Operating characteristics type		Basic models (WL-N)	High-sensitivity and High-precision models (WLG)
Permissible operating frequency	Mechanical	120 operations/minute
	Electrical	30 operations/minute
Rated frequency		50/60 Hz
Permissible operating speed		1 mm/sec to 1 m/sec
Insulation resistance		100 MΩ min. (at 500 VDC)
Contact resistance		25 mΩ max. (initial value for the built-in switch)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Durability *	Mechanical	30,000,000 operations min.
	Electrical	30,000,000 operations min. (10 mA at 24 VAC, resistive load) 750,000 operations min. (3 A at 115 VAC, resistive load)	500,000 operations min. (3 A at 115 VAC, resistive load)
Ambient operating temperature		-10 to +80°C (with no icing)
Ambient operating humidity		35 to 95%RH
Degree of protection		IP67
Weight		Approx. 255 g (in case of WLMCA2-LD-N)	Approx. 270 g (in case of WLMGCA2-LD)

Note: The above figures are initial values.
* The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
Contact your OMRON sales representative for more detailed information on other operating environments.

Operating characteristics type		Basic models (WL-N)		High-sensitivity and High-precision models (WLG)
Wiring Specifications		Screw terminals	Direct-wire connector and Pre-wired Connector Models	Screw terminals	Direct-wire connector and Pre-wired Connector Models
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *	600 VAC, 50/60 Hz for 1 min *
	Between current- carrying metal part and ground	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min
	Between each terminal and non- current-carrying metal part	2,200 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min	1,500 VAC, 50/60 Hz for 1 min

* Excluding those with operation indicators.

Common Specifications

General-purpose/Environment-resistant/Spatter-prevention/Long-life Switches

Approved Standards

Agency	Standard	File No.	Approved models
UL	UL508	Contact your OMRON representative for information	Contact your OMRON representative for information
CSA cUL	CSA C22.2 No.14
TÜV Rheinland	EN60947-5-1
CCC (CQC)	GB/T14048.5

Approved Standard Ratings

UL/cUL, CSA (UL508, CSA C22.2 No.14)

Specifications			Approved Standards
Operation Indicator	Sensor I/O connectors	Item
No indicator	No Connector	Basic models	A600 1 A, 125 VDC
		High-sensitivity and High-precision models	B600 0.5 A,125 VDC
	Pre-wired Connector (AC)	Basic, High-sensitivity or High-precision models	C300 3 A, 250 VAC
	Pre-wired Connector (DC) Direct-wired Connector (DC)	Basic models	1 A, 125 VDC
		High-sensitivity and High-precision models	0.5 A, 125 VDC
Neon lamp	No Connector	Basic models	A300 10 A, 250 VAC
		High-sensitivity and High-precision models	B300 0.5 A, 250 VAC
	Pre-wired Connector (AC)	Basic, High-sensitivity or High-precision models	C300 3 A, 250 VAC
LED	No Connector	Basic models	A150 10 A, 115 VAC 1 A, 115 VDC
		High-sensitivity and High-precision models	B150 5 A, 115 VAC 0.5 A, 115 VDC
	Pre-wired Connector (AC)	Basic, High-sensitivity or High-precision models	C150 3 A, 115 VAC
	Pre-wired Connector (DC) Direct-wired Connector (DC)	Basic models	1 A, 115 VDC
		High-sensitivity and High-precision models	0.5 A, 115 VDC

A600 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC 240 VAC 480 VAC 600 VAC	10 A	60 30 15 12	6 3 1.5 1.2	7,200	720

C300 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC 240 VAC	2.5 A	15 7.5	1.5 0.75	1,800	180

A300 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC 240 VAC	10 A	60 30	6 3	7,200	720

A150 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC	10 A	60	6	7,200	720

C150 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC	2.5 A	15	1.5	1,800	180

B600 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC 240 VAC 480 VAC 600 VAC	5 A	30 15 7.5 6	3 1.5 0.75 0.6	3,600	360

B300 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC 240 VAC	5 A	30 15	3 1.5	3,600	360

B150 Authentication conditions

Rated voltage	Carrying current	Current (A)		Volt-ampere (VA)
		Make	Break	Make	Break
120 VAC	5 A	30	3	3,600	360

TÜV (EN 60947-5-1)

Authentication conditions	Specification
	Direct-wire cable type					With Prewired DC connector model
	No indicator		Neon lamp	LED
Working load category	AC-15	DC-12	AC-15	AC-15	DC-12	DC-12
Rated working voltage (Ue)	250 V	48 V	250 V	115 V	48 V	48 V
Rated working current (Ie)	2 A
Conditional short-circuit current	100 A
Short-circuit protective device (SCPD)	10 A, fuse type gG
Rated insulation voltage (Ui)	250 V					48 V
Rated impulse dielectric strength (Uimp)	4 kV					800 V
Pollution degree	3
Electric shock protection class	Class I					Class III

CCC (GB/T14048.5)

Authentication conditions	Specification
	No indicator		Neon lamp	LED		With Prewired DC connector model	With Prewired AC connector model
Working load category	AC-15	DC-13	AC-15	AC-15	DC-13	DC-13	AC-15
Rated working voltage (Ue)	250 V	48 V	250 V	250 V	48 V	48 V	250 V
Rated working current (Ie)	2 A
Conditional short-circuit current	1000 A
Short-circuit protective device (SCPD)	10 A, fuse type gG
Rated insulation voltage (Ui)	250 V

Dimensions | Limit Switches - WL-N / WL

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

General-purpose Switches

Roller Lever

Screw terminals

Roller lever R38
WLCA2(-55)-N
WLCA2-2(55)-N
WLCA2-2N(55)-N

Roller lever R38 With operation indicator
LED
WLCA2-(55)LD-N
WLCA2-2(55)LD-N
WLCA2-2N(55)LD-N
Neon lamp
WLCA2-(55)LE-N
WLCA2-2(55)LE-N
WLCA2-2N(55)LE-N

Roller lever R38
WLG2(-55)
WLGCA2(-55)

Roller lever R38 With operation indicator
LED
WLG2-(55)LD
WLGCA2-(55)LD
Neon lamp
WLG2-(55)LE
WLGCA2-(55)LE

Operating characteristics

Roller lever R50
WLCA2-7-N

Roller lever R50 With operation indicator
LED
WLCA2-7LD-N
Neon lamp
WLCA2-7LE-N

Roller lever R63
WLCA2-8-N

Roller lever R63 With operation indicator
LED
WLCA2-8LD-N
Neon lamp
WLCA2-8LE-N

Adjustable Roller Lever (R25 to 89 mm)
WLCA12(-55)-N
WLCA12-2-N
WLCA12-2N-N

Adjustable Roller Lever (R25 to 89 mm) With operation indicator
LED
WLCA12-(55)LD-N
WLCA12-2LD-N
WLCA12-2NLD-N
Neon lamp
WLCA12-(55)LE-N
WLCA12-2LE-N
WLCA12-2NLE-N

Adjustable Roller Lever (R25 to 89 mm)
WLG12

Adjustable Roller Lever (R25 to 89 mm) With operation indicator
LED
WLG12-LD
Neon lamp
WLG12-LE

Operating characteristics

Direct-wire connector

Roller lever R38 With operation indicator
LED
WLCA2-LDK13A-N
WLCA2-(55)LDK13-N
WLCA2-LDK43A-N
WLCA2-(55)LDK43-N

Roller lever R38 With operation indicator
LED
WLG2-(55)LDK13
WLG2-(55)LDK43
WLGCA2-(55)LDK13
WLGCA2-(55)LDK43

Operating characteristics

Pre-wired connectors

Roller lever R38 With operation indicator
LED
Threaded (M12)
WLCA2-(55)LD-M1J-N
WLCA2-(55)LD-M1GJ-N
WLCA2-(55)LD-DGJ-N
WLCA2-(55)LD-DK1EJ-N
Smartclick
WLCA2(55)LD-DTGJ-N
WLCA2-LD-DTK1EJ-N

Roller lever R38 With operation indicator
LED
Threaded (M12)
WLG2-(55)LD-M1J
WLG2-(55)LD-M1GJ
WLG2-(55)LD-M1JB
WLG2-(55)LD-DGJ03
WLG2-(55)LD-DK1EJ03
Smartclick
WLG2-(55)LD-M1TJ
WLG2-(55)LD-M1TGJ
WLG2-(55)LD-M1TJB
WLG2-(55)LD-DTGJ03
WLG2-(55)LD-DTK1EJ03

Operating characteristics

Plunger Actuators

Screw terminals

Sealed top-roller plunger
WLD28(-55)-N

Sealed top-roller plunger With operation indicator
LED
WLD28-(55)LD-N
Neon lamp
WLD28-(55)LE-N

Top-roller plunger
WLD2(-55)-N

Sealed top-roller plunger With operation indicator
LED
WLD2-(55)LD-N
Neon lamp
WLD2-(55)LE-N

Sealed top plunger
WLD18-N

Sealed top-roller plunger With operation indicator
LED
WLD18-LD-N
Neon lamp
WLD18-LE-N

Sealed top-ball plunger
WLD38-N

Sealed top-ball plunger With operation indicator
LED
WLD38-LD-N
Neon lamp
WLD38-LE-N

Operating characteristics

Horizontal plunger
WLSD(-55)-N

Horizontal plunger With operation indicator
LED
WLSD-(55)LD-N
Neon lamp
WLSD-LE-N

Horizontal-roller plunger
WLSD2(-55)-N

Horizontal-roller plunger With operation indicator
LED
WLSD2-(55)LD-N
Neon lamp
WLSD2-LE-N

Horizontal-ball plunger
WLSD3-N

Horizontal-ball plunger With operation indicator
LED
WLSD3-LD-N
Neon lamp
WLSD3-LE-N

Operating characteristics

Direct-wire connector

Sealed top-roller plunger With operation indicator
LED
WLD28-(55)LDK13-N
WLD28-(55)LDK43-N

Pre-wired connectors

Sealed top-roller plunger With operation indicator
Threaded (M12)
LED
WLD28-(55)LD-M1J-N
WLD28-(55)LD-M1GJ-N
WLD28-(55)LD-DGJ-N

Operating characteristics

Flexible Rod

Screw terminals

Adjustable rod lever (25 to 140 mm)
WLCL(-55)-N
WLCL-2-N
WLCL-2N-N

Adjustable rod lever (25 to 140 mm) With operation indicator
LED
WLCL-(55)LD-N
WLCL-2LD-N
WLCL-2NLD-N
Neon lamp
WLCL-LE-N
WLCL-2LE-N
WLCL-2NLE-N

Adjustable rod lever (25 to 140 mm)
WLGL

Adjustable Roller Lever (25 to 140 mm) With operation indicator
LED
WLGL-LD
Neon lamp
WLGL-LE

Operating characteristics

Adjustable rod lever (350 to 380 mm)
WLCAL4-N

Adjustable Roller Lever (350 to 380 mm) With operation indicator
LED
WLCAL4-LD-N
Neon lamp
WLCAL4-LE-N

Operating characteristics

Note: With WLCAL4-N, WLCAL4-LD-N and WLCAL4-LE-N the actuator's tare is large, so depending on the installation
direction, they may not be properly reset. Always install so that the actuator is facing downwards.
* This is the value when the rod length is 380 mm.

Rod spring lever
WLCAL5-N

Rod spring lever With operation indicator
LED
WLCAL5-LD-N
Neon lamp
WLCAL5-LE-N

Note: With WLCAL5-N, WLCAL5-LD-N, and WLCAL5-LE-N, the actuator's tare is large, so depending on the installation
direction, they may not be properly reset. Always install so that the actuator is facing downwards.
* This is the value when the rod length is 380 mm.

Coil spring
WLNJ(-55)-N

Coil spring With operation indicator
LED
WLNJ-(55)LD-N
Neon lamp
WLNJ-LE-N

Coil Spring (Multi-wire)
WLNJ-30-N

Coil Spring (Multi-wire) With operation indicator
LED
WLNJ-30LD-N
Neon lamp
WLNJ-30LE-N

Operating characteristics

Resin rod
WLNJ-2(55)-N

Resin rod With operation indicator
LED
WLNJ-2(55)LD-N
Neon lamp
WLNJ-2LE-N

Steel wire
WLNJ-S2-N

Steel wire With operation indicator
LED
WLNJ-S2LD-N
Neon lamp
WLNJ-S2LE-N

Operating characteristics

Fork Lock Lever

Screw terminals

WLCA32-41-N
WLCA32-42-N
WLCA32-43-N
WLCA32-44-N

With operation indicator
LED
WLCA32-41LD-N
WLCA32-43LD-N
Neon lamp
WLCA32-41LE-N
WLCA32-42LE-N
WLCA32-43LE-N

Operating characteristics

Environment-resistant Limit Switches

Roller Lever

Screw terminals

Roller lever R38
Heat-resistant type
WLCA2-TH-N
WLCA2-2TH-N
WLCA2-2NTH-N
Cold-resistant type
WLCA2-TC-N
WLCA2-2TC-N
WLCA2-2NTC-N
Corrosion-resistant type
WLCA2-RP-N
Weather-resistant type
WLCA2-P1-N

Roller lever R38
Heat-resistant type
WLG2-TH
WLGCA2-TH
Cold-resistant type
WLG2-TC
WLGCA2-TC
Corrosion-resistant type
WLG2-RP
WLGCA2-RP
Weather-resistant type
WLG2-P1

Operating characteristics

Direct-wire cable

Roller lever R38
Coolant-resistant type
WLCA2-RP60-N
WLCA2-2RP60-N
Molded terminal-139
WLCA2-139-N
WLCA2-2139-N
WLCA2-2N139-N

Roller lever R38 With operation indicator
Coolant-resistant specifications
WLCA2-RP60LD2-N
WLCA2-RP60LD3-N
WLCA2-2RP60LD2-N
WLCA2-2RP60LD3-N
Molded terminal -139
WLCA2-139LD2-N
WLCA2-139LD3-N
WLCA2-2139LD2-N
WLCA2-2139LD3-N

Roller lever R38
Molded terminal-140
WLCA2-140-N
WLCA2-2N140-N
Molded terminal-141
WLCA2-141-N

Roller lever R38 With operation indicator
Molded terminal -141
WLCA2-141LD2-N
WLCA2-141LD3-N

Operating characteristics

Roller lever R38
Coolant-resistant type
WLG2-RP60
Molded terminal -139
WLG2-139

Roller lever R38 With operation indicator
Coolant-resistant specifications
WLG2-RP60LD2
WLG2-RP60LD3
WLGCA2-RP60LD2
WLGCA2-RP60LD3
Molded terminal -139
WLG2-139LD3

Roller lever R38
Molded terminal -140
WLG2-140
Molded terminal -141
WLG2-141

Roller lever R38 With operation indicator
Molded terminal -140
WLG2-140LD2
WLG2-140LD3
Molded terminal -141
WLG2-141LD2
WLG2-141LD3
WLGCA2-141LD3

Operating characteristics

Screw terminals

Adjustable Roller Lever (R25 to 89 mm)
Heat-resistant type
WLCA12-TH-N
WLCA12-2TH-N
WLCA12-2NTH-N
Cold-resistant type
WLCA12-TC-N
WLCA12-2TC-N
WLCA12-2NTC-N
Weather-resistant type
WLCA12-P1-N
Corrosion-resistant type
WLCA12-RP-N

Adjustable Roller Lever (R25 to 89 mm)
Heat-resistant type
WLG12-TH
Cold-resistant type
WLG12-TC
Weather-resistant type
WLG12-P1
Corrosion-resistant type
WLG12-RP

Operating characteristics

Direct-wire cable

Adjustable Roller Lever (R25 to 89 mm)
Coolant-resistant specifications
WLCA12-RP60-N
Molded terminal -139
WLCA12-139-N

Adjustable Roller Lever (R25 to 89 mm)
Molded terminal -140
WLCA12-140-N
Molded terminal -141
WLCA12-141-N

Operating characteristics

Note: The operating characteristics are measured at the lever length of 38 mm.

Plunger Actuators

Screw terminals

Sealed top-roller plunger
Heat-resistant specifications
WLD28-TH-N
Cold-resistant specifications
WLD28-TC-N
Corrosion-resistant specifications
WLD28-RP-N

Top-roller plunger
Heat-resistant specifications
WLD2-TH-N

Horizontal plunger
Heat-resistant specifications
WLSD-TH-N
Cold-resistant specifications
WLSD-TC-N
Corrosion-resistant specifications
WLSD-RP-N

Horizontal-roller plunger
Heat-resistant specifications
WLSD2-TH-N
Cold-resistant specifications
WLSD2-TC-N
Corrosion-resistant specifications
WLSD2-RP-N

Operating characteristics

Direct-wire cable

Sealed top-roller plunger
Coolant-resistant specifications
WLD28-RP60-N
Molded terminal -139
WLD28-139-N

Sealed top-roller plunger
Molded terminal -140
WLD28-140-N

Top-roller plunger
Coolant-resistant specifications
WLD2-RP60-N

Horizontal plunger
Molded terminal -139
WLSD-139-N

Horizontal-roller plunger
Coolant-resistant specifications
WLSD2-RP60-N
Molded terminal -139
WLSD2-139-N

Horizontal-roller plunger
Molded terminal -140
WLSD2-140-N

Operating characteristics

Flexible Rod

Screw terminals

Coil spring
Heat-resistant specifications
WLNJ-TH-N
Cold-resistant specifications
WLNJ-TC-N
Corrosion-resistant
specifications
WLNJ-RP-N

Resin rod
Corrosion-resistant specifications
WLNJ-2RP-N

Operating characteristics

Direct-wire cable

Coil spring
Coolant-resistant specifications
WLNJ-RP60-N
Molded terminal -139
WLNJ-139-N

Coil spring
Molded terminal -140
WLNJ-140-N

Resin rod
Coolant-resistant specifications
WLNJ-2RP60-N
Molded terminal -139
WLNJ-2139-N

Resin rod
Molded terminal - 140
WLNJ-2140-N

Operating characteristics

Spatter-prevention Switches

Roller Lever

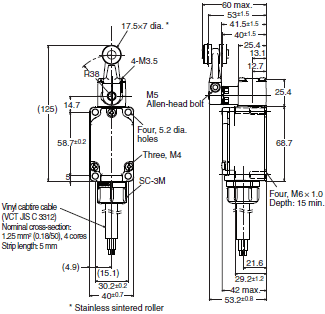

Roller lever R38
Allen-head lever
With operation indicator (LED)
WLCA2-LDS-N
With operation indicator (neon lamp)
WLCA2-LES-N

Roller lever R38
Allen-head lever
With operation indicator (LED)
WLG2-LDS
WLGCA2-LDS
With operation indicator (neon lamp)
WLG2-LES
WLGCA2-LES

Roller lever R38
Double nut lever
With operation indicator (LED)
WLCA2-LDAS-N
With operation indicator (neon lamp)
WLCA2-LEAS-N

Roller lever R38
Double nut lever
With operation indicator (LED)
WLG2-LDAS
With operation indicator (neon lamp)
WLG2-LEAS

Operating characteristics

Pre-wired connector (threaded)

Roller lever R38
Allen-head lever
With operation indicator (LED)
WLCA2-LDS-M1J-1-N
WLCA2-LDS-DGJS-N

Roller lever R38
Allen-head lever
Threaded (M12)
With operation indicator (LED)
WLG2-LDS-DGJS03
WLG2-LDS-DK1EJ03
WLG2-55LDS-M1J-1
WLG2-55LDS-M1GJ-1
WLG2-55LDS-DGJS03
WLG2-LDS-M1J-1
WLG2-LDS-M1GJ-1
WLGCA2-LDS-M1J-1
WLGCA2-LDS-M1GJ-1

Pre-wired connector type (Smartclick)

Roller lever R38
Allen-head lever
With operation indicator (LED)
WLCA2-LDS-DTGJS-N

Roller lever R38
Allen-head lever
Smartclick
With operation indicator (LED)
WLG2-LDS-DTGJS03
WLG2-55LDS-M1TGJ

Operating characteristics

Sealed top-roller plunger
With operation indicator
LED
WLD28-LDS-N
Neon lamp
WLD28-LES-N

Sealed top-roller plunger
Threaded (M12)
WLD28-LDS-M1J-1-N
WLD28-LDS-M1GJ-1-N
WLD28-LDS-DGJS-N
Smartclick
WLD28-LDS-DTGJS-N

Operating characteristics

Long-life Switches

Roller Lever

Screw terminals

Roller lever R38
With operation indicator (LED)
WLMCA2-LD-N

Roller lever R38
With operation indicator (LED)
WLMG2-LD

Roller lever R38
With operation indicator (LED)
WLMGCA2-LD

Operating characteristics

Direct-wire connector

Roller lever R38
With operation indicator (LED)
WLMCA2-LDK13A-N
WLMCA2-LDK43A-N
WLMCA2-LDK13-N
WLMCA2-LDK43-N

Roller lever R38
With operation indicator (LED)
WLMG2-LDK13A
WLMG2-LDK43A
WLMG2-LDK13
WLMG2-LDK43

Roller lever R38
With operation indicator (LED)
WLMGCA2-LDK13A
WLMGCA2-LDK43A
WLMGCA2-LDK13
WLMGCA2-LDK43

Operating characteristics

Pre-wired connectors

Roller lever R38
With operation indicator (LED)
Threaded (M12)
WLMCA2-LD-M1J-N
WLMCA2-LD-AGJ-N
WLMCA2-LD-DGJ-N
Smartclick
WLMCA2-LD-DTGJ-N

Roller lever R38
With operation indicator (LED)
Threaded (M12)
WLMG2-LD-M1J
WLMG2-LD-DTGJ03

Roller lever R38
With operation indicator (LED)
Threaded (M12)
WLMGCA2-LD-M1J
Smartclick
WLMGCA2-LD-DTGJ03

Operating characteristics

Common Accessories (Sold Separately)

Operating characteristics

Sensor I/O connectors
XS2F-A421-[][]0-F
XS2F-D421-[]D0
XS2F-D421-[][]0-F

XS5F-D421-[]80-F

Terminal Plate
WL-N TERMINAL PLATE

Side mounting plate
WLN-P001

SC-2F

SC-2FAD

SC-4F4AD

SC-4F4D

Note: Figures in parentheses are connector pin numbers.

Actuator

WL-1A100
Standard Lever

WL-1A115
Resin Roller

WL-1A400
Bearing Roller

WL-1A118
Nylon Roller: Roller Width: 30 mm

WL-1A105
Double Nuts

WL-1A103S
Spatter Prevention

WL-105S
Spatter Prevention

WL-1A200
Lever Length: 50
Roller Width: 15

WL-1A300
Lever Length: 63

WL-2A100

WL-2A111
Resin Roller

WL-2A107
Double Nuts

WL-2A108
Resin Roller

WL-2A122

WL-2A106

WL-2A130

WL-2A104

0

WL-2A110

WL-2A105

WL-1A106

WL-1A110

WL-4A100

WL-4A201

WL-3A100

WL-3A106
Double Nut

WL-3A108

WL-3A200

WL-3A203

WL-4A112

WL-2A129

WL-5A101

WL-5A103

WL-5A105

Note: When using the adjustable roller (rod) lever, make sure that the lever is facing downwards. Use caution, as
telegraphing (the Switch turns ON and OFF repeatedly due to inertia) may occur.

Connector (Conduit size: JIS B0202G1/2)

SC-1M
SC-2M
SC-3M
SC-4M
SC-5M

SC-21
SC-22
SC-23
SC-24
SC-25

SC-6

SC-P2

* mark dimensional table

* mark dimensional table

Features | Limit Switches - WL-N / WL

A type with operation indicators for easily confirming operation is available

• Environment resistant models for harsh environments, spatter resistant models for welding processes, and long-life models for high-frequency us
• Available LED operation indicators
• Available pre-wired
• Available with 2 m and 5 m I/O cables with M12 connectors
• IP67 rated

---

Properties | Limit Switches - WL-N / WL

Limit Switches		WL-N / WL
Switching standard loads	10A	250 VAC
	1A	30 VDC
Life expectancy		30,000,000 operations min.
dimensions		30.2 x 58.7 mm
rated		IP67
