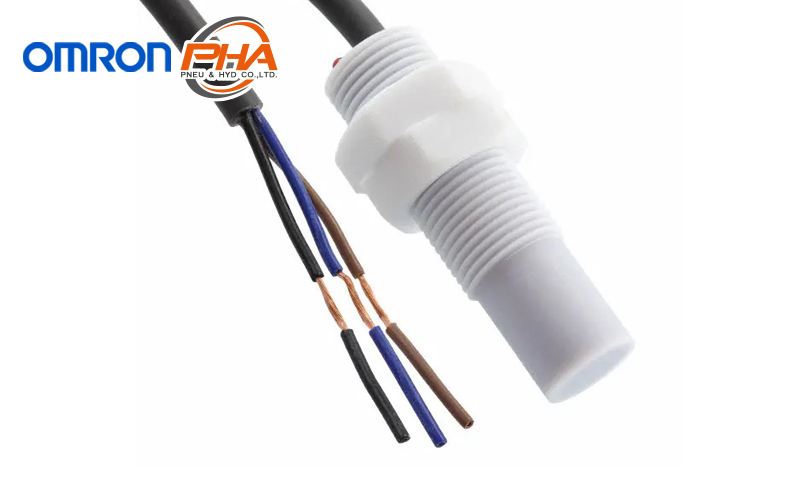

Proximity Sensor Capacitive - E2KQ-X
Downloaf PDF
Model Numbers
Specifications
Dimensions
Features
Model Numbers| Proximity Sensor Capacitive - E2KQ-X
Sensors
| Appearance | Sensing distance (Adjustable range) | Output Model | Operation mode | Model | |
|---|---|---|---|---|---|
Unshielded  |
M18 | 10 mm (6 to 10 mm) |
DC 3-wire NPN |
NO | E2KQ-X10ME1 2M |
| NC | E2KQ-X10ME2 2M | ||||
Specifications | Proximity Sensor Capacitive - E2KQ-X
| Model | E2KQ-X10ME1 | E2KQ-X10ME2 | |
|---|---|---|---|
| Sensing distance *1 | 10 mm | ||
| Sensing distance adjustable range | 6 to 10 mm | ||
| Differential travel | 4% to 20% of sensing distance | ||
| Detectable object | Conductors and dielectrics | ||
| Standard sensing object | Grounded metal plate: 50 × 50 × 1 mm | ||
| Response frequency | 35 Hz | ||
| Power supply voltage (operating voltage range) |
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. | ||
| Current consumption | 15 mA max. | ||
| Control output | Load current | 100 mA | |
| Residual voltage | 1.5 V max. (Load current: 100 mA, Cable length: 2 m) | ||
| Indicators | Detection indicator (red) | ||
| Operation mode (with sensing object approaching) *2 |
NO | NC | |
| Protection circuits | Reverse polarity protection, Surge suppressor | ||
| Ambient temperature range | Operating: -10 to 55°C, Storage: -25 to 55°C (with no icing or condensation) | ||
| Ambient humidity range | Operating/storage: 35% to 85% (with no condensation) | ||
| Temperature influence | ±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C | ||
| Voltage influence | ±2% max. of sensing distance at rated voltage at rated voltage ±20% | ||
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||
| Dielectric strength | 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case | ||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | ||
| Degree of protection | IP66 (IEC), in-house standards: oil-resistant | ||
| Connection method | Pre-wired Models (Standard cable length: 2 m) | ||
| Weight (packed state) | Approx. 150 g | ||
| Materials | Case, sensing surface |
Fluorine resin | |
| Clamping nuts | |||
| Cable | Vinyl chloride | ||
| Accessories | Adjustment screwdriver, Instruction manual | ||
*1. The above values are sensing distances for the standard sensing object. Refer to Engineering Data on the Data
Sheet for other materials.
*2. Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Dimensions | Proximity Sensor Capacitive - E2KQ-X
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
E2KQ-X10ME[]
Features | Proximity Sensor Capacitive - E2KQ-X
- Excellent resistance against chemicals and oil with fluororesincoated case.
- Distance adjustment according to the sensing object using the sensitivity adjuster.
Properties | Proximity Sensor Capacitive - E2KQ-X
| Proximity Sensor Capacitive | E2KQ-X |
|---|---|
| Model Types | DC 3-Wire |
| Sensing Distance | 10 mm |
| Housing Size | M18 |
| Housing Material | Fluorine resin |
| Power Supply | 12 – 24 VDC |
| Degree of Protection | IP66 |
