Fiber Amplifier Sensor - E3X-SD / NA series

Download PDF
Fiber Amplifier Sensor - E3X-SD / NA series
OMRON Fiber Amplifier - E3X-SD / NA series
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Fiber Amplifier Sensor - E3X-SD / NA series

Fiber Amplifier Units

Digital Display and Direct Key Setting

ItemAppearanceConnection methodRatings and
Specifications		Model
NPN outputPNP output

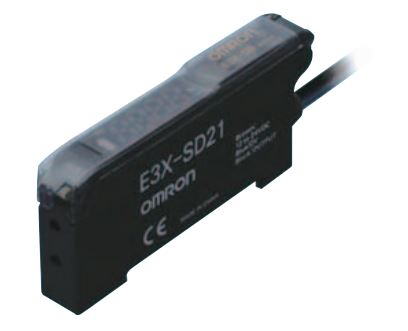

Standard models Pre-wired (2 m) --- E3X-SD21 2M E3X-SD51 2M

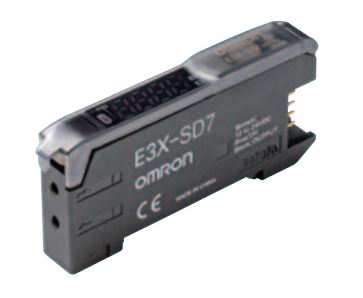

Wire-saving connector E3X-SD7 E3X-SD9

*An Amplifier Unit Connector (sold separately) is required.

Bar Display and Adjuster Setting

ItemAppearanceConnection methodRatings and
Specifications		Model
NPN outputPNP output

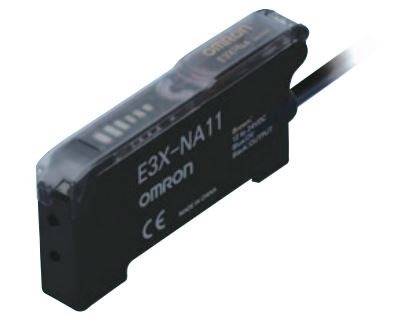

Standard models Pre-wired (2 m) --- E3X-NA11 2M E3X-NA41 2M

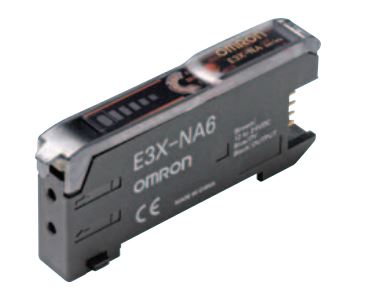

Wire-saving connector E3X-NA6 E3X-NA8
High-speed
detection models		 Pre-wired (2 m) Response time:
20 μs		 E3X-NA11F 2M E3X-NA41F 2M

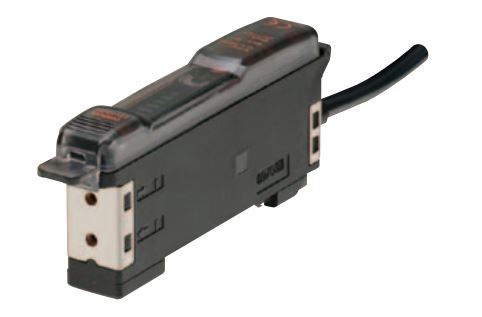

Water-resistant
models		 Pre-wired (2 m) Degree of
protection: IP66		 E3X-NA11V 2M E3X-NA41V 2M

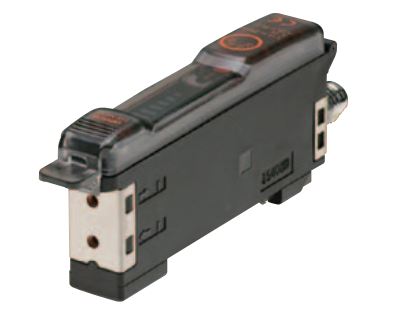

Connector (M8) E3X-NA14V E3X-NA44V

*1. An Amplifier Unit Connector (sold separately) is required.
*2. A Sensor I/O Connector (sold separately) is required.

Accessories (sold separately)

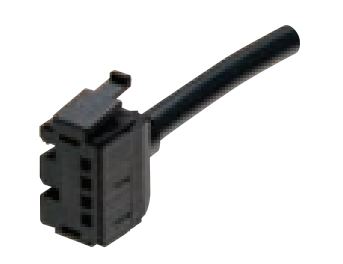

Amplifier Unit Connectors (Required for models for Wire-saving Connectors.)

Note: Protective seals provided.

ItemAppearanceCable lengthNo. of conductorsModel
Master Connector 2 m 3 E3X-CN11
Slave Connector 1 E3X-CN12

Ordering Precautions for Amplifier Units Connectors

A Connector is not provided with the Amplifier Unit.
Refer to the tables at the right when placing an order.

Fiber Amplifier UnitsApplicable Connectors (sold separately)
TypeNPNPNPMaster ConnectorSlave Connector
Standard models E3X-SD7 E3X-SD9 E3X-CN11 (3-wire) E3X-CN12 (1-wire)
E3X-NA6 E3X-NA8

When Using 5 Amplifier Units

5 Fiber Amplifier Units + 1 Master Connector + 4 Slave Connectors

Sensor I/O Connectors (Required for models with M8 Connectors.)

(Models for Connectors: A Connector is not provided with the Amplifier Unit. Be sure to order a Connector separately.)

SizeCable specificationsAppearanceCable typeModel
M8 Standard cable Straight connector 2 m Four-conductor cable XS3F-M421-402-A
5 m XS3F-M421-405-A
L-shaped connector 2 m XS3F-M422-402-A
5 m XS3F-M422-405-A

Mounting Brackets

A Mounting Bracket is not provided with the Fiber Amplifier Unit. Order a Mounting Bracket separately if required.

AppearanceApplicable modelsModelQuantity
E3X-SD[]
E3X-NA[]
E3X-NA[]F		 E39-L143 1
E3X-NA[]V E39-L148

End Plate

End Plates are not provided with the Fiber Amplifier Unit. Order End Plates separately if required.

AppearanceModelQuantity
PFP-M 1

Specifications | Fiber Amplifier Sensor - E3X-SD / NA series

Fiber Amplifier Units

TypeDigital display and direct key
setting		Bar display and adjuster setting
Standard modelsStandard
models		High-speed
detection
models		Water-resistant
models
ModelE3X-SD[]E3X-NA[]E3X-NA[]FE3X-NA[]V
Light source
(wavelength)		 Red, 4-element LED (625 nm) Red,
4-element
LED (624 nm)		 Red,
4-element
LED (625 nm)		 Red LED (680 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p): 10% max.
Power consumption/
Current consumption		 At Power Supply Voltage of 24 VDC
960 mW max./40 mA max.
At Power Supply Voltage of 12 VDC
960 mW max./80 mA max.		 At Power Supply Voltage of 24 VDC
840 mW max./35 mA max.
At Power Supply Voltage of 12 VDC
420 mW max./35 mA max.
Control output Open-collector output (NPN or PNP)
Load power supply: 26.4 V max.,
Load current: 50 mA max.
(Residual voltage: 1.5 V max.)
Light-ON/Dark-ON mode selector		 Open-collector output (NPN or PNP)
Load power supply: 26.4 V max.,
Load current: 50 mA max.
(Residual voltage: 1 V max.)
Light-ON/Dark-ON mode selector.
Response time Operate or reset: 200 μs max. *1 Operate:
20 μs max.
Reset:
30 μs max.		 Operate or reset:
200 μs max. *1
Sensitivity adjustment UP/DOWN direct key setting,
teaching with/without a workpiece,
automatic teaching		 8-turn sensitivity adjuster (with indicator)
Protection circuits Power supply reverse polarity
protection,
output short-circuit protection,
output reverse polarity protection		 Power supply reverse polarity protection,
output short-circuit protection
Timer function --- No timer, OFF-delay timer; or Timer selector
(timer time: 40 ms (fixed))
Mutual interference
prevention		 Up to 5 Amplifiers (optically synchronized) *2 None Up to 5 Amplifiers
(optically
synchronized) *2
Ambient illumination Receiver side
Incandescent lamp: 10,000 lux max.
Sunlight: 20,000 lux max.
Number of gang-
mounted Amplifiers		 16 max. (The ambient temperature specification depends on the number of gang-mounted
Amplifiers.)
Ambient temperature
range		 Operating: Groups of 1 to 3 Amplifiers: - 25 °C to 55 °C
Groups of 4 to 11 Amplifiers: - 25 °C to 50 °C
Groups of 12 to 16 Amplifiers: - 25 °C to 45 °C
Storage: - 30 °C to 70 °C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85%
(with no condensation)		 Operating: 35% to 85%
Storage: 35% to 95%
(with no condensation)
Insulation resistance 20 MΩ. min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute *3
Vibration resistance Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2, for 3 times each in X, Y and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached) IEC 60529 IP66
(with Protective
Cover attached)
Connection method Pre-wired (standard cable length: 2 m), or connector
Weight (packed state) *4 Pre-wired model: Approx. 100 g, Model with connector: Approx. 55 g
MaterialCase Polybutylene terephthalate (PBT)
Cover Polycarbonate (PC) Polyethersulfone
(PES)
Accessories Instruction manual

Amplifier Unit Connectors (Wire-saving Connectors)

ModelE3X-CN11E3X-CN12
Rated current 2.5 A
Rated voltage 50 V
Contact resistance 20 mΩ max. (20 mVDC max., 100 mA max.)
(The above figure is for connection to the Fiber Amplifier Unit and the adjacent Connector. It
does not include the conductor resistance of the cable.)
Number of insertions Destruction: 50 times (for connection to the Fiber Amplifier Unit and the adjacent Connector)
MaterialHousing Polybutylene terephthalate (PBT)
Contact Phosphor bronze/gold-plated nickel
Weight (packed state) Approx. 55 g Approx. 25 g

Sensing distance

Threaded Models

Detection methodSensing directionSizeModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam Right-angle M4 E32-T11N 2M 530 160 280
E32-LT11N 2M 1,800 600 900
Straight E32-T11R 2M 560 160 280
E32-LT11 2M 2,100 700 1,050
E32-LT11R 2M 1,800 600 900
Reflective Right-angle M3 E32-C31N 2M 25 7.5 13
E32-C21N 2M 65 21 32
M4 E32-D21N 2M 170 56 85
M6 E32-C11N 2M 170 50 85
E32-LD11N 2M 170 56 85
Straight M3 E32-D21R 2M 30 10 15
E32-C31 2M 80 26 40
E32-C31M 1M
M4 E32-D211R 2M 30 10 15
M6 E32-D11R 2M 180 60 90
E32-CC200 2M 300 100 150
E32-LD11 2M 180 60 90
E32-LD11R 2M 170 56 85

Cylindrical Models

Detection methodSizeSensing directionModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam 1 dia. Top-view E32-T223R 2M 120 36 60
1.5 dia. E32-T22B 2M 200 60 100
3 dia. E32-T12R 2M 560 160 280
Side-view E32-T14LR 2M 220 66 110
Reflective 1.5 dia. Top-view E32-D22B 2M 30 10 15
1.5 dia. + 0.5 dia. E32-D43M 1M 6 2 3
3 dia. E32-D22R 2M 30 10 15
E32-D221B 2M 70 20 35
E32-D32L 2M 160 50 80
3 dia. + 0.8 dia. E32-D33 2M 16 4 10

Flat Models

Detection methodSensing directionModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam Top-view E32-T15XR 2M 560 160 280
Side-view E32-T15YR 2M 220 66 110
Flat-view E32-T15ZR 2M
Reflective Top-view E32-D15XR 2M 180 60 90
Side-view E32-D15YR 2M 40 10 20
Flat-view E32-D15ZR 2M

Sleeve Models

Detection methodSensing directionModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam Side-view E32-T24R 2M 60 18 30
E32-T24E 2M 180 36 60
Top-view E32-T21-S1 2M 130 43 65
E32-T33 1M 40 13.5 20
E32-TC200BR 2M 560 160 280
Reflective Side-view E32-D24R 2M 14 4.6 7
E32-D24-S2 2M 26 8 13
Top-view E32-D43M 1M 6 2 3
E32-D331 2M 3 1 1.5
E32-D33 2M 16 4 10
E32-D32-S1 0.5M 14 4 7
E32-D31-S1 0.5M
E32-DC200F4R 2M 30 10 15
E32-D22-S1 2M 57 19 28
E32-D21-S3 2M
E32-DC200BR 2M 180 60 90
E32-D25-S3 2M 57 19 28

Small-spot, Reflective

TypeSpot
diameter		Center distance
(mm)		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Variable
spot		 0.1 to
0.6 dia.		 6 to 15 E32-C42 1M + E39-F3A Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
0.3 to
1.6 dia.		 10 to 30 E32-C42 1M + E39-F17 Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel
light		 4 dia. 0 to 20 E32-C31 2M + E39-F3C Spot diameter of 4 mm max. at 0 to 20 mm.
E32-C31N 2M + E39-F3C
Integrated
lens		 0.1 dia. 5 E32-C42S 1M Spot diameter of 0.1 mm at 5 mm.
6 dia. 50 E32-L15 2M Spot diameter of 6 mm at 50 mm.
Small-
spot		 0.1 dia. 7 E32-C41 1M + E39-F3A-5 Spot diameter of 0.1 mm at 7 mm.
0.5 dia. E32-C31 2M + E39-F3A-5 Spot diameter of 0.5 mm at 5 mm.
E32-C31N 2M + E39-F3A-5
0.2 dia. 17 E32-C41 1M + E39-F3B Spot diameter of 0.2 mm at 17 mm.
0.5 dia. E32-C31 2M + E39-F3B Spot diameter of 0.5 mm at 17 mm.
E32-C31N 2M + E39-F3B
3 dia. 50 E32-CC200 2M + E39-F18 Spot diameter of 3 mm at 50 mm.
E32-C11N 2M + E39-F18

High-power Beam

TypeSensing
direction		Aperture
angle		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam
Integrated lens		 Right-angle 15° E32-LT11N 2M 1,800 600 900
Top-view 10° E32-T17L 10M 20,000 *1 8,400 14,000
15° E32-LT11 2M 2,100 700 1,050
15° E32-LT11R 2M 1,800 600 900
Side-view 30° E32-T14 2M 3,600 1,080 1,800
Through-beam
models with
lenses		 Right-angle 12° E32-T11N 2M + E39-F1 3,700 1,110 2,100
6° E32-T11N 2M + E39-F16 4,000 *2 2,000 3,600
Top-view 12° E32-T11R 2M + E39-F1 4,000 *2 1,260 2,100
6° E32-T11R 2M + E39-F16 4,000 *2 2,000 3,600
Side-view 60° E32-T11R 2M + E39-F2 440 130 220
Top-view 12° E32-T11 2M + E39-F1 4,000 *2 1,200 2,000
6° E32-T11 2M + E39-F16 4,000 *2 2,600 4,000 *2
Side-view 60° E32-T11 2M + E39-F2 720 200 360
Top-view 12° E32-T51R 2M + E39-F1 2,000 720 1,650
6° E32-T51R 2M + E39-F16 4,000 *2 1,560 2,900
Side-view 60° E32-T51R 2M + E39-F2 360 120 200
Top-view 12° E32-T81R-S 2M + E39-F1 1,800 630 1,100
6° E32-T81R-S 2M + E39-F16 4,000 *2 1,300 2,300
Side-view 60° E32-T81R-S 2M + E39-F2 280 84 140
Top-view 12° E32-T61-S 2M + E39-F1 4,000 *2 1,800 3,000
6° E32-T61-S 2M + E39-F16 4,000 *2 2,340 3,900
Side-view 60° E32-T61-S 2M + E39-F2 780 260 390
Top-view 12° E32-T51 2M + E39-F1-33 2,400 720 1,400
6° E32-T51 2M + E39-F16 4,000 *2 3,120 4,000 *2
Reflective
Integrated lens		 Top-view 4° E32-D16 2M 800 140 40 to 400

Narrow View

Detection methodSensing
direction		Aperture angleModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam Side-view 1.5° E32-A03 2M 890 267 445
E32-A03-1 2M
3.4° E32-A04 2M 340 102 170
4° E32-T24SR 2M 1170 360 600
E32-T24S 2M 1400 420 700
E32-T22S 2M 2000 600 1000

Detection without Background Interference

Detection
method		Sensing
direction		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Limited-
reflective		 Flat-view E32-L16-N 2M 0 to 15 0 to 12 0 to 15
E32-L24S 2M 0 to 4
Side-view E32-L25L 2M 5.4 to 9 (center 7.2) 5.4 to 8 (center 7.2) 5.4 to 9 (center 7.2)

Transparent Object Detection (Retro-reflective)

Detection
method		FeatureSizeModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Retroreflective
Sensors		 Film detection M3 E32-C31 2M +
E39-F3R + E39-RP37		 220 50 75
Square - E32-R16 2M 1,500 1,000 150 to 1,500
Threaded Models M6 E32-R21 2M 10 to 250 250 10 to 250
Hex-shaped E32-LR11NP 2M +
E39-RP1		 600 200 300

Transparent Object Detection (Limited-reflective)

Detection
method		FeatureSensing
direction		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Retro-
reflective		 Small size Flat-view E32- L24S 2M 0 to 4
Standard E32-L16-N 2M 0 to 15 0 to 12 0 to 15
Glass substrate
alignment, 70°C		 E32-A08 2M 10 to 20
Standard/
long-distance		 E32-A12 2M 12 to 30 - -
Side view form Side-view E32-L25L 2M 5.4 to 9
(center 7.2)		 5.4 to 8
(center 7.2)		 5.4 to 9
(center 7.2)
Glass substrate
mapping, 70°C		 Top-view E32-A09 2M 15 to 38 (center 25)

Chemical-resistant, Oil-resistant

Detection
method		TypeSensing
direction		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-
beam		 Oil-resistant Right-angle E32-T11NF 2M 4,000 * 1,400 2,400
Chemical/
oil-resistant		 Top-view E32-T12F 2M 3,200 960 1,600
E32-T11F 2M 2,100 760 1,050
Side-view E32-T14F 2M 400 120 200
Chemical/oil-
resistant at 150°C		 Top-view E32-T51F 2M 1,400 400 700
Reflective Semiconductors:
Cleaning, developing,
and etching; 60°C		 Top-view E32-L11FP 2M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm), 19 to 31 mm from center of
mounting hole A (Recommended sensing distance:
22 mm)
Semiconductors:
Resist stripping;
85°C		 E32-L11FS 2M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm), 32 to 44 mm from center of
mounting hole A (Recommended sensing distance:
35 mm)
Chemical/
oil-resistant		 E32-D12F 2M 100 32 50
Chemical-resistant
cable		 E32-D11U 2M 180 60 90

*The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Bending-resistant

Detection methodSizeModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam 1.5 dia. E32-T22B 2M 200 60 100
M3 E32-T21 2M
M4 E32-T11 2M 720 200 360
Square E32-T25XB 2M 150 40 75
Reflective 1.5 dia. E32-D22B 2M 30 10 15
M3 E32-D21 2M
3 dia. E32-D221B 2M 70 20 35
M4 E32-D21B 2M
M6 E32-D11 2M 180 60 90
Square E32-D25XB 2M 50 16 25

Heat-resistant

Detection methodHeat-resistant temperatureModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam 100°C E32-T51R 2M 400 120 225
150°C E32-T51 2M 800 240 400
200°C E32-T81R-S 2M 360 100 180
350°C E32-T61-S 2M 600 180 300
Reflective 100°C E32-D51R 2M 140 42 70
150°C E32-D51 2M 240 80 120
200°C E32-D81R 2M 90 27 45
300°C E32-A08H2 2M 10 to 20
E32-A09H2 2M 20 to 30 (center 25)
350°C E32-D61 2M 90 27 45
400°C E32-D73 2M 60 18 30

Area Beam

Detection methodTypeSensing widthModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam Area 11 mm E32-T16PR 2M 800 260 450
E32-T16JR 2M 700 220 390
30 mm E32-T16WR 2M 1380 400 690
Reflective Array 11 mm E32-D36P1 2M 150 50 75

Liquid-level Detection

Detection
method		Pipe
diameter		FeatureModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Tube-mounting 3.2/6.4/
9.5 dia.		 Stable residual
quantity detection		 E32-A01 5M Applicable tube: Transparent tube with a diameter
of 3.2, 6.4, or 9.5 mm, Recommended wall
thickness: 1 mm
8 to 10 dia. Mounting at multi
levels		 E32-L25T 2M Applicable tube: Transparent tube with a diameter
of 8 to 10 mm, Recommended wall thickness:
1 mm
No re-
strictions		 Large tubes E32-D36T 2M Applicable tube: Transparent tube (no restrictions
on diameter)
Liquid contact
(heat-resistant
up to 200°C)		 - - E32-D82F1 4M Liquid-contact model

Vacuum-resistant

Detection methodHeat-resistant
temperature		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Through-beam 120°C E32-T51V 1M 200 - 100
E32-T51V 1M + E39-F1V 1200 - 600
200°C E32-T84SV 1M 500 - 250

FPD, Semiconductors, and Solar Cells

Detection
method		ApplicationOperating
temperature		ModelSensing distance (mm)
E3X-SD[]
E3X-NA[]		E3X-NA[]FE3X-NA[]V
Limited-
reflective		 Glass presence
detection		 70°C E32-L16-N 2M 0 to 15 0 to 12 0 to 15
Glass substrate
alignment		 E32-A08 2M 10 to 20
300°C E32-A08H2 2M
70°C E32-A12 2M 12 to 30 - -
Glass substrate
mapping		 E32-A09 2M 15 to 38 (center 25)
300°C E32-A09H2 2M 20 to 30 (center 25)
Wet processes:
Cleaning, Resist
developing and
etching		 60°C E32-L11FP 2M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm), 19 to 31 mm from center of
mounting hole A (Recommended sensing distance:
22 mm)
Wet process:
Resist stripping		 85°C E32-L11FS 2M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm), 32 to 44 mm from center of
mounting hole A (Recommended sensing distance:
35 mm)
Through-
beam		 Wafer mapping 70°C E32-A03 2M 890 267 445
E32-A03-1 2M
E32-A04 2M 340 102 170
E32-T24SR 2M 1170 360 600
E32-T24S 2M 1400 420 700

Dimensions | Fiber Amplifier Sensor - E3X-SD / NA series

Fiber Amplifier Units

Amplifier Units with Cables
E3X-SD21, E3X-SD51
E3X-NA11, E3X-NA11F
E3X-NA41, E3X-NA41F

E3X-SD / NA Dimensions 2

* There is no hole for E3X-NA[]F models.

Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Fiber Amplifier Units if they are
mounted side by side.

Amplifier Units with Connectors
E3X-SD7, E3X-SD9
E3X-NA6, E3X-NA8

E3X-SD / NA Dimensions 3

Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Fiber Amplifier Units if they are mounted side by side.

Amplifier Units with Cables, Water-resistant Models
E3X-NA11V
E3X-NA41V

E3X-SD / NA Dimensions 4

Amplifier Units with Connectors, Water-resistant Models
E3X-NA14V
E3X-NA44V

E3X-SD / NA Dimensions 5

Amplifier Unit Connectors (Wire-saving Connectors)

Master Connector
E3X-CN11

E3X-SD / NA Dimensions 7

* E3X-CN11: 4 dia. cable / 3 conductors/Standard length: 2 m (Conductor cross section: 0.2 mm2 (AWG24), Insulator diameter: 1.1 mm)

Slave Connector
E3X-CN12

E3X-SD / NA Dimensions 8

* E3X-CN12: 2.6 dia. cable / 1 conductor/Standard length: 2 m (Conductor cross section: 0.2 mm2 (AWG24), Insulator diameter: 1.1 mm)

Accessories (sold separately)

Mounting Brackets
E39-L143

E3X-SD / NA Dimensions 10

Material: Stainless steel (SUS304)

End Plates
PFP-M

E3X-SD / NA Dimensions 11

Features | Fiber Amplifier Sensor - E3X-SD / NA series

  • Reasonable price.
  • Use the one-key one-function feature for quick, easy operation.

Properties | Fiber Amplifier Sensor - E3X-SD / NA series

Fiber Amplifier SensorE3X-SD / NA series
Power supply voltage 12 to 24 VDC ±10%
Power consumption /
Current consumption		 At Power Supply Voltage of 24 VDC
960 mW max. / 40 mA max.
At Power Supply Voltage of 12 VDC
960 mW max. / 80 mA max.
Response time Operate or reset: 200 μs max.
Degree of protection IEC 60529 IP50
Connection method Pre-wired, or connector
Material Polybutylene terephthalate (PBT)

Fiber Amplifier Sensor - E3X-SD / NA series

ดาวน์โหลดไฟล์ PDF
Fiber Amplifier Sensor - E3X-SD / NA series
OMRON Fiber Amplifier - E3X-SD / NA series

คุณสมบัติ | Fiber Amplifier Sensor - E3X-SD / NA series

  • ไฟเบอร์แอมพลิฟายเออร์ยูนิตที่เรียบง่ายและราคาไม่แพง
  • ใช้คุณสมบัติปุ่มเดียวเพื่อความเร็ว, ใช้งานง่าย

ข้อมูลจำเพาะ | Fiber Amplifier Sensor - E3X-SD / NA series

Fiber Amplifier SensorE3X-SD / NA series
แรงดันไฟฟ้า 12 - 24 VDC ± 10%
การใช้พลังงาน ที่แรงดันไฟฟ้าของแหล่งจ่ายไฟ 24 VDC
สูงสุด 960 มิลลิวัตต์ / สูงสุด 40 มิลลิแอมป์
ที่แรงดันไฟฟ้าของแหล่งจ่ายไฟ 12 VDC
สูงสุด 960 มิลลิวัตต์ / สูงสุด 80 มิลลิแอมป์
เวลาตอบสนอง การใช้งานหรือรีเซ็ต สูงสุด 200 ไมโครวินาที
ระดับการป้องกัน IEC 60529 IP50
วิธีการเชื่อมต่อ มีสาย, Connector
วัสดุ โพลีบิวทิลีนเทเรฟทาเลต (PBT

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
