OMRON General Purpose Relay - G2RV-SR

Model Numbers | General Purpose Relay - G2RV-SR

Model Number Structure

Model Number Legend

Ordering Information

Terminal (Wire connection)	Classification	Latching lever (Test switch)	Rated input voltage (V)		Model
Push-In Plus Terminal	Standard	No	DC	12	G2RV-SR500 DC12
				24	G2RV-SR500 DC24
			AC/DC	24	G2RV-SR500 AC/DC24
				48	G2RV-SR500 AC/DC48
			AC	100	G2RV-SR500 AC100
				110	G2RV-SR500 AC110
				200	G2RV-SR500 AC200
				230	G2RV-SR500 AC230
		Yes	DC	24	G2RV-SR501 DC24
			AC/DC	24	G2RV-SR501 AC/DC24
	Microloads	No	DC	12	G2RV-SR500-AP DC12
				24	G2RV-SR500-AP DC24
			AC/DC	24	G2RV-SR500-AP AC/DC24
				48	G2RV-SR500-AP AC/DC48
			AC	100	G2RV-SR500-AP AC100
				110	G2RV-SR500-AP AC110
				200	G2RV-SR500-AP AC200
				230	G2RV-SR500-AP AC230
Screw terminal	Standard	No	DC	12	G2RV-SR700 DC12
				24	G2RV-SR700 DC24
			AC/DC	24	G2RV-SR700 AC/DC24
				48	G2RV-SR700 AC/DC48
			AC	100	G2RV-SR700 AC100
				110	G2RV-SR700 AC110
				200	G2RV-SR700 AC200
				230	G2RV-SR700 AC230
		Yes	DC	24	G2RV-SR701 DC24
			AC/DC	24	G2RV-SR701 AC/DC24
	Microloads	No	DC	12	G2RV-SR700-AP DC12
				24	G2RV-SR700-AP DC24
			AC/DC	24	G2RV-SR700-AP AC/DC24
				48	G2RV-SR700-AP AC/DC48
			AC	100	G2RV-SR700-AP AC100
				110	G2RV-SR700-AP AC110
				200	G2RV-SR700-AP AC200
				230	G2RV-SR700-AP AC230

Note: Sockets are not sold individually.

Relay for Maintenance

Model Number Legend

Type	Latching Lever (Test switch)	Rated coil voltage (V)		Model	Applicable model
Standard	No	DC	11	G2RV-1-S-G DC11	G2RV-SR700/500 DC12V
			21	G2RV-1-S-G DC21	G2RV-SR700/500 DC24V
					G2RV-SR700/500 AC/DC24V
			48	G2RV-1-S-G DC48	G2RV-SR700/500 AC/DC48V
					G2RV-SR700/500 AC100V
					G2RV-SR700/500 AC110V
					G2RV-SR700/500 AC200V
					G2RV-SR700/500 AC230V
	Yes	DC	21	G2RV-1-SI-G DC21	G2RV-SR701/501 DC24V
					G2RV-SR701/501 AC/DC24V
Microload	No	DC	11	G2RV-1-S-AP-G DC11	G2RV-SR700/500-AP DC12V
			21	G2RV-1-S-AP-G DC21	G2RV-SR700/500-AP DC24V
					G2RV-SR700/500-AP AC/DC24V
			48	G2RV-1-S-AP-G DC48	G2RV-SR700/500-AP AC/DC48V
					G2RV-SR700/500-AP AC100V
					G2RV-SR700/500-AP AC110V
					G2RV-SR700/500-AP AC200V
					G2RV-SR700/500-AP AC230V

Note: Voltage is reduced within the socket for the slim I/O relay, so the rated input voltage and rated coil voltage of
replacement relays are different.

Accessories (order separately)

Short Bars

Appearance	Pitch	No. of poles	Colors	Model *	Minimum order (Quantity)	Maximum energizing current
	6.2 mm	2	Red (R), Blue (S), Yellow (Y)	PYDN-6.2-020[]	10	32 A
		3		PYDN-6.2-030[]
		4		PYDN-6.2-040[]
		10		PYDN-6.2-100[]
		20		PYDN-6.2-200[]

Note: Use for wiring to the adjacent socket.
* Replace the box ([]) in the model number with the code for the covering color. [] color selection: R = red, S = blue, Y = yellow

Label

Appearance	Model	Minimum order (Sheet) (Pieces per sheet)
	XW5Z-P2.5LB1 *	5 (1 sheet/72 pieces)
	XW5Z-P2.5LB2

* Available following June 2017 production.

Separate Plate

Appearance	Model
	XW5Z-EP12

PLC interface unit

Appearance	I/O classification	Connection method	Common process	Applicable Models *	Model
	For input	Push-In	PNP	G2RV-SR500-AP	P2RVC-8-I-5-1
			NPN		P2RVC-8-I-5
		Screw	PNP	G2RV-SR700-AP	P2RVC-8-I-7-1
	For output	Push-In	PNP	G2RV-SR500 G2RV-SR501 G3RV-SR500	P2RVC-8-O-5-1
			NPN		P2RVC-8-O-5
		Screw	PNP	G2RV-SR700 G2RV-SR701 G3RV-SR700	P2RVC-8-O-7-1

* Please make sure applicable models, P2RVC can not be used other combination than the above table.

Parts for DIN Track Mounting

Appearance	Type		Model	Minimum order (Quantity)
	DIN Tracks	1 m	PFP-100N	1
		0.5 m	PFP-50N
	End Plate *		PFP-M	10
	Spacer		PFP-S

* When mounting DIN Track, please use End Plate (PFP-M).

Applicable Cables

Name		Appearance	Cable length L (mm)	Connecting Cables	Applicable Connectors
Cables with Loose Wires P2RV-A[]C	8 I/O points		1,000	P2RV-A100C	Various devices
			2,000	P2RV-A200C
			3,000	P2RV-A300C
			5,000	P2RV-A500C
OMRON PLC Connecting Cables with Connectors (1:4) P2RV-4-[]C	32 output points		1,000	P2RV-4-100C	PLC I/O Units with MIL connectors (1:4) CJ1W-OD232/OD262, etc.
			2,000	P2RV-4-200C
			3,000	P2RV-4-300C
			5,000	P2RV-4-500C
OMRON PLC Connecting Cables with Connectors (1:4) P2RV-4-[]IMC	32 input points		1,000	P2RV-4-100IMC	PLC I/O Units with MIL connectors (1:4) CJ1W-ID232/ID262, etc. *1
			2,000	P2RV-4-200IMC
			3,000	P2RV-4-300IMC
			5,000	P2RV-4-500IMC
OMRON PLC Connecting Cables with Connectors (1:4) P2RV-4-[]IFC	32 input points		1,000	P2RV-4-100IFC	PLC I/O Units with Fujitsu connectors (1:4) CJ1W-ID231/ID261, etc. *2
			2,000	P2RV-4-200IFC
			3,000	P2RV-4-300IFC
			5,000	P2RV-4-500IFC
OMRON PLC Connecting Cables with Connectors (1:1) P2RV-A[]C-OMR GRT1	8 output points		500	P2RV-A050C-OMR GRT1	Slice I/O Units (1:1) For inputs: GRT1-ID8-1 For outputs: GRT1-OD8-1
			1,000	P2RV-A100C-OMR GRT1
	8 input points		500	P2RV-A050IC-OMR GRT1
			1,000	P2RV-A100IC-OMR GRT1
OMRON PLC Connecting Cables with Connectors (1:1) P2RV-A[]C-OMR NX	8 output points		500	P2RV-A050C-OMR NX	PLC I/O Units with screw-less clamp terminal block (1:1) For inputs: NX-ID4442 For outputs: NX-OD4256
			1,000	P2RV-A100C-OMR NX
	8 input points		500	P2RV-A050IC-OMR NX
			1,000	P2RV-A100IC-OMR NX
Schneider Electric PLC Connecting Cables P2RV-[]C-SCH-[]	32 input points		500	P2RV-050C-SCH-A	Schneider Electric PLCs with 32-point connectors (1:4) For inputs: 140 DDI 353 00 For outputs: 140 DDO 353 00
			1,000	P2RV-100C-SCH-A
			2,000	P2RV-200C-SCH-A
			3,000	P2RV-300C-SCH-A
			5,000	P2RV-500C-SCH-A
	32 output points		500	P2RV-050C-SCH-B
			1,000	P2RV-100C-SCH-B
			2,000	P2RV-200C-SCH-B
			3,000	P2RV-300C-SCH-B
			5,000	P2RV-500C-SCH-B
	16 input points		500	P2RV-050C-SCH-C	Schneider Electric PLCs with 16-point connectors (1:2) For inputs: BMX DDI 1602 For outputs: BMX DDO 1602
			1,000	P2RV-100C-SCH-C
			2,000	P2RV-200C-SCH-C
			3,000	P2RV-300C-SCH-C
			5,000	P2RV-500C-SCH-C
	16 output points		500	P2RV-050C-SCH-D
			1,000	P2RV-100C-SCH-D
			2,000	P2RV-200C-SCH-D
			3,000	P2RV-300C-SCH-D
			5,000	P2RV-500C-SCH-D
Siemens PLC Connecting Cables P2RV-[]C-SIM-[]	32 input points		500	P2RV-050C-SIM-A	Siemens PLCs with 32-point connectors (1:4) For inputs: 6ES7 321-1BL00-0AA0 For outputs: 6ES7 322-1BL00-0AA0
			1,000	P2RV-100C-SIM-A
			2,000	P2RV-200C-SIM-A
			3,000	P2RV-300C-SIM-A
			5,000	P2RV-500C-SIM-A
	32 output points		500	P2RV-050C-SIM-B
			1,000	P2RV-100C-SIM-B
			2,000	P2RV-200C-SIM-B
			3,000	P2RV-300C-SIM-B
			5,000	P2RV-500C-SIM-B
	16 input points		500	P2RV-050C-SIM-C	Siemens PLCs with 16-point connectors (1:2) For inputs: 6ES7 321-1BH02-0AA0
			1,000	P2RV-100C-SIM-C
			2,000	P2RV-200C-SIM-C
			3,000	P2RV-300C-SIM-C
			5,000	P2RV-500C-SIM-C
	32 input points		500	P2RV-050C-SIM-D	Siemens PLCs with 32-point connectors (1:4) For inputs: 6ES7 421-1BL-0AA0 For outputs: 6ES7 422-1BL-0AA0
			1,000	P2RV-100C-SIM-D
			2,000	P2RV-200C-SIM-D
			3,000	P2RV-300C-SIM-D
			5,000	P2RV-500C-SIM-D
	32 output points		500	P2RV-050C-SIM-E
			1,000	P2RV-100C-SIM-E
			2,000	P2RV-200C-SIM-E
			3,000	P2RV-300C-SIM-E
			5,000	P2RV-500C-SIM-E

*1. Use the P2RVC-8-I-[]-1(PNP) as the PLC interface unit when connecting to the CJ1W-ID232/ID262 (or a unit with an equivalent terminal arrangement).
*2. Use the P2RVC-8-I-[]-1(PNP) as the PLC interface unit when connecting to the CJ1W-ID231/ID261 (or a unit with an
equivalent terminal arrangement).

Specifications | General Purpose Relay - G2RV-SR

Ratings

Coil ratings

Rated input voltage	Rated current			Must operate voltage	Must release voltage	Power consumption		Maximum allowable voltage
	AC		DC	Percentage of the rated voltage		AC (VA)	DC (mW)	Percentage of the rated voltage
	50 Hz	60 Hz
12 VDC	-	-	27.9 mA	80% max.*	10% min.	-	Approx. 300 mW	110%
24 VDC	-	-	13.5 mA			-	Approx. 300 mW
24 VAC/VDC	12.5 mA	12.6 mA	12.6 mA			Approx. 0.5 VA	Approx. 300 mW
48 VAC/VDC	5.9 mA	6.1 mA	5.2 mA			Approx. 0.4 VA	Approx. 250 mW
100 VAC	5.9 mA	6.0 mA	-			Approx. 0.8 VA	-
110 VAC	5.9 mA	5.9 mA	-			Approx. 0.8 VA	-
200 VAC	6.6 mA	7.6 mA	-			Approx. 1.7 VA	-
230 VAC	7.3 mA	8.4 mA	-			Approx. 1.7 VA	-

Note: The operating characteristics are measured at ambient temperature of 23°C.
* Operating voltage will be, for mounting in the upside down direction, 85% max.
(Upside down: Direction in which the mechanical indicator faces down)

Contact ratings

Item	Standard (G2RV-SR700, 500, 701, 501)		For microloads (G2RV-SR700-AP, 500-AP) *2
Contact configuration	SPDT
Load	Resistive load (cosφ=1)	Inductive load (cosφ=0.4, L/R=7ms)	Resistive load (cosφ=1)
Rated load	6 A at 250 VAC 6 A at 30 VDC	2.5 A at 250 VAC 2 A at 30 VDC	50 mA at 30 VAC 50 mA at 36 VDC
Rated carry current	6 A		50 mA
Maximum switching voltage	440 VAC, 125 VDC		30 VAC, 36 VDC
Maximum switching current	6 A		50 mA
Maximum switching power	1,500 VA 180 W	500 VA 60 W	-
Failure rate P value (reference value) *1	10 mA at 5 VDC		1 mA at 100 mVDC

*1. P level: λ₆₀=0.1×10^-6/times
This value is the value in switching frequency 120 operations/min.
*2. If the Au plating layer is destroyed, the number will be the same as the standard type.

Characteristics

Item		Standard (G2RV-SR700, 500, 701, 501)	For microloads (G2RV-SR700-AP, 500-AP)
Contact resistance *1		100 mΩ max.
Operate (Set) time *1		20 ms max.
Release time *1		AC, AC/DC: 40 ms max. DC: 20 ms max.
Maximum operating frequency		Mechanical: 18,000 operations/h Electrical: 1,800 operations/h (rated load)
Insulation resistance		1,000 MΩ min. (at 500 VDC)
Dielectric strength		Between coil and contacts: 4,000VAC 50/60 Hz 1 min Contact between the same polarity: 1,000 VAC 50/60 Hz 1 min
Vibration resistance *2		Destruction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm) Malfunction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm)
Shock resistance *2		Destruction: 1,000 m/s2 Malfunction: Energized 200m/s2, Non-energized 100m/s2
Endurance *1	Mechanical	5,000,000 operations min.
	Electrical	NO contact: 70,000 operations min. NC contact: 50,000 operations min.	5,000,000 operations min.
Ambient operating temperature		Operating: -40 to +55°C (with no icing or condensation)
Ambient operating humidity		Operating: 5 to 85% RH
Weight		Approx. 30 g
Contact material		Ag alloy	Ag alloy + Au plating

Note: Above values are initial values.
*1. Value is at ambient temperature of 23°C.
*2. Value when the end plate is used.

Approved standards

UL508 (file No.E41643)

Model	Contact form	Operation coil ratings	Contact ratings	Operations
G2RV-SR series	SPDT	12 to 48 VDC 24 to 230 VAC	6 A at 250 VAC (Resistive load) 6 A at 30 VDC (Resistive load) 2 A at 400 VAC (Resistive load)*	6,000

* If the load voltage exceeds 250 VAC, please attach with a spacing of 12 mm min., or use a separate plate (XW5Z-EP12).

TÜV (EN 61810-1)

Model	Contact form	Operation coil ratings	Contact ratings	Operations
G2RV-SR series	SPDT	12, 24 VDC 24, 48 VAC/VDC 100, 110, 200, 230 VAC	6 A at 250 VAC (Resistive load) 6 A at 30 VDC (Resistive load) 2 A at 400 VAC (Resistive load)*	50,000 50,000 6,000

* If the load voltage exceeds 250 VAC, please attach with a spacing of 12 mm min., or use a separate plate (XW5Z-EP12).

Lloyd's (File No.07/10020)

Model	Contact form	Operation coil ratings	Contact ratings
G2RV-SR500 G2RV-SR700	SPDT	12, 24 VDC 24, 48 VAC/VDC 100, 110, 200, 230 VAC	6 A at 250 VAC (Resistive load)
			2.5 A at 250 VAC (PF0.4)
			6 A at 30 VAC (Ress)
			2 A at 30 VDC (L/R=7ms)
G2RV-SR501 G2RV-SR701	SPDT	12, 24 VDC 24 VAC/VDC	6 A at 250 VAC (Resistive load)
			2.5 A at 250 VAC (PF0.4)
			6 A at 30 VAC (Ress)
			2 A at 30 VDC (L/R=7ms)
G2RV-SR500-AP G2RV-SR700-AP	SPDT	12, 24 VDC 24, 48 VAC/VDC 100, 110, 200, 230 VAC	0.05 A at 30 VAC (Resistive load) 0.05 A at 36 VDC (Resistive load)

Dimensions | General Purpose Relay - G2RV-SR

(Unit: mm)

Slim I/O Relay + socket

Push-In Plus Terminal Block

Models without latching lever (without test switch)
G2RV-SR500
G2RV-SR500-AP

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Seet.

Models with latching lever (with test switch)
G2RV-SR501

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Screw terminal

Models without latching lever (without test switch)
G2RV-SR700
G2RV-SR700-AP

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Models with latching lever (with test switch)
G2RV-SR701

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Relay for maintenance

Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G

Models with latching lever (test switch)
G2RV-1-SI-G

Accessories (order separately)

PLC interface unit

Push-IN
P2RVC-8-I-5(-1)
P2RVC-8-O-5(-1)

Screw
P2RVC-8-I-7-1
P2RVC-8-O-7-1

Except for PLC interface unit

Short Bars
PYDN-6.2-[][] (6.2 mm)

Separate Plate
XW5Z-EP12

Features | General Purpose Relay - G2RV-SR

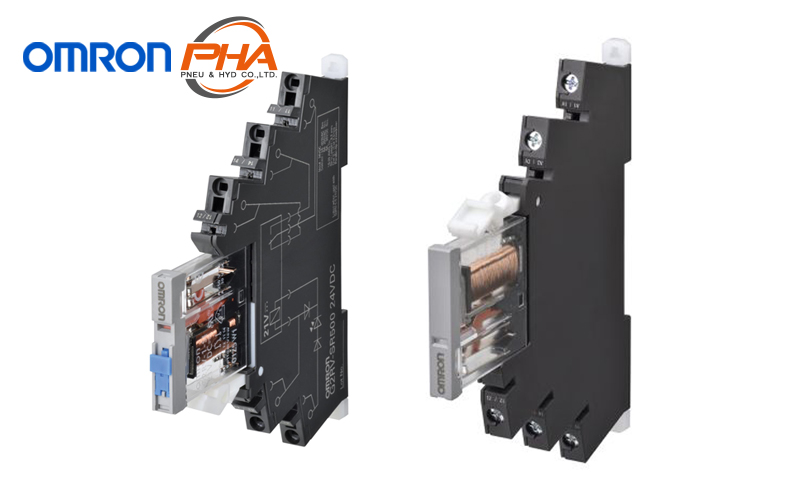

G2RV-SR is a slim type General Purpose Relays, 6.2mm wide, helps to minimize the panel size, has Push in Plus technology, used to save wiring compared to conventional screw terminals. (60% less wiring time compared to traditional screw terminals) Since G2RV is a transparent case, the status can be confirmed. Of the contact with the naked eye And it is easy to confirm the anomaly in the operating area in the operating area (Installed position)

---

Properties | General Purpose Relay - G2RV-SR

General Purpose Relay		G2RV-SR
Rated voltage		24, 48, 100, 110, 200, 230 VAC
		12, 24, 48 VDC
Power consumption		0.4 - 1.7 VA
		250 - 300 mW
Contact configuration		SPDT
Load rating	standard	6 A ที่ 250 VAC, 6 A ที่ 30 VDC (Resistance load)
		2.5 A ที่ 250 VAC, 2 A ที่ 30 VDC (Inductive load)
	For microloads	50 mA ที่ 30 VAC, 50mA ที่ 36 VDC (Resistance load)
Size (W x H x D) mm	G2RV-SR500 G2RV-SR500-AP G2RV-SR501	6.2 x 90 x 78
	G2RV-SR501 R2RV-SR701	6.2 x 90 x 81
Weight (g)		30
