MITSUBISHI Gear Motor - CYCLO Drive

Gear Motor - CYCLO Drive

Mitsubishi CYCLO Drive (CNHM, CHHM - ซีรีส์)

Item		Standard Specification
motor	Capacity Range	1/2 ~ 10 HP 4 P
	Enciosure	Totally Enclosed Fan Cooled Type
	Degrees of Protection	IP55
	Voltage and Frequency	๐ Low Voltage (LT) : 1/2~10 HP = 220/380~415 V 50Hz, 220/440 V 60Hz ๐ High Voltage (HT) : 5~10 HP = 380~415 V 50Hz, 380~415 V 50Hz, 380~440 V 60Hz
	Frame Meterial	Steel Plate
	Thermal class	155 (F)
	Rating	S1 (contionuous)
	Connection Type	Terminal Block (6 Leads)

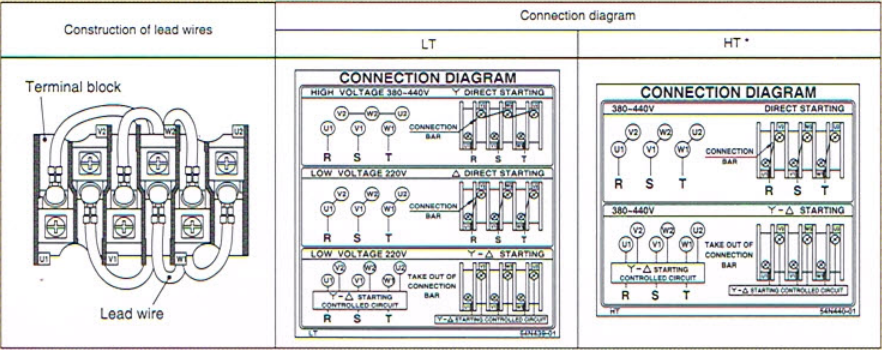

	connection Diagram
Cyclo Drive	Lubrication Method	Grease Lubrication (Frame Size 6080~6125) Oil Lubrication (Frame Size 6130~6175)
Cyclo Drive	Speed Reduction Method	Interanl planentary gear mechanism with trochoidal curved tooth profile
Circumstance Condition	Ambient Temperature	-20^๐C ~ +40^๐C
	Ambient Humidity	95% RH or less
	Above sea Level	1000 m. or less
	Environment	No bursting / erosive gas or vapor
Method of mounting		CNHM / CHHM type : Slow speed shafy si in horizontal direction and mount horizontally on foot
