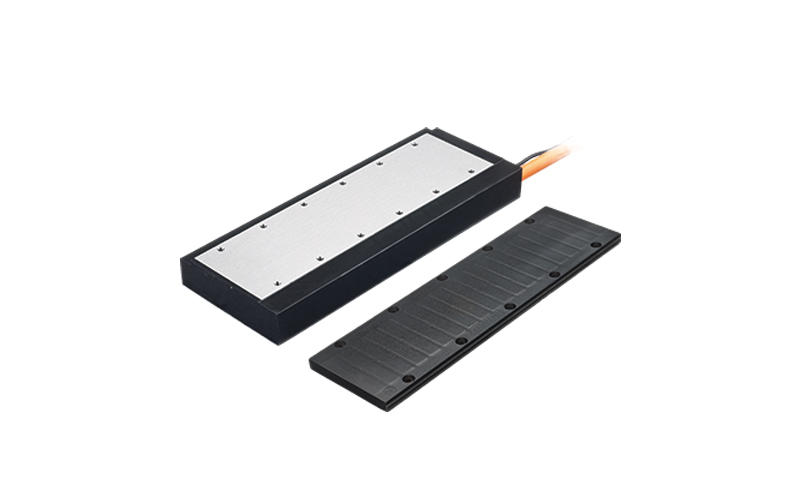

The HIWIN synchronous linear motor LMSA is a larger thrust type of linear drive motor product. It features high thrust density and low cogging force.
Linear Ironcore Motors - LMSA series
Feature | Ironcore Motors - LMSA series
The three-phase motor iron core is comprised of a primary side (forer) and secondary side (stator) permanents. The stator can be infinitely extended, so the stroke will be unrestricted.
High force density
High dynamic response
Lower installation height
Continuous force from 103N to 1579N
Peak force from 289N to 4458N
Assembly total height 34mm, 36mm

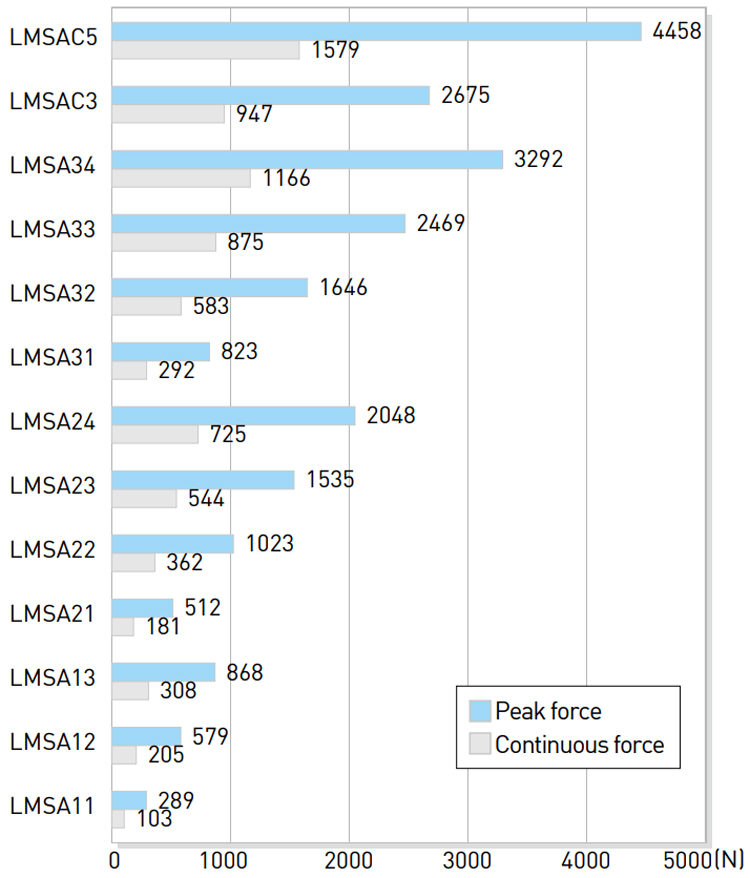

Force Chart | Ironcore Motors - LMSA series
Specifications | Ironcore Motors - LMSA series
ตารางสเปค 1 (Specification 1)
LMSA series
Symbol
Unit
LMSA11
LMSA11L
LMSA12
LMSA12L
LMSA13
LMSA13L
LMSA21
LMSA21L
LMSA22
LMSA22L
Continuous force
Fc
N
103
103
205
205
308
308
181
181
362
362
Continuous current
Ic
Arms
2.1
4.7
4.2
9.4
6.3
14.1
2.0
4.4
3.9
8.8
Peak force (1s)
Fp
N
289
289
579
579
868
868
512
512
1023
1023
Peak current (1s)
Ip
Arms
6.3
14.1
12.7
28.3
190
42.4
5.9
13.1
11.8
26.3
Ultimate force (0.5s)
Fu
N
379
379
759
759
1138
1138
670
670
1341
1341
Ultimate current (0.5s)
Iu
Arms
10.6
23.6
21.1
47.1
31.7
70.7
9.8
21.9
19.6
43.8
Force constant
Kf
N/Arms
48.6
21.7
48.6
21.7
48.6
21.7
92.5
41.4
92.5
41.4
Attraction force
Fa
N
481
481
963
963
1444
1444
963
963
1926
1926
Maximum winding temperature
Tmax
°C
120
Electrical time constant
Ke
ms
4.4
4.3
4.5
4.1
4.4
4.0
4.6
4.6
4.9
4.6
Resistance (line to line 25°C)
R25
Ω
8.4
1.7
4.1
0.9
2.8
0.6
13.8
2.8
6.8
1.4
Resistance (line to line 120°C)
R120
Ω
11.6
2.3
5.7
1.2
3.9
0.8
19.0
3.9
9.4
1.9
Inductance (line to line)
L
mH
37.1
7.3
18.5
3.7
12.4
2.4
64.0
12.8
33.0
6.4
Pole pair pitch
2T
mm
30
Minimum bending radius of cable
Rbend
mm
69
Back emf constant (ine to line)
KY
Vrms/(m/s)
28.1
12.6
28.1
12.6
28.1
12.6
53.4
23.9
53.4
23.9
Motor constant (25°C)
Km
N/✓W
13.7
13.6
19.6
18.7
23.7
22.9
20.3
20.2
28.9
28.6
Thermal resistance
RTH
°C/W
1.23
1.23
0.63
0.63
0.41
0.41
0.87
0.87
0.44
0.44
Thermal time constant
tTH
s
1830
1830
2720
2720
4210
4210
2830
2830
4060
4060
Thermal switch
-
-
3 PTC SNM12 In Series
Maximum DC nus voltage
-
VDC
600
Mass of forcer
Mf
kg
0.7
0.7
1.4
1.4
2.1
2.1
1.1
1.1
2.2
2.2
Unit mass forcer
Ms
kg/m
2.7
2.7
2.7
2.7
2.7
2.7
4.8
4.8
4.8
4.8
Width of stator
Ws
mm
52
52
52
52
52
52
86
86
86
86
Length of stator/Dimension N
Ls
mm
120mm/N=2, 180mm/N=3, 300mm/N=5
Stator mounting distance
Ws1
mm
42
42
42
42
42
42
74
74
74
74
Total installation height
H
mm
34
34
34
34
34
34
34
34
34
34
The data of this table are values without forced cooling.
Except dimensions, the electrical specifications are in ±10% of tolerance.
We reserve the right to change, please follow customer recognition drawings.
ตารางสเปค 2 (Specification 2)
LMSA series
Symbol
Unit
LMSA23
LMSA23L
LMSA24
LMSA24L
LMSA31
LMSA31L
LMSA32
LMSA32L
LMSA33
LMSA33L
Continuous force
Fc
N
544
544
725
725
292
292
583
583
875
875
Continuous current
Ic
Arms
5.9
13.1
7.8
17.5
2.0
4.5
4.0
8.9
6.0
13.4
Peak force (1s)
Fp
N
1535
1535
2048
2048
823
823
1646
1646
2469
2469
Peak current (1s)
Ip
Arms
17.6
39.4
23.5
52.5
6.0
13.4
12.0
26.8
18.0
40.2
Ultimate force (0.5s)
Fu
N
2011
2011
2682
2682
1079
1079
2157
2157
3236
3236
Ultimate current (0.5s)
Iu
Arms
29.4
65.7
39.2
87.6
10.0
22.3
20.0
44.7
30.0
67.0
Force constant
Kf
N/Arms
92.5
41.4
92.5
41.4
145.8
65.2
145.8
65.2
145.8
65.2
Attraction force
Fa
N
2888
2888
3851
3851
1444
1444
2888
2888
4333
4333
Maximum winding temperature
Tmax
°C
120
Electrical time constant
Ke
ms
4.9
4.8
4.6
4.7
4.9
4.9
4.9
4.9
4.9
5.0
Resistance (line to line 25°C)
R25
Ω
4.6
0.9
3.5
0.7
19.2
4.0
9.6
2.0
6.4
1.3
Resistance (line to line 120°C)
R120
Ω
6.3
1.2
4.8
0.9
26.5
5.5
13.2
2.8
8.8
1.8
Inductance (line to line)
L
mH
22.4
4.3
16.0
3.2
94.1
19.6
47.1
9.8
31.3
6.5
Pole pair pitch
2T
mm
30
Minimum bending radius of cable
Rbend
mm
69
Back emf constant (ine to line)
KY
Vrms/(m/s)
53.4
23.9
53.4
23.9
84.2
37.7
84.2
37.7
84.2
37.7
Motor constant (25°C)
Km
N/✓W
35.2
35.6
40.6
40.8
27.2
26.6
38.4
37.7
47.0
46.7
Thermal resistance
RTH
°C/W
0.29
0.29
0.22
0.22
0.60
0.60
0.30
0.30
0.20
0.20
Thermal time constant
tTH
s
5080
5080
-
-
4540
4540
5740
5740
5580
5580
Thermal switch
-
-
3 PTC SNM12 In Series
Maximum DC nus voltage
-
VDC
600
Mass of forcer
Mf
kg
3.3
3.3
4.4
4.4
1.9
1.9
3.8
3.8
5.7
5.7
Unit mass forcer
Ms
kg/m
4.8
4.8
4.8
8.5
8.5
8.5
8.5
8.5
8.5
8.5
Width of stator
Ws
mm
86
86
86
86
116
116
116
116
116
116
Length of stator/Dimension N
Ls
mm
120mm/N=2, 180mm/N=3, 300mm/N=5
Stator mounting distance
Ws1
mm
74
74
74
74
104
104
104
104
104
104
Total installation height
H
mm
34
34
34
34
36
36
36
36
36
36
The data of this table are values without forced cooling.
Except dimensions, the electrical specifications are in ±10% of tolerance.
We reserve the right to change, please follow customer recognition drawings.
ตารางสเปค 3 (Specification 3)
LMSA series
Symbol
Unit
LMSA34
LMSA34L
LMSAC3
LMSAC3L
LMSAC5
LMSAC5L
Continuous force
Fc
N
1166
1166
947
947
1579
1579
Continuous current
Ic
Arms
8.0
17.9
6.0
13.4
10.0
22.3
Peak force (1s)
Fp
N
3292
3292
2675
2675
4458
4458
Peak current (1s)
Ip
Arms
24.0
53.6
18.0
40.2
30.0
67.0
Ultimate force (0.5s)
Fu
N
4314
4314
3505
3505
5842
5842
Ultimate current (0.5s)
Iu
Arms
40.0
89.4
30.0
67.0
50.0
111.7
Force constant
Kf
N/Arms
145.8
65.2
157.9
70.7
157.9
70.7
Attraction force
Fa
N
5777
5777
4694
4694
7823
7823
Maximum winding temperature
Tmax
°C
120
Electrical time constant
Ke
ms
4.9
4.9
5.0
5.0
5.0
5.0
Resistance (line to line 25°C)
R25
Ω
4.8
1.0
6.8
1.4
4.1
0.8
Resistance (line to line 120°C)
R120
Ω
6.6
1.4
9.4
1.9
5.7
1.1
Inductance (line to line)
L
mH
23.5
4.9
33.8
6.8
20.3
4.1
Pole pair pitch
2T
mm
30
Minimum bending radius of cable
Rbend
mm
69
Back emf constant (ine to line)
KY
Vrms/(m/s)
84.2
37.7
91.2
40.8
91.2
40.8
Motor constant (25°C)
Km
N/✓W
54.3
53.3
49.3
49.5
63.7
63.9
Thermal resistance
RTH
°C/W
0.15
0.14
0.19
0.19
0.11
0.11
Thermal time constant
tTH
s
-
-
-
-
-
-
Thermal switch
-
-
3 PTC SNM12 In Series
Maximum DC nus voltage
-
VDC
600
Mass of forcer
Mf
kg
7.6
7.6
6.3
6.3
10.5
10.5
Unit mass forcer
Ms
kg/m
8.5
8.5
9.7
9.7
9.7
9.7
Width of stator
Ws
mm
116
116
126
126
126
126
Length of stator/Dimension N
Ls
mm
120mm/N=2, 180mm/N=3, 300mm/N=5
Stator mounting distance
Ws1
mm
104
104
114
114
114
114
Total installation height
H
mm
36
36
36
36
36
36
The data of this table are values without forced cooling.
Except dimensions, the electrical specifications are in ±10% of tolerance.
We reserve the right to change, please follow customer recognition drawings.
